FreeType fonts and underline/strikethrough emphasis
Some questions: - Did this ever work ? - We have some code for drawing the underline/strikethrough, but it is only used for tree and listrenderer (and AFAIK only checks the first text entry element for the used emphasis) - setting the emphasis on LogicalFont is only propagated to the realfont if emphasis is bold or italic, others like underline and strikethrough are ignored with the comment: "we only handle bold and italic here since underline/strikeout are drawn separately" I don't want to move this display underline/strikethrough code into LogicalFont if it was removed on purpose. other ideas how to handle this? (see issue 15362 <https://pharo.fogbugz.com/default.asp?15362> No "underline" or "stroke out" emphasis on FT fonts) nicolai
2015-05-04 22:51 GMT+02:00 Nicolai Hess <nicolaihess@web.de>:
Some questions: - Did this ever work ? - We have some code for drawing the underline/strikethrough, but it is only used for tree and listrenderer (and AFAIK only checks the first text entry element for the used emphasis) - setting the emphasis on LogicalFont is only propagated to the realfont if emphasis is bold or italic, others like underline and strikethrough are ignored with the comment: "we only handle bold and italic here since underline/strikeout are drawn separately"
I don't want to move this display underline/strikethrough code into LogicalFont if it was removed on purpose.
other ideas how to handle this?
(see issue 15362 <https://pharo.fogbugz.com/default.asp?15362> No "underline" or "stroke out" emphasis on FT fonts)
I think this worked in pharo 1 and pharo 2. Now I have to find out why it does not work anymore.
nicolai
Nicolai Hess wrote
I think this worked in pharo 1 and pharo 2. Now I have to find out why it does not work anymore.
Off the top of my head, I remember having a problem when the font I requested didn't exist. I would get a fallback font without any of the emphases I requested. HTH. ----- Cheers, Sean -- View this message in context: http://forum.world.st/FreeType-fonts-and-underline-strikethrough-emphasis-tp... Sent from the Pharo Smalltalk Developers mailing list archive at Nabble.com.
Thanks for the feedback, Sean. Meanwhile, I think I found the reason. I think it got lost during the merge of Display- and MultiDisplayScanner. I upload a fix, ready for review. Nicolai Am 15.05.2015 5:21 nachm. schrieb "Sean P. DeNigris" <sean@clipperadams.com
:
Nicolai Hess wrote
I think this worked in pharo 1 and pharo 2. Now I have to find out why it does not work anymore.
Off the top of my head, I remember having a problem when the font I requested didn't exist. I would get a fallback font without any of the emphases I requested. HTH.
----- Cheers, Sean -- View this message in context: http://forum.world.st/FreeType-fonts-and-underline-strikethrough-emphasis-tp... Sent from the Pharo Smalltalk Developers mailing list archive at Nabble.com.
2015-05-15 18:10 GMT+02:00 Nicolai Hess <nicolaihess@web.de>:
Thanks for the feedback, Sean. Meanwhile, I think I found the reason. I think it got lost during the merge of Display- and MultiDisplayScanner. I upload a fix, ready for review.
Athens TextMorph drawing does not support this yet. And I think there is now support for this in TxText. Anyone knows how about Rubric? I saw some examples with texdecorations, but I don't see how they are used from within an editor.
Nicolai Am 15.05.2015 5:21 nachm. schrieb "Sean P. DeNigris" < sean@clipperadams.com>:
Nicolai Hess wrote
I think this worked in pharo 1 and pharo 2. Now I have to find out why it does not work anymore.
Off the top of my head, I remember having a problem when the font I requested didn't exist. I would get a fallback font without any of the emphases I requested. HTH.
----- Cheers, Sean -- View this message in context: http://forum.world.st/FreeType-fonts-and-underline-strikethrough-emphasis-tp... Sent from the Pharo Smalltalk Developers mailing list archive at Nabble.com.
Hello Nicolai, Iâve pushed your fixe into Rubric. It works as expected. thanks a lot!. Cheers Alain -------------------- | font1 font2 tMorph | font1 := TextFontReference toFont: (StrikeFont familyName: 'Bitmap DejaVu Sans' size: 11). font2 := TextFontReference toFont: (LogicalFont familyName: 'Source Sans Pro' pointSize: 10). {font1. font2} do: [ :f | | t1 t2 t3 t4 t5 t6 | tMorph := RubEditingArea new. t1 := 'normal\' withCRs asText addAttribute: f. t2 := 'bold\' withCRs asText addAttribute: f; addAttribute: TextEmphasis bold. t3 := 'underline\' withCRs asText addAttribute: f; addAttribute: TextEmphasis underlined. t4 := 'struck out\' withCRs asText addAttribute: f; addAttribute: TextEmphasis struckOut. t5 := 'italic\' withCRs asText addAttribute: f; addAttribute: TextEmphasis italic. t6 := 'narrow\' withCRs asText addAttribute: f; addAttribute: TextEmphasis narrow. tMorph updateTextWith: t1 , t2 , t3 , t4 , t5 , t6. tMorph openInWorld ] ------------
On 15 May 2015, at 22:33, Nicolai Hess <nicolaihess@web.de> wrote:
2015-05-15 18:10 GMT+02:00 Nicolai Hess <nicolaihess@web.de <mailto:nicolaihess@web.de>>: Thanks for the feedback, Sean. Meanwhile, I think I found the reason. I think it got lost during the merge of Display- and MultiDisplayScanner. I upload a fix, ready for review.
Athens TextMorph drawing does not support this yet. And I think there is now support for this in TxText.
Anyone knows how about Rubric? I saw some examples with texdecorations, but I don't see how they are used from within an editor.
Nicolai Am 15.05.2015 5:21 nachm. schrieb "Sean P. DeNigris" <sean@clipperadams.com <mailto:sean@clipperadams.com>>: Nicolai Hess wrote
I think this worked in pharo 1 and pharo 2. Now I have to find out why it does not work anymore.
Off the top of my head, I remember having a problem when the font I requested didn't exist. I would get a fallback font without any of the emphases I requested. HTH.
----- Cheers, Sean -- View this message in context: http://forum.world.st/FreeType-fonts-and-underline-strikethrough-emphasis-tp... <http://forum.world.st/FreeType-fonts-and-underline-strikethrough-emphasis-tp...> Sent from the Pharo Smalltalk Developers mailing list archive at Nabble.com.
2015-05-16 0:43 GMT+02:00 Alain Plantec <alain.plantec@yahoo.com>:
Hello Nicolai,
Iâve pushed your fixe into Rubric. It works as expected. thanks a lot!.
Where ? What ? I did not fix rubric. :) My fix was for the BitBltDisplayScanner. Or do you mean this example. It is interesting, does it mean rubric was always able to render underline and strokeouts?
Cheers Alain
--------------------
| font1 font2 tMorph | font1 := TextFontReference toFont: (StrikeFont familyName: 'Bitmap DejaVu Sans' size: 11). font2 := TextFontReference toFont: (LogicalFont familyName: 'Source Sans Pro' pointSize: 10). {font1. font2} do: [ :f | | t1 t2 t3 t4 t5 t6 | tMorph := RubEditingArea new. t1 := 'normal\' withCRs asText addAttribute: f. t2 := 'bold\' withCRs asText addAttribute: f; addAttribute: TextEmphasis bold. t3 := 'underline\' withCRs asText addAttribute: f; addAttribute: TextEmphasis underlined. t4 := 'struck out\' withCRs asText addAttribute: f; addAttribute: TextEmphasis struckOut. t5 := 'italic\' withCRs asText addAttribute: f; addAttribute: TextEmphasis italic. t6 := 'narrow\' withCRs asText addAttribute: f; addAttribute: TextEmphasis narrow. tMorph updateTextWith: t1 , t2 , t3 , t4 , t5 , t6. tMorph openInWorld ]
------------
On 15 May 2015, at 22:33, Nicolai Hess <nicolaihess@web.de> wrote:
2015-05-15 18:10 GMT+02:00 Nicolai Hess <nicolaihess@web.de>:
Thanks for the feedback, Sean. Meanwhile, I think I found the reason. I think it got lost during the merge of Display- and MultiDisplayScanner. I upload a fix, ready for review.
Athens TextMorph drawing does not support this yet. And I think there is now support for this in TxText.
Anyone knows how about Rubric? I saw some examples with texdecorations, but I don't see how they are used from within an editor.
Nicolai Am 15.05.2015 5:21 nachm. schrieb "Sean P. DeNigris" < sean@clipperadams.com>:
Nicolai Hess wrote
I think this worked in pharo 1 and pharo 2. Now I have to find out why it does not work anymore.
Off the top of my head, I remember having a problem when the font I requested didn't exist. I would get a fallback font without any of the emphases I requested. HTH.
----- Cheers, Sean -- View this message in context: http://forum.world.st/FreeType-fonts-and-underline-strikethrough-emphasis-tp... Sent from the Pharo Smalltalk Developers mailing list archive at Nabble.com.
ah, :)) I guess Iâve tried your fix locally by changing RubCharacterScanner>>displayString: from: to: at: but without checking your test before the change. it was working so my conclusion was that your fix was successful. But in fact, your are right, Rubric renders underline and strokeouts as expected without changing RubCharacterScanner>>displayString: from: to: at: Alain
On 16 May 2015, at 12:47, Nicolai Hess <nicolaihess@web.de> wrote:
2015-05-16 0:43 GMT+02:00 Alain Plantec <alain.plantec@yahoo.com <mailto:alain.plantec@yahoo.com>>: Hello Nicolai,
Iâve pushed your fixe into Rubric. It works as expected. thanks a lot!.
Where ? What ?
I did not fix rubric. :)
My fix was for the BitBltDisplayScanner.
Or do you mean this example.
It is interesting, does it mean rubric was always able to render underline and strokeouts?
Cheers Alain
--------------------
| font1 font2 tMorph | font1 := TextFontReference toFont: (StrikeFont familyName: 'Bitmap DejaVu Sans' size: 11). font2 := TextFontReference toFont: (LogicalFont familyName: 'Source Sans Pro' pointSize: 10). {font1. font2} do: [ :f | | t1 t2 t3 t4 t5 t6 | tMorph := RubEditingArea new. t1 := 'normal\' withCRs asText addAttribute: f. t2 := 'bold\' withCRs asText addAttribute: f; addAttribute: TextEmphasis bold. t3 := 'underline\' withCRs asText addAttribute: f; addAttribute: TextEmphasis underlined. t4 := 'struck out\' withCRs asText addAttribute: f; addAttribute: TextEmphasis struckOut. t5 := 'italic\' withCRs asText addAttribute: f; addAttribute: TextEmphasis italic. t6 := 'narrow\' withCRs asText addAttribute: f; addAttribute: TextEmphasis narrow. tMorph updateTextWith: t1 , t2 , t3 , t4 , t5 , t6. tMorph openInWorld ]
------------

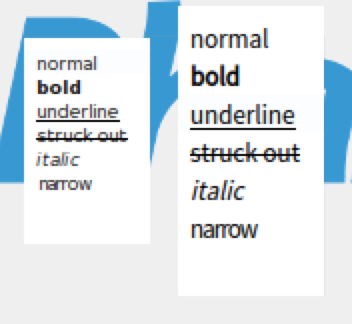

<Screen Shot 2015-05-16 at 00.37.59.png>
On 15 May 2015, at 22:33, Nicolai Hess <nicolaihess@web.de <mailto:nicolaihess@web.de>> wrote:
2015-05-15 18:10 GMT+02:00 Nicolai Hess <nicolaihess@web.de <mailto:nicolaihess@web.de>>: Thanks for the feedback, Sean. Meanwhile, I think I found the reason. I think it got lost during the merge of Display- and MultiDisplayScanner. I upload a fix, ready for review.
Athens TextMorph drawing does not support this yet. And I think there is now support for this in TxText.
Anyone knows how about Rubric? I saw some examples with texdecorations, but I don't see how they are used from within an editor.
Nicolai Am 15.05.2015 5:21 nachm. schrieb "Sean P. DeNigris" <sean@clipperadams.com <mailto:sean@clipperadams.com>>: Nicolai Hess wrote
I think this worked in pharo 1 and pharo 2. Now I have to find out why it does not work anymore.
Off the top of my head, I remember having a problem when the font I requested didn't exist. I would get a fallback font without any of the emphases I requested. HTH.
----- Cheers, Sean -- View this message in context: http://forum.world.st/FreeType-fonts-and-underline-strikethrough-emphasis-tp... <http://forum.world.st/FreeType-fonts-and-underline-strikethrough-emphasis-tp...> Sent from the Pharo Smalltalk Developers mailing list archive at Nabble.com <http://nabble.com/>.
2015-05-15 18:10 GMT+02:00 Nicolai Hess <nicolaihess@web.de>:
Thanks for the feedback, Sean. Meanwhile, I think I found the reason. I think it got lost during the merge of Display- and MultiDisplayScanner. I upload a fix, ready for review.
OK this is fixed now for Text and TextMorphs, but it still does not work for String/LabelMorphs. Anyone knows why we can set only bold and/or italic emphasis on a LogicalFont? StringMorph new contents:'hello';emphasis:1;openInHand. -> bold text StringMorph new contents:'hello';emphasis:8;openInHand. -> no change, it should be underlined This is different if the default font is a StrikeFont StringMorph new contents:'hello';emphasis:1;openInHand. -> bold text. StringMorph new contents:'hello';emphasis:8;openInHand. -> underlined. I found the place in LogicalFont, where other emphasis' are filtered out, but I don't understand why. nicolai
Nicolai Am 15.05.2015 5:21 nachm. schrieb "Sean P. DeNigris" < sean@clipperadams.com>:
Nicolai Hess wrote
I think this worked in pharo 1 and pharo 2. Now I have to find out why it does not work anymore.
Off the top of my head, I remember having a problem when the font I requested didn't exist. I would get a fallback font without any of the emphases I requested. HTH.
----- Cheers, Sean -- View this message in context: http://forum.world.st/FreeType-fonts-and-underline-strikethrough-emphasis-tp... Sent from the Pharo Smalltalk Developers mailing list archive at Nabble.com.
