Re: [Pharo-dev] [Moose-dev] Re: Feature for request for GraphET?
So, attending to the request Doru made, here's something similar to the example he provided in EyeSee... All the methods were already implemented but most of them didn't have a clear accesor to modify them. So, if you just load the last version of GraphET and do this: builder := GETDiagramBuilder new. grouped := { #item1->{10 . 12 . 11 . 14 } . #item2-> { 1 . 1 . 20 } . #item3->{ 1 . 1 . 1 . 1 . 1} }. diag := (GETVerticalBarDiagram new) modelLabels: [:each | each key ]; y: [:each | each value size]; yAxisLabel: 'Count'; valueAxis;height:200;spacing:20; yAxisOnRight; color: Color veryLightGray; axisColor: Color veryLightGray; models: grouped; yourself. diag2 := (GETVerticalBarDiagram new) y: [:each | each value sum]; regularAxis;height: 200;spacing:20;yAxisLabel: 'Sum';color: (Color red); axisColor: (Color red); models: grouped; yourself. (builder unionDiagram) add: diag;add: diag2. builder open You'll see it's very similar. There's two things I couldn't replicate so far, one of them is the rotating labels, as Roassal can't rotate labels yet, and the second one was the GapFraction, as axis in GraphET need some work yet, so implementing that kind of thing would be hard. I think I'll dedicate to a proper axis in the next couple of weeks. Cheers :)!
---------- Forwarded message ---------- From: Tudor Girba <tudor@tudorgirba.com> Date: Sat, Jan 4, 2014 at 10:39 PM Subject: Re: [Pharo-dev] Feature for request for GraphET? To: Pharo Development List <pharo-dev@lists.pharo.org>
Here is one thing I would want: a correspondent Graph-ET functionality to make something like this EyeSee script work as in the first attached picture.
renderer := ESDiagramRenderer new. grouped := { #item1->{10 . 12 . 11 . 14 } . #item2-> { 1 . 1 . 20 } . #item3->{ 1 . 1 . 1 . 1 . 1} }. diag := (ESVerticalBarDiagram new) identifier: [:each | each key ]; y: [:each | each value size]; yAxisLabel: 'Count'; valueAxis; rightYAxis; defaultColor: Color veryVeryLightGray; axisColor: Color veryVeryLightGray; models: grouped; rotatedLabels: true; yourself. diag2 := (ESVerticalBarDiagram new) y: [:each | each value sum]; regularAxis; yAxisLabel: 'Sum'; gapFraction: 2 / 3; defaultColor: (Color red); axisColor: (Color red); models: grouped; yourself. (renderer compositeDiagram) add: diag; add: diag2. renderer open
<Screenshot 2014-01-04 22.31.57.png>
The best I could produce with Graph-ET is this (I commented out the message to which I did not find a correspondent):
builder := GETDiagramBuilder new. grouped := { #item1->{10 . 12 . 11 . 14 } . #item2-> { 1 . 1 . 20 } . #item3->{ 1 . 1 . 1 . 1 . 1} }. diag := (GETVerticalBarDiagram new) "identifier: [:each | each key ];" y: [:each | each value size]; yAxisLabel: 'Count'; valueAxisLine; "rightYAxis;" color: Color veryLightGray; "axisColor: Color veryLightGray;" models: grouped; "rotatedLabels: true;" yourself. diag2 := (GETVerticalBarDiagram new) y: [:each | each value sum]; regularAxis; yAxisLabel: 'Sum'; "gapFraction: 2 / 3;" color: (Color red); "axisColor: (Color red);" models: grouped; yourself. (builder compositeDiagram) add: diag; add: diag2. builder open
<Screenshot 2014-01-04 22.36.40.png>
Cheers, Doru
Hi Daniel, Good work! But, there is still something I do not quite understand. Take a look at the produced image. Why is it that in the first red bar appears behind the gray one, and the rest appear in front of the corresponding gray bars? Related to the GapFraction: Could you describe what makes it such an expensive issue to compute the width of the bar with a bit of scaling? I am asking because this particular diagram does not work without it. Cheers, Doru [image: Inline image 1] On Wed, Jan 8, 2014 at 6:50 PM, Daniel Aviv Notario < daniel_avivnotario@hotmail.com> wrote:
So, attending to the request Doru made, here's something similar to the example he provided in EyeSee... All the methods were already implemented but most of them didn't have a clear accesor to modify them.
So, if you just load the last version of GraphET and do this:
builder := GETDiagramBuilder new. grouped := { #item1->{10 . 12 . 11 . 14 } . #item2-> { 1 . 1 . 20 } . #item3->{ 1 . 1 . 1 . 1 . 1} }. diag := (GETVerticalBarDiagram new) modelLabels: [:each | each key ]; y: [:each | each value size]; yAxisLabel: 'Count'; valueAxis; height:200; spacing:20; yAxisOnRight; color: Color veryLightGray; axisColor: Color veryLightGray; models: grouped; yourself. diag2 := (GETVerticalBarDiagram new) y: [:each | each value sum]; regularAxis; height: 200; spacing:20; yAxisLabel: 'Sum'; color: (Color red); axisColor: (Color red); models: grouped; yourself. (builder unionDiagram) add: diag; add: diag2. builder open
You'll see it's very similar. There's two things I couldn't replicate so far, one of them is the rotating labels, as Roassal can't rotate labels yet, and the second one was the GapFraction, as axis in GraphET need some work yet, so implementing that kind of thing would be hard. I think I'll dedicate to a proper axis in the next couple of weeks.
Cheers :)!
---------- Forwarded message ---------- From: Tudor Girba <tudor@tudorgirba.com> Date: Sat, Jan 4, 2014 at 10:39 PM Subject: Re: [Pharo-dev] Feature for request for GraphET? To: Pharo Development List <pharo-dev@lists.pharo.org>
Here is one thing I would want: a correspondent Graph-ET functionality to make something like this EyeSee script work as in the first attached picture.
renderer := ESDiagramRenderer new. grouped := { #item1->{10 . 12 . 11 . 14 } . #item2-> { 1 . 1 . 20 } . #item3->{ 1 . 1 . 1 . 1 . 1} }. diag := (ESVerticalBarDiagram new) identifier: [:each | each key ]; y: [:each | each value size]; yAxisLabel: 'Count'; valueAxis; rightYAxis; defaultColor: Color veryVeryLightGray; axisColor: Color veryVeryLightGray; models: grouped; rotatedLabels: true; yourself. diag2 := (ESVerticalBarDiagram new) y: [:each | each value sum]; regularAxis; yAxisLabel: 'Sum'; gapFraction: 2 / 3; defaultColor: (Color red); axisColor: (Color red); models: grouped; yourself. (renderer compositeDiagram) add: diag; add: diag2. renderer open
<Screenshot 2014-01-04 22.31.57.png>
The best I could produce with Graph-ET is this (I commented out the message to which I did not find a correspondent):
builder := GETDiagramBuilder new. grouped := { #item1->{10 . 12 . 11 . 14 } . #item2-> { 1 . 1 . 20 } . #item3->{ 1 . 1 . 1 . 1 . 1} }. diag := (GETVerticalBarDiagram new) "identifier: [:each | each key ];" y: [:each | each value size]; yAxisLabel: 'Count'; valueAxisLine; "rightYAxis;" color: Color veryLightGray; "axisColor: Color veryLightGray;" models: grouped; "rotatedLabels: true;" yourself. diag2 := (GETVerticalBarDiagram new) y: [:each | each value sum]; regularAxis; yAxisLabel: 'Sum'; "gapFraction: 2 / 3;" color: (Color red); "axisColor: (Color red);" models: grouped; yourself. (builder compositeDiagram) add: diag; add: diag2. builder open
<Screenshot 2014-01-04 22.36.40.png>
Cheers, Doru
-- www.tudorgirba.com "Every thing has its own flow"
I took a bit of time and added gapFraction support for horizontal bar diagram. It is not quite solid yet (it needs some refactoring), but the core is in place. We have to adapt the vertical bar diagram as well. There are two tests that fail, but I do not quite understand why: https://ci.inria.fr/moose/job/graph-et/307/testReport/junit/ In any case, now if you execute this in the very latest Moose image: MessageTally new spyEvery: 1 on: [10000 timesRepeat: [Collection withAllSubclassesDo: #printString]]; yourself. You get this (I still seem to have problems with the alignment of the inner bars): [image: Inline image 1] Doru On Wed, Jan 8, 2014 at 10:44 PM, Tudor Girba <tudor@tudorgirba.com> wrote:
Hi Daniel,
Good work!
But, there is still something I do not quite understand. Take a look at the produced image. Why is it that in the first red bar appears behind the gray one, and the rest appear in front of the corresponding gray bars?
Related to the GapFraction: Could you describe what makes it such an expensive issue to compute the width of the bar with a bit of scaling? I am asking because this particular diagram does not work without it.
Cheers, Doru
[image: Inline image 1]
On Wed, Jan 8, 2014 at 6:50 PM, Daniel Aviv Notario < daniel_avivnotario@hotmail.com> wrote:
So, attending to the request Doru made, here's something similar to the example he provided in EyeSee... All the methods were already implemented but most of them didn't have a clear accesor to modify them.
So, if you just load the last version of GraphET and do this:
builder := GETDiagramBuilder new. grouped := { #item1->{10 . 12 . 11 . 14 } . #item2-> { 1 . 1 . 20 } . #item3->{ 1 . 1 . 1 . 1 . 1} }. diag := (GETVerticalBarDiagram new) modelLabels: [:each | each key ]; y: [:each | each value size]; yAxisLabel: 'Count'; valueAxis; height:200; spacing:20; yAxisOnRight; color: Color veryLightGray; axisColor: Color veryLightGray; models: grouped; yourself. diag2 := (GETVerticalBarDiagram new) y: [:each | each value sum]; regularAxis; height: 200; spacing:20; yAxisLabel: 'Sum'; color: (Color red); axisColor: (Color red); models: grouped; yourself. (builder unionDiagram) add: diag; add: diag2. builder open
You'll see it's very similar. There's two things I couldn't replicate so far, one of them is the rotating labels, as Roassal can't rotate labels yet, and the second one was the GapFraction, as axis in GraphET need some work yet, so implementing that kind of thing would be hard. I think I'll dedicate to a proper axis in the next couple of weeks.
Cheers :)!
---------- Forwarded message ---------- From: Tudor Girba <tudor@tudorgirba.com> Date: Sat, Jan 4, 2014 at 10:39 PM Subject: Re: [Pharo-dev] Feature for request for GraphET? To: Pharo Development List <pharo-dev@lists.pharo.org>
Here is one thing I would want: a correspondent Graph-ET functionality to make something like this EyeSee script work as in the first attached picture.
renderer := ESDiagramRenderer new. grouped := { #item1->{10 . 12 . 11 . 14 } . #item2-> { 1 . 1 . 20 } . #item3->{ 1 . 1 . 1 . 1 . 1} }. diag := (ESVerticalBarDiagram new) identifier: [:each | each key ]; y: [:each | each value size]; yAxisLabel: 'Count'; valueAxis; rightYAxis; defaultColor: Color veryVeryLightGray; axisColor: Color veryVeryLightGray; models: grouped; rotatedLabels: true; yourself. diag2 := (ESVerticalBarDiagram new) y: [:each | each value sum]; regularAxis; yAxisLabel: 'Sum'; gapFraction: 2 / 3; defaultColor: (Color red); axisColor: (Color red); models: grouped; yourself. (renderer compositeDiagram) add: diag; add: diag2. renderer open
<Screenshot 2014-01-04 22.31.57.png>
The best I could produce with Graph-ET is this (I commented out the message to which I did not find a correspondent):
builder := GETDiagramBuilder new. grouped := { #item1->{10 . 12 . 11 . 14 } . #item2-> { 1 . 1 . 20 } . #item3->{ 1 . 1 . 1 . 1 . 1} }. diag := (GETVerticalBarDiagram new) "identifier: [:each | each key ];" y: [:each | each value size]; yAxisLabel: 'Count'; valueAxisLine; "rightYAxis;" color: Color veryLightGray; "axisColor: Color veryLightGray;" models: grouped; "rotatedLabels: true;" yourself. diag2 := (GETVerticalBarDiagram new) y: [:each | each value sum]; regularAxis; yAxisLabel: 'Sum'; "gapFraction: 2 / 3;" color: (Color red); "axisColor: (Color red);" models: grouped; yourself. (builder compositeDiagram) add: diag; add: diag2. builder open
<Screenshot 2014-01-04 22.36.40.png>
Cheers, Doru
-- www.tudorgirba.com
"Every thing has its own flow"
-- www.tudorgirba.com "Every thing has its own flow"
Wow wow!!!! Beautiful! Alexandre On Jan 15, 2014, at 4:12 AM, Tudor Girba <tudor@tudorgirba.com> wrote:
I took a bit of time and added gapFraction support for horizontal bar diagram. It is not quite solid yet (it needs some refactoring), but the core is in place. We have to adapt the vertical bar diagram as well.
There are two tests that fail, but I do not quite understand why: https://ci.inria.fr/moose/job/graph-et/307/testReport/junit/

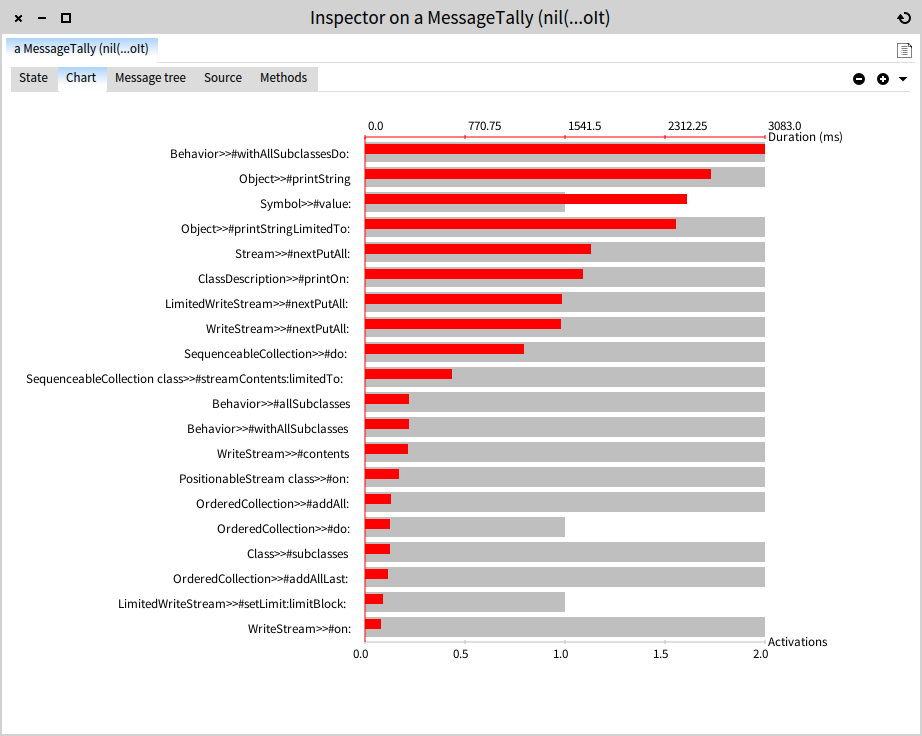

In any case, now if you execute this in the very latest Moose image: MessageTally new spyEvery: 1 on: [10000 timesRepeat: [Collection withAllSubclassesDo: #printString]]; yourself.
You get this (I still seem to have problems with the alignment of the inner bars):
<Inspector on a MessageTally (nil(...oIt).png>
Doru
On Wed, Jan 8, 2014 at 10:44 PM, Tudor Girba <tudor@tudorgirba.com> wrote: Hi Daniel,
Good work!

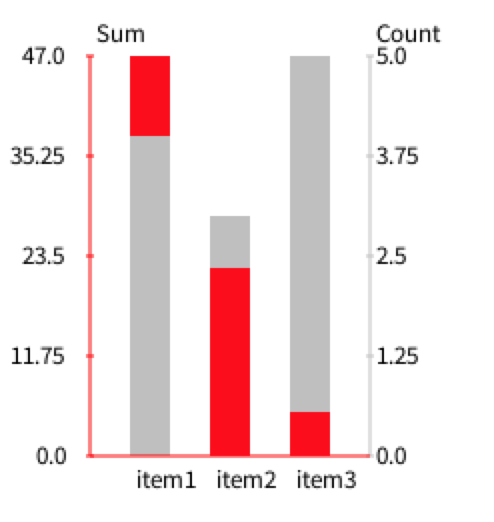

But, there is still something I do not quite understand. Take a look at the produced image. Why is it that in the first red bar appears behind the gray one, and the rest appear in front of the corresponding gray bars?
Related to the GapFraction: Could you describe what makes it such an expensive issue to compute the width of the bar with a bit of scaling? I am asking because this particular diagram does not work without it.
Cheers, Doru
<Screenshot 2014-01-08 22.40.58.png>
On Wed, Jan 8, 2014 at 6:50 PM, Daniel Aviv Notario <daniel_avivnotario@hotmail.com> wrote: So, attending to the request Doru made, here's something similar to the example he provided in EyeSee... All the methods were already implemented but most of them didn't have a clear accesor to modify them.
So, if you just load the last version of GraphET and do this:
builder := GETDiagramBuilder new. grouped := { #item1->{10 . 12 . 11 . 14 } . #item2-> { 1 . 1 . 20 } . #item3->{ 1 . 1 . 1 . 1 . 1} }. diag := (GETVerticalBarDiagram new) modelLabels: [:each | each key ]; y: [:each | each value size]; yAxisLabel: 'Count'; valueAxis; height:200; spacing:20; yAxisOnRight; color: Color veryLightGray; axisColor: Color veryLightGray; models: grouped; yourself. diag2 := (GETVerticalBarDiagram new) y: [:each | each value sum]; regularAxis; height: 200; spacing:20; yAxisLabel: 'Sum'; color: (Color red); axisColor: (Color red); models: grouped; yourself. (builder unionDiagram) add: diag; add: diag2. builder open
You'll see it's very similar. There's two things I couldn't replicate so far, one of them is the rotating labels, as Roassal can't rotate labels yet, and the second one was the GapFraction, as axis in GraphET need some work yet, so implementing that kind of thing would be hard. I think I'll dedicate to a proper axis in the next couple of weeks.
Cheers :)!
---------- Forwarded message ---------- From: Tudor Girba <tudor@tudorgirba.com> Date: Sat, Jan 4, 2014 at 10:39 PM Subject: Re: [Pharo-dev] Feature for request for GraphET? To: Pharo Development List <pharo-dev@lists.pharo.org>
Here is one thing I would want: a correspondent Graph-ET functionality to make something like this EyeSee script work as in the first attached picture.
renderer := ESDiagramRenderer new. grouped := { #item1->{10 . 12 . 11 . 14 } . #item2-> { 1 . 1 . 20 } . #item3->{ 1 . 1 . 1 . 1 . 1} }. diag := (ESVerticalBarDiagram new) identifier: [:each | each key ]; y: [:each | each value size]; yAxisLabel: 'Count'; valueAxis; rightYAxis; defaultColor: Color veryVeryLightGray; axisColor: Color veryVeryLightGray; models: grouped; rotatedLabels: true; yourself. diag2 := (ESVerticalBarDiagram new) y: [:each | each value sum]; regularAxis; yAxisLabel: 'Sum'; gapFraction: 2 / 3; defaultColor: (Color red); axisColor: (Color red); models: grouped; yourself. (renderer compositeDiagram) add: diag; add: diag2. renderer open
<Screenshot 2014-01-04 22.31.57.png>
The best I could produce with Graph-ET is this (I commented out the message to which I did not find a correspondent):
builder := GETDiagramBuilder new. grouped := { #item1->{10 . 12 . 11 . 14 } . #item2-> { 1 . 1 . 20 } . #item3->{ 1 . 1 . 1 . 1 . 1} }. diag := (GETVerticalBarDiagram new) "identifier: [:each | each key ];" y: [:each | each value size]; yAxisLabel: 'Count'; valueAxisLine; "rightYAxis;" color: Color veryLightGray; "axisColor: Color veryLightGray;" models: grouped; "rotatedLabels: true;" yourself. diag2 := (GETVerticalBarDiagram new) y: [:each | each value sum]; regularAxis; yAxisLabel: 'Sum'; "gapFraction: 2 / 3;" color: (Color red); "axisColor: (Color red);" models: grouped; yourself. (builder compositeDiagram) add: diag; add: diag2. builder open
<Screenshot 2014-01-04 22.36.40.png>
Cheers, Doru
-- www.tudorgirba.com
"Every thing has its own flow"
-- www.tudorgirba.com
"Every thing has its own flow"
-- _,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;: Alexandre Bergel http://www.bergel.eu ^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;.
