you can already play with it: Gofer it smalltalkhubUser: 'estebanlm' project: 'FastTable'; configuration; loadStable. not in my place this weekend so I cannot finish it as I wanted before pushing it. My idea is to ask community help finish it. Implementation uses datasources to feed the list, so in theory you can browse infinite rows without loosing speed. according to my tests (in my machine): [ Object browse ] timeToRun asMilliSeconds. -> ~3000ms (without cache) [ Object browse ] timeToRun asMilliSeconds. -> ~350ms (with cache active) [ Object browse ] timeToRun asMilliSeconds. -> ~150ms with FastTable, always. There is an adaptor FTPluggableIconListMorphAdaptor that has the same format as a PluggableIconListMorph so changing already existing calls will be easy (even if there should not be done like that in the long term :) So, so far, list works fine, but - still missing drag&drop support - there are some issues remaining: -- cells escaping his width -- last elements in long lists sometimes are not visible some details has to be around too... but this is a good design, taken from Cocoa... is years better than the naive implementation of old PluggableListMorph and better than the strategy used by NewList (spawning threads all around). Please, help me finish! Repository is open so anybody can contribute. FTExamples has a set of wxamples with all things implemented :) Esteban ps: I already has the adaptor working with Nautilus, but since it depends on some changes on it I will wait until is integrated to push it. But basically if you want to try you just need to go to: CategoryWidget>>#buildCategoriesList, ClassWidget>>#buildClassesList and MethodWidget>>#buildMethodList and change PluggableIconListMorph with FTPluggableIconListMorphAdaptor On Sun, May 24, 2015 at 7:41 AM, stepharo <stepharo@free.fr> wrote:

Hi nicolai

Esteban is rewriting the list/table widgets and it is much much faster. He should announce a beta any soon. With it we will be able to remove - NewList (because its implementation is not good) - pluggableListMorph - and potentially the paginated and morph tree morph.

Stef

Le 23/5/15 00:20, Nicolai Hess a écrit :

Is there some more information about this?

I opened that issue and I asks quesions about the NewList implementation on the mailing list and commented on some other issues about NewList (for example 13554 <https://pharo.fogbugz.com/default.asp?13554> Red cross in EyeDateAndTimeInspector). (With not so much feedback). And making NewListRender working with athens caused quite some headache to me. But this is the first time I hear someone is working on a new list.

I would like to encourage people to make more comments on the bugtracker.

And, as we have already quite some mess in our widget libraries, because we have all kinds of list/tree-morph-nomorph-pluggable-or-simple-with-or-without-icons-things, I would like some more discussion/background info about this.

I agree. I would like to remove them all and get only one

Especially how we prevent to not have "just-another-list" in the image, but a way/plan to migrate or exchange the current list class to use the new/better one.

Why the migration to NewList was stopped is that we realised that it was not good. Alain told us that 8 months ago.

thanks nicolai

---------- Forwarded message ---------- From: Pharo Issue Tracker <do-not-reply@pharo.fogbugz.com> Date: 2015-05-22 11:23 GMT+02:00 Subject: FogBugz (Case [Issue]13315) Morphic - NewList without icons To: "nicolaihess@web.de" <nicolaihess@web.de>

[image: avatar] *Marcus Denker* resolved *Case 13315*: NewList without icons <https://pharo.fogbugz.com/default.asp?13315> and assigned it to you: *Bug* in [image: Project:] Morphic: 1. Pharo Image We have a better list done by esteban soon *Status* changed: Work Needed [image: changed to] Resolved (Invalid)

*Assigned To* changed: Everyone [image: changed to] Nicolai Hess

[image: Priority] *Priority*: 3 – Must Fix [image: Status] *Status*: Resolved (Invalid) [image: Assigned To] *Assigned to*: Nicolai Hess [image: Milestone] *Milestone*: Pharo5.0

Go to Case <https://pharo.fogbugz.com/default.asp?13315> Don't want FogBugz notifications anymore? Update your preferences. <https://pharo.fogbugz.com/f/userPrefs>

[image: FogBugz] A case which you opened has been resolved ( Resolved (Invalid) ) by Marcus Denker in FogBugz. It is your responsibility to verify the resolution and close or reactivate the case. Case ID: 13315 Title: NewList without icons Status: Resolved (Invalid) Category: Bug Project: Morphic Area: 1. Pharo Image Priority: 3 - Must Fix Milestone: Pharo5.0: 4/1/2016 Assigned To: Nicolai Hess URL: https://pharo.fogbugz.com/default.asp?13315 Changes: Status changed from 'Work Needed' to 'Resolved (Invalid)'. Last message: We have a better list done by esteban soon If you do not want to receive automatic notifications anymore, change your preferences in the Options screen. (https://pharo.fogbugz.com/f/userPrefs)

Hi,

On 24 May 2015, at 18:08, Nicolai Hess <nicolaihess@web.de> wrote:

Thank your reply

2015-05-24 10:02 GMT+02:00 Esteban Lorenzano <estebanlm@gmail.com <mailto:estebanlm@gmail.com>>: you can already play with it:

Gofer it smalltalkhubUser: 'estebanlm' project: 'FastTable'; configuration; loadStable.

not in my place this weekend so I cannot finish it as I wanted before pushing it.

My idea is to ask community help finish it.

Implementation uses datasources to feed the list, so in theory you can browse infinite rows without loosing speed. according to my tests (in my machine):

[ Object browse ] timeToRun asMilliSeconds. -> ~3000ms (without cache) [ Object browse ] timeToRun asMilliSeconds. -> ~350ms (with cache active) [ Object browse ] timeToRun asMilliSeconds. -> ~150ms with FastTable, always.

There is an adaptor FTPluggableIconListMorphAdaptor that has the same format as a PluggableIconListMorph so changing already existing calls will be easy (even if there should not be done like that in the long term :)

So, so far, list works fine, but

- still missing drag&drop support - there are some issues remaining: -- cells escaping his width -- last elements in long lists sometimes are not visible

some details has to be around too... but this is a good design, taken from Cocoa... is years better than the naive implementation of old PluggableListMorph and better than the strategy used by NewList (spawning threads all around).

Some info about this? Is this in some mac developer guide or a paper written about the design behind cocoa?

there is some that I use as reference frequently: this one: https://developer.apple.com/legacy/library/documentation/Cocoa/Conceptual/Co... <https://developer.apple.com/legacy/library/documentation/Cocoa/Conceptual/Co...> is a “retired” document, but is retired because is old (old version of objective-c and old version of cocoa), but fundamentals remains ok. instead that document, apple refers now to here: https://developer.apple.com/library/mac/documentation/General/Conceptual/Coc... <https://developer.apple.com/library/mac/documentation/General/Conceptual/Coc...> last, I use as a source of inspiration this project: http://www.cocotron.org <http://www.cocotron.org/> which basically is a rewrite of cocoa but open source (and portable). Project is at least slow (if not stagnated), but I use it to consult algorithms and solutions they found to UI problems I find time to time. cheers, Esteban

Please, help me finish! Repository is open so anybody can contribute.

+1

FTExamples has a set of wxamples with all things implemented :)

Thank you for not only having examples but class comments too!

Esteban

ps: I already has the adaptor working with Nautilus, but since it depends on some changes on it I will wait until is integrated to push it. But basically if you want to try you just need to go to: CategoryWidget>>#buildCategoriesList, ClassWidget>>#buildClassesList and MethodWidget>>#buildMethodList and change PluggableIconListMorph with FTPluggableIconListMorphAdaptor

On Sun, May 24, 2015 at 7:41 AM, stepharo <stepharo@free.fr <mailto:stepharo@free.fr>> wrote: Hi nicolai

Esteban is rewriting the list/table widgets and it is much much faster. He should announce a beta any soon. With it we will be able to remove - NewList (because its implementation is not good) - pluggableListMorph - and potentially the paginated and morph tree morph.

Stef

Le 23/5/15 00:20, Nicolai Hess a écrit :

...

Is there some more information about this?

I opened that issue and I asks quesions about the NewList implementation on the mailing list and commented on some other issues about NewList (for example 13554 <https://pharo.fogbugz.com/default.asp?13554> Red cross in EyeDateAndTimeInspector). (With not so much feedback). And making NewListRender working with athens caused quite some headache to me. But this is the first time I hear someone is working on a new list.

I would like to encourage people to make more comments on the bugtracker.

And, as we have already quite some mess in our widget libraries, because we have all kinds of list/tree-morph-nomorph-pluggable-or-simple-with-or-without-icons-things, I would like some more discussion/background info about this.

I agree. I would like to remove them all and get only one

...

Especially how we prevent to not have "just-another-list" in the image, but a way/plan to migrate or exchange the current list class to use the new/better one.

Why the migration to NewList was stopped is that we realised that it was not good. Alain told us that 8 months ago.

...

thanks nicolai

---------- Forwarded message ---------- From: Pharo Issue Tracker <do-not-reply@pharo.fogbugz.com <mailto:do-not-reply@pharo.fogbugz.com>> Date: 2015-05-22 11:23 GMT+02:00 Subject: FogBugz (Case [Issue]13315) Morphic - NewList without icons To: "nicolaihess@web.de <mailto:nicolaihess@web.de>" <nicolaihess@web.de <mailto:nicolaihess@web.de>>

Marcus Denker resolved Case 13315: NewList without icons <https://pharo.fogbugz.com/default.asp?13315> and assigned it to you:

Bug in Morphic: 1. Pharo Image

We have a better list done by esteban soon

Status changed: Work Needed Resolved (Invalid)

Assigned To changed: Everyone Nicolai Hess

Priority: 3 – Must Fix Status: Resolved (Invalid) Assigned to: Nicolai Hess Milestone: Pharo5.0

Go to Case

<https://pharo.fogbugz.com/default.asp?13315> Don't want FogBugz notifications anymore? Update your preferences. <https://pharo.fogbugz.com/f/userPrefs> A case which you opened has been resolved ( Resolved (Invalid) ) by Marcus Denker in FogBugz. It is your responsibility to verify the resolution and close or reactivate the case. Case ID: 13315 Title: NewList without icons Status: Resolved (Invalid) Category: Bug Project: Morphic Area: 1. Pharo Image Priority: 3 - Must Fix Milestone: Pharo5.0: 4/1/2016 Assigned To: Nicolai Hess URL: https://pharo.fogbugz.com/default.asp?13315 Changes: Status changed from 'Work Needed' to 'Resolved (Invalid)'. Last message: We have a better list done by esteban soon If you do not want to receive automatic notifications anymore, change your preferences in the Options screen. (https://pharo.fogbugz.com/f/userPrefs) <>

It looks nice I want to play with it 2015-05-29 21:24 GMT+02:00 Aliaksei Syrel <alex.syrel@gmail.com>:

Hi,

We do some kind of a List for Bloc:

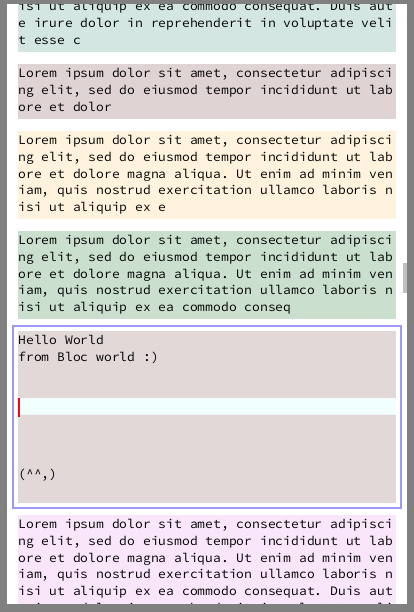

[image: Inline image 1]

Main features:

- List doesn't care what kind of morphs to contain. - Flexible height of elements. Any will do. - Items can resize. - Elements can be partially visible. - Different kind of caches. - Selection strategies.

Short demo video: ​ Bloc-Brick-List.mov <https://docs.google.com/file/d/0B-bMBVDOi3oTMnNKVHhCQUJ2UlU/edit?usp=drive_w...> ​ If you want to play load: http://ws.stfx.eu/F4DRC0CVSDII Examples included.

Cheers, Alex

Aliaksei do you have a configuration of Brick? I can do one and do you have a jenkins job? Because we can do it. Stef Le 29/5/15 21:24, Aliaksei Syrel a écrit :

Hi,

We do some kind of a List for Bloc:

Inline image 1

Main features:

- List doesn't care what kind of morphs to contain. - Flexible height of elements. Any will do. - Items can resize. - Elements can be partially visible. - Different kind of caches. - Selection strategies.

Short demo video: ​ Bloc-Brick-List.mov <https://docs.google.com/file/d/0B-bMBVDOi3oTMnNKVHhCQUJ2UlU/edit?usp=drive_w...> ​ If you want to play load: http://ws.stfx.eu/F4DRC0CVSDII Examples included.

Cheers, Alex

Ok I will build one when I have time. Do you have an account on ci.inria.fr? If not please request one for the Pharo project. Le 30/5/15 11:29, Aliaksei Syrel a écrit :

No, I don't have both of them. It would be great to have a Jenkins job. With increasing amount of tests it already becomes complicated to check stability.

Cheers, Alex

On May 30, 2015 7:41 AM, "stepharo" <stepharo@free.fr <mailto:stepharo@free.fr>> wrote:

Aliaksei

do you have a configuration of Brick? I can do one and do you have a jenkins job? Because we can do it. Stef

Le 29/5/15 21:24, Aliaksei Syrel a écrit :

...

Hi,

We do some kind of a List for Bloc:

Inline image 1

Main features:

- List doesn't care what kind of morphs to contain. - Flexible height of elements. Any will do. - Items can resize. - Elements can be partially visible. - Different kind of caches. - Selection strategies.

Short demo video: ​ Bloc-Brick-List.mov <https://docs.google.com/file/d/0B-bMBVDOi3oTMnNKVHhCQUJ2UlU/edit?usp=drive_w...> ​ If you want to play load: http://ws.stfx.eu/F4DRC0CVSDII Examples included.

Cheers, Alex

https://pharoweekly.wordpress.com/2015/05/30/future-new-widget-sets-is-comin... Le 29/5/15 21:24, Aliaksei Syrel a écrit :

If you want to play load: http://ws.stfx.eu/F4DRC0CVSDII Examples included.

Cheers, Alex

2015-05-25 13:23 GMT+02:00 Nicolai Hess <nicolaihess@web.de>:

2015-05-24 10:02 GMT+02:00 Esteban Lorenzano <estebanlm@gmail.com>:

...

- there are some issues remaining: -- cells escaping his width

Morphic-Widgets-FastTable-NicolaiHess.7 calculate column width (needed if all are undefined / see FTExamples exampleTable1)

Name: Morphic-Widgets-FastTable-NicolaiHess.8 better calculation of visible number of rows for scrolling, not perfect.

thanks! this is exactly what I was hoping for (community help) :) Esteban

On 25 May 2015, at 23:59, Nicolai Hess <nicolaihess@web.de> wrote:

2015-05-25 13:23 GMT+02:00 Nicolai Hess <nicolaihess@web.de <mailto:nicolaihess@web.de>>:

2015-05-24 10:02 GMT+02:00 Esteban Lorenzano <estebanlm@gmail.com <mailto:estebanlm@gmail.com>>:

- there are some issues remaining: -- cells escaping his width

Morphic-Widgets-FastTable-NicolaiHess.7 calculate column width (needed if all are undefined / see FTExamples exampleTable1)

Name: Morphic-Widgets-FastTable-NicolaiHess.8 better calculation of visible number of rows for scrolling, not perfect.

Hi,

On 26 May 2015, at 10:37, Nicolai Hess <nicolaihess@web.de> wrote:

2015-05-24 10:02 GMT+02:00 Esteban Lorenzano <estebanlm@gmail.com <mailto:estebanlm@gmail.com>>:

- still missing drag&drop support - there are some issues remaining: -- cells escaping his width -- last elements in long lists sometimes are not visible

Any special reasons why you omitted doubleClick and drag&drop ? Didn't it fit into the actual design or is it ok to implement it the same way like it is in PluggableListMorph?

I didn’t omit, just still did not implemented part of them: - double click is implemented, it announces a FTStrongSelectionChanged (and the examples show it). - double click is still not implemented for the PluggableEtcAdaptor… but this was lack of time, not by design :) - drag&drop is not implemented at all but again, because lack of time. I was targeting to work on it this week, but I’m also full of other stuff, so you will made me happy if you took it :) cheers, Esteban
