Am 28.06.2015 um 15:31 schrieb Peter Uhnák:
On Sun, Jun 28, 2015 at 3:07 PM, Volkert <volkert@komponentenwerkstatt.de <mailto:volkert@komponentenwerkstatt.de>> wrote:
Hey, that was fast. So looks if it is easily possible. Cool.
Export to html is ok, export to svg has some glitches with cell coloring.
Would be best if you describe it further so Alex can look at it.

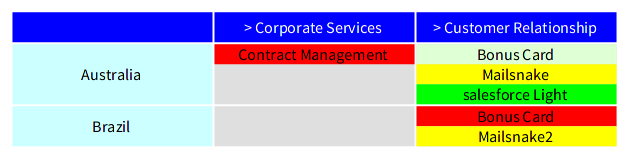

I attached the exported svg of the matrix ...
Peter, i do not understand, why "Mailsnake" must be unique?
Because I flatten the matrix, thus there are two associations "Mailsnake -> 2", and in RTGroup>>elementsFromModels: it internally uses detect: so it would in all cases take the first association. There are of course other ways how to do this, but this was the simplest for me.
I see ... Thanks, Volkert
Volkert
Am 28.06.2015 um 13:56 schrieb Peter Uhnák:
Well if you want super-crude procedural prototype, I've made this http://ws.stfx.eu/MSUIRBAZKN2O
âThe layouting is very, very ugly and could be probably be simplified with RTNest and RTCellLayout on the whole table, but I wanted to spend âas little time as possible (the whole code in ~30 minutes). You can read more about RTNest here https://dl.dropboxusercontent.com/u/31543901/AgileVisualization/Roassal/0104... (section 5) (and all chapters are here http://agilevisualization.com/#book )
Also in your original picture there are boxes with rounded corners; Roassal doesn't support this yet (afaik), but I can send you implementation for it as I have it in my project.
Peter
On Sun, Jun 28, 2015 at 1:30 PM, Alexandre Bergel <alexandre.bergel@me.com <mailto:alexandre.bergel@me.com>> wrote:
Hi !
Yes, this is trivial I would say. This evening I will give a try
Alexandre
> Le 28 juin 2015 à 04:49, Volkert <volkert@komponentenwerkstatt.de <mailto:volkert@komponentenwerkstatt.de>> a écrit : > > Dear all, > > is such a visualization out of the box possible with Roassal2? > > BW, > Volkert > > <Application Matrix>
