[Compiler] Variables in DoIts
Hi,
We finally merged a PR form Denis (Sorry for taking too long…) that enables the use of DoitVariable in DoItIn: methods:
Denis: #pharo has finally transparent variables in the debugger doIts. No ThisContext readVariable trick
And we could even get rid of #DoItIn:, after merging another small cleanup, both methods now is just #DoIt as a selector.
How does it work?

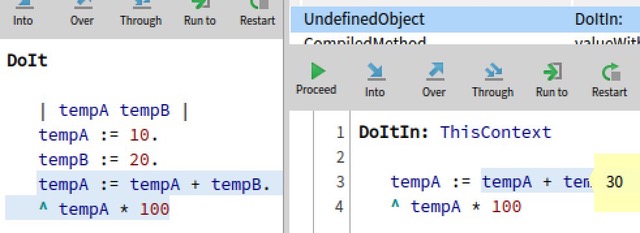

Denis: It is the power of first class variables. There is DoItVariable fully integrated now which represents variables from different context
Marcus: DoitVariable has the original Variable instance and the context (what used to the ThisContext parameter of DoItIn:). It can be read reflectively by sending #read, compiler delegates code generation to the Variables (#emitValue:)
Now we can play with other interesting options.
We can completely remove reformatting of code for DoIts and make the
debugging more "transparent" for users:

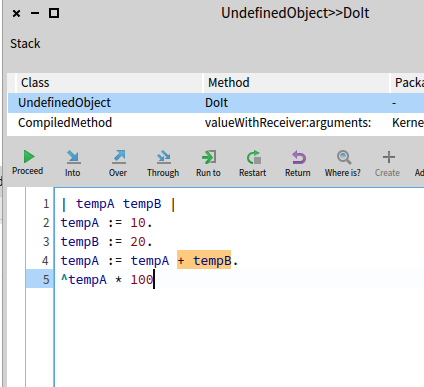

[image: simpleDoIt.png]
Notice there is no DoIt header anymore . What is selected for the DebugIt
command is what the user really sees in the debugger.
I remember when for the first time I tried the smalltalk environment DoIt
methods were a real magic for me. With this view I would have much less
questions.
What do you think?
El 25 jun 2022, a las 14:38, Denis Kudriashov dionisiydk@gmail.com escribió:
Now we can play with other interesting options.
We can completely remove reformatting of code for DoIts and make the debugging more "transparent" for users:
<simpleDoIt.png>
Notice there is no DoIt header anymore . What is selected for the DebugIt command is what the user really sees in the debugger.
I remember when for the first time I tried the smalltalk environment DoIt methods were a real magic for me. With this view I would have much less questions.
What do you think?
I like this much much better than what was that before!!
I’d suggest, for further improvement (but not blocking), that I’d like to see the entire code and context of the do-it context.
Just showing the selected text makes one lose context.
Instead, it would be super cool to show the entire context + code of where the selection was done, and that the program counter is set where the selection was set.
Of course, now that I’m thinking about it, I would wonder how to resolve when to stop.
Only showing the selected code solves visually the stopping. It is clear that evaluation stops when we arrive at the end.
G
The next steo of this has been merged: we now evaluate DoIt methods in a way that we do not
- need a method header
- need to transfrom the AST for adding a return
See the (now merged) PR of Denis here: https://github.com/pharo-project/pharo/pull/11463
This means that DoiT evaluation does not rely on the parse tree rewriter and does not need to
be pretty-printed anymore. (which dies speed up #evaluate:, too).

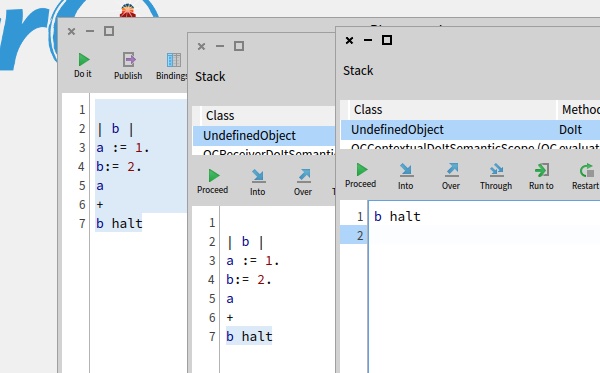

The screenshot shows code from a Playground, setting a playground binding a to 1, then a temp b to 2, then it enters
the debugger due to the #halt.
In the debugger we can read a and b, and we can eval “b halt” to see that what used to be a “DoItIn:” accessing
b via the context now looks just like the code that we executed from the first debugger:
On 24 Jun 2022, at 13:51, Marcus Denker marcus.denker@inria.fr wrote:
Hi,
We finally merged a PR form Denis (Sorry for taking too long…) that enables the use of DoitVariable in DoItIn: methods:
<Dionisiydk_2022-Jun-23.jpeg>
Denis: #pharo has finally transparent variables in the debugger doIts. No ThisContext readVariable trick
And we could even get rid of #DoItIn:, after merging another small cleanup, both methods now is just #DoIt as a selector.
How does it work?
Denis: It is the power of first class variables. There is DoItVariable fully integrated now which represents variables from different context

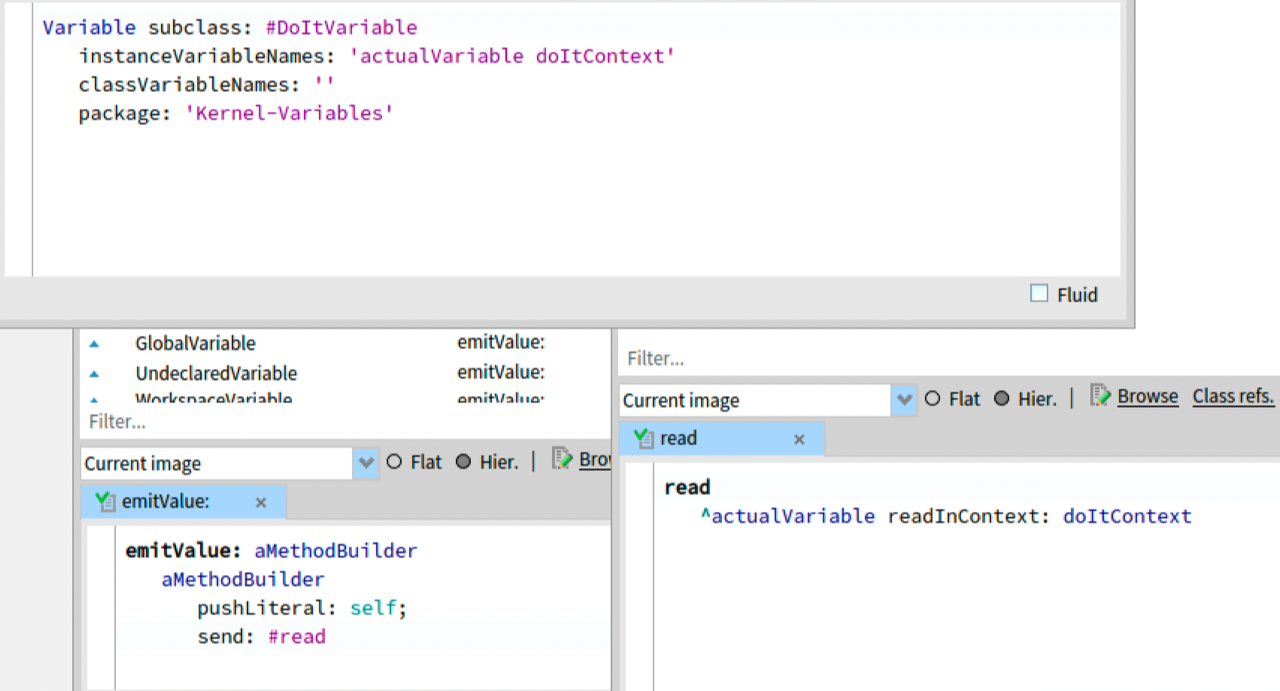

Marcus: DoitVariable has the original Variable instance and the context (what used to the ThisContext parameter of DoItIn:). It can be read reflectively by sending #read, compiler delegates code generation to the Variables (#emitValue:)
<DoItVariable.png>
Hi.
сб, 25 июн. 2022 г. в 13:48, Guillermo Polito guillermopolito@gmail.com:
I’d suggest, for further improvement (but not blocking), that I’d like to
see the entire code and context of the do-it context.
Just showing the selected text makes one lose context.
Instead, it would be super cool to show the entire context + code of where
the selection was done, and that the program counter is set where the
selection was set.
Of course, now that I’m thinking about it, I would wonder how to resolve
when to stop.
In theory we can highlight the code from the full outer context as
something inactive or we can try to draw the border over a selection.
I did a little experiment but it does not look good. And I am not sure how
useful it will be:
[image: shadowDoIt.png]
Wow, I think that’s super cool!! And a worthy direction to explore.
Having the surrounding code would give developers a lot more context!!
El 24 jul 2022, a las 20:47, Denis Kudriashov dionisiydk@gmail.com escribió:
Hi.
сб, 25 июн. 2022 г. в 13:48, Guillermo Polito <guillermopolito@gmail.com mailto:guillermopolito@gmail.com>:
I’d suggest, for further improvement (but not blocking), that I’d like to see the entire code and context of the do-it context.
Just showing the selected text makes one lose context.
Instead, it would be super cool to show the entire context + code of where the selection was done, and that the program counter is set where the selection was set.
Of course, now that I’m thinking about it, I would wonder how to resolve when to stop.
In theory we can highlight the code from the full outer context as something inactive or we can try to draw the border over a selection.
I did a little experiment but it does not look good. And I am not sure how useful it will be:
<shadowDoIt.png>
