On 8/2/15, Ben Coman <btc@openinworld.com> wrote:

Cool. I might have a use for this soon. cheers -ben

Hello Ben The standard to implement is huge. We are dealing with a subset. Example test documents I consider using are here http://www.openoffice.org/sc/testdocs/index.html (all which are labeled 'XML') What we have so far in the tabular package is quite usable, depending on the project. My interest for next steps are a. get round trip : 1. create tabular model 2. export workbook 3. import workbook working fine. (the issue is inline string parsing currently but I will soon be there) b. cell styles c. multiple worksheets on export (currently limited to one with a fix name; import can deal with several worksheets in a workbook) -- Hannes

On Sun, Aug 2, 2015 at 2:58 AM, Юрий Мироненко <assargaddon@gmail.com> wrote:

...

Hello. Some time ago I announced Tabular, some effort to make a tool for spreadsheets import/export.

This is short notice: Vincent Blondeau have added XLSX import functionality! It's also mostly proof-of-concept now, but even at this stage it's quite usable.

Thanks, Vincent!

P.S. Code in http://ss3.gemtalksystems.com/ss/Tabular/Tabular-HannesHirzel.59.mcz On 8/14/15, H. Hirzel <hannes.hirzel@gmail.com> wrote:

I am now looking for the place in the SAX parser where the cell content is assigned.

Test script (debug it)

|wbk wsheet wimported cell fname4| fname4 := 'TabularConstructed4Exported.xlsx'. wbk := TabularWorkbook new. self assert: (wbk worksheets isEmpty).

wsheet := TabularWorksheet new. wsheet at: 1 @ 1 putData: 'abc 11'; at: 2 @ 1 putData: 'def 21'; at: 3 @ 1 putData: 'ghi 31'. wbk worksheets add: wsheet. TabularXSLXExport workbook: wbk fileName: fname4.

wimported := XLSXImporter import: (FileLocator home / fname4 ) . cell := ((wimported worksheetNamed: 'Sheet1') at: 1@1).

Put a halt into TabularWorksheet>>at:putCell:

to come near the place. The cell attributes are there (inline string in this case)

But I did not find the exact place where the cell content 'abc 11' is assigned.

Any help?

--Hannes

On 8/14/15, H. Hirzel <hannes.hirzel@gmail.com> wrote:

...

On 8/2/15, Ben Coman <btc@openinworld.com> wrote:

...

Cool. I might have a use for this soon. cheers -ben

Hello Ben

The standard to implement is huge. We are dealing with a subset.

Example test documents I consider using are here

http://www.openoffice.org/sc/testdocs/index.html

(all which are labeled 'XML')

What we have so far in the tabular package is quite usable, depending on the project.

My interest for next steps are

a. get round trip : 1. create tabular model 2. export workbook 3. import workbook working fine. (the issue is inline string parsing currently but I will soon be there)

b. cell styles

c. multiple worksheets on export (currently limited to one with a fix name; import can deal with several worksheets in a workbook)

-- Hannes

...

On Sun, Aug 2, 2015 at 2:58 AM, Юрий Мироненко <assargaddon@gmail.com> wrote:

...

Hello. Some time ago I announced Tabular, some effort to make a tool for spreadsheets import/export.

This is short notice: Vincent Blondeau have added XLSX import functionality! It's also mostly proof-of-concept now, but even at this stage it's quite usable.

Thanks, Vincent!

Hi, To add a configuration in the catalog, first you should have a configuration for your project. You can create it with the versionner if needed. Second, you have to add some methods adding meta-description to your project. The versionner do it for you: in the configuration list, select your project, do a right click and select add catalog methods. It creates all the mandatory methods for the catalog. You now have to fill them (look at the class side of the configuration). Finally, commit your configuration on your repo and on the MetaRepoForPharo30/40/50 depending where your project is working. The link is here: http://smalltalkhub.com/#!/~Pharo/MetaRepoForPharo50 Once published, your project will be in the catalog in the image (Tools>catalog browser) and on the web http://catalog.pharo.org/. Tell me if you need help to do it, Cheers, Vincent De : Pharo-users [mailto:pharo-users-bounces@lists.pharo.org] De la part de ???? ????????? Envoyé : dimanche 2 août 2015 10:25 À : Any question about pharo is welcome Objet : Re: [Pharo-users] Tabular: XLSX import It looks like I need some guidance to understand contemporary packaging/deployment/versioning system. I know it exists, but I don't know details. Can you kick me in the right direction? Maybe some link? 2015-08-02 11:21 GMT+03:00 Esteban Lorenzano <estebanlm@gmail.com<mailto:estebanlm@gmail.com>>: Hi, it would be sooo cool to have a configuration in the catalog… Esteban On 01 Aug 2015, at 20:58, Юрий Мироненко <assargaddon@gmail.com<mailto:assargaddon@gmail.com>> wrote: Hello. Some time ago I announced Tabular<http://ss3.gemtalksystems.com/ss/Tabular.html>, some effort to make a tool for spreadsheets import/export. This is short notice: Vincent Blondeau have added XLSX import functionality! It's also mostly proof-of-concept now, but even at this stage it's quite usable. Thanks, Vincent! ________________________________ Ce message et les pièces jointes sont confidentiels et réservés à l'usage exclusif de ses destinataires. Il peut également être protégé par le secret professionnel. Si vous recevez ce message par erreur, merci d'en avertir immédiatement l'expéditeur et de le détruire. L'intégrité du message ne pouvant être assurée sur Internet, la responsabilité de Worldline ne pourra être recherchée quant au contenu de ce message. Bien que les meilleurs efforts soient faits pour maintenir cette transmission exempte de tout virus, l'expéditeur ne donne aucune garantie à cet égard et sa responsabilité ne saurait être recherchée pour tout dommage résultant d'un virus transmis. This e-mail and the documents attached are confidential and intended solely for the addressee; it may also be privileged. If you receive this e-mail in error, please notify the sender immediately and destroy it. As its integrity cannot be secured on the Internet, the Worldline liability cannot be triggered for the message content. Although the sender endeavours to maintain a computer virus-free network, the sender does not warrant that this transmission is virus-free and will not be liable for any damages resulting from any virus transmitted.

What about http://rmod.lille.inria.fr/deepIntoPharo/index.html p. 163 depending on a project without Metacello description p. 164, depending on a project with a Metacello configuration In the mean time just a note that Tabular needs XMLParser and XMLWriter packages on http://ss3.gemtalksystems.com/ss/Tabular.html. Some class comments are welcome as well :-) I understand that I can read Excel files and that you just started to check out how to write them? --Hannes On 8/4/15, Юрий Мироненко <assargaddon@gmail.com> wrote:

Thank you Vincent. Some things is much clearer for me now.

*It's shame on me that I lost all this Metacello progress, especially taking into account I was on the ESUG conference where it was presented. It was my only conference unfortunately.*

I see that you already started this job: you added ConfigurationOfTabular. What I really want to do with this configuration: add dependencies to XMLParser and XMLWriter packages. Can you help with this, please?

2015-08-04 17:19 GMT+03:00 Blondeau Vincent <vincent.blondeau@worldline.com> :

...

Hi,

To add a configuration in the catalog, first you should have a configuration for your project. You can create it with the versionner if needed.

Second, you have to add some methods adding meta-description to your project. The versionner do it for you: in the configuration list, select your project, do a right click and select add catalog methods.

It creates all the mandatory methods for the catalog. You now have to fill them (look at the class side of the configuration).

Finally, commit your configuration on your repo and on the MetaRepoForPharo30/40/50 depending where your project is working.

The link is here: http://smalltalkhub.com/#!/~Pharo/MetaRepoForPharo50

Once published, your project will be in the catalog in the image (Tools>catalog browser) and on the web http://catalog.pharo.org/.

Tell me if you need help to do it,

Cheers,

Vincent

*De :* Pharo-users [mailto:pharo-users-bounces@lists.pharo.org] *De la part de* ???? ????????? *Envoyé :* dimanche 2 août 2015 10:25 *À :* Any question about pharo is welcome *Objet :* Re: [Pharo-users] Tabular: XLSX import

It looks like I need some guidance to understand contemporary packaging/deployment/versioning system. I know it exists, but I don't know details. Can you kick me in the right direction? Maybe some link?

2015-08-02 11:21 GMT+03:00 Esteban Lorenzano <estebanlm@gmail.com>:

Hi,

it would be sooo cool to have a configuration in the catalog…

Esteban

On 01 Aug 2015, at 20:58, Юрий Мироненко <assargaddon@gmail.com> wrote:

Hello.

Some time ago I announced Tabular <http://ss3.gemtalksystems.com/ss/Tabular.html>, some effort to make a tool for spreadsheets import/export.

This is short notice: Vincent Blondeau have added XLSX import functionality! It's also mostly proof-of-concept now, but even at this stage it's quite usable.

Thanks, Vincent!

------------------------------

Ce message et les pièces jointes sont confidentiels et réservés à l'usage exclusif de ses destinataires. Il peut également être protégé par le secret professionnel. Si vous recevez ce message par erreur, merci d'en avertir immédiatement l'expéditeur et de le détruire. L'intégrité du message ne pouvant être assurée sur Internet, la responsabilité de Worldline ne pourra être recherchée quant au contenu de ce message. Bien que les meilleurs efforts soient faits pour maintenir cette transmission exempte de tout virus, l'expéditeur ne donne aucune garantie à cet égard et sa responsabilité ne saurait être recherchée pour tout dommage résultant d'un virus transmis.

This e-mail and the documents attached are confidential and intended solely for the addressee; it may also be privileged. If you receive this e-mail in error, please notify the sender immediately and destroy it. As its integrity cannot be secured on the Internet, the Worldline liability cannot be triggered for the message content. Although the sender endeavours to maintain a computer virus-free network, the sender does not warrant that this transmission is virus-free and will not be liable for any damages resulting from any virus transmitted.

I understand that Юрий Мироненко asks how to construct his ConfigurationOfTabular file http://ss3.gemtalksystems.com/ss/Tabular.html So I pointed him to the Pharo By Examples book 2 Chapter 9 Managing Projects with Metacello The Tabular project needs a XMLWriter class. I assume the regular pharoExtras is fine. I do not know. I am just looking at the code to see how the reading and writing of MSOffice files, Excel in this particular case, is done so far. For reading a TabularSAXParser is included in the package. Probably not necessary. I moved it out here http://ss3.gemtalksystems.com/ss/Tabular/Tabular-HannesHirzel.26.mcz Hannes On 8/8/15, stepharo <stepharo@free.fr> wrote:

Le 8/8/15 09:11, H. Hirzel a écrit :

...

What about http://rmod.lille.inria.fr/deepIntoPharo/index.html

p. 163 depending on a project without Metacello description p. 164, depending on a project with a Metacello configuration

In the mean time just a note that Tabular needs XMLParser and XMLWriter packages on http://ss3.gemtalksystems.com/ss/Tabular.html.

are you implying that there is no expression of dependencies and that in addition it depend on a different XML Parser/Writer than pharoExtras ones?

Stef

...

Some class comments are welcome as well :-)

I understand that I can read Excel files and that you just started to check out how to write them?

--Hannes

On 8/4/15, Юрий Мироненко <assargaddon@gmail.com> wrote:

...

Thank you Vincent. Some things is much clearer for me now.

*It's shame on me that I lost all this Metacello progress, especially taking into account I was on the ESUG conference where it was presented. It was my only conference unfortunately.*

I see that you already started this job: you added ConfigurationOfTabular. What I really want to do with this configuration: add dependencies to XMLParser and XMLWriter packages. Can you help with this, please?

2015-08-04 17:19 GMT+03:00 Blondeau Vincent <vincent.blondeau@worldline.com> :

...

Hi,

To add a configuration in the catalog, first you should have a configuration for your project. You can create it with the versionner if needed.

Second, you have to add some methods adding meta-description to your project. The versionner do it for you: in the configuration list, select your project, do a right click and select add catalog methods.

It creates all the mandatory methods for the catalog. You now have to fill them (look at the class side of the configuration).

Finally, commit your configuration on your repo and on the MetaRepoForPharo30/40/50 depending where your project is working.

The link is here: http://smalltalkhub.com/#!/~Pharo/MetaRepoForPharo50

Once published, your project will be in the catalog in the image (Tools>catalog browser) and on the web http://catalog.pharo.org/.

Tell me if you need help to do it,

Cheers,

Vincent

*De :* Pharo-users [mailto:pharo-users-bounces@lists.pharo.org] *De la part de* ???? ????????? *Envoyé :* dimanche 2 août 2015 10:25 *À :* Any question about pharo is welcome *Objet :* Re: [Pharo-users] Tabular: XLSX import

It looks like I need some guidance to understand contemporary packaging/deployment/versioning system. I know it exists, but I don't know details. Can you kick me in the right direction? Maybe some link?

2015-08-02 11:21 GMT+03:00 Esteban Lorenzano <estebanlm@gmail.com>:

Hi,

it would be sooo cool to have a configuration in the catalog…

Esteban

On 01 Aug 2015, at 20:58, Юрий Мироненко <assargaddon@gmail.com> wrote:

Hello.

Some time ago I announced Tabular <http://ss3.gemtalksystems.com/ss/Tabular.html>, some effort to make a tool for spreadsheets import/export.

This is short notice: Vincent Blondeau have added XLSX import functionality! It's also mostly proof-of-concept now, but even at this stage it's quite usable.

Thanks, Vincent!

------------------------------

Ce message et les pièces jointes sont confidentiels et réservés à l'usage exclusif de ses destinataires. Il peut également être protégé par le secret professionnel. Si vous recevez ce message par erreur, merci d'en avertir immédiatement l'expéditeur et de le détruire. L'intégrité du message ne pouvant être assurée sur Internet, la responsabilité de Worldline ne pourra être recherchée quant au contenu de ce message. Bien que les meilleurs efforts soient faits pour maintenir cette transmission exempte de tout virus, l'expéditeur ne donne aucune garantie à cet égard et sa responsabilité ne saurait être recherchée pour tout dommage résultant d'un virus transmis.

This e-mail and the documents attached are confidential and intended solely for the addressee; it may also be privileged. If you receive this e-mail in error, please notify the sender immediately and destroy it. As its integrity cannot be secured on the Internet, the Worldline liability cannot be triggered for the message content. Although the sender endeavours to maintain a computer virus-free network, the sender does not warrant that this transmission is virus-free and will not be liable for any damages resulting from any virus transmitted.

Hi, I added the dependencies to PharoExtras/XMLWriter and XMLParser. I didn't add the dependencies before because I used Tabular with Moose, and Moose already loads these dependencies... Now it should work. I created the new 0.2 release with the required dependencies. By the way, I used Versionner to create the configuration. I don't know if there is a documentation but there is a video: https://www.youtube.com/watch?v=cFRJDuWL-Q0 It is a very fast tool to manage your projects! If your are using at least Pharo 4.0, you can use the catalog browser to load the ConfigurationOfTabular directly. Best, Vincent -----Message d'origine----- De : Pharo-users [mailto:pharo-users-bounces@lists.pharo.org] De la part de H. Hirzel Envoyé : samedi 8 août 2015 10:34 À : Any question about pharo is welcome Objet : Re: [Pharo-users] Tabular: XLSX import If I do ConfigurationOfXMLWriter load then TabularExperimentalExport writeTestFile is fine generating an Excel file. http://ss3.gemtalksystems.com/ss/Tabular/Tabular-HannesHirzel.27.mcz I am currently exploring the code and trying to figure out how it works. --Hannes On 8/8/15, H. Hirzel <hannes.hirzel@gmail.com> wrote:

I understand that Юрий Мироненко asks how to construct his ConfigurationOfTabular file

http://ss3.gemtalksystems.com/ss/Tabular.html

So I pointed him to the Pharo By Examples book 2 Chapter 9 Managing Projects with Metacello

The Tabular project needs a XMLWriter class. I assume the regular pharoExtras is fine. I do not know.

I am just looking at the code to see how the reading and writing of MSOffice files, Excel in this particular case, is done so far.

For reading a TabularSAXParser is included in the package. Probably not necessary.

I moved it out here http://ss3.gemtalksystems.com/ss/Tabular/Tabular-HannesHirzel.26.mcz

Hannes

On 8/8/15, stepharo <stepharo@free.fr> wrote:

...

Le 8/8/15 09:11, H. Hirzel a écrit :

...

What about http://rmod.lille.inria.fr/deepIntoPharo/index.html

p. 163 depending on a project without Metacello description p. 164, depending on a project with a Metacello configuration

In the mean time just a note that Tabular needs XMLParser and XMLWriter packages on http://ss3.gemtalksystems.com/ss/Tabular.html.

are you implying that there is no expression of dependencies and that in addition it depend on a different XML Parser/Writer than pharoExtras ones?

Stef

...

Some class comments are welcome as well :-)

I understand that I can read Excel files and that you just started to check out how to write them?

--Hannes

On 8/4/15, Юрий Мироненко <assargaddon@gmail.com> wrote:

...

Thank you Vincent. Some things is much clearer for me now.

*It's shame on me that I lost all this Metacello progress, especially taking into account I was on the ESUG conference where it was presented. It was my only conference unfortunately.*

I see that you already started this job: you added ConfigurationOfTabular. What I really want to do with this configuration: add dependencies to XMLParser and XMLWriter packages. Can you help with this, please?

2015-08-04 17:19 GMT+03:00 Blondeau Vincent <vincent.blondeau@worldline.com> :

...

Hi,

To add a configuration in the catalog, first you should have a configuration for your project. You can create it with the versionner if needed.

Second, you have to add some methods adding meta-description to your project. The versionner do it for you: in the configuration list, select your project, do a right click and select add catalog methods.

It creates all the mandatory methods for the catalog. You now have to fill them (look at the class side of the configuration).

Finally, commit your configuration on your repo and on the MetaRepoForPharo30/40/50 depending where your project is working.

The link is here: http://smalltalkhub.com/#!/~Pharo/MetaRepoForPharo50

Once published, your project will be in the catalog in the image (Tools>catalog browser) and on the web http://catalog.pharo.org/.

Tell me if you need help to do it,

Cheers,

Vincent

*De :* Pharo-users [mailto:pharo-users-bounces@lists.pharo.org] *De la part de* ???? ????????? *Envoyé :* dimanche 2 août 2015 10:25 *À :* Any question about pharo is welcome *Objet :* Re: [Pharo-users] Tabular: XLSX import

It looks like I need some guidance to understand contemporary packaging/deployment/versioning system. I know it exists, but I don't know details. Can you kick me in the right direction? Maybe some link?

2015-08-02 11:21 GMT+03:00 Esteban Lorenzano <estebanlm@gmail.com>:

Hi,

it would be sooo cool to have a configuration in the catalog…

Esteban

On 01 Aug 2015, at 20:58, Юрий Мироненко <assargaddon@gmail.com> wrote:

Hello.

Some time ago I announced Tabular <http://ss3.gemtalksystems.com/ss/Tabular.html>, some effort to make a tool for spreadsheets import/export.

This is short notice: Vincent Blondeau have added XLSX import functionality! It's also mostly proof-of-concept now, but even at this stage it's quite usable.

Thanks, Vincent!

------------------------------

Ce message et les pièces jointes sont confidentiels et réservés à l'usage exclusif de ses destinataires. Il peut également être protégé par le secret professionnel. Si vous recevez ce message par erreur, merci d'en avertir immédiatement l'expéditeur et de le détruire. L'intégrité du message ne pouvant être assurée sur Internet, la responsabilité de Worldline ne pourra être recherchée quant au contenu de ce message. Bien que les meilleurs efforts soient faits pour maintenir cette transmission exempte de tout virus, l'expéditeur ne donne aucune garantie à cet égard et sa responsabilité ne saurait être recherchée pour tout dommage résultant d'un virus transmis.

This e-mail and the documents attached are confidential and intended solely for the addressee; it may also be privileged. If you receive this e-mail in error, please notify the sender immediately and destroy it. As its integrity cannot be secured on the Internet, the Worldline liability cannot be triggered for the message content. Although the sender endeavours to maintain a computer virus-free network, the sender does not warrant that this transmission is virus-free and will not be liable for any damages resulting from any virus transmitted.

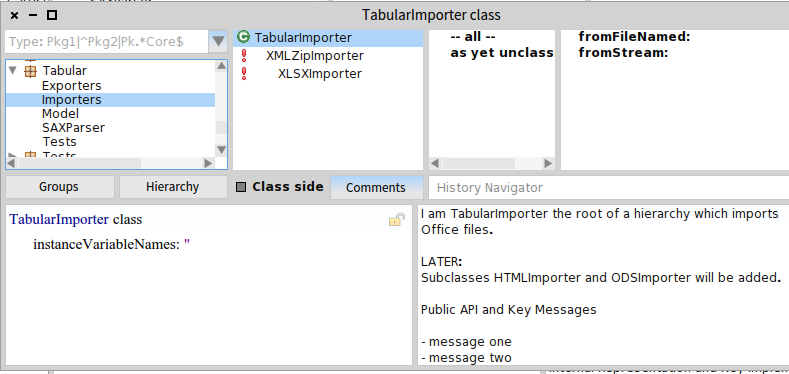

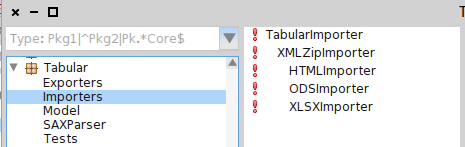

Another small request: Could you please comment the importer classes which currently work. This is to distinguish them from those which are there as place-holders for future extension. This makes it easier to read you code. --Hannes On 8/8/15, H. Hirzel <hannes.hirzel@gmail.com> wrote:

Thank you. I am using Pharo 4.0.

I see that you implement a SAXparser. Could you please elaborate a bit why the one in the XML-Parser package does not do the job?

--Hannes

On 8/8/15, Vincent BLONDEAU <vincent.blondeau@polytech-lille.net> wrote:

...

Hi,

I added the dependencies to PharoExtras/XMLWriter and XMLParser. I didn't add the dependencies before because I used Tabular with Moose, and Moose already loads these dependencies...

Now it should work. I created the new 0.2 release with the required dependencies.

By the way, I used Versionner to create the configuration. I don't know if there is a documentation but there is a video: https://www.youtube.com/watch?v=cFRJDuWL-Q0

It is a very fast tool to manage your projects!

If your are using at least Pharo 4.0, you can use the catalog browser to load the ConfigurationOfTabular directly.

Best, Vincent

-----Message d'origine----- De : Pharo-users [mailto:pharo-users-bounces@lists.pharo.org] De la part de H. Hirzel Envoyé : samedi 8 août 2015 10:34 À : Any question about pharo is welcome Objet : Re: [Pharo-users] Tabular: XLSX import
