Pillar and GT tools in Pharo4
Pillar config is updated and now available in config browser in Pharo 4: - more classes are commented - new baseline 0.20-baseline with version 0.20 for Pharo 4.0 - includes Pillar-Pharo-Tools package instead of (deprecated) Pillar-PharoInspector as EyeInspector is a thing of the past to now support GTInspector and GTSpotter with icons in Pharo 4 - additionally I wanted to update to STON 0.10 but had to step back to 0.9 of STON until Sven makes the config available in SS3 and STHub So if you are on Pharo 4 you can: 1. Load "Pillar" from Config browser 2. Parse and inspect pillar document like this (PRDocumentParser parse: '%This is a commented line |C1|C2 |C3|C4 Some text # list item 1 # list item 2 ') inspect The GT inspector allows you to browse the different formats like Pillar, HTML, Markdown, Text and LaTeX. If you click on the lightbulb Spotter at the top right of the GT inspector a new spotter will open allow you to search in the current document item. You can use spotter to dive into the document structure. Attached is a screenshot. Bye T.
Hi Torsten, Great job. Some feedback about the extensions: - I saw that you figured out the new feature of searching with spotter from the inspector without any public announcement. Did you figure it out from the code of GT or by seeing an example? In any case, very nice :). - use "composite pharoPlayground" only when you want syntax highlighting and code completion for Pharo code. Otherwise, use "composite text" - in: Gofer new smalltalkhubUser: 'Moose' project: 'GToolkit'; package: 'GT-InspectorExtensions-Pillar'; load you get extensions for working with files. See here: http://www.humane-assessment.com/blog/writing-pillar-books-with-the-gtinspec... - it also includes a basic syntax highlighting in FileReference>>gtInspectorPillarIn:, and in Class>>gtInspectorPillarCommentIn:. - now that the inspector and spotter are part of Pharo, we can move these extensions directly into Pillar. The only problem is that this syntax highlighting is based on PetitParser, so we would have to add a dependency from Pillar to PetitParser. What do you think? Cheers, Doru On Fri, Mar 6, 2015 at 2:39 AM, Torsten Bergmann <astares@gmx.de> wrote:
Pillar config is updated and now available in config browser in Pharo 4:
- more classes are commented - new baseline 0.20-baseline with version 0.20 for Pharo 4.0 - includes Pillar-Pharo-Tools package instead of (deprecated) Pillar-PharoInspector as EyeInspector is a thing of the past to now support GTInspector and GTSpotter with icons in Pharo 4 - additionally I wanted to update to STON 0.10 but had to step back to 0.9 of STON until Sven makes the config available in SS3 and STHub
So if you are on Pharo 4 you can:
1. Load "Pillar" from Config browser 2. Parse and inspect pillar document like this
(PRDocumentParser parse: '%This is a commented line |C1|C2 |C3|C4
Some text
# list item 1 # list item 2 ') inspect
The GT inspector allows you to browse the different formats like Pillar, HTML, Markdown, Text and LaTeX. If you click on the lightbulb Spotter at the top right of the GT inspector a new spotter will open allow you to search in the current document item.
You can use spotter to dive into the document structure.

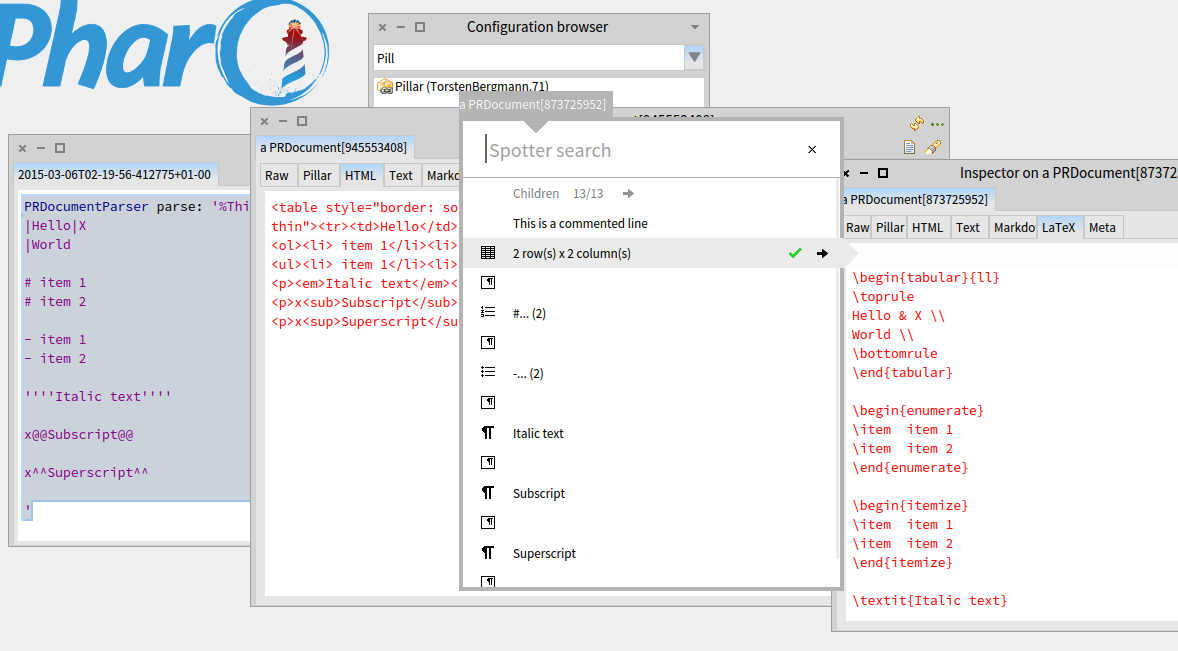

Attached is a screenshot.
Bye T.
-- www.tudorgirba.com "Every thing has its own flow"
Hi Doru,
Great job.
Was very simple to do in one evening, thanks to GT tools. I like infrastructure that empowers us and the only thing I can lament on so far is that "Workspace" menue still opens a "Playground" and I do give not up the hope that you get convinced that this is confusing to people ;) Â
Some feedback about the extensions: Â - I saw that you figured out the new feature of searching with spotter from the inspector without any public announcement. Did you figure >it out from the code of GT or by seeing an example? In any case, very nice :).
By accident. I first implemented an own Spotter model and a custom action in the inspector for PRDocumentItems to open it. Then I've noticed there is another icon to click on in the inspector beside mine - and as id did the same (open Spotter) I was able to remove a lot of code again. Would have been nice to know earlier - but thats life when living on the latest Pharo 4 updates and getting things solved quickly. Â
- use "composite pharoPlayground" only when you want syntax highlighting and code completion for Pharo code. Otherwise, use "composite text"
Ahh, I see. It's fixed now Â
you get extensions for working with files. See here: http://www.humane-assessment.com/blog/writing-pillar-books-with-the-gtinspec...
I've seen that, but it did not really work. When I load (in 4.0#40537) PetitParser from MetaRepoForPharo30 using config browser, then the GT-InspectorExtensions-Pillar package and look by inspecting "FileSystem workingDirectory" onto a *.pillar file I can see the new tab "Pillar" - but it does not highlight the syntax.
- now that the inspector and spotter are part of Pharo, we can move these extensions directly into Pillar. The only problem is that this syntax highlighting is based on PetitParser, so we would have to add a dependency from Pillar to >PetitParser. What do you think?
Would make sense - the dependency to PetitParse could be set for "Pillar-Pharo-Tools" so it is not loaded if one does not use the tool extensions. No time to look into this, although it would be nice to get the syntax highlighting in and it would be better to place this into Pillar itself instead of GT. Â Please keep up the good work. Spotter already allows other nice things as easily building custom helpers for developing or own applications. See the attached screenshot: I already use a custom spotter to combine development commands, browse domain objects, Mongo collections - easily done with a few methods and pragmas. Pharo is on the right track... Bye T.
On 06 Mar 2015, at 09:21, Torsten Bergmann <astares@gmx.de> wrote:
Pharo is on the right track...
Yes, and it is very impressive what you did, but please guys, write/blog (more) about this, help others (me) understand how all this works and fits together. The goal is that everybody should be able to do this, but that will require massive evangelisation (again & again), on a moving target.
Am 06.03.2015 um 09:40 schrieb Sven Van Caekenberghe <sven@stfx.eu>:
On 06 Mar 2015, at 09:21, Torsten Bergmann <astares@gmx.de> wrote:
Pharo is on the right track...
Yes, and it is very impressive what you did, but please guys, write/blog (more) about this, help others (me) understand how all this works and fits together. The goal is that everybody should be able to do this, but that will require massive evangelisation (again & again), on a moving target.
+1 (yes, it's a reminder for me, too) Norbert
Torsten Bergmann wrote
the only thing I can lament on so far is that "Workspace" menue still opens a "Playground" and I do give not up the hope that you get convinced that this is confusing to people ;)
I find it confusing on a visceral level even though I intellectually know the entire history and rationale! ----- Cheers, Sean -- View this message in context: http://forum.world.st/Pillar-and-GT-tools-in-Pharo4-tp4809850p4809976.html Sent from the Pharo Smalltalk Users mailing list archive at Nabble.com.
There was a confusion at play. We never disagreed on having the menu item be named differently from the window. We only disagreed on what to rename: - Torsten wanted to rename the window - I wanted to rename the menu item In the end, it was kind of agreed (not Torsten, though ;)) that the menu item will be renamed. We certainly have to fix this before the release. Cheers, Doru On Fri, Mar 6, 2015 at 1:50 PM, Sean P. DeNigris <sean@clipperadams.com> wrote:
Torsten Bergmann wrote
the only thing I can lament on so far is that "Workspace" menue still opens a "Playground" and I do give not up the hope that you get convinced that this is confusing to people ;)
I find it confusing on a visceral level even though I intellectually know the entire history and rationale!
----- Cheers, Sean -- View this message in context: http://forum.world.st/Pillar-and-GT-tools-in-Pharo4-tp4809850p4809976.html Sent from the Pharo Smalltalk Users mailing list archive at Nabble.com.
-- www.tudorgirba.com "Every thing has its own flow"
Torsten Bergmann wrote
we would have to add a dependency from Pillar to >PetitParser. What do you think?
Make sure you depend on 'Core'. The default loads the GUI tools which brings in a whole lot of extra dependencies. ----- Cheers, Sean -- View this message in context: http://forum.world.st/Pillar-and-GT-tools-in-Pharo4-tp4809850p4809982.html Sent from the Pharo Smalltalk Users mailing list archive at Nabble.com.
Yes, I know :) Doru On Fri, Mar 6, 2015 at 2:06 PM, Sean P. DeNigris <sean@clipperadams.com> wrote:
Torsten Bergmann wrote
we would have to add a dependency from Pillar to >PetitParser. What do you think?
Make sure you depend on 'Core'. The default loads the GUI tools which brings in a whole lot of extra dependencies.
----- Cheers, Sean -- View this message in context: http://forum.world.st/Pillar-and-GT-tools-in-Pharo4-tp4809850p4809982.html Sent from the Pharo Smalltalk Users mailing list archive at Nabble.com.
-- www.tudorgirba.com "Every thing has its own flow"
Hi, Seems pretty impressive. By the way, where did you get your pharo background image and how can I change the default one with this one? Cheers, Offray El 06/03/15 a las 03:21, Torsten Bergmann escribió:
Hi Doru,
Great job.
Was very simple to do in one evening, thanks to GT tools. I like infrastructure that empowers us and the only thing I can lament on so far is that "Workspace" menue still opens a "Playground" and I do give not up the hope that you get convinced that this is confusing to people ;)
Some feedback about the extensions:
- I saw that you figured out the new feature of searching with spotter from the inspector without any public announcement. Did you figure >it out from the code of GT or by seeing an example? In any case, very nice :).
By accident. I first implemented an own Spotter model and a custom action in the inspector for PRDocumentItems to open it. Then I've noticed there is another icon to click on in the inspector beside mine - and as id did the same (open Spotter) I was able to remove a lot of code again.
Would have been nice to know earlier - but thats life when living on the latest Pharo 4 updates and getting things solved quickly.
- use "composite pharoPlayground" only when you want syntax highlighting and code completion for Pharo code. Otherwise, use "composite text"
Ahh, I see. It's fixed now
you get extensions for working with files. See here: http://www.humane-assessment.com/blog/writing-pillar-books-with-the-gtinspec...
I've seen that, but it did not really work. When I load (in 4.0#40537) PetitParser from MetaRepoForPharo30 using config browser, then the GT-InspectorExtensions-Pillar package and look by inspecting "FileSystem workingDirectory" onto a *.pillar file I can see the new tab "Pillar" - but it does not highlight the syntax.
- now that the inspector and spotter are part of Pharo, we can move these extensions directly into Pillar. The only problem is that this syntax highlighting is based on PetitParser, so we would have to add a dependency from Pillar to >PetitParser. What do you think?
Would make sense - the dependency to PetitParse could be set for "Pillar-Pharo-Tools" so it is not loaded if one does not use the tool extensions. No time to look into this, although it would be nice to get the syntax highlighting in and it would be better to place this into Pillar itself instead of GT.

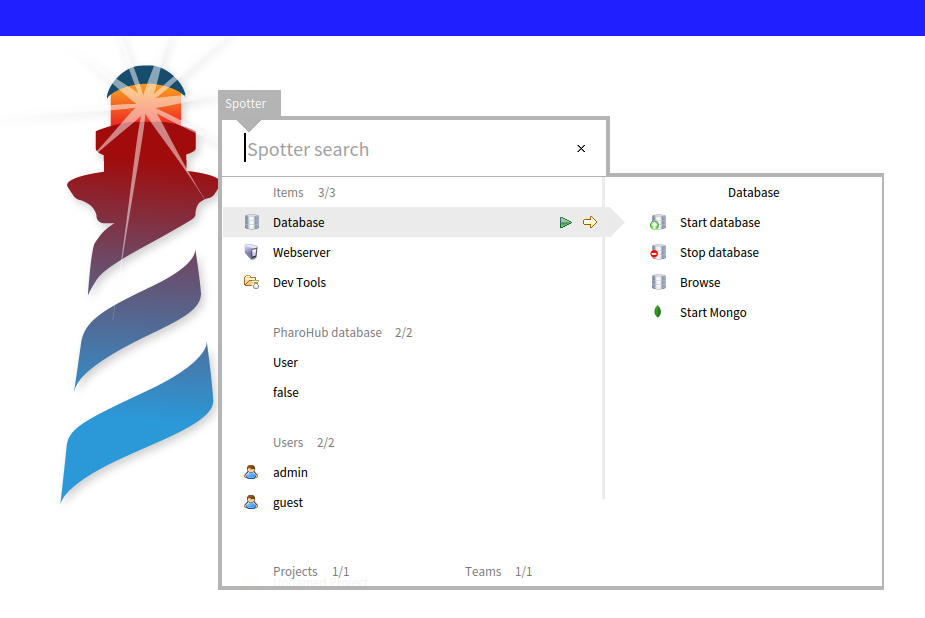

Please keep up the good work. Spotter already allows other nice things as easily building custom helpers for developing or own applications. See the attached screenshot: I already use a custom spotter to combine development commands, browse domain objects, Mongo collections - easily done with a few methods and pragmas.
Pharo is on the right track...
Bye T.
On Mar 6, 2015 1:25 AM, "Tudor Girba" <tudor@tudorgirba.com> wrote:
- now that the inspector and spotter are part of Pharo, we can move these extensions directly into Pillar. The only problem is that this syntax highlighting is based on PetitParser, so we would have to add a dependency from Pillar to PetitParser. What do you think?
Please don't make pillar core depend on petitparser (except if main pillar parser is rewritten in petitparser :-)). I have no problem having petitparser as a dependency of pillar-pharo-tools though.
Ok. I will add a dependency from Pillar-Pharo-Tools to PetitParser core. Actually, I would rather prefer to create a separate ConfigurationOfPillarTools that adds the Pillar-Pharo-Tools and the PetitParser dependency. What that be Ok? Cheers, Doru On Fri, Mar 6, 2015 at 11:45 PM, Damien Cassou <damien.cassou@gmail.com> wrote:
On Mar 6, 2015 1:25 AM, "Tudor Girba" <tudor@tudorgirba.com> wrote:
- now that the inspector and spotter are part of Pharo, we can move these extensions directly into Pillar. The only problem is that this syntax highlighting is based on PetitParser, so we would have to add a dependency from Pillar to PetitParser. What do you think?
Please don't make pillar core depend on petitparser (except if main pillar parser is rewritten in petitparser :-)). I have no problem having petitparser as a dependency of pillar-pharo-tools though.
-- www.tudorgirba.com "Every thing has its own flow"
On Mar 7, 2015 4:42 AM, "Tudor Girba" <tudor@tudorgirba.com> wrote:
Actually, I would rather prefer to create a separate
ConfigurationOfPillarTools that adds the Pillar-Pharo-Tools and the PetitParser dependency. What that be Ok? Ok for me, do as you prefer. What is your rationale?
On 07/03/15 10:42, Tudor Girba wrote:
Ok. I will add a dependency from Pillar-Pharo-Tools to PetitParser core.
Actually, I would rather prefer to create a separate ConfigurationOfPillarTools that adds the Pillar-Pharo-Tools and the PetitParser dependency. What that be Ok?
No that is not ok. We have groups for that. Stephan
Hi Stephan, This looks like deja-vu :). Let's have the conversation on the other thread that deals specifically with the issue of fine grained configurations. Cheers, Doru On Mon, Mar 9, 2015 at 11:32 PM, Stephan Eggermont <stephan@stack.nl> wrote:
On 07/03/15 10:42, Tudor Girba wrote:
Ok. I will add a dependency from Pillar-Pharo-Tools to PetitParser core.
Actually, I would rather prefer to create a separate ConfigurationOfPillarTools that adds the Pillar-Pharo-Tools and the PetitParser dependency. What that be Ok?
No that is not ok. We have groups for that.
Stephan
-- www.tudorgirba.com "Every thing has its own flow"
