Thanks. Hilaire Le 13/09/2018 à 18:35, Peter Uhnak a écrit :

Hi,

you can start with the Bloc booklet http://files.pharo.org/books-pdfs/booklet-Bloc/BLOCDRAFT.pdf ... it is probably a bit outdated, but I think the API hasn't changed that much. and then in the image itself there is a "Bloc-Examples" package that contains hundreds (thousands?) of examples.

Peter

-- Dr. Geo http://drgeo.eu

Le 15/09/2018 à 10:10, Hilaire a écrit :

By the way, once Bloc was installed on the image, the image does not save. Crash dump included.

-- Dr. Geo http://drgeo.eu

Hi, Thanks for trying. The examples are found in methods annotated with <gtExample>. What do you mean that "Several examples are not actionable”? Could you provide examples of that to find out what the problem is? Cheers, Doru

On Sep 15, 2018, at 10:10 AM, Hilaire <hilaire@drgeo.eu> wrote:

Play a bit with the examples. Help me to write some code in the playground

Several examples are not actionable and seems to be part of some things bigger. Am I missing somethings?

I see this pragma <script: > Is it intended to be search-able from the finder or another tool?

By the way, once Bloc was installed on the image, the image does not save. Crash dump included.

Hilaire

Le 13/09/2018 à 18:35, Peter Uhnak a écrit :

...

and then in the image itself there is a "Bloc-Examples" package that contains hundreds (thousands?) of examples.

-- Dr. Geo http://drgeo.eu

-- www.feenk.com "Don't give to get. Just give."

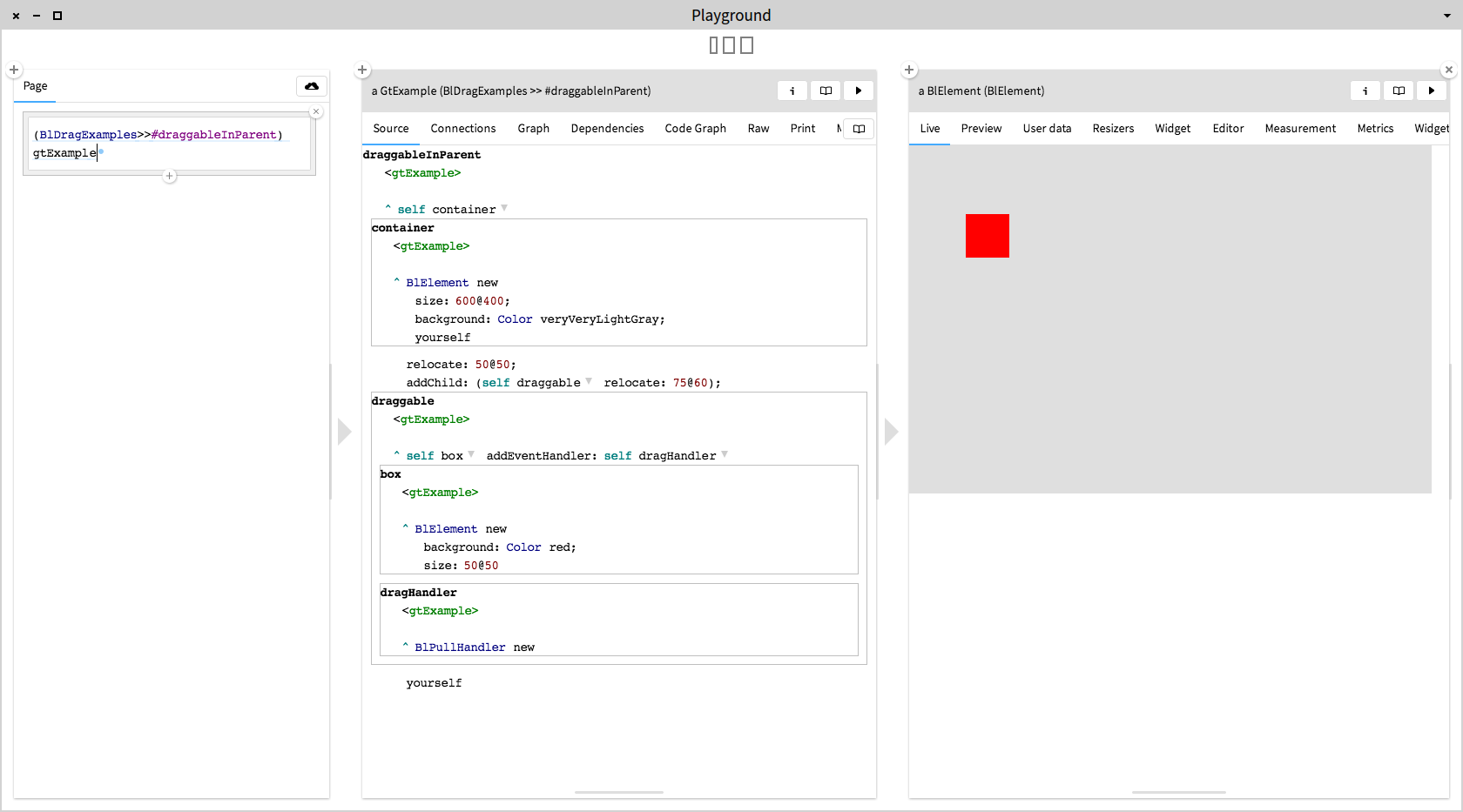

Hi, I see where the issue comes from. The <gtExample> are like test methods that return an object. That object serves as example, but it is not necessarily a user facing object. Look at the picture below showing BlDragExamples>>#draggableInParent. BlDragExamples>>#draggableInParent calls several other methods that are marked as <gtExample>. In the second pane in the inspector you can see these inner methods being unfolded. These examples show how to setup the inner part, and how the pieces fit together. In this case, the outmost example is indeed an element that can be played with (you see it here on the third pane), but the inner objects can be as interesting through the various custom views. This way of working replaces testing and bridges the gap with documentation. You can learn about it here: https://medium.com/@Chis_Andrei/exemplifying-software-fd39a420472a Or if you load the full GToolkit, you can follow tutorials live in the environment by inspecting: GtInspector openOn: (GtDocumenter editorForPillar: (IceRepository repositoriesLocation / 'feenkcom'/ 'gtoolkit-examples' / 'doc' / 'tutorial' / 'examples-tutorial.pillar’)) Cheers, Doru

On Sep 16, 2018, at 11:08 AM, Hilaire <hilaire@drgeo.eu> wrote:

Le 16/09/2018 à 08:00, Tudor Girba a écrit :

...

The examples are found in methods annotated with <gtExample>. What do you mean that "Several examples are not actionable”? Could you provide examples of that to find out what the problem is?

For examples, in those classes I don't know what to do: * *BlDragExamples or in categories, Bloc-Example>Events

These are code you can read, but no clue what to do with it. No actionable examples to experiment with to visualize, to edit the code in live to learn how this work, etc. It looks like the same for most examples.

Hilaire

-- Dr. Geo http://drgeo.eu

-- www.feenk.com "We can create beautiful models in a vacuum. But, to get them effective we have to deal with the inconvenience of reality."
