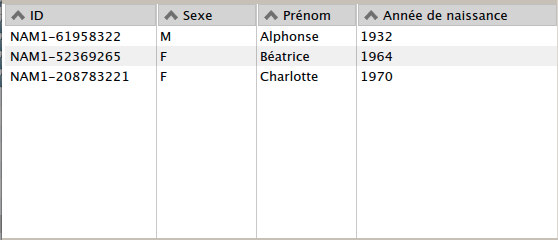

Such a UI can be achieve with a MorphTreeMorph (therefor with a TreeModel in Spec). Maybe I should create a TableModel in addition since a TreeModel for this is a bit magic :) Ben On 07 Nov 2013, at 10:04, Clément Bera <bera.clement@gmail.com> wrote:

Hello,

Actually I had the same problem, I think the best widget that exists for that right now is MultiColumnListModel.

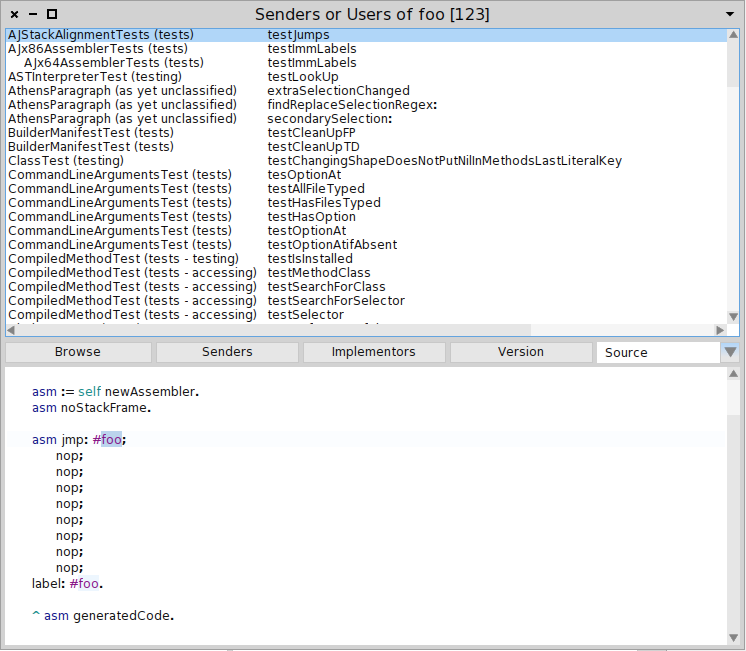

For example, in the senders window (in attachment), the top panel is a MultiColumnListModel. You can have as many lines and as many columns as you want.

We do not have yet a tableLayout, but we miss it. If you plan to implement it, we will be interested in integrating it into Pharo.

Ben can advise you on how to implement that.

<Screen Shot 2013-11-07 at 10.00.55 AM.png>

2013/11/7 Bahman Movaqar <Bahman@bahmanm.com> Hi all,

Is there a grid/table layout available in Spec? Something like an HTML table or Swing's GridLayout? If not, how may I achieve such a functionality?

I'd appreciate any hints/pointers.

-- Bahman Movaqar (http://BahmanM.com)

ERP Evaluation, Implementation & Deployment Consultant PGP Key ID: 0x6AB5BD68 (keyserver2.pgp.com)

On 07 Nov 2013, at 12:04, Bahman Movaqar <Bahman@BahmanM.com> wrote:

On 11/07/2013 12:34, Clément Bera wrote:

...

Hello,

Actually I had the same problem, I think the best widget that exists for that right now is MultiColumnListModel.

For example, in the senders window (in attachment), the top panel is a MultiColumnListModel. You can have as many lines and as many columns as you want.

Great. Now I have to check if I can put widgets in those "lines" and "columns" instead of just text?

...

We do not have yet a tableLayout, but we miss it. If you plan to implement it, we will be interested in integrating it into Pharo.

No way! At least currently :-) I'm just too inexperienced for such serious stuff

That’s a good way to learn :P Ben

...

Ben can advise you on how to implement that.

<Mail Attachment.png>

2013/11/7 Bahman Movaqar <Bahman@bahmanm.com> Hi all,

Is there a grid/table layout available in Spec? Something like an HTML table or Swing's GridLayout? If not, how may I achieve such a functionality?

I'd appreciate any hints/pointers.

-- Bahman Movaqar (http://BahmanM.com)

ERP Evaluation, Implementation & Deployment Consultant PGP Key ID: 0x6AB5BD68 (keyserver2.pgp.com)

-- Bahman Movaqar (http://BahmanM.com)

ERP Evaluation, Implementation & Deployment Consultant PGP Key ID: 0x6AB5BD68 (keyserver2.pgp.com)

In the example I gave with TreeColumn/MorphTreeColumn the block used to render the item can return anything understanding #asMorph. So you can easily return any Morph you like there :) Ben On 08 Nov 2013, at 12:18, prova email <prova213@hotmail.it> wrote:

Hi Clement;

I did the Spec tuto made by Bahman (great tuto). As him, i'd like to put some widgets into it. Is it possible? Maybe with the method "items:"? I don't know if the solution that Ben give to us (use Morphic instead of Spec) is suitable, that's because his UI looks like a list that accept only string. Maybe i'm wrong, can you give us more explanations? Or is it something new for you too?

Thanks for your help! Paolo

From: bera.clement@gmail.com Date: Thu, 7 Nov 2013 10:04:51 +0100 To: Bahman@bahmanm.com; pharo-users@lists.pharo.org Subject: Re: [Pharo-users] Spec - Grid/Table Layout

Hello,

Actually I had the same problem, I think the best widget that exists for that right now is MultiColumnListModel.

For example, in the senders window (in attachment), the top panel is a MultiColumnListModel. You can have as many lines and as many columns as you want.

We do not have yet a tableLayout, but we miss it. If you plan to implement it, we will be interested in integrating it into Pharo.

Ben can advise you on how to implement that.

<Screen Shot 2013-11-07 at 10.00.55 AM.png>

2013/11/7 Bahman Movaqar <Bahman@bahmanm.com> Hi all,

Is there a grid/table layout available in Spec? Something like an HTML table or Swing's GridLayout? If not, how may I achieve such a functionality?

I'd appreciate any hints/pointers.

-- Bahman Movaqar (http://BahmanM.com)

ERP Evaluation, Implementation & Deployment Consultant PGP Key ID: 0x6AB5BD68 (keyserver2.pgp.com)

Yes Clement, i've got your .st file. I saw it in Nested Layout thread. I file in it in Pharo and i see that is not as good as a fashion window is. Maybe Morphic is the right solution but, in that way, we are leaving the idea of Bahman, and the 2nd Spec Tuto is in danger! However, you asked to Ben the same question that i did: can i put some widgets in these cells or only String? Thanks again!Paolo From: bera.clement@gmail.com Date: Fri, 8 Nov 2013 12:51:06 +0100 To: pharo-users@lists.pharo.org Subject: Re: [Pharo-users] Spec - Grid/Table Layout Ben answered in another thread: About table, I have an example which will be running soon in Pharo (the changes are waiting to be integrated) tree := TreeModel new.tree openWithSpec. tree columns: (Array with: (TreeColumnModel new displayBlock: [:node | node content first asString ]; headerLabel: 'Name'; yourself) with: (TreeColumnModel new displayBlock: [:node | node content second asString ]; headerLabel: 'Last Name'; yourself) with: (TreeColumnModel new displayBlock: [:node | node content third asString ]; headerLabel: 'Age'; yourself) with: (TreeColumnModel new displayBlock: [:node | node content fourth asString ]; headerLabel: 'Gender'; yourself)). tree roots: { {'Benjamin'.'Van Ryseghem'.'26'.'M'}. {'Pamela'.'Anderson'.'Far too much'.'F'} } Right now, you can get the same by - adding MorphTreeAdapter>>#columns: columns: columns self widgetDo: [ :w | w columns: columns. w resizerChanged. w updateList ] And then evaluating: tree := TreeModel new.tree openWithSpec. tree columns: (Array with: (MorphTreeColumn new rowMorphGetSelector: [:node | node item first asString asMorph ]; headerButtonLabel: 'Name' font: nil; yourself) with: (MorphTreeColumn new rowMorphGetSelector: [:node | node item second asString asMorph ]; headerButtonLabel: 'Last Name' font: nil; yourself) with: (MorphTreeColumn new rowMorphGetSelector: [:node | node item third asString asMorph ]; headerButtonLabel: 'Age' font: nil; yourself) with: (MorphTreeColumn new rowMorphGetSelector: [:node | node item fourth asString asMorph ]; headerButtonLabel: 'Gender' font: nil; yourself)). tree roots: { {'Benjamin'.'Van Ryseghem'.'26'.'M'}. {'Pamela'.'Anderson'.'Far too much'.'F'} } Ben Ben, in each cell, can we put something else than a String ? If so, can you add an example in the code above ? Thanks. I guess doing Ben's solution is the best. I did it with nested layout but it is definitely not as good (see file in attachment, add it in your image then evaluate SpecTable new). 2013/11/8 prova email <prova213@hotmail.it> Hi Clement; I did the Spec tuto made by Bahman (great tuto). As him, i'd like to put some widgets into it. Is it possible? Maybe with the method "items:"? I don't know if the solution that Ben give to us (use Morphic instead of Spec) is suitable, that's because his UI looks like a list that accept only string. Maybe i'm wrong, can you give us more explanations? Or is it something new for you too? Thanks for your help!Paolo From: bera.clement@gmail.com Date: Thu, 7 Nov 2013 10:04:51 +0100 To: Bahman@bahmanm.com; pharo-users@lists.pharo.org Subject: Re: [Pharo-users] Spec - Grid/Table Layout Hello, Actually I had the same problem, I think the best widget that exists for that right now is MultiColumnListModel. For example, in the senders window (in attachment), the top panel is a MultiColumnListModel. You can have as many lines and as many columns as you want. We do not have yet a tableLayout, but we miss it. If you plan to implement it, we will be interested in integrating it into Pharo. Ben can advise you on how to implement that. 2013/11/7 Bahman Movaqar <Bahman@bahmanm.com> Hi all, Is there a grid/table layout available in Spec? Something like an HTML table or Swing's GridLayout? If not, how may I achieve such a functionality? I'd appreciate any hints/pointers. -- Bahman Movaqar (http://BahmanM.com) ERP Evaluation, Implementation & Deployment Consultant PGP Key ID: 0x6AB5BD68 (keyserver2.pgp.com)

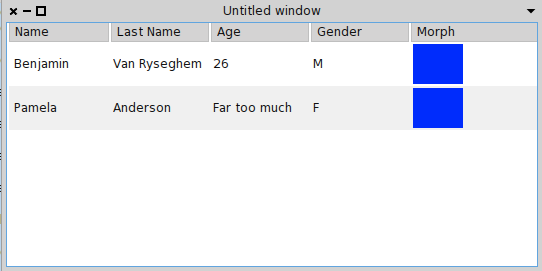

Yes Ben, too much threads! That's why i'm a little bit confused! That's what i understood: i've got two roads-> use TreeModel as you did with Pamela Anderson or use the simple and nested SpecLayout (SpecLayout composed) as Clement did.If in your TreeModel i can put a RadioButtonModel or a ButtonModel or so on... we got the deal! Paolo From: Benjamin.VanRyseghem.Pharo@gmail.com Date: Fri, 8 Nov 2013 13:59:51 +0100 To: pharo-users@lists.pharo.org Subject: Re: [Pharo-users] Spec - Grid/Table Layout I guess too much threads :) I answer this in another thread I think :P the block provided to displayBlock:/rowMorphGetSelector: can return anything understanding asMorph.So you can return any custom morph there :) I think the following work tree columns: (Array with: (TreeColumnModel new displayBlock: [:node | node content first asString ]; headerLabel: 'Name'; yourself) with: (TreeColumnModel new displayBlock: [:node | node content second asString ]; headerLabel: 'Last Name'; yourself) with: (TreeColumnModel new displayBlock: [:node | node content third asString ]; headerLabel: 'Age'; yourself) with: (TreeColumnModel new displayBlock: [:node | node content fourth asString ]; headerLabel: 'Gender'; yourself) with: (TreeColumnModel new displayBlock: [:node | Morph new ]; headerLabel: ‘Morph'; yourself)) or tree columns: (Array with: (MorphTreeColumn new rowMorphGetSelector: [:node | node item first asString asMorph ]; headerButtonLabel: 'Name' font: nil; yourself) with: (MorphTreeColumn new rowMorphGetSelector: [:node | node item second asString asMorph ]; headerButtonLabel: 'Last Name' font: nil; yourself) with: (MorphTreeColumn new rowMorphGetSelector: [:node | node item third asString asMorph ]; headerButtonLabel: 'Age' font: nil; yourself) with: (MorphTreeColumn new rowMorphGetSelector: [:node | node item fourth asString asMorph ]; headerButtonLabel: 'Gender' font: nil; yourself) with: (MorphTreeColumn new rowMorphGetSelector: [:node | Morph new ]; headerButtonLabel: 'Morph' font: nil; yourself)).And you get something like Ben On 08 Nov 2013, at 13:45, prova email <prova213@hotmail.it> wrote:Yes Clement, i've got your .st file. I saw it in Nested Layout thread. I file in it in Pharo and i see that is not as good as a fashion window is. Maybe Morphic is the right solution but, in that way, we are leaving the idea of Bahman, and the 2nd Spec Tuto is in danger! However, you asked to Ben the same question that i did: can i put some widgets in these cells or only String? Thanks again!Paolo From: bera.clement@gmail.com Date: Fri, 8 Nov 2013 12:51:06 +0100 To: pharo-users@lists.pharo.org Subject: Re: [Pharo-users] Spec - Grid/Table Layout Ben answered in another thread: About table, I have an example which will be running soon in Pharo (the changes are waiting to be integrated) tree := TreeModel new.tree openWithSpec. tree columns: (Array with: (TreeColumnModel new displayBlock: [:node | node content first asString ]; headerLabel: 'Name'; yourself) with: (TreeColumnModel new displayBlock: [:node | node content second asString ]; headerLabel: 'Last Name'; yourself) with: (TreeColumnModel new displayBlock: [:node | node content third asString ]; headerLabel: 'Age'; yourself) with: (TreeColumnModel new displayBlock: [:node | node content fourth asString ]; headerLabel: 'Gender'; yourself)). tree roots: { {'Benjamin'.'Van Ryseghem'.'26'.'M'}. {'Pamela'.'Anderson'.'Far too much'.'F'}} Right now, you can get the same by - adding MorphTreeAdapter>>#columns: columns: columns self widgetDo: [ :w | w columns: columns. w resizerChanged. w updateList ] And then evaluating: tree := TreeModel new.tree openWithSpec. tree columns: (Array with: (MorphTreeColumn new rowMorphGetSelector: [:node | node item first asString asMorph ]; headerButtonLabel: 'Name' font: nil; yourself) with: (MorphTreeColumn new rowMorphGetSelector: [:node | node item second asString asMorph ]; headerButtonLabel: 'Last Name' font: nil; yourself) with: (MorphTreeColumn new rowMorphGetSelector: [:node | node item third asString asMorph ]; headerButtonLabel: 'Age' font: nil; yourself) with: (MorphTreeColumn new rowMorphGetSelector: [:node | node item fourth asString asMorph ]; headerButtonLabel: 'Gender' font: nil; yourself)). tree roots: { {'Benjamin'.'Van Ryseghem'.'26'.'M'}. {'Pamela'.'Anderson'.'Far too much'.'F'}} Ben Ben, in each cell, can we put something else than a String ? If so, can you add an example in the code above ? Thanks. I guess doing Ben's solution is the best. I did it with nested layout but it is definitely not as good (see file in attachment, add it in your image then evaluate SpecTable new). 2013/11/8 prova email <prova213@hotmail.it> Hi Clement; I did the Spec tuto made by Bahman (great tuto). As him, i'd like to put some widgets into it. Is it possible? Maybe with the method "items:"? I don't know if the solution that Ben give to us (use Morphic instead of Spec) is suitable, that's because his UI looks like a list that accept only string. Maybe i'm wrong, can you give us more explanations? Or is it something new for you too? Thanks for your help!Paolo From: bera.clement@gmail.com Date: Thu, 7 Nov 2013 10:04:51 +0100 To: Bahman@bahmanm.com; pharo-users@lists.pharo.org Subject: Re: [Pharo-users] Spec - Grid/Table Layout Hello, Actually I had the same problem, I think the best widget that exists for that right now is MultiColumnListModel. For example, in the senders window (in attachment), the top panel is a MultiColumnListModel. You can have as many lines and as many columns as you want. We do not have yet a tableLayout, but we miss it. If you plan to implement it, we will be interested in integrating it into Pharo. Ben can advise you on how to implement that. 2013/11/7 Bahman Movaqar <Bahman@bahmanm.com> Hi all, Is there a grid/table layout available in Spec? Something like an HTML table or Swing's GridLayout? If not, how may I achieve such a functionality? I'd appreciate any hints/pointers. -- Bahman Movaqar (http://BahmanM.com) ERP Evaluation, Implementation & Deployment Consultant PGP Key ID: 0x6AB5BD68 (keyserver2.pgp.com)

Very very very good Ben, thanks a lot. Last question: you use the "columns:" message, but it's not defined in TreeModel. You defined it hereMorphTreeAdapter>>#columns: columns: columns self widgetDo: [ :w | w columns: columns. w resizerChanged. w updateList ] in the brand new Class MorphTreeAdapter. What's the difference between define columns: here instead of in the TreeModel class?Great job and thank you!Paolo From: Benjamin.VanRyseghem.Pharo@gmail.com Date: Fri, 8 Nov 2013 14:15:46 +0100 To: pharo-users@lists.pharo.org Subject: Re: [Pharo-users] Spec - Grid/Table Layout tree := TreeModel new.tree openWithSpec. tree columns: (Array with: (MorphTreeColumn new rowMorphGetSelector: [:node | node item first asString asMorph ]; headerButtonLabel: 'Name' font: nil; yourself) with: (MorphTreeColumn new rowMorphGetSelector: [:node | node item second asString asMorph ]; headerButtonLabel: 'Last Name' font: nil; yourself) with: (MorphTreeColumn new rowMorphGetSelector: [:node | node item third asString asMorph ]; headerButtonLabel: 'Age' font: nil; yourself) with: (MorphTreeColumn new rowMorphGetSelector: [:node | node item fourth asString asMorph ]; headerButtonLabel: 'Gender' font: nil; yourself) with: (MorphTreeColumn new rowMorphGetSelector: [:node | (ButtonModel new label: 'Yes we can') buildWithSpec hResizing: #spaceFill]; headerButtonLabel: 'Morph' font: nil; yourself)). tree roots: { {'Benjamin'.'Van Ryseghem'.'26'.'M'}. {'Pamela'.'Anderson'.'Far too much'.'F'}} Ben On 08 Nov 2013, at 14:05, prova email <prova213@hotmail.it> wrote:Yes Ben, too much threads! That's why i'm a little bit confused! That's what i understood: i've got two roads-> use TreeModel as you did with Pamela Anderson or use the simple and nested SpecLayout (SpecLayout composed) as Clement did.If in your TreeModel i can put a RadioButtonModel or a ButtonModel or so on... we got the deal! Paolo From: Benjamin.VanRyseghem.Pharo@gmail.com Date: Fri, 8 Nov 2013 13:59:51 +0100 To: pharo-users@lists.pharo.org Subject: Re: [Pharo-users] Spec - Grid/Table Layout I guess too much threads :) I answer this in another thread I think :P the block provided to displayBlock:/rowMorphGetSelector: can return anything understanding asMorph.So you can return any custom morph there :) I think the following work tree columns: (Array with: (TreeColumnModel new displayBlock: [:node | node content first asString ]; headerLabel: 'Name'; yourself) with: (TreeColumnModel new displayBlock: [:node | node content second asString ]; headerLabel: 'Last Name'; yourself) with: (TreeColumnModel new displayBlock: [:node | node content third asString ]; headerLabel: 'Age'; yourself) with: (TreeColumnModel new displayBlock: [:node | node content fourth asString ]; headerLabel: 'Gender'; yourself) with: (TreeColumnModel new displayBlock: [:node | Morph new ]; headerLabel: ‘Morph'; yourself)) or tree columns: (Array with: (MorphTreeColumn new rowMorphGetSelector: [:node | node item first asString asMorph ]; headerButtonLabel: 'Name' font: nil; yourself) with: (MorphTreeColumn new rowMorphGetSelector: [:node | node item second asString asMorph ]; headerButtonLabel: 'Last Name' font: nil; yourself) with: (MorphTreeColumn new rowMorphGetSelector: [:node | node item third asString asMorph ]; headerButtonLabel: 'Age' font: nil; yourself) with: (MorphTreeColumn new rowMorphGetSelector: [:node | node item fourth asString asMorph ]; headerButtonLabel: 'Gender' font: nil; yourself) with: (MorphTreeColumn new rowMorphGetSelector: [:node | Morph new ]; headerButtonLabel: 'Morph' font: nil; yourself)).And you get something like <Screen Shot 2013-11-08 at 13.58.51.png>Ben On 08 Nov 2013, at 13:45, prova email <prova213@hotmail.it> wrote:Yes Clement, i've got your .st file. I saw it in Nested Layout thread. I file in it in Pharo and i see that is not as good as a fashion window is. Maybe Morphic is the right solution but, in that way, we are leaving the idea of Bahman, and the 2nd Spec Tuto is in danger! However, you asked to Ben the same question that i did: can i put some widgets in these cells or only String? Thanks again!Paolo From: bera.clement@gmail.com Date: Fri, 8 Nov 2013 12:51:06 +0100 To: pharo-users@lists.pharo.org Subject: Re: [Pharo-users] Spec - Grid/Table Layout Ben answered in another thread: About table, I have an example which will be running soon in Pharo (the changes are waiting to be integrated) tree := TreeModel new.tree openWithSpec. tree columns: (Array with: (TreeColumnModel new displayBlock: [:node | node content first asString ]; headerLabel: 'Name'; yourself) with: (TreeColumnModel new displayBlock: [:node | node content second asString ]; headerLabel: 'Last Name'; yourself) with: (TreeColumnModel new displayBlock: [:node | node content third asString ]; headerLabel: 'Age'; yourself) with: (TreeColumnModel new displayBlock: [:node | node content fourth asString ]; headerLabel: 'Gender'; yourself)). tree roots: { {'Benjamin'.'Van Ryseghem'.'26'.'M'}. {'Pamela'.'Anderson'.'Far too much'.'F'}} Right now, you can get the same by - adding MorphTreeAdapter>>#columns: columns: columns self widgetDo: [ :w | w columns: columns. w resizerChanged. w updateList ] And then evaluating: tree := TreeModel new.tree openWithSpec. tree columns: (Array with: (MorphTreeColumn new rowMorphGetSelector: [:node | node item first asString asMorph ]; headerButtonLabel: 'Name' font: nil; yourself) with: (MorphTreeColumn new rowMorphGetSelector: [:node | node item second asString asMorph ]; headerButtonLabel: 'Last Name' font: nil; yourself) with: (MorphTreeColumn new rowMorphGetSelector: [:node | node item third asString asMorph ]; headerButtonLabel: 'Age' font: nil; yourself) with: (MorphTreeColumn new rowMorphGetSelector: [:node | node item fourth asString asMorph ]; headerButtonLabel: 'Gender' font: nil; yourself)). tree roots: { {'Benjamin'.'Van Ryseghem'.'26'.'M'}. {'Pamela'.'Anderson'.'Far too much'.'F'}} Ben Ben, in each cell, can we put something else than a String ? If so, can you add an example in the code above ? Thanks. I guess doing Ben's solution is the best. I did it with nested layout but it is definitely not as good (see file in attachment, add it in your image then evaluate SpecTable new). 2013/11/8 prova email <prova213@hotmail.it> Hi Clement; I did the Spec tuto made by Bahman (great tuto). As him, i'd like to put some widgets into it. Is it possible? Maybe with the method "items:"? I don't know if the solution that Ben give to us (use Morphic instead of Spec) is suitable, that's because his UI looks like a list that accept only string. Maybe i'm wrong, can you give us more explanations? Or is it something new for you too? Thanks for your help!Paolo From: bera.clement@gmail.com Date: Thu, 7 Nov 2013 10:04:51 +0100 To: Bahman@bahmanm.com; pharo-users@lists.pharo.org Subject: Re: [Pharo-users] Spec - Grid/Table Layout Hello, Actually I had the same problem, I think the best widget that exists for that right now is MultiColumnListModel. For example, in the senders window (in attachment), the top panel is a MultiColumnListModel. You can have as many lines and as many columns as you want. We do not have yet a tableLayout, but we miss it. If you plan to implement it, we will be interested in integrating it into Pharo. Ben can advise you on how to implement that. 2013/11/7 Bahman Movaqar <Bahman@bahmanm.com> Hi all, Is there a grid/table layout available in Spec? Something like an HTML table or Swing's GridLayout? If not, how may I achieve such a functionality? I'd appreciate any hints/pointers. -- Bahman Movaqar (http://BahmanM.com) ERP Evaluation, Implementation & Deployment Consultant PGP Key ID: 0x6AB5BD68 (keyserver2.pgp.com)

Hi Ben, are you sure that the message "widgetDo:" is the right one? It's not a message that my object looks to understand. Thanks in advance.Paolo From: Benjamin.VanRyseghem.Pharo@gmail.com Date: Fri, 8 Nov 2013 14:34:18 +0100 To: pharo-users@lists.pharo.org Subject: Re: [Pharo-users] Spec - Grid/Table Layout It is definitely defined in TreeModel :) Ben On 08 Nov 2013, at 14:29, prova email <prova213@hotmail.it> wrote:Very very very good Ben, thanks a lot. Last question: you use the "columns:" message, but it's not defined in TreeModel. You defined it hereMorphTreeAdapter>>#columns: columns: columns self widgetDo: [ :w | w columns: columns. w resizerChanged. w updateList ] in the brand new Class MorphTreeAdapter. What's the difference between define columns: here instead of in the TreeModel class?Great job and thank you!Paolo From: Benjamin.VanRyseghem.Pharo@gmail.com Date: Fri, 8 Nov 2013 14:15:46 +0100 To: pharo-users@lists.pharo.org Subject: Re: [Pharo-users] Spec - Grid/Table Layout tree := TreeModel new.tree openWithSpec. tree columns: (Array with: (MorphTreeColumn new rowMorphGetSelector: [:node | node item first asString asMorph ]; headerButtonLabel: 'Name' font: nil; yourself) with: (MorphTreeColumn new rowMorphGetSelector: [:node | node item second asString asMorph ]; headerButtonLabel: 'Last Name' font: nil; yourself) with: (MorphTreeColumn new rowMorphGetSelector: [:node | node item third asString asMorph ]; headerButtonLabel: 'Age' font: nil; yourself) with: (MorphTreeColumn new rowMorphGetSelector: [:node | node item fourth asString asMorph ]; headerButtonLabel: 'Gender' font: nil; yourself) with: (MorphTreeColumn new rowMorphGetSelector: [:node | (ButtonModel new label: 'Yes we can') buildWithSpec hResizing: #spaceFill]; headerButtonLabel: 'Morph' font: nil; yourself)). tree roots: { {'Benjamin'.'Van Ryseghem'.'26'.'M'}. {'Pamela'.'Anderson'.'Far too much'.'F'}} Ben On 08 Nov 2013, at 14:05, prova email <prova213@hotmail.it> wrote:Yes Ben, too much threads! That's why i'm a little bit confused! That's what i understood: i've got two roads-> use TreeModel as you did with Pamela Anderson or use the simple and nested SpecLayout (SpecLayout composed) as Clement did.If in your TreeModel i can put a RadioButtonModel or a ButtonModel or so on... we got the deal! Paolo From: Benjamin.VanRyseghem.Pharo@gmail.com Date: Fri, 8 Nov 2013 13:59:51 +0100 To: pharo-users@lists.pharo.org Subject: Re: [Pharo-users] Spec - Grid/Table Layout I guess too much threads :) I answer this in another thread I think :P the block provided to displayBlock:/rowMorphGetSelector: can return anything understanding asMorph.So you can return any custom morph there :) I think the following work tree columns: (Array with: (TreeColumnModel new displayBlock: [:node | node content first asString ]; headerLabel: 'Name'; yourself) with: (TreeColumnModel new displayBlock: [:node | node content second asString ]; headerLabel: 'Last Name'; yourself) with: (TreeColumnModel new displayBlock: [:node | node content third asString ]; headerLabel: 'Age'; yourself) with: (TreeColumnModel new displayBlock: [:node | node content fourth asString ]; headerLabel: 'Gender'; yourself) with: (TreeColumnModel new displayBlock: [:node | Morph new ]; headerLabel: ‘Morph'; yourself)) or tree columns: (Array with: (MorphTreeColumn new rowMorphGetSelector: [:node | node item first asString asMorph ]; headerButtonLabel: 'Name' font: nil; yourself) with: (MorphTreeColumn new rowMorphGetSelector: [:node | node item second asString asMorph ]; headerButtonLabel: 'Last Name' font: nil; yourself) with: (MorphTreeColumn new rowMorphGetSelector: [:node | node item third asString asMorph ]; headerButtonLabel: 'Age' font: nil; yourself) with: (MorphTreeColumn new rowMorphGetSelector: [:node | node item fourth asString asMorph ]; headerButtonLabel: 'Gender' font: nil; yourself) with: (MorphTreeColumn new rowMorphGetSelector: [:node | Morph new ]; headerButtonLabel: 'Morph' font: nil; yourself)).And you get something like <Screen Shot 2013-11-08 at 13.58.51.png>Ben On 08 Nov 2013, at 13:45, prova email <prova213@hotmail.it> wrote:Yes Clement, i've got your .st file. I saw it in Nested Layout thread. I file in it in Pharo and i see that is not as good as a fashion window is. Maybe Morphic is the right solution but, in that way, we are leaving the idea of Bahman, and the 2nd Spec Tuto is in danger! However, you asked to Ben the same question that i did: can i put some widgets in these cells or only String? Thanks again!Paolo From: bera.clement@gmail.com Date: Fri, 8 Nov 2013 12:51:06 +0100 To: pharo-users@lists.pharo.org Subject: Re: [Pharo-users] Spec - Grid/Table Layout Ben answered in another thread: About table, I have an example which will be running soon in Pharo (the changes are waiting to be integrated) tree := TreeModel new.tree openWithSpec. tree columns: (Array with: (TreeColumnModel new displayBlock: [:node | node content first asString ]; headerLabel: 'Name'; yourself) with: (TreeColumnModel new displayBlock: [:node | node content second asString ]; headerLabel: 'Last Name'; yourself) with: (TreeColumnModel new displayBlock: [:node | node content third asString ]; headerLabel: 'Age'; yourself) with: (TreeColumnModel new displayBlock: [:node | node content fourth asString ]; headerLabel: 'Gender'; yourself)). tree roots: { {'Benjamin'.'Van Ryseghem'.'26'.'M'}. {'Pamela'.'Anderson'.'Far too much'.'F'}} Right now, you can get the same by - adding MorphTreeAdapter>>#columns: columns: columns self widgetDo: [ :w | w columns: columns. w resizerChanged. w updateList ] And then evaluating: tree := TreeModel new.tree openWithSpec. tree columns: (Array with: (MorphTreeColumn new rowMorphGetSelector: [:node | node item first asString asMorph ]; headerButtonLabel: 'Name' font: nil; yourself) with: (MorphTreeColumn new rowMorphGetSelector: [:node | node item second asString asMorph ]; headerButtonLabel: 'Last Name' font: nil; yourself) with: (MorphTreeColumn new rowMorphGetSelector: [:node | node item third asString asMorph ]; headerButtonLabel: 'Age' font: nil; yourself) with: (MorphTreeColumn new rowMorphGetSelector: [:node | node item fourth asString asMorph ]; headerButtonLabel: 'Gender' font: nil; yourself)). tree roots: { {'Benjamin'.'Van Ryseghem'.'26'.'M'}. {'Pamela'.'Anderson'.'Far too much'.'F'}} Ben Ben, in each cell, can we put something else than a String ? If so, can you add an example in the code above ? Thanks. I guess doing Ben's solution is the best. I did it with nested layout but it is definitely not as good (see file in attachment, add it in your image then evaluate SpecTable new). 2013/11/8 prova email <prova213@hotmail.it> Hi Clement; I did the Spec tuto made by Bahman (great tuto). As him, i'd like to put some widgets into it. Is it possible? Maybe with the method "items:"? I don't know if the solution that Ben give to us (use Morphic instead of Spec) is suitable, that's because his UI looks like a list that accept only string. Maybe i'm wrong, can you give us more explanations? Or is it something new for you too? Thanks for your help!Paolo From: bera.clement@gmail.com Date: Thu, 7 Nov 2013 10:04:51 +0100 To: Bahman@bahmanm.com; pharo-users@lists.pharo.org Subject: Re: [Pharo-users] Spec - Grid/Table Layout Hello, Actually I had the same problem, I think the best widget that exists for that right now is MultiColumnListModel. For example, in the senders window (in attachment), the top panel is a MultiColumnListModel. You can have as many lines and as many columns as you want. We do not have yet a tableLayout, but we miss it. If you plan to implement it, we will be interested in integrating it into Pharo. Ben can advise you on how to implement that. 2013/11/7 Bahman Movaqar <Bahman@bahmanm.com> Hi all, Is there a grid/table layout available in Spec? Something like an HTML table or Swing's GridLayout? If not, how may I achieve such a functionality? I'd appreciate any hints/pointers. -- Bahman Movaqar (http://BahmanM.com) ERP Evaluation, Implementation & Deployment Consultant PGP Key ID: 0x6AB5BD68 (keyserver2.pgp.com)

I'm doing a TreeModel. As you know, widgetDo is not a message of TreeModel, that's why i was asking you if there something wrong. As i asked you in a old post, column: is not a message of TreeModel, so, where do i have to create that message? The following code means to me that i have to create column: into MorphTreeAdapter, a class that i haven't got into my Pharo 2.0. MorphTreeAdapter>>#columns: columns: columns self widgetDo: [ :w | w columns: columns. w resizerChanged. w updateList ]PaoloFrom: benjamin.vanryseghem.pharo@gmail.com Date: Mon, 11 Nov 2013 12:03:13 +0100 To: pharo-users@lists.pharo.org Subject: Re: [Pharo-users] Spec - Grid/Table Layout I am sure that Adapters understands widgetDo:To which objects do you send this message ? Ben On 11 Nov 2013, at 11:08, prova email <prova213@hotmail.it> wrote:Hi Ben, are you sure that the message "widgetDo:" is the right one? It's not a message that my object looks to understand. Thanks in advance.Paolo From: Benjamin.VanRyseghem.Pharo@gmail.com Date: Fri, 8 Nov 2013 14:34:18 +0100 To: pharo-users@lists.pharo.org Subject: Re: [Pharo-users] Spec - Grid/Table Layout It is definitely defined in TreeModel :) Ben On 08 Nov 2013, at 14:29, prova email <prova213@hotmail.it> wrote:Very very very good Ben, thanks a lot. Last question: you use the "columns:" message, but it's not defined in TreeModel. You defined it hereMorphTreeAdapter>>#columns: columns: columns self widgetDo: [ :w | w columns: columns. w resizerChanged. w updateList ] in the brand new Class MorphTreeAdapter. What's the difference between define columns: here instead of in the TreeModel class?Great job and thank you!Paolo From: Benjamin.VanRyseghem.Pharo@gmail.com Date: Fri, 8 Nov 2013 14:15:46 +0100 To: pharo-users@lists.pharo.org Subject: Re: [Pharo-users] Spec - Grid/Table Layout tree := TreeModel new.tree openWithSpec. tree columns: (Array with: (MorphTreeColumn new rowMorphGetSelector: [:node | node item first asString asMorph ]; headerButtonLabel: 'Name' font: nil; yourself) with: (MorphTreeColumn new rowMorphGetSelector: [:node | node item second asString asMorph ]; headerButtonLabel: 'Last Name' font: nil; yourself) with: (MorphTreeColumn new rowMorphGetSelector: [:node | node item third asString asMorph ]; headerButtonLabel: 'Age' font: nil; yourself) with: (MorphTreeColumn new rowMorphGetSelector: [:node | node item fourth asString asMorph ]; headerButtonLabel: 'Gender' font: nil; yourself) with: (MorphTreeColumn new rowMorphGetSelector: [:node | (ButtonModel new label: 'Yes we can') buildWithSpec hResizing: #spaceFill]; headerButtonLabel: 'Morph' font: nil; yourself)). tree roots: { {'Benjamin'.'Van Ryseghem'.'26'.'M'}. {'Pamela'.'Anderson'.'Far too much'.'F'}} Ben On 08 Nov 2013, at 14:05, prova email <prova213@hotmail.it> wrote:Yes Ben, too much threads! That's why i'm a little bit confused! That's what i understood: i've got two roads-> use TreeModel as you did with Pamela Anderson or use the simple and nested SpecLayout (SpecLayout composed) as Clement did.If in your TreeModel i can put a RadioButtonModel or a ButtonModel or so on... we got the deal! Paolo From: Benjamin.VanRyseghem.Pharo@gmail.com Date: Fri, 8 Nov 2013 13:59:51 +0100 To: pharo-users@lists.pharo.org Subject: Re: [Pharo-users] Spec - Grid/Table Layout I guess too much threads :) I answer this in another thread I think :P the block provided to displayBlock:/rowMorphGetSelector: can return anything understanding asMorph.So you can return any custom morph there :) I think the following work tree columns: (Array with: (TreeColumnModel new displayBlock: [:node | node content first asString ]; headerLabel: 'Name'; yourself) with: (TreeColumnModel new displayBlock: [:node | node content second asString ]; headerLabel: 'Last Name'; yourself) with: (TreeColumnModel new displayBlock: [:node | node content third asString ]; headerLabel: 'Age'; yourself) with: (TreeColumnModel new displayBlock: [:node | node content fourth asString ]; headerLabel: 'Gender'; yourself) with: (TreeColumnModel new displayBlock: [:node | Morph new ]; headerLabel: ‘Morph'; yourself)) or tree columns: (Array with: (MorphTreeColumn new rowMorphGetSelector: [:node | node item first asString asMorph ]; headerButtonLabel: 'Name' font: nil; yourself) with: (MorphTreeColumn new rowMorphGetSelector: [:node | node item second asString asMorph ]; headerButtonLabel: 'Last Name' font: nil; yourself) with: (MorphTreeColumn new rowMorphGetSelector: [:node | node item third asString asMorph ]; headerButtonLabel: 'Age' font: nil; yourself) with: (MorphTreeColumn new rowMorphGetSelector: [:node | node item fourth asString asMorph ]; headerButtonLabel: 'Gender' font: nil; yourself) with: (MorphTreeColumn new rowMorphGetSelector: [:node | Morph new ]; headerButtonLabel: 'Morph' font: nil; yourself)).And you get something like <Screen Shot 2013-11-08 at 13.58.51.png>Ben On 08 Nov 2013, at 13:45, prova email <prova213@hotmail.it> wrote:Yes Clement, i've got your .st file. I saw it in Nested Layout thread. I file in it in Pharo and i see that is not as good as a fashion window is. Maybe Morphic is the right solution but, in that way, we are leaving the idea of Bahman, and the 2nd Spec Tuto is in danger! However, you asked to Ben the same question that i did: can i put some widgets in these cells or only String? Thanks again!Paolo From: bera.clement@gmail.com Date: Fri, 8 Nov 2013 12:51:06 +0100 To: pharo-users@lists.pharo.org Subject: Re: [Pharo-users] Spec - Grid/Table Layout Ben answered in another thread: About table, I have an example which will be running soon in Pharo (the changes are waiting to be integrated) tree := TreeModel new.tree openWithSpec. tree columns: (Array with: (TreeColumnModel new displayBlock: [:node | node content first asString ]; headerLabel: 'Name'; yourself) with: (TreeColumnModel new displayBlock: [:node | node content second asString ]; headerLabel: 'Last Name'; yourself) with: (TreeColumnModel new displayBlock: [:node | node content third asString ]; headerLabel: 'Age'; yourself) with: (TreeColumnModel new displayBlock: [:node | node content fourth asString ]; headerLabel: 'Gender'; yourself)). tree roots: { {'Benjamin'.'Van Ryseghem'.'26'.'M'}. {'Pamela'.'Anderson'.'Far too much'.'F'}} Right now, you can get the same by - adding MorphTreeAdapter>>#columns: columns: columns self widgetDo: [ :w | w columns: columns. w resizerChanged. w updateList ] And then evaluating: tree := TreeModel new.tree openWithSpec. tree columns: (Array with: (MorphTreeColumn new rowMorphGetSelector: [:node | node item first asString asMorph ]; headerButtonLabel: 'Name' font: nil; yourself) with: (MorphTreeColumn new rowMorphGetSelector: [:node | node item second asString asMorph ]; headerButtonLabel: 'Last Name' font: nil; yourself) with: (MorphTreeColumn new rowMorphGetSelector: [:node | node item third asString asMorph ]; headerButtonLabel: 'Age' font: nil; yourself) with: (MorphTreeColumn new rowMorphGetSelector: [:node | node item fourth asString asMorph ]; headerButtonLabel: 'Gender' font: nil; yourself)). tree roots: { {'Benjamin'.'Van Ryseghem'.'26'.'M'}. {'Pamela'.'Anderson'.'Far too much'.'F'}} Ben Ben, in each cell, can we put something else than a String ? If so, can you add an example in the code above ? Thanks. I guess doing Ben's solution is the best. I did it with nested layout but it is definitely not as good (see file in attachment, add it in your image then evaluate SpecTable new). 2013/11/8 prova email <prova213@hotmail.it> Hi Clement; I did the Spec tuto made by Bahman (great tuto). As him, i'd like to put some widgets into it. Is it possible? Maybe with the method "items:"? I don't know if the solution that Ben give to us (use Morphic instead of Spec) is suitable, that's because his UI looks like a list that accept only string. Maybe i'm wrong, can you give us more explanations? Or is it something new for you too? Thanks for your help!Paolo From: bera.clement@gmail.com Date: Thu, 7 Nov 2013 10:04:51 +0100 To: Bahman@bahmanm.com; pharo-users@lists.pharo.org Subject: Re: [Pharo-users] Spec - Grid/Table Layout Hello, Actually I had the same problem, I think the best widget that exists for that right now is MultiColumnListModel. For example, in the senders window (in attachment), the top panel is a MultiColumnListModel. You can have as many lines and as many columns as you want. We do not have yet a tableLayout, but we miss it. If you plan to implement it, we will be interested in integrating it into Pharo. Ben can advise you on how to implement that. 2013/11/7 Bahman Movaqar <Bahman@bahmanm.com> Hi all, Is there a grid/table layout available in Spec? Something like an HTML table or Swing's GridLayout? If not, how may I achieve such a functionality? I'd appreciate any hints/pointers. -- Bahman Movaqar (http://BahmanM.com) ERP Evaluation, Implementation & Deployment Consultant PGP Key ID: 0x6AB5BD68 (keyserver2.pgp.com)

As i imagined XD From: benjamin.vanryseghem.pharo@gmail.com Date: Mon, 11 Nov 2013 13:16:12 +0100 To: pharo-users@lists.pharo.org Subject: Re: [Pharo-users] Spec - Grid/Table Layout Now I get it :) This is not supported in 2.0 in the sense that the Spec version shipped with Pharo 2.0 has evolved :) You can try it in Pharo 3.0 :) Ben On 11 Nov 2013, at 12:08, prova email <prova213@hotmail.it> wrote:I'm doing a TreeModel. As you know, widgetDo is not a message of TreeModel, that's why i was asking you if there something wrong. As i asked you in a old post, column: is not a message of TreeModel, so, where do i have to create that message? The following code means to me that i have to create column: into MorphTreeAdapter, a class that i haven't got into my Pharo 2.0. MorphTreeAdapter>>#columns: columns: columns self widgetDo: [ :w | w columns: columns. w resizerChanged. w updateList ]PaoloFrom: benjamin.vanryseghem.pharo@gmail.com Date: Mon, 11 Nov 2013 12:03:13 +0100 To: pharo-users@lists.pharo.org Subject: Re: [Pharo-users] Spec - Grid/Table Layout I am sure that Adapters understands widgetDo:To which objects do you send this message ? Ben On 11 Nov 2013, at 11:08, prova email <prova213@hotmail.it> wrote:Hi Ben, are you sure that the message "widgetDo:" is the right one? It's not a message that my object looks to understand. Thanks in advance.Paolo From: Benjamin.VanRyseghem.Pharo@gmail.com Date: Fri, 8 Nov 2013 14:34:18 +0100 To: pharo-users@lists.pharo.org Subject: Re: [Pharo-users] Spec - Grid/Table Layout It is definitely defined in TreeModel :) Ben On 08 Nov 2013, at 14:29, prova email <prova213@hotmail.it> wrote:Very very very good Ben, thanks a lot. Last question: you use the "columns:" message, but it's not defined in TreeModel. You defined it hereMorphTreeAdapter>>#columns: columns: columns self widgetDo: [ :w | w columns: columns. w resizerChanged. w updateList ] in the brand new Class MorphTreeAdapter. What's the difference between define columns: here instead of in the TreeModel class?Great job and thank you!Paolo From: Benjamin.VanRyseghem.Pharo@gmail.com Date: Fri, 8 Nov 2013 14:15:46 +0100 To: pharo-users@lists.pharo.org Subject: Re: [Pharo-users] Spec - Grid/Table Layout tree := TreeModel new.tree openWithSpec. tree columns: (Array with: (MorphTreeColumn new rowMorphGetSelector: [:node | node item first asString asMorph ]; headerButtonLabel: 'Name' font: nil; yourself) with: (MorphTreeColumn new rowMorphGetSelector: [:node | node item second asString asMorph ]; headerButtonLabel: 'Last Name' font: nil; yourself) with: (MorphTreeColumn new rowMorphGetSelector: [:node | node item third asString asMorph ]; headerButtonLabel: 'Age' font: nil; yourself) with: (MorphTreeColumn new rowMorphGetSelector: [:node | node item fourth asString asMorph ]; headerButtonLabel: 'Gender' font: nil; yourself) with: (MorphTreeColumn new rowMorphGetSelector: [:node | (ButtonModel new label: 'Yes we can') buildWithSpec hResizing: #spaceFill]; headerButtonLabel: 'Morph' font: nil; yourself)). tree roots: { {'Benjamin'.'Van Ryseghem'.'26'.'M'}. {'Pamela'.'Anderson'.'Far too much'.'F'}} Ben On 08 Nov 2013, at 14:05, prova email <prova213@hotmail.it> wrote:Yes Ben, too much threads! That's why i'm a little bit confused! That's what i understood: i've got two roads-> use TreeModel as you did with Pamela Anderson or use the simple and nested SpecLayout (SpecLayout composed) as Clement did.If in your TreeModel i can put a RadioButtonModel or a ButtonModel or so on... we got the deal! Paolo From: Benjamin.VanRyseghem.Pharo@gmail.com Date: Fri, 8 Nov 2013 13:59:51 +0100 To: pharo-users@lists.pharo.org Subject: Re: [Pharo-users] Spec - Grid/Table Layout I guess too much threads :) I answer this in another thread I think :P the block provided to displayBlock:/rowMorphGetSelector: can return anything understanding asMorph.So you can return any custom morph there :) I think the following work tree columns: (Array with: (TreeColumnModel new displayBlock: [:node | node content first asString ]; headerLabel: 'Name'; yourself) with: (TreeColumnModel new displayBlock: [:node | node content second asString ]; headerLabel: 'Last Name'; yourself) with: (TreeColumnModel new displayBlock: [:node | node content third asString ]; headerLabel: 'Age'; yourself) with: (TreeColumnModel new displayBlock: [:node | node content fourth asString ]; headerLabel: 'Gender'; yourself) with: (TreeColumnModel new displayBlock: [:node | Morph new ]; headerLabel: ‘Morph'; yourself)) or tree columns: (Array with: (MorphTreeColumn new rowMorphGetSelector: [:node | node item first asString asMorph ]; headerButtonLabel: 'Name' font: nil; yourself) with: (MorphTreeColumn new rowMorphGetSelector: [:node | node item second asString asMorph ]; headerButtonLabel: 'Last Name' font: nil; yourself) with: (MorphTreeColumn new rowMorphGetSelector: [:node | node item third asString asMorph ]; headerButtonLabel: 'Age' font: nil; yourself) with: (MorphTreeColumn new rowMorphGetSelector: [:node | node item fourth asString asMorph ]; headerButtonLabel: 'Gender' font: nil; yourself) with: (MorphTreeColumn new rowMorphGetSelector: [:node | Morph new ]; headerButtonLabel: 'Morph' font: nil; yourself)).And you get something like <Screen Shot 2013-11-08 at 13.58.51.png>Ben On 08 Nov 2013, at 13:45, prova email <prova213@hotmail.it> wrote:Yes Clement, i've got your .st file. I saw it in Nested Layout thread. I file in it in Pharo and i see that is not as good as a fashion window is. Maybe Morphic is the right solution but, in that way, we are leaving the idea of Bahman, and the 2nd Spec Tuto is in danger! However, you asked to Ben the same question that i did: can i put some widgets in these cells or only String? Thanks again!Paolo From: bera.clement@gmail.com Date: Fri, 8 Nov 2013 12:51:06 +0100 To: pharo-users@lists.pharo.org Subject: Re: [Pharo-users] Spec - Grid/Table Layout Ben answered in another thread: About table, I have an example which will be running soon in Pharo (the changes are waiting to be integrated) tree := TreeModel new.tree openWithSpec. tree columns: (Array with: (TreeColumnModel new displayBlock: [:node | node content first asString ]; headerLabel: 'Name'; yourself) with: (TreeColumnModel new displayBlock: [:node | node content second asString ]; headerLabel: 'Last Name'; yourself) with: (TreeColumnModel new displayBlock: [:node | node content third asString ]; headerLabel: 'Age'; yourself) with: (TreeColumnModel new displayBlock: [:node | node content fourth asString ]; headerLabel: 'Gender'; yourself)). tree roots: { {'Benjamin'.'Van Ryseghem'.'26'.'M'}. {'Pamela'.'Anderson'.'Far too much'.'F'}} Right now, you can get the same by - adding MorphTreeAdapter>>#columns: columns: columns self widgetDo: [ :w | w columns: columns. w resizerChanged. w updateList ] And then evaluating: tree := TreeModel new.tree openWithSpec. tree columns: (Array with: (MorphTreeColumn new rowMorphGetSelector: [:node | node item first asString asMorph ]; headerButtonLabel: 'Name' font: nil; yourself) with: (MorphTreeColumn new rowMorphGetSelector: [:node | node item second asString asMorph ]; headerButtonLabel: 'Last Name' font: nil; yourself) with: (MorphTreeColumn new rowMorphGetSelector: [:node | node item third asString asMorph ]; headerButtonLabel: 'Age' font: nil; yourself) with: (MorphTreeColumn new rowMorphGetSelector: [:node | node item fourth asString asMorph ]; headerButtonLabel: 'Gender' font: nil; yourself)). tree roots: { {'Benjamin'.'Van Ryseghem'.'26'.'M'}. {'Pamela'.'Anderson'.'Far too much'.'F'}} Ben Ben, in each cell, can we put something else than a String ? If so, can you add an example in the code above ? Thanks. I guess doing Ben's solution is the best. I did it with nested layout but it is definitely not as good (see file in attachment, add it in your image then evaluate SpecTable new). 2013/11/8 prova email <prova213@hotmail.it> Hi Clement; I did the Spec tuto made by Bahman (great tuto). As him, i'd like to put some widgets into it. Is it possible? Maybe with the method "items:"? I don't know if the solution that Ben give to us (use Morphic instead of Spec) is suitable, that's because his UI looks like a list that accept only string. Maybe i'm wrong, can you give us more explanations? Or is it something new for you too? Thanks for your help!Paolo From: bera.clement@gmail.com Date: Thu, 7 Nov 2013 10:04:51 +0100 To: Bahman@bahmanm.com; pharo-users@lists.pharo.org Subject: Re: [Pharo-users] Spec - Grid/Table Layout Hello, Actually I had the same problem, I think the best widget that exists for that right now is MultiColumnListModel. For example, in the senders window (in attachment), the top panel is a MultiColumnListModel. You can have as many lines and as many columns as you want. We do not have yet a tableLayout, but we miss it. If you plan to implement it, we will be interested in integrating it into Pharo. Ben can advise you on how to implement that. 2013/11/7 Bahman Movaqar <Bahman@bahmanm.com> Hi all, Is there a grid/table layout available in Spec? Something like an HTML table or Swing's GridLayout? If not, how may I achieve such a functionality? I'd appreciate any hints/pointers. -- Bahman Movaqar (http://BahmanM.com) ERP Evaluation, Implementation & Deployment Consultant PGP Key ID: 0x6AB5BD68 (keyserver2.pgp.com)
