Hi, Programmed sketch in DrGeo can be animated, for example like the script bellow. The "canvas do:" message forks the block so user is not blocked. At #udpate message the items and views (morph) are recomputed and refreshed . Before porting DrGeo to Athens, the animation was pretty fast, now it is very slow. Any idea from where it could come from? Thanks ---8<------ |canvas s stats points| points :=Array new: 12. stats := Array new: 12 withAll: 0. canvas := DrGeoCanvas new. 2 to: 12 do: [:i | points at: i put: (canvas point: i@0.1). (points at: i) square; color: Color blue. s := canvas segment: i@0 to: (points at: i). s color: Color red]. canvas do: [ 1 to: 10000 do: [:i| s := 6 atRandom + 6 atRandom. stats at: s put: ((stats at: s)+1). (points at: s) name: (stats at: s) asString; moveTo: s @ ((stats at: s) / 100). canvas update]. ---8<------ -- Dr. Geo http://drgeo.eu
Igor do you have a clue ? (I'm not sure Igor is on pharo-users) Clement 2014-06-04 23:15 GMT+02:00 Hilaire Fernandes <hilaire.fernandes@gmail.com>:
Hi,
Programmed sketch in DrGeo can be animated, for example like the script bellow. The "canvas do:" message forks the block so user is not blocked. At #udpate message the items and views (morph) are recomputed and refreshed . Before porting DrGeo to Athens, the animation was pretty fast, now it is very slow.
Any idea from where it could come from?
Thanks
---8<------ |canvas s stats points|
points :=Array new: 12. stats := Array new: 12 withAll: 0.
canvas := DrGeoCanvas new. 2 to: 12 do: [:i | points at: i put: (canvas point: i@0.1). (points at: i) square; color: Color blue. s := canvas segment: i@0 to: (points at: i). s color: Color red].
canvas do: [ 1 to: 10000 do: [:i| s := 6 atRandom + 6 atRandom. stats at: s put: ((stats at: s)+1). (points at: s) name: (stats at: s) asString; moveTo: s @ ((stats at: s) / 100). canvas update]. ---8<------
-- Dr. Geo http://drgeo.eu
What does the profiler say? Alain On Thu, Jun 5, 2014 at 1:15 AM, Hilaire Fernandes < hilaire.fernandes@gmail.com> wrote:
Hi,
Programmed sketch in DrGeo can be animated, for example like the script bellow. The "canvas do:" message forks the block so user is not blocked. At #udpate message the items and views (morph) are recomputed and refreshed . Before porting DrGeo to Athens, the animation was pretty fast, now it is very slow.
Any idea from where it could come from?
Thanks
---8<------ |canvas s stats points|
points :=Array new: 12. stats := Array new: 12 withAll: 0.
canvas := DrGeoCanvas new. 2 to: 12 do: [:i | points at: i put: (canvas point: i@0.1). (points at: i) square; color: Color blue. s := canvas segment: i@0 to: (points at: i). s color: Color red].
canvas do: [ 1 to: 10000 do: [:i| s := 6 atRandom + 6 atRandom. stats at: s put: ((stats at: s)+1). (points at: s) name: (stats at: s) asString; moveTo: s @ ((stats at: s) / 100). canvas update]. ---8<------
-- Dr. Geo http://drgeo.eu
I did not try yet. Hilaire Le 05/06/2014 19:46, Alain Busser a écrit :
What does the profiler say?
Alain
-- Dr. Geo http://drgeo.eu
On 04 Jun 2014, at 23:15, Hilaire Fernandes <hilaire.fernandes@gmail.com> wrote:
Programmed sketch in DrGeo can be animated, for example like the script bellow. The "canvas do:" message forks the block so user is not blocked. At #udpate message the items and views (morph) are recomputed and refreshed . Before porting DrGeo to Athens, the animation was pretty fast, now it is very slow.
Any idea from where it could come from?
I don't know, this is not my area. But I remember a discussion about Morphic updates and Athens where Igor participated in, but I can't find it anywhere. I thought he said doing it that way is very inefficient. Sorry for the vague answer.
Right, I remember about it as well. Once a few morphs are added it get really slower pretty quickly. The discussion you refer is there: http://forum.world.st/Redraw-suggestion-for-Athens-tt4750951.html#a4751188 Regarding DrGeo canvas, it does not really need and rely on the change mechanisme of Morph: model tree is updated in one shot, then the views are updated in one shot after. But may be there are leftover change in the used view, not necessary to drgeo but implying unecessary update. Hilaire Le 06/06/2014 14:46, Sven Van Caekenberghe a écrit :
I don't know, this is not my area. But I remember a discussion about Morphic updates and Athens where Igor participated in, but I can't find it anywhere. I thought he said doing it that way is very inefficient.
-- Dr. Geo http://drgeo.eu

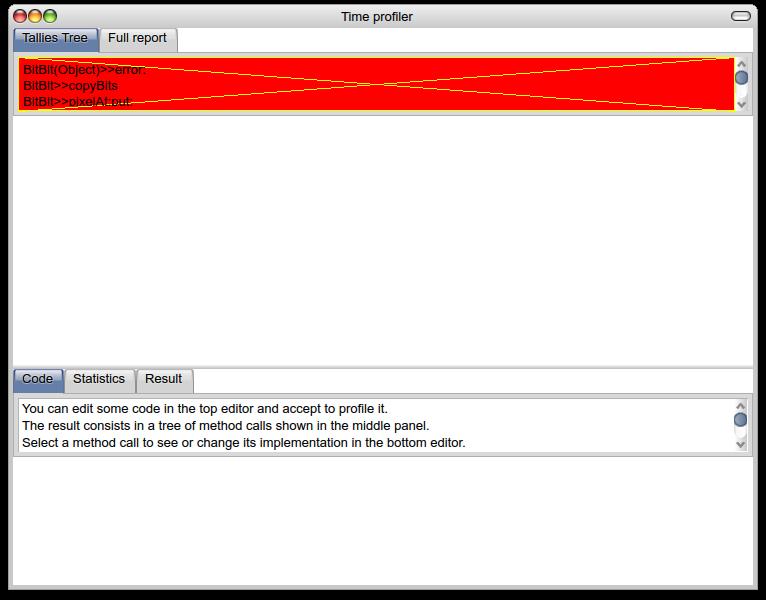

When executing under the profiler the mentioned DrGeo script, I realize the Profiler window is severely broken: Part of the windows can't be renderd, profile result can not be properly read (tiny text zone user can't resize). See screenshot. Can't see related problem on the bug tracker. Hilaire Le 04/06/2014 23:15, Hilaire Fernandes a écrit :
Before porting DrGeo to Athens, the animation was pretty fast, now it is very slow.
Any idea from where it could come from?
-- Dr. Geo http://drgeo.eu
I extracted from the buggy profiler window the profile tree of the execution of this script. The DrGeo computing part take only a fraction of the CPU time. Hilaire Le 06/06/2014 14:55, Hilaire Fernandes a écrit :
When executing under the profiler the mentioned DrGeo script, I realize the Profiler window is severely broken:
Part of the windows can't be renderd, profile result can not be properly read (tiny text zone user can't resize). See screenshot. Can't see related problem on the bug tracker.
Hilaire
Le 04/06/2014 23:15, Hilaire Fernandes a écrit :
Before porting DrGeo to Athens, the animation was pretty fast, now it is very slow.
Any idea from where it could come from?
-- Dr. Geo http://drgeo.eu
can you open a bug entry. Stef On 6/6/14 14:55, Hilaire Fernandes wrote:
When executing under the profiler the mentioned DrGeo script, I realize the Profiler window is severely broken:
Part of the windows can't be renderd, profile result can not be properly read (tiny text zone user can't resize). See screenshot. Can't see related problem on the bug tracker.
Hilaire
Le 04/06/2014 23:15, Hilaire Fernandes a écrit :
Before porting DrGeo to Athens, the animation was pretty fast, now it is very slow.
Any idea from where it could come from?
Hi Steph, Before I would like to discuss the issue because I don't know if it belongs to drgeo itlself or Pharo. What is strange, althought the script execution becomes more and more slow as more and more items are built, once the sketch is fully constructed, manipulating the sketch is fast and smooth. The only things I can add about this script: the construction take place in a forked process to let the user see the construction as an animation. I emptied the change/update family of methods in the used morph for drgeo canvas, it does change the issue. Hilaire Le 06/06/2014 18:03, stepharo a écrit :
can you open a bug entry.
Stef
On 6/6/14 14:55, Hilaire Fernandes wrote:
When executing under the profiler the mentioned DrGeo script, I realize the Profiler window is severely broken:
Part of the windows can't be renderd, profile result can not be properly read (tiny text zone user can't resize). See screenshot. Can't see related problem on the bug tracker.
Hilaire
Le 04/06/2014 23:15, Hilaire Fernandes a écrit :
Before porting DrGeo to Athens, the animation was pretty fast, now it is very slow.
Any idea from where it could come from?
-- Dr. Geo http://drgeo.eu
Read: "...it does not change the issue." Le 06/06/2014 18:19, Hilaire Fernandes a écrit :
I emptied the change/update family of methods in the used morph for drgeo canvas, it does change the issue.
-- Dr. Geo http://drgeo.eu
Hilaire Fernandes wrote:
Hi Steph,
Before I would like to discuss the issue because I don't know if it belongs to drgeo itlself or Pharo.
What is strange, althought the script execution becomes more and more slow as more and more items are built, once the sketch is fully constructed, manipulating the sketch is fast and smooth.
The only things I can add about this script: the construction take place in a forked process to let the user see the construction as an animation.
I emptied the change/update family of methods in the used morph for drgeo canvas, it does change the issue.
Hilaire
Le 06/06/2014 18:03, stepharo a écrit :
can you open a bug entry.
Stef
On 6/6/14 14:55, Hilaire Fernandes wrote:
When executing under the profiler the mentioned DrGeo script, I realize the Profiler window is severely broken:
Part of the windows can't be renderd, profile result can not be properly read (tiny text zone user can't resize). See screenshot. Can't see related problem on the bug tracker.
Hilaire
Le 04/06/2014 23:15, Hilaire Fernandes a écrit :
Before porting DrGeo to Athens, the animation was pretty fast, now it is very slow.
Any idea from where it could come from?
I once had a problem with Announcements being fired too often for the rendering loop, but apparently my solution wasn't the best.
So I'm just just curious what might happen if somewhere under the WorldState>>doOneCycleFor: call stack you might store the time "now", only do a high cost render every 100ms. cheers -ben
Le 06/06/2014 19:34, Ben Coman a écrit :
So I'm just just curious what might happen if somewhere under the WorldState>>doOneCycleFor: call stack you might store the time "now", only do a high cost render every 100ms.
Can you rephrase I don't understand? Thanks Hilaire -- Dr. Geo http://drgeo.eu
Oops, I did not realize you were referring to the profiler bug! Here it is https://pharo.fogbugz.com/f/cases/13309/ Hilaire Le 06/06/2014 18:03, stepharo a écrit :
can you open a bug entry.
Stef
-- Dr. Geo http://drgeo.eu
igor is hacking with max on virtualCPU to offer a common abstraction to both X86 and ARM assembly generation and nativeboost. Stef On 4/6/14 23:15, Hilaire Fernandes wrote:
Hi,
Programmed sketch in DrGeo can be animated, for example like the script bellow. The "canvas do:" message forks the block so user is not blocked. At #udpate message the items and views (morph) are recomputed and refreshed . Before porting DrGeo to Athens, the animation was pretty fast, now it is very slow.
Any idea from where it could come from?
Thanks
---8<------ |canvas s stats points|
points :=Array new: 12. stats := Array new: 12 withAll: 0.
canvas := DrGeoCanvas new. 2 to: 12 do: [:i | points at: i put: (canvas point: i@0.1). (points at: i) square; color: Color blue. s := canvas segment: i@0 to: (points at: i). s color: Color red].
canvas do: [ 1 to: 10000 do: [:i| s := 6 atRandom + 6 atRandom. stats at: s put: ((stats at: s)+1). (points at: s) name: (stats at: s) asString; moveTo: s @ ((stats at: s) / 100). canvas update]. ---8<------
