Playground and Dr. Geo

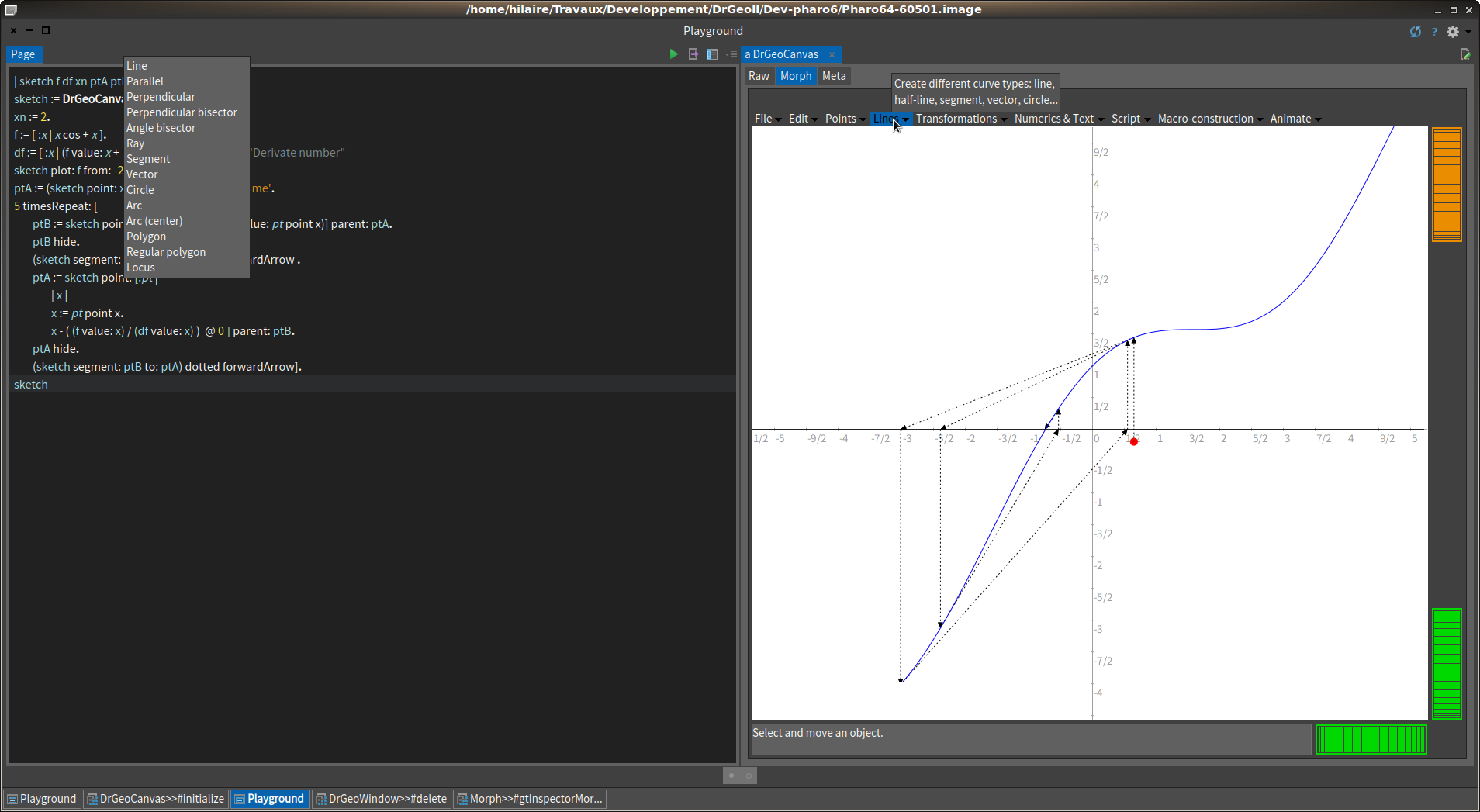

Hi, I am integrating the Dr. Geo Smalltalk Sketch to Playground. So far, Dr. Geo morphic view is well integrated and interactive is there. However when I select a menu in the view it opens deported. See attached screenshot. The Dr. Geo view is a StandardWindow with its label area hidden. Any idea? Thanks Hilaire -- Dr. Geo http://drgeo.eu
Hi, a)Do you wrap the morph inside the morph tab view? , b) Do you use the same code for rendering as in Morph>> #gtInspectorMorphIn: . if a) it is most likely caused by the morph being wrapped within one or more transform morphs, and the offset of these are not taken into account when opening the menu. if b) The real morph position is probably not the same as where clicked causing it to open at another place. What method are you using for opening the menu: (#popUpEvent:in: , #popUpAt:forHand:in: , other)? also see: https://pharo.fogbugz.com/f/cases/15927/Menu-is-broken-when-contained-in-a-s... Best regards, Henrik ________________________________ Fra: Pharo-users <pharo-users-bounces@lists.pharo.org> på vegne av Hilaire <hilaire@drgeo.eu> Sendt: 16. juli 2017 21:12:16 Til: pharo-users@lists.pharo.org Emne: [Pharo-users] Playground and Dr. Geo Hi, I am integrating the Dr. Geo Smalltalk Sketch to Playground. So far, Dr. Geo morphic view is well integrated and interactive is there. However when I select a menu in the view it opens deported. See attached screenshot. The Dr. Geo view is a StandardWindow with its label area hidden. Any idea? Thanks Hilaire -- Dr. Geo http://drgeo.eu
Hi, Le 16/07/2017 à 22:02, Henrik Nergaard a écrit :
a)Do you wrap the morph inside the morph tab view? ,
I don't understand.
b) Do you use the same code for rendering as in Morph>> #gtInspectorMorphIn: .
No, as I want a Morph view and not a From: gtInspectorCanvasIn: composite <gtInspectorPresentationOrder: 90> | morphPresentation | morphPresentation := composite morph. morphPresentation title: 'Morph'; display: [self view]
if a) it is most likely caused by the morph being wrapped within one or more transform morphs, and the offset of these are not taken into account when opening the menu.
if b) The real morph position is probably not the same as where clicked causing it to open at another place.
I guess so too.
What method are you using for opening the menu: (#popUpEvent:in: , #popUpAt:forHand:in: , other)?
The menu are opened with #popUpAdjacentTo:forHand:from: Menu are instantiate as: menuBar := self window newToolDockingBar. menuBar add: 'File' translated font: self theme menuBarFont icon: nil help: 'Load, save or export Dr. Geo figure.' translated subMenu: self fileMenu.
also see: https://pharo.fogbugz.com/f/cases/15927/Menu-is-broken-when-contained-in-a-s...
Looks to be the same. But issue was closed so it should be ok, may be an unrelated problem. Hilaire -- Dr. Geo http://drgeo.eu
The owner of the menu (DockingBarToogleMenuItemMorph) does not have the right bounds. Therefore its #adjacentTo message returns the wrong information. Le 17/07/2017 à 10:50, Hilaire a écrit :
if b) The real morph position is probably not the same as where clicked causing it to open at another place.
I guess so too.
-- Dr. Geo http://drgeo.eu
HilaireFernandes wrote
...
also see: https://pharo.fogbugz.com/f/cases/15927/Menu-is-broken-when-contained-in-a-s...
Looks to be the same. But issue was closed so it should be ok, may be an unrelated problem.
Hilaire
-- Dr. Geo http://drgeo.eu
It *is* the same bug that you are talking about. Issue was closed automatically, because of one year of inactivity. I couldn't fix it because I'm not very familiar with Morphic internals, and worked my way around it. Others didn't care much it seems. -- View this message in context: http://forum.world.st/Playground-and-Dr-Geo-tp4955260p4956270.html Sent from the Pharo Smalltalk Users mailing list archive at Nabble.com.
