Hi, Thanks for the test. So I have to update it. Hilaire Le 26/03/2018 à 19:58, Stephane Ducasse a écrit :

Hi hilaire

I'm on 10.12.6 and I downloaded the latest version of DRGeo I can find on the link in your signature. First I had problem to launch it because it is blocked by the security manager and yes I can confirm that the system just open a black screen. I had to kill the app.

Stef

-- Dr. Geo http://drgeo.eu

Yes, please try with this version, based on Pharo4 VM https://www.dropbox.com/s/oe7hvdrmz7mstvx/DrGeo-Pharo4.0.app.zip?dl=0 Thanks Hilaire Le 26/03/2018 à 22:15, Stephane Ducasse a écrit :

Let me know if you want that I retry.

-- Dr. Geo http://drgeo.eu

Thanks for the tip Le 27/03/2018 à 08:59, Christophe Demarey a écrit :

If the VM is too old, it does not work well on recent distributions. You could try to use the stable VM of Pharo 4 instead and it should work.

-- Dr. Geo http://drgeo.eu

Hilaire I looked at the other bug. And I would like to know if you are defining extra methods on SQSurfaceDispatch class. I do not get why I got an error (may be this is related to the source management. Stef On Tue, Apr 3, 2018 at 9:56 PM, Stephane Ducasse <stepharo.self@gmail.com> wrote:

Hi hilaire

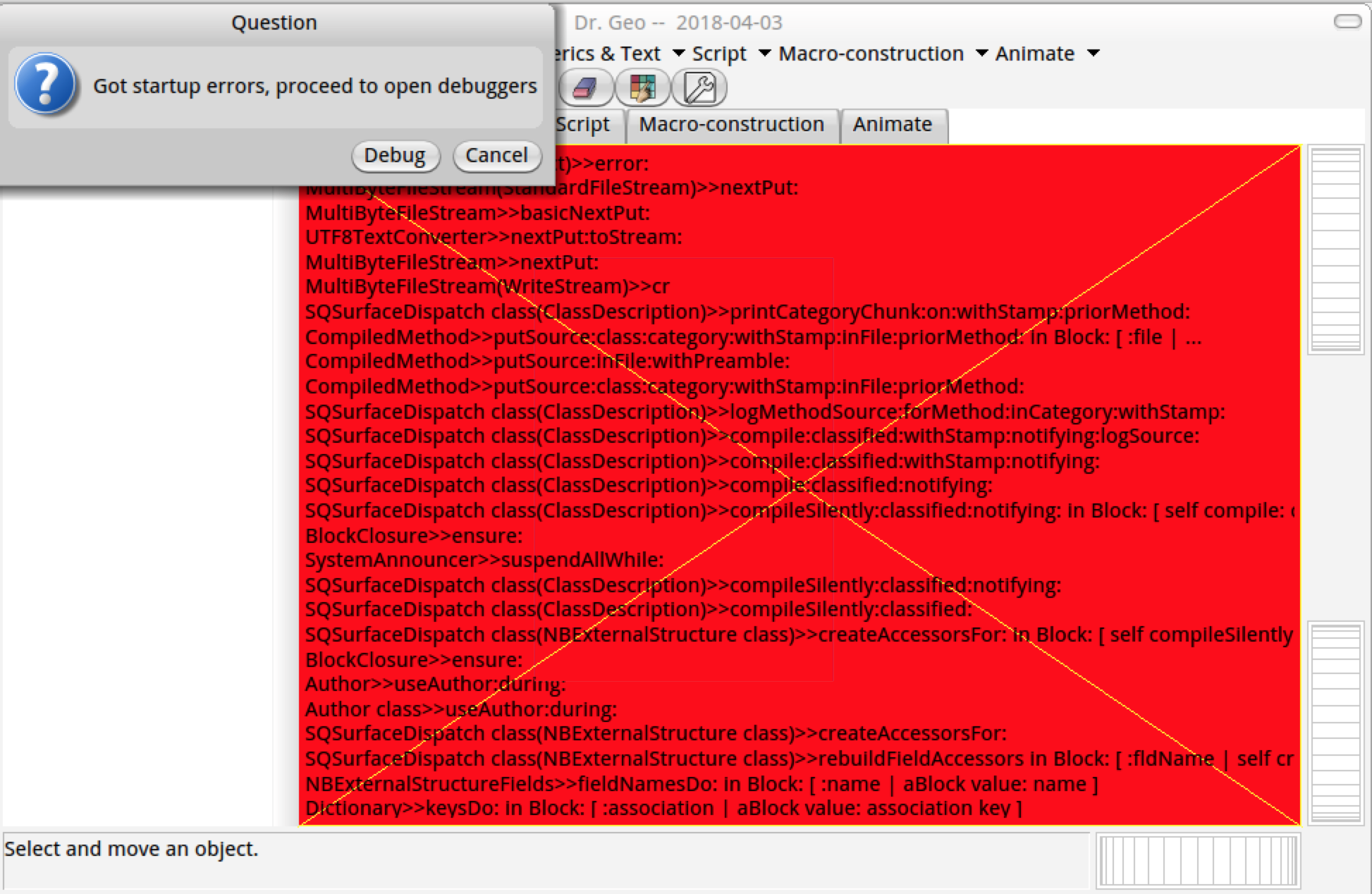

I got startup errors I debugged a bit and you are calling to create a directory

createDirectory: path

Path / 'var' / 'folders' / 'gs' / '_5w5v50j3m7gl4lcqf9npxhr0000gq' / 'T' / 'AppTranslocation' / '863D37C1-90CD-4901-90DA-F4EC3F4B3080' / 'd' / 'locale'

the encode pathString is '/var/folders/gs/_5w5v50j3m7gl4lcqf9npxhr0000gq/T/AppTranslocation/863D37C1-90CD-4901-90DA-F4EC3F4B3080/d/locale'

And this leads to a primitive failure

createDirectory: path "Create a directory for the argument path. If the path refers to an existing file, raise FileExists. If the path refers to an existing directory, raise DirectoryExists. If the parent directory of the path does not exist, raise DirectoryDoesNotExist"

| parent encodedPathString pathString result | pathString := self stringFromPath: path. encodedPathString := Primitives encode: pathString. result := Primitives createDirectory: encodedPathString. result ifNil: [ parent := path parent. (self exists: path) ifTrue: [ (self isFile: path) ifTrue: [ self signalFileExists: path ] ifFalse: [ self signalDirectoryExists: path ] ]. (self isDirectory: parent) ifFalse: [ ^ self signalDirectoryDoesNotExist: parent ]. self primitiveFailed ]. ^^^^^^^^^^^^^^^^^^ It fails here

^ self

On my machine I get

var/folders/gs/_5w5v50j3m7gl4lcqf9npxhr0000gq/T/AppTranslocation

and not the folder d

This comes from reset of the GetTextTranslator

privateStartUp self reset. GetTextTranslator reset. self localeChanged.

Tell me how I can help.

On Tue, Mar 27, 2018 at 7:15 PM, Hilaire <hilaire@drgeo.eu> wrote:

...

Thanks for the tip

Le 27/03/2018 à 08:59, Christophe Demarey a écrit :

...

If the VM is too old, it does not work well on recent distributions. You could try to use the stable VM of Pharo 4 instead and it should work.

-- Dr. Geo http://drgeo.eu

I have the impression that there is something with source and cr. I'm busy with a project proposal. Let me know for P7 because this is easier to check and help. On Tue, Apr 3, 2018 at 11:31 PM, Hilaire <hilaire@drgeo.eu> wrote:

No I am not defining such extra method. I more or less packaged blindly a modified universal VMs for P4. I was able to test it on linux and windows (throught wine), but not on Mac osx.

I am doing right now the same for P7 based image, but not there yet.

Le 03/04/2018 à 22:39, Stephane Ducasse a écrit :

...

Hilaire

I looked at the other bug. And I would like to know if you are defining extra methods on SQSurfaceDispatch class. I do not get why I got an error (may be this is related to the source management.

Stef

-- Dr. Geo http://drgeo.eu

Hi Hilaire The app goes to the dock but nothing happens. What is strange is that it is assigned to none display. I tried to open the drgeo.image with my working Pharo6.1VM and it did not work. I tried to open the drgeo.image with my working Pharo70VM and it did not work. => did not open. I could open one of my Phaor 70 images with the VM you ship. I have no log files or others. So I do not know what to do. Stef On Thu, Apr 5, 2018 at 10:34 AM, Hilaire <hilaire@drgeo.eu> wrote:

Le 04/04/2018 à 12:13, Stephane Ducasse a écrit :

...

Let me know for P7 because this is easier to check and help.

Ah, so please test this one on your Mac. It is a P7 image based built: https://www.dropbox.com/s/f51fh7wa9x52grv/DrGeo.app-18.06a.zip?dl=0

Thanks

Hilaire

-- Dr. Geo http://drgeo.eu

I tracked the problem, it is related to change in the FreeTypeFontProvider behavior. In P3, #unload message cleared the cache. In P7, #unload just does nothing. Seems to be replaced by #resetCurrent Hilaire Le 07/04/2018 à 17:43, Stephane Ducasse a écrit :

Hi Hilaire

The app goes to the dock but nothing happens. What is strange is that it is assigned to none display. I tried to open the drgeo.image with my working Pharo6.1VM and it did not work. I tried to open the drgeo.image with my working Pharo70VM and it did not work. => did not open.

I could open one of my Phaor 70 images with the VM you ship.

I have no log files or others. So I do not know what to do.

-- Dr. Geo http://drgeo.eu

Hi Pablo, DrGeo is shipped with two fonts, depending on the system locale at DrGeo start up, one or another one is used. So the cache need to be reset at. May be there is better to handle that, it worked pretty well until now. Hilaire Le 10/04/2018 à 10:53, tesonep@gmail.com a écrit :

Hi Hilaire,   thanks for spliting the subject, I have missed the discussion in the other thread.

The #unload message should be used to clean up the system in case the class is unload from the system. That's why the logic has been move to the #resetCurrent method that is called during the shutdown of the image.

However, the question is not if the method should be included in a compatibility package or if the users should send #resetCurrent. The problem is why it is needed to clean up the font cache, it should not be needed. The only scenario I think is if you want to replace a font (in the Pharo world a Face, because there is a font per each combination of face and point size) named exactly the same with another one. I think this is no normal behavior.

I will try to see why this is needed when loading DrGeo in Pharo7 and fix the FT implementation not to need it. Maybe it is hiding a bigger issue.

-- Dr. Geo http://drgeo.eu
