GTPlayground/Inspector stacked vertically
Hi, how technically complex it would be to stack the panes in the Playground on top of each other, instead of side by side? Right now I waste half of my screen just for one line just so I can get a reasonably sized visualization. â Instead I would like to have something like this, even if it was limited to just two panes. â (Or the other way around, code at the bottom, visu at the top, doesn't matter.) Of course it would probably have to be resizable (I wouldn't want to have the same problem, just vertically. And yes, I can just inspect the results, but that's quite annoying as it opens yet another window which I have to close all the time. Peter
For this specific case you may want to use the SpecEasel which is an example of the of the Roassal2Spec package. You can change the layout of the boxes there by changing the defaultSpec method at class side (but some minimal Spec knowledge is required).
On Apr 29, 2016, at 04:48, Peter Uhnák <i.uhnak@gmail.com> wrote:
Hi,
how technically complex it would be to stack the panes in the Playground on top of each other, instead of side by side?
Right now I waste half of my screen just for one line just so I can get a reasonably sized visualization.

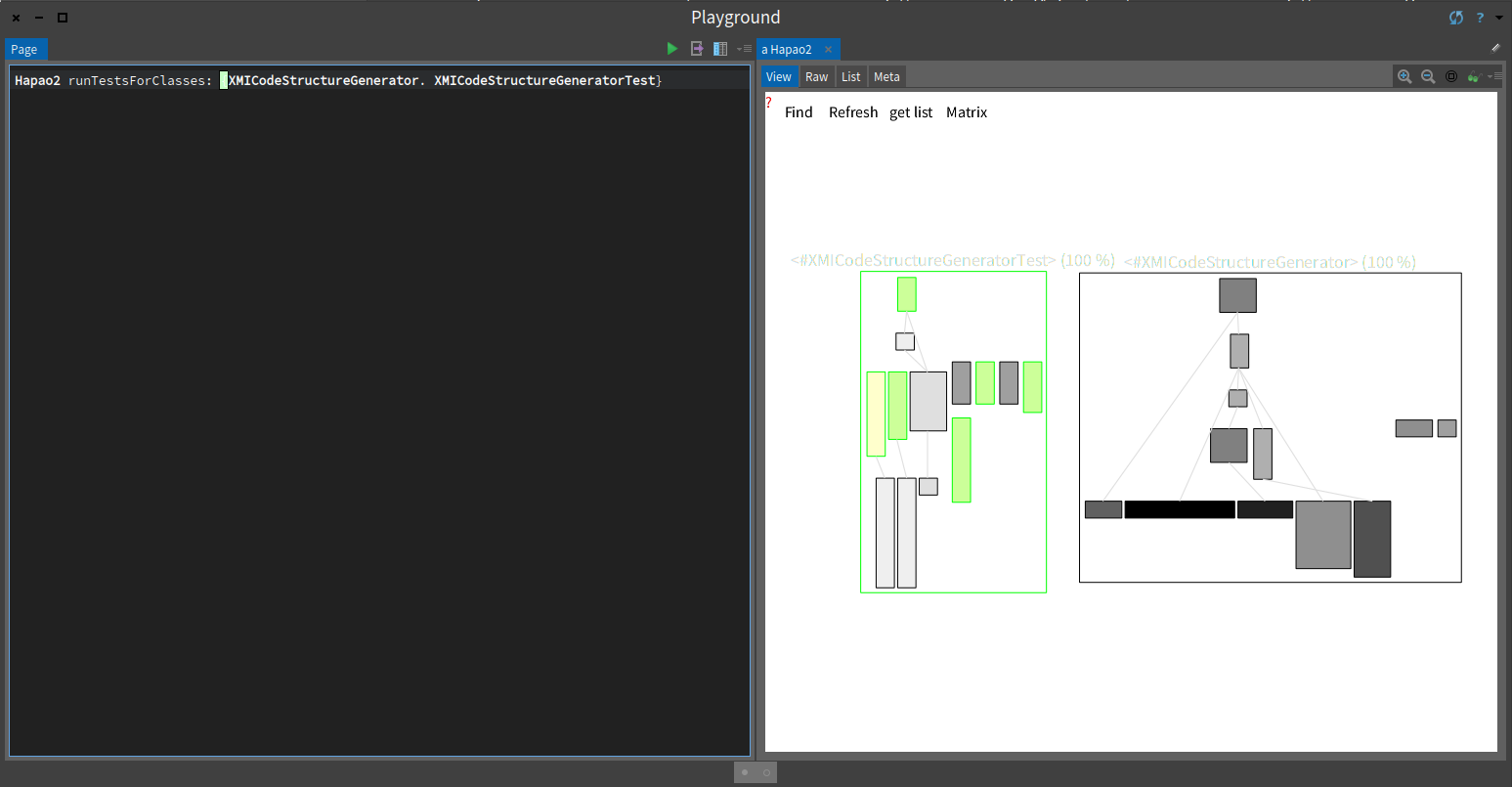

<side-by-side.png> â Instead I would like to have something like this, even if it was limited to just two panes.

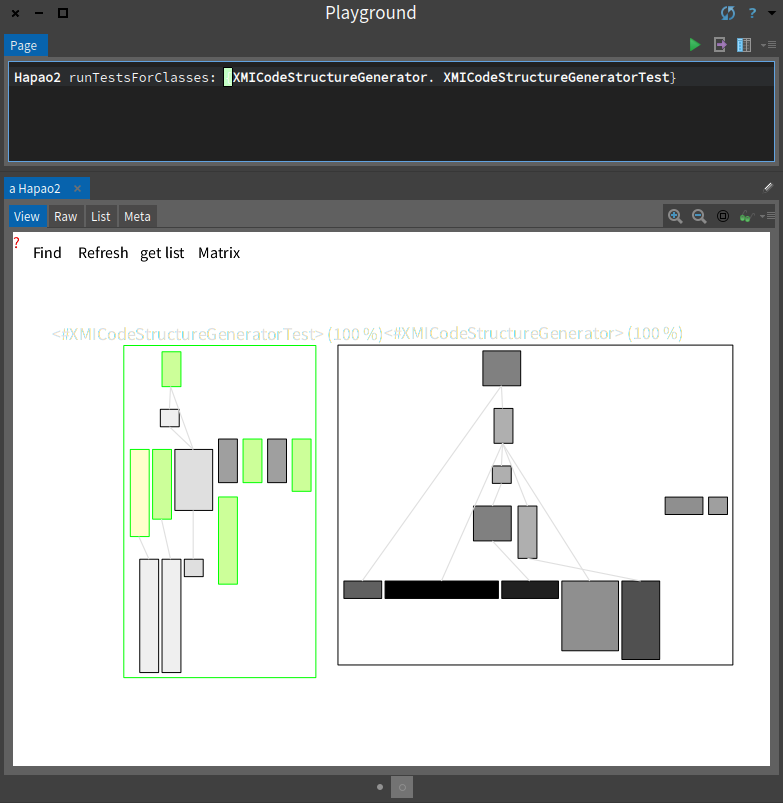

<on-top.png> â
(Or the other way around, code at the bottom, visu at the top, doesn't matter.)
Of course it would probably have to be resizable (I wouldn't want to have the same problem, just vertically.
And yes, I can just inspect the results, but that's quite annoying as it opens yet another window which I have to close all the time.
Peter
---> Save our in-boxes! http://emailcharter.org <--- Johan Fabry - http://pleiad.cl/~jfabry PLEIAD and RyCh labs - Computer Science Department (DCC) - University of Chile
On Fri, Apr 29, 2016 at 1:49 PM, Johan Fabry <jfabry@dcc.uchile.cl> wrote:
For this specific case you may want to use the SpecEasel which is an example of the of the Roassal2Spec package. You can change the layout of the boxes there by changing the defaultSpec method at class side (but some minimal Spec knowledge is required).
Well I certainly have enough knowledge to change a layout, but the lacking code support (mainly syntax highlighting) is a real pain (certainly worse than having a large window). But at least I can add it to my todo and see if it can be improved... Thanks, Peter
On Apr 29, 2016, at 09:03, Peter Uhnák <i.uhnak@gmail.com> wrote:
On Fri, Apr 29, 2016 at 1:49 PM, Johan Fabry <jfabry@dcc.uchile.cl <mailto:jfabry@dcc.uchile.cl>> wrote:
For this specific case you may want to use the SpecEasel which is an example of the of the Roassal2Spec package. You can change the layout of the boxes there by changing the defaultSpec method at class side (but some minimal Spec knowledge is required).
Well I certainly have enough knowledge to change a layout, but the lacking code support (mainly syntax highlighting) is a real pain (certainly worse than having a large window). But at least I can add it to my todo and see if it can be improvedâ¦
Ah well, the SpecEasel was a quick example not meant to be used intensively, which is why there is no syntax highlighting. If you change the text widget for a Rubric one and you configure it to be for Smalltalk (there is a setting for that) you should get syntax highlighting and all other bells and whistles for free. ---> Save our in-boxes! http://emailcharter.org <--- Johan Fabry - http://pleiad.cl/~jfabry PLEIAD and RyCh labs - Computer Science Department (DCC) - University of Chile

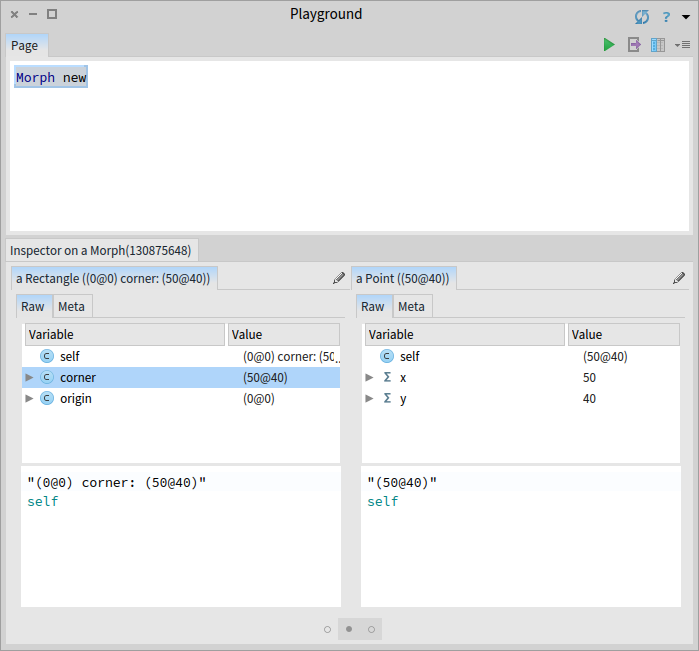

Hi Peter, I made a quick prototype of a playground that stacks the fist two panes vertically and allows resizing of those panes. You can change to make the resize horizontal. You can load the class and execute 'GTPlaygroundVertical open'. Bare in mind that it's just a quick prototype. It works well but it has bugs (you cannot close panes in the inspector, the title of the inspector had to be there, initially the code take only a small place, etc) Cheers, Andrei [image: Inline image 1]) On Fri, Apr 29, 2016 at 2:44 PM, Johan Fabry <jfabry@dcc.uchile.cl> wrote:
On Apr 29, 2016, at 09:03, Peter Uhnák <i.uhnak@gmail.com> wrote:
On Fri, Apr 29, 2016 at 1:49 PM, Johan Fabry <jfabry@dcc.uchile.cl> wrote:
For this specific case you may want to use the SpecEasel which is an example of the of the Roassal2Spec package. You can change the layout of the boxes there by changing the defaultSpec method at class side (but some minimal Spec knowledge is required).
Well I certainly have enough knowledge to change a layout, but the lacking code support (mainly syntax highlighting) is a real pain (certainly worse than having a large window). But at least I can add it to my todo and see if it can be improvedâ¦
Ah well, the SpecEasel was a quick example not meant to be used intensively, which is why there is no syntax highlighting. If you change the text widget for a Rubric one and you configure it to be for Smalltalk (there is a setting for that) you should get syntax highlighting and all other bells and whistles for free.
---> Save our in-boxes! http://emailcharter.org <---
Johan Fabry - http://pleiad.cl/~jfabry PLEIAD and RyCh labs - Computer Science Department (DCC) - University of Chile
That would be fantastic to have a push on the playground. Playground/Inspector is great, but it can be pushed in many different ways. For example, having a better layout, as you said, is very important. Another one, is a context is needed. And this context has to be exposed to the inspected objects. For example, what if I want to have a particular syntax highlighting, or code completion? What if I want to have the interaction RTZoomableView in a view? But only for a particular inspector? Cheers, Alexandre -- _,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;: Alexandre Bergel http://www.bergel.eu ^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;.
On Apr 29, 2016, at 4:48 AM, Peter Uhnák <i.uhnak@gmail.com> wrote:
Hi,
how technically complex it would be to stack the panes in the Playground on top of each other, instead of side by side?
Right now I waste half of my screen just for one line just so I can get a reasonably sized visualization.
<side-by-side.png> â Instead I would like to have something like this, even if it was limited to just two panes.
<on-top.png> â
(Or the other way around, code at the bottom, visu at the top, doesn't matter.)
Of course it would probably have to be resizable (I wouldn't want to have the same problem, just vertically.
And yes, I can just inspect the results, but that's quite annoying as it opens yet another window which I have to close all the time.
Peter
