Spec Lists - setting the selection
I found it hard to find documentation on Spec beyond [1],[2],[3], some of which seem to have changed some syntax since they were written. I've been piecing things together to work out how to set the selected item with the simplest example I could. Even though it turns out pretty simple, I thought I'd share in case it was useful for others that haven't dipped their toes into Spec yet. ComposableModel subclass: #TestSpec instanceVariableNames: 'list text' classVariableNames: '' poolDictionaries: '' category: 'BTCPlay' TestSpec >> initializeWidgets self instantiateModels: #( #list #ListModel ). TestSpec >> getList ^list TestSpec class >> mySpecLayout <spec:#default> ^ SpecLayout composed add:#getList ; yourself. Then from Workspace x := (TestSpec new openWithSpec ; yourself). x getList items: { 1 . 2 . 3 . 4}. x getList setSelectedItem: 2. cheers -ben [1] hal.inria.fr/hal-00759030/PDF/Spec-IWST12-Final.pdfâ [2] https://ci.inria.fr/pharo-contribution/job/PharoForTheEnterprise/lastSuccess... [3] http://hal.inria.fr/docs/00/70/80/67/PDF/SpecTechReport.pdf
Yes we need to stabilize it and get a real document. On Oct 11, 2013, at 8:23 AM, btc@openInWorld.com wrote:
I found it hard to find documentation on Spec beyond [1],[2],[3], some of which seem to have changed some syntax since they were written. I've been piecing things together to work out how to set the selected item with the simplest example I could. Even though it turns out pretty simple, I thought I'd share in case it was useful for others that haven't dipped their toes into Spec yet.
ComposableModel subclass: #TestSpec instanceVariableNames: 'list text' classVariableNames: '' poolDictionaries: '' category: 'BTCPlay'
TestSpec >> initializeWidgets self instantiateModels: #( #list #ListModel ).
TestSpec >> getList ^list
TestSpec class >> mySpecLayout <spec:#default> ^ SpecLayout composed add:#getList ; yourself.
Then from Workspace x := (TestSpec new openWithSpec ; yourself). x getList items: { 1 . 2 . 3 . 4}. x getList setSelectedItem: 2.
cheers -ben
[1] hal.inria.fr/hal-00759030/PDF/Spec-IWST12-Final.pdfâ [2] https://ci.inria.fr/pharo-contribution/job/PharoForTheEnterprise/lastSuccess... [3] http://hal.inria.fr/docs/00/70/80/67/PDF/SpecTechReport.pdf
btc@openinworld.com wrote:
I found it hard to find documentation on Spec beyond [1],[2],[3], some of which seem to have changed some syntax since they were written. I've been piecing things together to work out how to set the selected item with the simplest example I could. Even though it turns out pretty simple, I thought I'd share in case it was useful for others that haven't dipped their toes into Spec yet.
ComposableModel subclass: #TestSpec instanceVariableNames: 'list text' classVariableNames: '' poolDictionaries: '' category: 'BTCPlay'
TestSpec >> initializeWidgets self instantiateModels: #( #list #ListModel ).
TestSpec >> getList ^list
TestSpec class >> mySpecLayout <spec:#default> ^ SpecLayout composed add:#getList ; yourself.
Then from Workspace x := (TestSpec new openWithSpec ; yourself). x getList items: { 1 . 2 . 3 . 4}. x getList setSelectedItem: 2.
cheers -ben
[1] hal.inria.fr/hal-00759030/PDF/Spec-IWST12-Final.pdfâ [2] https://ci.inria.fr/pharo-contribution/job/PharoForTheEnterprise/lastSuccess...
[3] http://hal.inria.fr/docs/00/70/80/67/PDF/SpecTechReport.pdf
So here is the same thing with TreeModel. ComposableModel subclass: #TestSpec2 instanceVariableNames: 'tree' classVariableNames: '' poolDictionaries: '' category: 'BTCPlay' TestSpec2 >> initializeWidgets self instantiateModels: #( #tree #TreeModel ). tree childrenBlock: [ :treeItem | self haltOnce. (treeItem isKindOf: Association) ifTrue: [ treeItem value ] ifFalse: [ {} ] ]. TestSpec2 >> getTree ^tree TestSpec2 class >> mySpecLayout <spec:#default> ^ SpecLayout composed add:#getTree ; yourself. Then from Workspace (referring to attached pic) x := (TestSpec2 new openWithSpec ; yourself). x getTree roots: { 10 -> { 11. 12 } . 20 -> { 21 . 22 } } . x getTree selectedItem. "<Print It> --> 21 " x getTree selectedItem: ???? Now how do I select a particular tree item at each level ? eg. Select 10 and Select 12 ? cheers, ben
Ben On Oct 11, 2013, at 9:24 AM, btc@openInWorld.com wrote:
btc@openinworld.com wrote:
I found it hard to find documentation on Spec beyond [1],[2],[3], some of which seem to have changed some syntax since they were written. I've been piecing things together to work out how to set the selected item with the simplest example I could. Even though it turns out pretty simple, I thought I'd share in case it was useful for others that haven't dipped their toes into Spec yet.
ComposableModel subclass: #TestSpec instanceVariableNames: 'list text' classVariableNames: '' poolDictionaries: '' category: 'BTCPlay'
TestSpec >> initializeWidgets self instantiateModels: #( #list #ListModel ).
TestSpec >> getList ^list
TestSpec class >> mySpecLayout <spec:#default> ^ SpecLayout composed add:#getList ; yourself.
Then from Workspace x := (TestSpec new openWithSpec ; yourself). x getList items: { 1 . 2 . 3 . 4}. x getList setSelectedItem: 2.
cheers -ben
[1] hal.inria.fr/hal-00759030/PDF/Spec-IWST12-Final.pdfâ [2] https://ci.inria.fr/pharo-contribution/job/PharoForTheEnterprise/lastSuccess... [3] http://hal.inria.fr/docs/00/70/80/67/PDF/SpecTechReport.pdf
So here is the same thing with TreeModel.
ComposableModel subclass: #TestSpec2 instanceVariableNames: 'tree' classVariableNames: '' poolDictionaries: '' category: 'BTCPlay'
TestSpec2 >> initializeWidgets self instantiateModels: #( #tree #TreeModel ). tree childrenBlock: [ :treeItem | self haltOnce. (treeItem isKindOf: Association) ifTrue: [ treeItem value ] ifFalse: [ {} ] ].
TestSpec2 >> getTree ^tree
TestSpec2 class >> mySpecLayout <spec:#default> ^ SpecLayout composed add:#getTree ; yourself.
Then from Workspace (referring to attached pic) x := (TestSpec2 new openWithSpec ; yourself). x getTree roots: { 10 -> { 11. 12 } . 20 -> { 21 . 22 } } . x getTree selectedItem. "<Print It> --> 21 " x getTree selectedItem: ????
Now how do I select a particular tree item at each level ? eg. Select 10 and Select 12 ?
cheers, ben
There was something missing here at the two levels :) You can see case 11849[1] fixing the morphic issue and case 11850 [2] fixing the Spec problem :) Then your example make me think that using association to describe the path may lead to an ambiguous situation Ben [1] https://pharo.fogbugz.com/default.asp?11849 [2] https://pharo.fogbugz.com/default.asp?11850
<Spec-TreeModel-simple-example.png>
btc@openinworld.com wrote:
Benjamin wrote:
Ben
On Oct 11, 2013, at 9:24 AM, btc@openInWorld.com wrote:
btc@openinworld.com wrote:
I found it hard to find documentation on Spec beyond [1],[2],[3], some of which seem to have changed some syntax since they were written. I've been piecing things together to work out how to set the selected item with the simplest example I could. Even though it turns out pretty simple, I thought I'd share in case it was useful for others that haven't dipped their toes into Spec yet.
ComposableModel subclass: #TestSpec instanceVariableNames: 'list text' classVariableNames: '' poolDictionaries: '' category: 'BTCPlay'
TestSpec >> initializeWidgets self instantiateModels: #( #list #ListModel ).
TestSpec >> getList ^list
TestSpec class >> mySpecLayout <spec:#default> ^ SpecLayout composed add:#getList ; yourself.
Then from Workspace x := (TestSpec new openWithSpec ; yourself). x getList items: { 1 . 2 . 3 . 4}. x getList setSelectedItem: 2.
cheers -ben
[1] hal.inria.fr/hal-00759030/PDF/Spec-IWST12-Final.pdfâ [2] https://ci.inria.fr/pharo-contribution/job/PharoForTheEnterprise/lastSuccess... [3] http://hal.inria.fr/docs/00/70/80/67/PDF/SpecTechReport.pdf
So here is the same thing with TreeModel.
ComposableModel subclass: #TestSpec2 instanceVariableNames: 'tree' classVariableNames: '' poolDictionaries: '' category: 'BTCPlay'
TestSpec2 >> initializeWidgets self instantiateModels: #( #tree #TreeModel ). tree childrenBlock: [ :treeItem | self haltOnce. (treeItem isKindOf: Association) ifTrue: [ treeItem value ] ifFalse: [ {} ] ].
TestSpec2 >> getTree ^tree
TestSpec2 class >> mySpecLayout <spec:#default> ^ SpecLayout composed add:#getTree ; yourself.
Then from Workspace (referring to attached pic) x := (TestSpec2 new openWithSpec ; yourself). x getTree roots: { 10 -> { 11. 12 } . 20 -> { 21 . 22 } } . x getTree selectedItem. "<Print It> --> 21 " x getTree selectedItem: ????
Now how do I select a particular tree item at each level ? eg. Select 10 and Select 12 ?
cheers, ben
There was something missing here at the two levels :) You can see case 11849[1] fixing the morphic issue and case 11850 [2] fixing the Spec problem :)
Thanks. I'll try it.
Then your example make me think that using association to describe the path may lead to an ambiguous situation
True. But to clarify things, ListModel suffers the same ambiguity as follows... x := (TestSpec new openWithSpec ; yourself). x getList items: { 1 . 2 . 3 . 2 . 4}. x getList setSelectedItem: 2.
... ListModel and Treemodel should be consistent in this respect.
Musing further about this... In the case of a multi-selection ListModel/TreeModel, it is probably reasonable to select all matching. For a single-selection, I'm not sure. Considering ListModel first, maybe defaulting to selecting the first matching is reasonable, perhaps with a backup method to select the Nth match. Then again, if the identical object appears in the list multiple times, then #setSelectedItem: might visually highlight all occurances while still reporting only a single object with #selectedItems. I think part of a test would go...
x getList items: { 1 . 2 . 3 . 2 . 4}. x getList setSelectedItem: 2. y := x getList selectedItem. x getList setSelectedItem: y. z := x getList selectedItem. self assert: (y = z)
...which actually works so ListModel is cool in that regard - except maybe an option to visually highlight both 2s would be useful - but as a visual thing maybe that is a handled outside of ListModel. Actually that should work the same with multi-selection.
x getList items: { 1 . 2 . 3 . 2 . 4}. x getList setSelectedItems: { 2. 3 }. y := x getList selectedItems. x getList setSelectedItems: y. z := x getList selectedItems. self assert: (y = z)
Actually it seems there is no #setSelectedItems:. How then do you save and restore a multi-selection. e.g.... savedSelection := x getList selectedItems. "other code that clears/modifies the selection - like refresh for additional items" x getList selectedItems: savedSelection.
cheers -ben
Ben
[1] https://pharo.fogbugz.com/default.asp?11849 [2] https://pharo.fogbugz.com/default.asp?11850
<Spec-TreeModel-simple-example.png>
I installed your slices from Issues 11849 & 11850 and it looks mostly good. Using a modified TreeModel example which I think provides a clearer/nicer example... TestSpec2 >> initializeWidgets self instantiateModels: #( #tree #TreeModel ). tree childrenBlock: [ :treeItem | (treeItem > 10000) ifTrue: [ #() ] ifFalse: [ (1 to: 3) collect: [ :i | treeItem * 10 + i ] ] ]. Then in Workspace... x := (TestSpec2 new openWithSpec ; yourself). x getTree roots: { 1. 2 . 1 . 11 }. x getTree expandRoots. x getTree selectedItem: 11. "left side of attached pic" x getTree selectedItem: (1 -> 11). "right side of attached pic" So the attached pic shows exhibits the behaviour I was musing about earlier - very cool. Before those slices there was no response to #selectedItem: from the widget. However a couple of things... 1. x getTree selectedItem: 12. x getTree selectedItem. "<PrintIt> --> 12" while... x getTree selectedItem: ( 1 -> 13 ). x getTree selectedItem. "<PrintIt> --> 1->13" I think you really want #selectedItem to return the same thing each time regardless of how it was set. That is, just the object. Andn further, it would be better to have a separate accessors #selectedItem and #selectedPath 2. The following doesn't work... x getTree selectedItem: { 1 -> 12 -> 121 }. cheers -ben
Would it be possible to change the name of the selector? tree selectedItem: (1 -> 11) for me that implies that the tree contains an actual item (1 -> 11). What you want is maybe, #selectedPath: or #selectedItem:1 withParents:{11} My general rule is: Each time you have to use an association or a point you do something wrong.. It is hard to guess what this association should mean, so either make a domain object to describe what you encode in the association or use specific selectors that say what the arguments mean. On 2013-10-11, at 19:52, btc@openinworld.com wrote:
btc@openinworld.com wrote:
Benjamin wrote:
Ben
On Oct 11, 2013, at 9:24 AM, btc@openInWorld.com wrote:
btc@openinworld.com wrote: >>> I found it hard to find documentation on Spec beyond [1],[2],[3], some of which seem to have changed some syntax since they were written. I've been piecing things together to work out how to set the selected item with the simplest example I could. Even though it turns out pretty simple, I thought I'd share in case it was useful for others that haven't dipped their toes into Spec yet.
ComposableModel subclass: #TestSpec instanceVariableNames: 'list text' classVariableNames: '' poolDictionaries: '' category: 'BTCPlay'
TestSpec >> initializeWidgets self instantiateModels: #( #list #ListModel ).
TestSpec >> getList ^list
TestSpec class >> mySpecLayout <spec:#default> ^ SpecLayout composed add:#getList ; yourself.
Then from Workspace x := (TestSpec new openWithSpec ; yourself). x getList items: { 1 . 2 . 3 . 4}. x getList setSelectedItem: 2.
cheers -ben
[1] hal.inria.fr/hal-00759030/PDF/Spec-IWST12-Final.pdfâ [2] https://ci.inria.fr/pharo-contribution/job/PharoForTheEnterprise/lastSuccess... >>> [3] http://hal.inria.fr/docs/00/70/80/67/PDF/SpecTechReport.pdf
>> So here is the same thing with TreeModel.
ComposableModel subclass: #TestSpec2 instanceVariableNames: 'tree' classVariableNames: '' poolDictionaries: '' category: 'BTCPlay'
TestSpec2 >> initializeWidgets self instantiateModels: #( #tree #TreeModel ). tree childrenBlock: [ :treeItem | self haltOnce. (treeItem isKindOf: Association) ifTrue: [ treeItem value ] ifFalse: [ {} ] ].
TestSpec2 >> getTree ^tree
TestSpec2 class >> mySpecLayout <spec:#default> ^ SpecLayout composed add:#getTree ; yourself.
Then from Workspace (referring to attached pic) x := (TestSpec2 new openWithSpec ; yourself). x getTree roots: { 10 -> { 11. 12 } . 20 -> { 21 . 22 } } . x getTree selectedItem. "<Print It> --> 21 " x getTree selectedItem: ????
Now how do I select a particular tree item at each level ? eg. Select 10 and Select 12 ?
cheers, ben > There was something missing here at the two levels :) You can see case 11849[1] fixing the morphic issue and case 11850 [2] fixing the Spec problem :) Thanks. I'll try it. Then your example make me think that using association > to describe the path may lead to an ambiguous situation True. But to clarify things, ListModel suffers the same ambiguity as follows... x := (TestSpec new openWithSpec ; yourself). x getList items: { 1 . 2 . 3 . 2 . 4}. x getList setSelectedItem: 2.
... ListModel and Treemodel should be consistent in this respect. Musing further about this... In the case of a multi-selection ListModel/TreeModel, it is probably reasonable to select all matching. For a single-selection, I'm not sure. Considering ListModel first, maybe defaulting to selecting the first matching is reasonable, perhaps with a backup method to select the Nth match. Then again, if the identical object appears in the list multiple times, then #setSelectedItem: might visually highlight all occurances while still reporting only a single object with #selectedItems. I think part of a test would go...
x getList items: { 1 . 2 . 3 . 2 . 4}. x getList setSelectedItem: 2. y := x getList selectedItem. x getList setSelectedItem: y. z := x getList selectedItem. self assert: (y = z)
...which actually works so ListModel is cool in that regard - except maybe an option to visually highlight both 2s would be useful - but as a visual thing maybe that is a handled outside of ListModel. Actually that should work the same with multi-selection.
x getList items: { 1 . 2 . 3 . 2 . 4}. x getList setSelectedItems: { 2. 3 }. y := x getList selectedItems. x getList setSelectedItems: y. z := x getList selectedItems. self assert: (y = z)
Actually it seems there is no #setSelectedItems:. How then do you save and restore a multi-selection. e.g.... savedSelection := x getList selectedItems. "other code that clears/modifies the selection - like refresh for additional items" x getList selectedItems: savedSelection.
cheers -ben
Ben
[1] https://pharo.fogbugz.com/default.asp?11849 [2] https://pharo.fogbugz.com/default.asp?11850
<Spec-TreeModel-simple-example.png> >
I installed your slices from Issues 11849 & 11850 and it looks mostly good.
Using a modified TreeModel example which I think provides a clearer/nicer example...
TestSpec2 >> initializeWidgets self instantiateModels: #( #tree #TreeModel ). tree childrenBlock: [ :treeItem | (treeItem > 10000) ifTrue: [ #() ] ifFalse: [ (1 to: 3) collect: [ :i | treeItem * 10 + i ] ] ].
Then in Workspace... x := (TestSpec2 new openWithSpec ; yourself). x getTree roots: { 1. 2 . 1 . 11 }. x getTree expandRoots. x getTree selectedItem: 11. "left side of attached pic" x getTree selectedItem: (1 -> 11). "right side of attached pic"

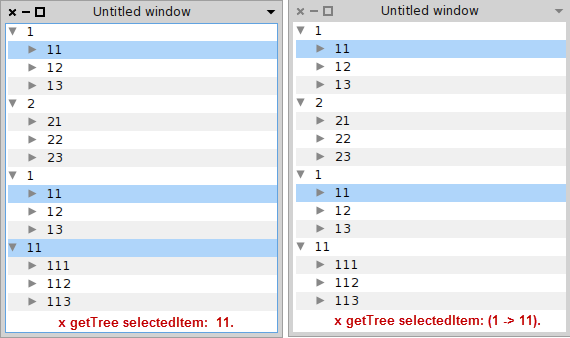

So the attached pic shows exhibits the behaviour I was musing about earlier - very cool. Before those slices there was no response to #selectedItem: from the widget. However a couple of things...
1. x getTree selectedItem: 12. x getTree selectedItem. "<PrintIt> --> 12" while... x getTree selectedItem: ( 1 -> 13 ). x getTree selectedItem. "<PrintIt> --> 1->13"
I think you really want #selectedItem to return the same thing each time regardless of how it was set. That is, just the object. Andn further, it would be better to have a separate accessors #selectedItem and #selectedPath
2. The following doesn't work... x getTree selectedItem: { 1 -> 12 -> 121 }.
cheers -ben
<Issue-11849&11850.png>
I agree with Camillo in that I think it would be better to use specific selectors, e.g. selectedItem:withParents: as it better reveals the intention. Just my 2 cents ... On Oct 11, 2013, at 3:23 PM, Camillo Bruni <camillobruni@gmail.com> wrote:
Would it be possible to change the name of the selector?
tree selectedItem: (1 -> 11)
for me that implies that the tree contains an actual item (1 -> 11). What you want is maybe, #selectedPath: or #selectedItem:1 withParents:{11}
My general rule is: Each time you have to use an association or a point you do something wrong.. It is hard to guess what this association should mean, so either make a domain object to describe what you encode in the association or use specific selectors that say what the arguments mean.
On 2013-10-11, at 19:52, btc@openinworld.com wrote:
btc@openinworld.com wrote:
Benjamin wrote:
Ben
On Oct 11, 2013, at 9:24 AM, btc@openInWorld.com wrote:
btc@openinworld.com wrote:
I found it hard to find documentation on Spec beyond [1],[2],[3], some of which seem to have changed some syntax since they were written. I've been piecing things together to work out how to set the selected item with the simplest example I could. Even though it turns out pretty simple, I thought I'd share in case it was useful for others that haven't dipped their toes into Spec yet.
ComposableModel subclass: #TestSpec instanceVariableNames: 'list text' classVariableNames: '' poolDictionaries: '' category: 'BTCPlay'
TestSpec >> initializeWidgets self instantiateModels: #( #list #ListModel ).
TestSpec >> getList ^list
TestSpec class >> mySpecLayout <spec:#default> ^ SpecLayout composed add:#getList ; yourself.
Then from Workspace x := (TestSpec new openWithSpec ; yourself). x getList items: { 1 . 2 . 3 . 4}. x getList setSelectedItem: 2.
cheers -ben
[1] hal.inria.fr/hal-00759030/PDF/Spec-IWST12-Final.pdfâ [2] https://ci.inria.fr/pharo-contribution/job/PharoForTheEnterprise/lastSuccess... >>> [3] http://hal.inria.fr/docs/00/70/80/67/PDF/SpecTechReport.pdf
So here is the same thing with TreeModel.
ComposableModel subclass: #TestSpec2 instanceVariableNames: 'tree' classVariableNames: '' poolDictionaries: '' category: 'BTCPlay'
TestSpec2 >> initializeWidgets self instantiateModels: #( #tree #TreeModel ). tree childrenBlock: [ :treeItem | self haltOnce. (treeItem isKindOf: Association) ifTrue: [ treeItem value ] ifFalse: [ {} ] ].
TestSpec2 >> getTree ^tree
TestSpec2 class >> mySpecLayout <spec:#default> ^ SpecLayout composed add:#getTree ; yourself.
Then from Workspace (referring to attached pic) x := (TestSpec2 new openWithSpec ; yourself). x getTree roots: { 10 -> { 11. 12 } . 20 -> { 21 . 22 } } . x getTree selectedItem. "<Print It> --> 21 " x getTree selectedItem: ????
Now how do I select a particular tree item at each level ? eg. Select 10 and Select 12 ?
cheers, ben
There was something missing here at the two levels :) You can see case 11849[1] fixing the morphic issue and case 11850 [2] fixing the Spec problem :) Thanks. I'll try it. Then your example make me think that using association > to describe the path may lead to an ambiguous situation True. But to clarify things, ListModel suffers the same ambiguity as follows... x := (TestSpec new openWithSpec ; yourself). x getList items: { 1 . 2 . 3 . 2 . 4}. x getList setSelectedItem: 2.
... ListModel and Treemodel should be consistent in this respect. Musing further about this... In the case of a multi-selection ListModel/TreeModel, it is probably reasonable to select all matching. For a single-selection, I'm not sure. Considering ListModel first, maybe defaulting to selecting the first matching is reasonable, perhaps with a backup method to select the Nth match. Then again, if the identical object appears in the list multiple times, then #setSelectedItem: might visually highlight all occurances while still reporting only a single object with #selectedItems. I think part of a test would go...
x getList items: { 1 . 2 . 3 . 2 . 4}. x getList setSelectedItem: 2. y := x getList selectedItem. x getList setSelectedItem: y. z := x getList selectedItem. self assert: (y = z)
...which actually works so ListModel is cool in that regard - except maybe an option to visually highlight both 2s would be useful - but as a visual thing maybe that is a handled outside of ListModel. Actually that should work the same with multi-selection.
x getList items: { 1 . 2 . 3 . 2 . 4}. x getList setSelectedItems: { 2. 3 }. y := x getList selectedItems. x getList setSelectedItems: y. z := x getList selectedItems. self assert: (y = z)
Actually it seems there is no #setSelectedItems:. How then do you save and restore a multi-selection. e.g.... savedSelection := x getList selectedItems. "other code that clears/modifies the selection - like refresh for additional items" x getList selectedItems: savedSelection.
cheers -ben
Ben
[1] https://pharo.fogbugz.com/default.asp?11849 [2] https://pharo.fogbugz.com/default.asp?11850
<Spec-TreeModel-simple-example.png>
I installed your slices from Issues 11849 & 11850 and it looks mostly good.
Using a modified TreeModel example which I think provides a clearer/nicer example...
TestSpec2 >> initializeWidgets self instantiateModels: #( #tree #TreeModel ). tree childrenBlock: [ :treeItem | (treeItem > 10000) ifTrue: [ #() ] ifFalse: [ (1 to: 3) collect: [ :i | treeItem * 10 + i ] ] ].
Then in Workspace... x := (TestSpec2 new openWithSpec ; yourself). x getTree roots: { 1. 2 . 1 . 11 }. x getTree expandRoots. x getTree selectedItem: 11. "left side of attached pic" x getTree selectedItem: (1 -> 11). "right side of attached pic"
So the attached pic shows exhibits the behaviour I was musing about earlier - very cool. Before those slices there was no response to #selectedItem: from the widget. However a couple of things...
1. x getTree selectedItem: 12. x getTree selectedItem. "<PrintIt> --> 12" while... x getTree selectedItem: ( 1 -> 13 ). x getTree selectedItem. "<PrintIt> --> 1->13"
I think you really want #selectedItem to return the same thing each time regardless of how it was set. That is, just the object. Andn further, it would be better to have a separate accessors #selectedItem and #selectedPath
2. The following doesn't work... x getTree selectedItem: { 1 -> 12 -> 121 }.
cheers -ben
<Issue-11849&11850.png>
---> Save our in-boxes! http://emailcharter.org <--- Johan Fabry - http://pleiad.cl/~jfabry PLEIAD lab - Computer Science Department (DCC) - University of Chile
agreed :)
Would it be possible to change the name of the selector?
tree selectedItem: (1 -> 11)
for me that implies that the tree contains an actual item (1 -> 11). What you want is maybe, #selectedPath: or #selectedItem:1 withParents:{11}
My general rule is: Each time you have to use an association or a point you do something wrong.. It is hard to guess what this association should mean, so either make a domain object to describe what you encode in the association or use specific selectors that say what the arguments mean.
On 2013-10-11, at 19:52, btc@openinworld.com wrote:
btc@openinworld.com wrote:
Benjamin wrote:
Ben
On Oct 11, 2013, at 9:24 AM, btc@openInWorld.com wrote:
btc@openinworld.com wrote:
I found it hard to find documentation on Spec beyond [1],[2],[3], some of which seem to have changed some syntax since they were written. I've been piecing things together to work out how to set the selected item with the simplest example I could. Even though it turns out pretty simple, I thought I'd share in case it was useful for others that haven't dipped their toes into Spec yet.
ComposableModel subclass: #TestSpec instanceVariableNames: 'list text' classVariableNames: '' poolDictionaries: '' category: 'BTCPlay'
TestSpec >> initializeWidgets self instantiateModels: #( #list #ListModel ).
TestSpec >> getList ^list
TestSpec class >> mySpecLayout <spec:#default> ^ SpecLayout composed add:#getList ; yourself.
Then from Workspace x := (TestSpec new openWithSpec ; yourself). x getList items: { 1 . 2 . 3 . 4}. x getList setSelectedItem: 2.
cheers -ben
[1] hal.inria.fr/hal-00759030/PDF/Spec-IWST12-Final.pdfâ [2] https://ci.inria.fr/pharo-contribution/job/PharoForTheEnterprise/lastSuccess... >>> [3] http://hal.inria.fr/docs/00/70/80/67/PDF/SpecTechReport.pdf
So here is the same thing with TreeModel.
ComposableModel subclass: #TestSpec2 instanceVariableNames: 'tree' classVariableNames: '' poolDictionaries: '' category: 'BTCPlay'
TestSpec2 >> initializeWidgets self instantiateModels: #( #tree #TreeModel ). tree childrenBlock: [ :treeItem | self haltOnce. (treeItem isKindOf: Association) ifTrue: [ treeItem value ] ifFalse: [ {} ] ].
TestSpec2 >> getTree ^tree
TestSpec2 class >> mySpecLayout <spec:#default> ^ SpecLayout composed add:#getTree ; yourself.
Then from Workspace (referring to attached pic) x := (TestSpec2 new openWithSpec ; yourself). x getTree roots: { 10 -> { 11. 12 } . 20 -> { 21 . 22 } } . x getTree selectedItem. "<Print It> --> 21 " x getTree selectedItem: ????
Now how do I select a particular tree item at each level ? eg. Select 10 and Select 12 ?
cheers, ben
There was something missing here at the two levels :) You can see case 11849[1] fixing the morphic issue and case 11850 [2] fixing the Spec problem :) Thanks. I'll try it. Then your example make me think that using association > to describe the path may lead to an ambiguous situation True. But to clarify things, ListModel suffers the same ambiguity as follows... x := (TestSpec new openWithSpec ; yourself). x getList items: { 1 . 2 . 3 . 2 . 4}. x getList setSelectedItem: 2.
... ListModel and Treemodel should be consistent in this respect. Musing further about this... In the case of a multi-selection ListModel/TreeModel, it is probably reasonable to select all matching. For a single-selection, I'm not sure. Considering ListModel first, maybe defaulting to selecting the first matching is reasonable, perhaps with a backup method to select the Nth match. Then again, if the identical object appears in the list multiple times, then #setSelectedItem: might visually highlight all occurances while still reporting only a single object with #selectedItems. I think part of a test would go...
x getList items: { 1 . 2 . 3 . 2 . 4}. x getList setSelectedItem: 2. y := x getList selectedItem. x getList setSelectedItem: y. z := x getList selectedItem. self assert: (y = z)
...which actually works so ListModel is cool in that regard - except maybe an option to visually highlight both 2s would be useful - but as a visual thing maybe that is a handled outside of ListModel. Actually that should work the same with multi-selection.
x getList items: { 1 . 2 . 3 . 2 . 4}. x getList setSelectedItems: { 2. 3 }. y := x getList selectedItems. x getList setSelectedItems: y. z := x getList selectedItems. self assert: (y = z)
Actually it seems there is no #setSelectedItems:. How then do you save and restore a multi-selection. e.g.... savedSelection := x getList selectedItems. "other code that clears/modifies the selection - like refresh for additional items" x getList selectedItems: savedSelection.
cheers -ben
Ben
[1] https://pharo.fogbugz.com/default.asp?11849 [2] https://pharo.fogbugz.com/default.asp?11850
<Spec-TreeModel-simple-example.png>
I installed your slices from Issues 11849 & 11850 and it looks mostly good.
Using a modified TreeModel example which I think provides a clearer/nicer example...
TestSpec2 >> initializeWidgets self instantiateModels: #( #tree #TreeModel ). tree childrenBlock: [ :treeItem | (treeItem > 10000) ifTrue: [ #() ] ifFalse: [ (1 to: 3) collect: [ :i | treeItem * 10 + i ] ] ].
Then in Workspace... x := (TestSpec2 new openWithSpec ; yourself). x getTree roots: { 1. 2 . 1 . 11 }. x getTree expandRoots. x getTree selectedItem: 11. "left side of attached pic" x getTree selectedItem: (1 -> 11). "right side of attached pic"
So the attached pic shows exhibits the behaviour I was musing about earlier - very cool. Before those slices there was no response to #selectedItem: from the widget. However a couple of things...
1. x getTree selectedItem: 12. x getTree selectedItem. "<PrintIt> --> 12" while... x getTree selectedItem: ( 1 -> 13 ). x getTree selectedItem. "<PrintIt> --> 1->13"
I think you really want #selectedItem to return the same thing each time regardless of how it was set. That is, just the object. Andn further, it would be better to have a separate accessors #selectedItem and #selectedPath
2. The following doesn't work... x getTree selectedItem: { 1 -> 12 -> 121 }.
cheers -ben
<Issue-11849&11850.png>
Camillo Bruni-3 wrote
for me that implies that the tree contains an actual item (1 -> 11).
Yes, not only is it a C-style obfuscation (remember how much confusing the event buffers are!!), but what do you do when the tree is more than two levels? Definitely an object is calling to be born here... ----- Cheers, Sean -- View this message in context: http://forum.world.st/Spec-Lists-setting-the-selection-tp4713776p4714058.htm... Sent from the Pharo Smalltalk Users mailing list archive at Nabble.com.
Actually, you can do (1->2 -> 3) if you have multiple levels :) But clearly I will introduce a real data structure here. I just wanted to quickly hack it and have something where I can do #head and #tail easily, and keep a simple way to write it :) Ben On Oct 12, 2013, at 3:04 PM, Sean P. DeNigris <sean@clipperadams.com> wrote:
Camillo Bruni-3 wrote
for me that implies that the tree contains an actual item (1 -> 11).
Yes, not only is it a C-style obfuscation (remember how much confusing the event buffers are!!), but what do you do when the tree is more than two levels? Definitely an object is calling to be born here...
----- Cheers, Sean -- View this message in context: http://forum.world.st/Spec-Lists-setting-the-selection-tp4713776p4714058.htm... Sent from the Pharo Smalltalk Users mailing list archive at Nabble.com.
Benjamin Van Ryseghem-2 wrote
Actually, you can do (1->2 -> 3) if you have multiple levels :)
Oh, a *nested* association! Yes, that's much better ;p ----- Cheers, Sean -- View this message in context: http://forum.world.st/Spec-Lists-setting-the-selection-tp4713776p4714067.htm... Sent from the Pharo Smalltalk Users mailing list archive at Nabble.com.
On 2013-10-12, at 15:37, Benjamin <benjamin.vanryseghem.pharo@gmail.com> wrote:
Actually, you can do (1->2 -> 3) if you have multiple levels :)
But clearly I will introduce a real data structure here. I just wanted to quickly hack it and have something where I can do #head and #tail easily, and keep a simple way to write it :)
sounds familiar ;) http://en.wikipedia.org/wiki/Cons http://en.wikipedia.org/wiki/Car_and_cdr
Thanks for the example :) Indeed, the documentation is a bit outdated since Spec is still improving a lot, a changing a bit in its API. One of my goal now is to write proper doc for Spec :) Ben On Oct 11, 2013, at 8:23 AM, btc@openInWorld.com wrote:
I found it hard to find documentation on Spec beyond [1],[2],[3], some of which seem to have changed some syntax since they were written. I've been piecing things together to work out how to set the selected item with the simplest example I could. Even though it turns out pretty simple, I thought I'd share in case it was useful for others that haven't dipped their toes into Spec yet.
ComposableModel subclass: #TestSpec instanceVariableNames: 'list text' classVariableNames: '' poolDictionaries: '' category: 'BTCPlay'
TestSpec >> initializeWidgets self instantiateModels: #( #list #ListModel ).
this could be changed in: list := self newList.
TestSpec >> getList ^list
TestSpec class >> mySpecLayout <spec:#default> ^ SpecLayout composed add:#getList ; yourself.
Then from Workspace x := (TestSpec new openWithSpec ; yourself). x getList items: { 1 . 2 . 3 . 4}. x getList setSelectedItem: 2.
cheers -ben
[1] hal.inria.fr/hal-00759030/PDF/Spec-IWST12-Final.pdfâ [2] https://ci.inria.fr/pharo-contribution/job/PharoForTheEnterprise/lastSuccess... [3] http://hal.inria.fr/docs/00/70/80/67/PDF/SpecTechReport.pdf
On Oct 11, 2013, at 2:47 PM, Benjamin <benjamin.vanryseghem.pharo@gmail.com> wrote:
Thanks for the example :)
Indeed, the documentation is a bit outdated since Spec is still improving a lot, a changing a bit in its API.
One of my goal now is to write proper doc for Spec :)
youpi!
Ben
On Oct 11, 2013, at 8:23 AM, btc@openInWorld.com wrote:
I found it hard to find documentation on Spec beyond [1],[2],[3], some of which seem to have changed some syntax since they were written. I've been piecing things together to work out how to set the selected item with the simplest example I could. Even though it turns out pretty simple, I thought I'd share in case it was useful for others that haven't dipped their toes into Spec yet.
ComposableModel subclass: #TestSpec instanceVariableNames: 'list text' classVariableNames: '' poolDictionaries: '' category: 'BTCPlay'
TestSpec >> initializeWidgets self instantiateModels: #( #list #ListModel ).
this could be changed in:
list := self newList.
TestSpec >> getList ^list
TestSpec class >> mySpecLayout <spec:#default> ^ SpecLayout composed add:#getList ; yourself.
Then from Workspace x := (TestSpec new openWithSpec ; yourself). x getList items: { 1 . 2 . 3 . 4}. x getList setSelectedItem: 2.
cheers -ben
[1] hal.inria.fr/hal-00759030/PDF/Spec-IWST12-Final.pdfâ [2] https://ci.inria.fr/pharo-contribution/job/PharoForTheEnterprise/lastSuccess... [3] http://hal.inria.fr/docs/00/70/80/67/PDF/SpecTechReport.pdf
participants (6)
-
Benjamin -
btc＠openinworld.com -
Camillo Bruni -
Johan Fabry -
Sean P. DeNigris -
Stéphane Ducasse
