Syntax Visualisation in the C# infrastructure
It seems that Microsoft has opened interesting parts of the C# compilation infrastructure, including syntax visualisation. http://roslyn.codeplex.com/wikipage?title=Syntax%20Visualizer&referringTitle... Ideas for Opal+Roassal2 ? Thierry -- Thierry Goubier CEA list Laboratoire des Fondations des Systèmes Temps Réel Embarqués 91191 Gif sur Yvette Cedex France Phone/Fax: +33 (0) 1 69 08 32 92 / 83 95
I am not sure to what syntax visualization is useful for, but indeed, this is easy in Roassal Assuming a class MyVisitor, that simples collect the nodes of the AST. -=-=-=-=-=-=-=-=-=-= | ast visitor g | "We get the nodes from the AST" ast := RBParser parseMethod: (ArrayTest>>#testReplaceFromToWithStartingAt) getSource. visitor := MyVisitor new. ast acceptVisitor: visitor. "Visualization" g := RTGraphBuilder new. g node if: #isMessage shape: (RTEllipse new size: 10; color: Color red ) + (RTLabel new text: #selector); if: #isReturn shape: (RTEllipse new size: 10; color: Color red ); if: #isBlock shape: (RTBox new size: 10; color: Color blue ); shape: (RTEllipse new size: 10; color: Color gray ). g layout use: RTTreeLayout new. g edge connectTo: #parent. g addAll: visitor nodes. g applyLayout. g view -=-=-=-=-=-=-=-=-=-= Cheers, Alexandre On Apr 4, 2014, at 4:34 AM, Goubier Thierry <thierry.goubier@cea.fr> wrote:
It seems that Microsoft has opened interesting parts of the C# compilation infrastructure, including syntax visualisation.
http://roslyn.codeplex.com/wikipage?title=Syntax%20Visualizer&referringTitle...
Ideas for Opal+Roassal2 ?
Thierry -- Thierry Goubier CEA list Laboratoire des Fondations des Systèmes Temps Réel Embarqués 91191 Gif sur Yvette Cedex France Phone/Fax: +33 (0) 1 69 08 32 92 / 83 95
-- _,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;: Alexandre Bergel http://www.bergel.eu ^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;.
Yeah I use Roassal + Mondrian to visualize my intermediate representations in the compiler and doing it for the AST is really simple (like 5 min of work). In addition the GTInspector view on trees/graph is really nice. So basically we have all the tools they provide. 2014-04-05 17:56 GMT-07:00 Alexandre Bergel <alexandre.bergel@me.com>:
I am not sure to what syntax visualization is useful for, but indeed, this is easy in Roassal
Assuming a class MyVisitor, that simples collect the nodes of the AST.
-=-=-=-=-=-=-=-=-=-= | ast visitor g | "We get the nodes from the AST" ast := RBParser parseMethod: (ArrayTest>>#testReplaceFromToWithStartingAt) getSource. visitor := MyVisitor new. ast acceptVisitor: visitor.
"Visualization" g := RTGraphBuilder new. g node if: #isMessage shape: (RTEllipse new size: 10; color: Color red ) + (RTLabel new text: #selector); if: #isReturn shape: (RTEllipse new size: 10; color: Color red ); if: #isBlock shape: (RTBox new size: 10; color: Color blue ); shape: (RTEllipse new size: 10; color: Color gray ). g layout use: RTTreeLayout new. g edge connectTo: #parent.
g addAll: visitor nodes.
g applyLayout. g view -=-=-=-=-=-=-=-=-=-=
Cheers, Alexandre
On Apr 4, 2014, at 4:34 AM, Goubier Thierry <thierry.goubier@cea.fr> wrote:
It seems that Microsoft has opened interesting parts of the C# compilation infrastructure, including syntax visualisation.
http://roslyn.codeplex.com/wikipage?title=Syntax%20Visualizer&referringTitle...
Ideas for Opal+Roassal2 ?
Thierry -- Thierry Goubier CEA list Laboratoire des Fondations des Systèmes Temps Réel Embarqués 91191 Gif sur Yvette Cedex France Phone/Fax: +33 (0) 1 69 08 32 92 / 83 95
-- _,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;: Alexandre Bergel http://www.bergel.eu ^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;.
Do you have screenshots? I can advertise your work on our Facebook website. Alexandre On Apr 5, 2014, at 11:38 PM, Clément Bera <bera.clement@gmail.com> wrote:
Yeah I use Roassal + Mondrian to visualize my intermediate representations in the compiler and doing it for the AST is really simple (like 5 min of work).
In addition the GTInspector view on trees/graph is really nice.
So basically we have all the tools they provide.
2014-04-05 17:56 GMT-07:00 Alexandre Bergel <alexandre.bergel@me.com>: I am not sure to what syntax visualization is useful for, but indeed, this is easy in Roassal
Assuming a class MyVisitor, that simples collect the nodes of the AST.
-=-=-=-=-=-=-=-=-=-= | ast visitor g | "We get the nodes from the AST" ast := RBParser parseMethod: (ArrayTest>>#testReplaceFromToWithStartingAt) getSource. visitor := MyVisitor new. ast acceptVisitor: visitor.
"Visualization" g := RTGraphBuilder new. g node if: #isMessage shape: (RTEllipse new size: 10; color: Color red ) + (RTLabel new text: #selector); if: #isReturn shape: (RTEllipse new size: 10; color: Color red ); if: #isBlock shape: (RTBox new size: 10; color: Color blue ); shape: (RTEllipse new size: 10; color: Color gray ). g layout use: RTTreeLayout new. g edge connectTo: #parent.
g addAll: visitor nodes.
g applyLayout. g view -=-=-=-=-=-=-=-=-=-=

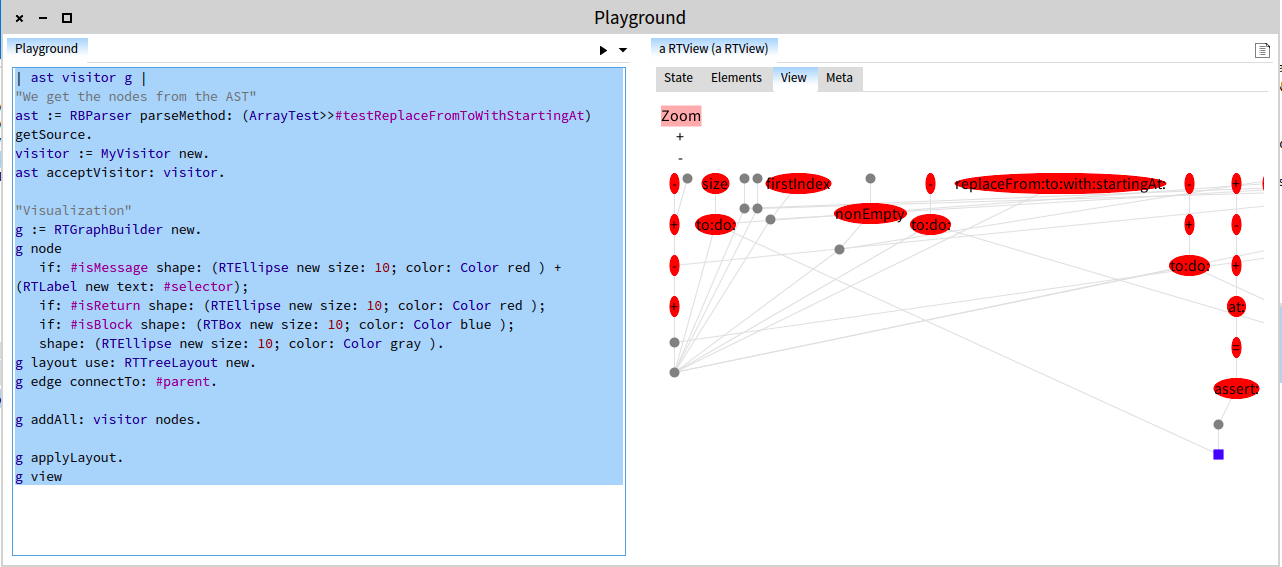

<Screen Shot 2014-04-05 at 9.56.35 PM.png> Cheers, Alexandre
On Apr 4, 2014, at 4:34 AM, Goubier Thierry <thierry.goubier@cea.fr> wrote:
It seems that Microsoft has opened interesting parts of the C# compilation infrastructure, including syntax visualisation.
http://roslyn.codeplex.com/wikipage?title=Syntax%20Visualizer&referringTitle...
Ideas for Opal+Roassal2 ?
Thierry -- Thierry Goubier CEA list Laboratoire des Fondations des Systèmes Temps Réel Embarqués 91191 Gif sur Yvette Cedex France Phone/Fax: +33 (0) 1 69 08 32 92 / 83 95
-- _,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;: Alexandre Bergel http://www.bergel.eu ^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;.
-- _,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;: Alexandre Bergel http://www.bergel.eu ^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;.
Well there is one screen shot at the bottom of this post: http://clementbera.wordpress.com/2014/01/22/the-sista-chronicles-iii-an-intermediate-representation-for-optimizations/ And multiple in this post: http://clementbera.wordpress.com/2014/02/13/the-sista-chronicles-iv-inlining-message-sends/ 2014-04-06 15:46 GMT-07:00 Alexandre Bergel <alexandre.bergel@me.com>: > Do you have screenshots? I can advertise your work on our Facebook website. > > Alexandre > > > On Apr 5, 2014, at 11:38 PM, Clément Bera <bera.clement@gmail.com> wrote: > > > Yeah I use Roassal + Mondrian to visualize my intermediate > representations in the compiler and doing it for the AST is really simple > (like 5 min of work). > > > > In addition the GTInspector view on trees/graph is really nice. > > > > So basically we have all the tools they provide. > > > > > > 2014-04-05 17:56 GMT-07:00 Alexandre Bergel <alexandre.bergel@me.com>: > > I am not sure to what syntax visualization is useful for, but indeed, > this is easy in Roassal > > > > Assuming a class MyVisitor, that simples collect the nodes of the AST. > > > > -=-=-=-=-=-=-=-=-=-= > > | ast visitor g | > > "We get the nodes from the AST" > > ast := RBParser parseMethod: > (ArrayTest>>#testReplaceFromToWithStartingAt) getSource. > > visitor := MyVisitor new. > > ast acceptVisitor: visitor. > > > > "Visualization" > > g := RTGraphBuilder new. > > g node > > if: #isMessage shape: (RTEllipse new size: 10; color: Color red ) > + (RTLabel new text: #selector); > > if: #isReturn shape: (RTEllipse new size: 10; color: Color red ); > > if: #isBlock shape: (RTBox new size: 10; color: Color blue ); > > shape: (RTEllipse new size: 10; color: Color gray ). > > g layout use: RTTreeLayout new. > > g edge connectTo: #parent. > > > > g addAll: visitor nodes. > > > > g applyLayout. > > g view > > -=-=-=-=-=-=-=-=-=-= > > > > > > <Screen Shot 2014-04-05 at 9.56.35 PM.png> > > Cheers, > > Alexandre > > > > > > On Apr 4, 2014, at 4:34 AM, Goubier Thierry <thierry.goubier@cea.fr> > wrote: > > > >> It seems that Microsoft has opened interesting parts of the C# > compilation infrastructure, including syntax visualisation. > >> > >> > http://roslyn.codeplex.com/wikipage?title=Syntax%20Visualizer&referringTitle=Home > >> > >> Ideas for Opal+Roassal2 ? > >> > >> Thierry > >> -- > >> Thierry Goubier > >> CEA list > >> Laboratoire des Fondations des Systèmes Temps Réel Embarqués > >> 91191 Gif sur Yvette Cedex > >> France > >> Phone/Fax: +33 (0) 1 69 08 32 92 / 83 95 > >> > > > > -- > > _,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;: > > Alexandre Bergel http://www.bergel.eu > > ^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;. > > > > > > > > > > -- > _,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;: > Alexandre Bergel http://www.bergel.eu > ^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;. > > > > >
