Connectors no longer loads into Pharo, it's heavily tied into eToys. Are there any maintained package that provide diagram creation? All I'm trying to do is draw a diagram with boxes and arrows connecting them to represent control flow graphs. Bryce
Mondrian may help here... There's 2 implementation right now... one in squeaksource, in progress and one in source.lukas-renggli.ch. The latter is more completed but different from the original vw version. hth, 2009/3/5 <bryce@kampjes.demon.co.uk>:
Connectors no longer loads into Pharo, it's heavily tied into eToys. Are there any maintained package that provide diagram creation? All I'm trying to do is draw a diagram with boxes and arrows connecting them to represent control flow graphs.
Bryce
_______________________________________________ Pharo-project mailing list Pharo-project@lists.gforge.inria.fr http://lists.gforge.inria.fr/cgi-bin/mailman/listinfo/pharo-project
-- Cédrick
Hi Bryce, I suggest you to use Mondrian. http://www.squeaksource.com/Mondrian.html Arrowed edges does not properly work for now. But it is on my todo list. If you have an example of a diagram you're interested in... Cheers, Alexandre On 5 Mar 2009, at 22:47, <bryce@kampjes.demon.co.uk> wrote:
Connectors no longer loads into Pharo, it's heavily tied into eToys. Are there any maintained package that provide diagram creation? All I'm trying to do is draw a diagram with boxes and arrows connecting them to represent control flow graphs.
Bryce
_______________________________________________ Pharo-project mailing list Pharo-project@lists.gforge.inria.fr http://lists.gforge.inria.fr/cgi-bin/mailman/listinfo/pharo-project
-- _,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;: Alexandre Bergel http://www.bergel.eu ^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;.
Alexandre Bergel writes:
Hi Bryce,
I suggest you to use Mondrian. http://www.squeaksource.com/Mondrian.html
Arrowed edges does not properly work for now. But it is on my todo list. If you have an example of a diagram you're interested in...
Here's an example. It's basic boxes with arrows and some colour to indicate what the boxes are. It's a control flow graph of intermediate code. I use it to make inspecting Exupery's intermediate more understandable. Bryce
This is trivial to achieve. I will give a try this week end. Alexandre On 6 Mar 2009, at 22:07, <bryce@kampjes.demon.co.uk> <bryce@kampjes.demon.co.uk
wrote:
Alexandre Bergel writes:
Hi Bryce,
I suggest you to use Mondrian. http://www.squeaksource.com/Mondrian.html
Arrowed edges does not properly work for now. But it is on my todo list. If you have an example of a diagram you're interested in...
Here's an example. It's basic boxes with arrows and some colour to indicate what the boxes are.
It's a control flow graph of intermediate code. I use it to make inspecting Exupery's intermediate more understandable.
Bryce

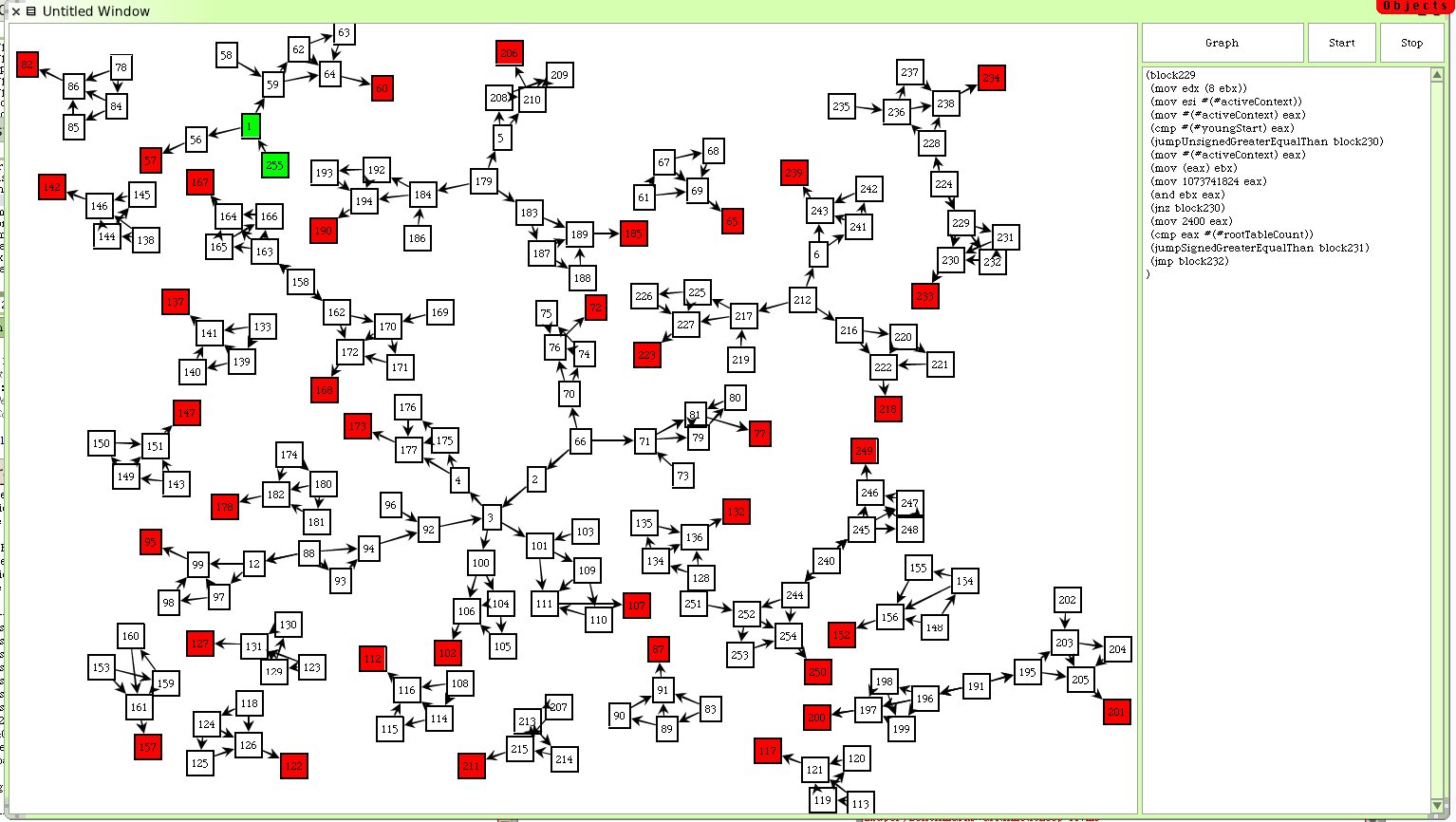

<exuperyGraph.jpg>_______________________________________________ Pharo-project mailing list Pharo-project@lists.gforge.inria.fr http://lists.gforge.inria.fr/cgi-bin/mailman/listinfo/pharo-project
-- _,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;: Alexandre Bergel http://www.bergel.eu ^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;.
Alexandre Bergel writes:
This is trivial to achieve. I will give a try this week end.
Thanks, I played around a little last night. One question, is it possible to move the nodes manually to tweak the layout? I'm currently using graphviz to layout the graph, it almost does a good enough job but often moving a few nodes around makes it much easier to follow. Mondrian looks very cleanly designed. Bryce
Alexandre Bergel writes:
This is trivial to achieve. I will give a try this week end.
The other thing I noticed is the following script produces a messed up display. I'm not sure if this is a bug or if I'm missing something. |view| view := MOViewRenderer new. view shape: (MORectangleShape new width: 30; height: 30; text: [:t| t model printString]). view nodes: (1 to: 53). view gridLayout. view open. Without the text: attribute it produces a sensible drawing. The messed up drawing is: The examples all seem to work. Bryce

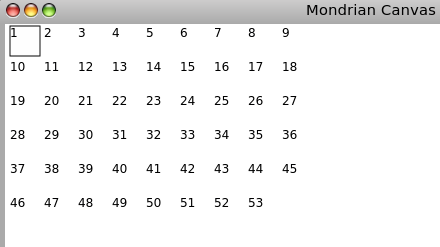

With the last version of Mondrian, I have I will dive into it this evening. I would have expected each number to be surrounded by a box. Cheers, Alexandre On 7 Mar 2009, at 22:26, <bryce@kampjes.demon.co.uk> wrote:
Alexandre Bergel writes:
This is trivial to achieve. I will give a try this week end.
The other thing I noticed is the following script produces a messed up display. I'm not sure if this is a bug or if I'm missing something.
|view| view := MOViewRenderer new. view shape: (MORectangleShape new width: 30; height: 30; text: [:t| t model printString]). view nodes: (1 to: 53). view gridLayout. view open.
Without the text: attribute it produces a sensible drawing.
The messed up drawing is:
<mondrian.jpg>
The examples all seem to work.
Bryce_______________________________________________ Pharo-project mailing list Pharo-project@lists.gforge.inria.fr http://lists.gforge.inria.fr/cgi-bin/mailman/listinfo/pharo-project
-- _,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;: Alexandre Bergel http://www.bergel.eu ^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;.
Hi Bryce, Try the following with the last version: -=-=-=-=-=-=-=-=-=-=-=-= | view builder | builder := MOFormsBuilder new. builder column; fill. builder row; fill. builder x: 1 y: 1 add: (MORectangleShape new width: 30; height: 30; fillColor: Color lightBlue). builder x: 1 y: 1 add: (MOLabelShape new text: [:t| t printString]). view := MOViewRenderer new. view shape: builder shape. view interaction draggable. view nodes: (1 to: 53). view edgesFrom: [:each | each * 2]. view gridLayout. view open. -=-=-=-=-=-=-=-=-=-=-=-= It should do what you expect. For some reason, the text: message sent to a MORectangleShape does not do the right job. I suspect something is weird in BalloonCanvas. I will dive into this. The draggable message make node draggable. If you need some popup, simply send popupText: [:each | ... ] Cheers, Alexandre On 7 Mar 2009, at 22:26, <bryce@kampjes.demon.co.uk> <bryce@kampjes.demon.co.uk
wrote:
Alexandre Bergel writes:
This is trivial to achieve. I will give a try this week end.
The other thing I noticed is the following script produces a messed up display. I'm not sure if this is a bug or if I'm missing something.
|view| view := MOViewRenderer new. view shape: (MORectangleShape new width: 30; height: 30; text: [:t| t model printString]). view nodes: (1 to: 53). view gridLayout. view open.
Without the text: attribute it produces a sensible drawing.
The messed up drawing is:
<mondrian.jpg>
The examples all seem to work.
Bryce_______________________________________________ Pharo-project mailing list Pharo-project@lists.gforge.inria.fr http://lists.gforge.inria.fr/cgi-bin/mailman/listinfo/pharo-project
-- _,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;: Alexandre Bergel http://www.bergel.eu ^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;.
Julien Fierz implemented arrows and graph layouts in the other Mondrian (source.lukas-renggli.ch/mondrian) after Moose forked the code. See his thesis for examples: <http://www.iam.unibe.ch/~scg/Archive/Diploma/Fier09a.pdf>. Lukas On Fri, Mar 6, 2009 at 12:24 AM, Alexandre Bergel <alexandre@bergel.eu> wrote:
Hi Bryce,
I suggest you to use Mondrian. http://www.squeaksource.com/Mondrian.html
Arrowed edges does not properly work for now. But it is on my todo list. If you have an example of a diagram you're interested in...
Cheers, Alexandre
On 5 Mar 2009, at 22:47, <bryce@kampjes.demon.co.uk> wrote:
Connectors no longer loads into Pharo, it's heavily tied into eToys. Are there any maintained package that provide diagram creation? All I'm trying to do is draw a diagram with boxes and arrows connecting them to represent control flow graphs.
Bryce
_______________________________________________ Pharo-project mailing list Pharo-project@lists.gforge.inria.fr http://lists.gforge.inria.fr/cgi-bin/mailman/listinfo/pharo-project
-- _,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;: Alexandre Bergel  http://www.bergel.eu ^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;.
_______________________________________________ Pharo-project mailing list Pharo-project@lists.gforge.inria.fr http://lists.gforge.inria.fr/cgi-bin/mailman/listinfo/pharo-project
-- Lukas Renggli http://www.lukas-renggli.ch
