Hi, Anyone knows why the former code snippet fail but the later deprecated one succeed? PNGReadWriter formFromStream: ('/home/hilaire/Travaux/Developpement/DrGeoII/Dev-pharo7/drgeo/build/examples/wheel.png' asFileReference binaryReadStream). PNGReadWriter formFromStream: (FileStream readOnlyFileNamed:'/home/hilaire/Travaux/Developpement/DrGeoII/Dev-pharo7/drgeo/build/examples/wheel.png' ). Thanks Hilaire -- Dr. Geo http://drgeo.eu

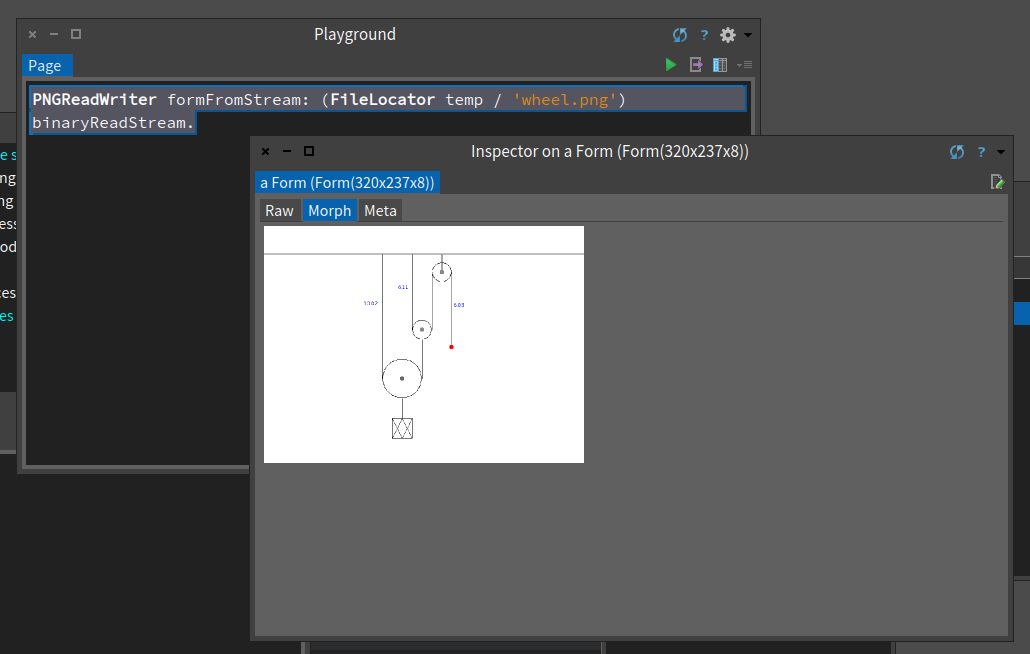

Hmm, works for me: Pharo 7.0 Build information: Pharo-7.0+alpha.build.981.sha.5c76a586939f4336b1d3f4f3d47dfecdde90058e (64 Bit)
On 31 May 2018, at 11:23, Hilaire <hilaire@drgeo.eu> wrote:
Hi,
Anyone knows why the former code snippet fail but the later deprecated one succeed?
PNGReadWriter formFromStream: ('/home/hilaire/Travaux/Developpement/DrGeoII/Dev-pharo7/drgeo/build/examples/wheel.png' asFileReference binaryReadStream).
PNGReadWriter formFromStream: (FileStream readOnlyFileNamed:'/home/hilaire/Travaux/Developpement/DrGeoII/Dev-pharo7/drgeo/build/examples/wheel.png' ).
Thanks
Hilaire
-- Dr. Geo http://drgeo.eu
<wheel.png>
Ah, indeed testing on latest P7, this code works. Oh, but wait PNG reader seems to break now on another part... See screenshot. Oh, it looks like the problem we got almost one years ago... where I suggested code snipped for test inclusion[1] and it now fails again (was not failing on my previous P7 image)... As far as I can see I did not find a test based on it in the Pharo image I tested on. At the time it was failing on 64bits, and now it fails on the 32bits I tried it. I guess some recent changes on P7 break something. It will be nice to add a test based on the example I provided at [1]. Hilaire [1] http://forum.world.st/Regression-with-PNGReaderWriter-in-P6-td4951796.html Le 31/05/2018 à 12:20, Sven Van Caekenberghe a écrit :
Hmm, works for me:
-- Dr. Geo http://drgeo.eu

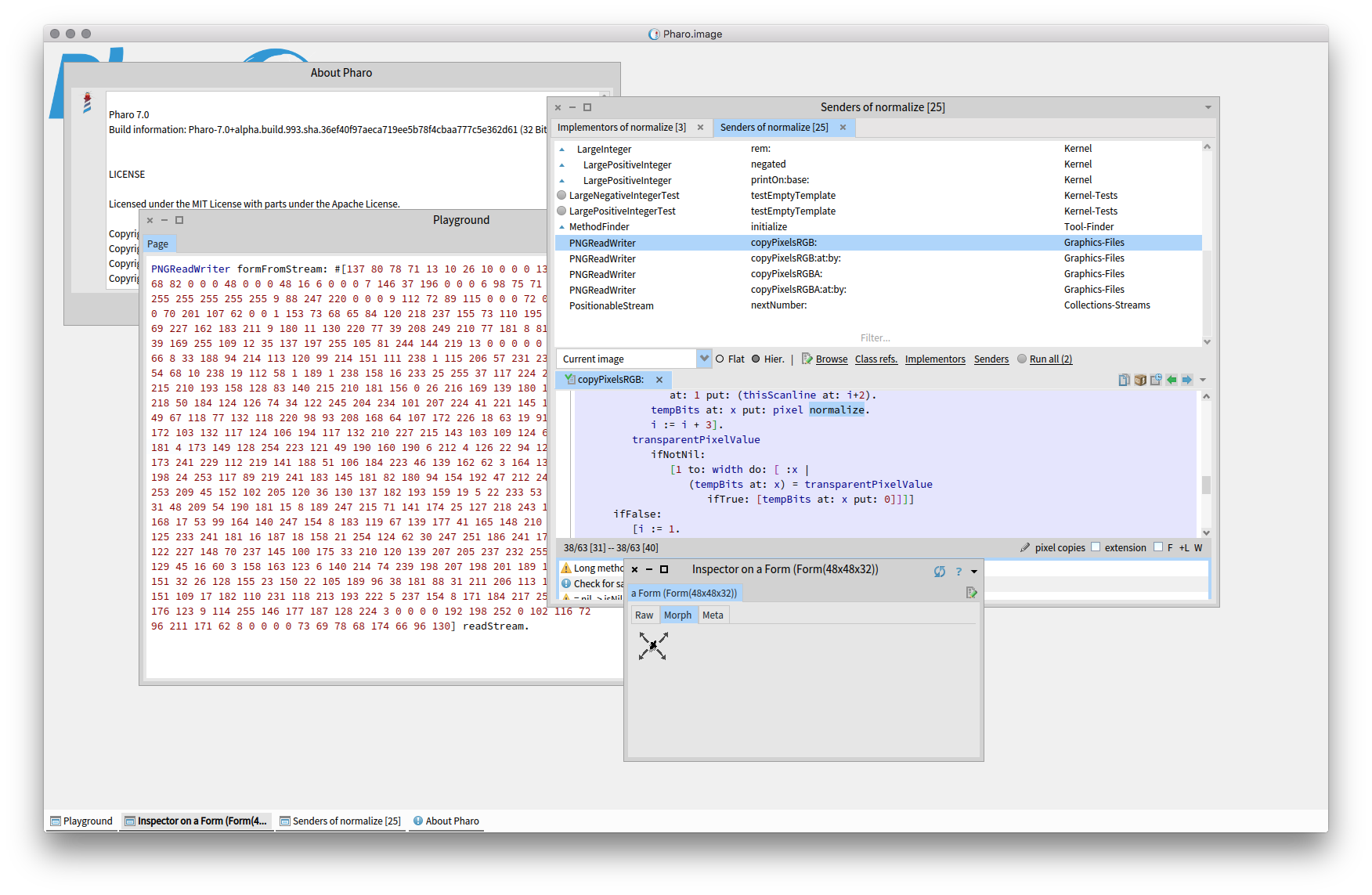

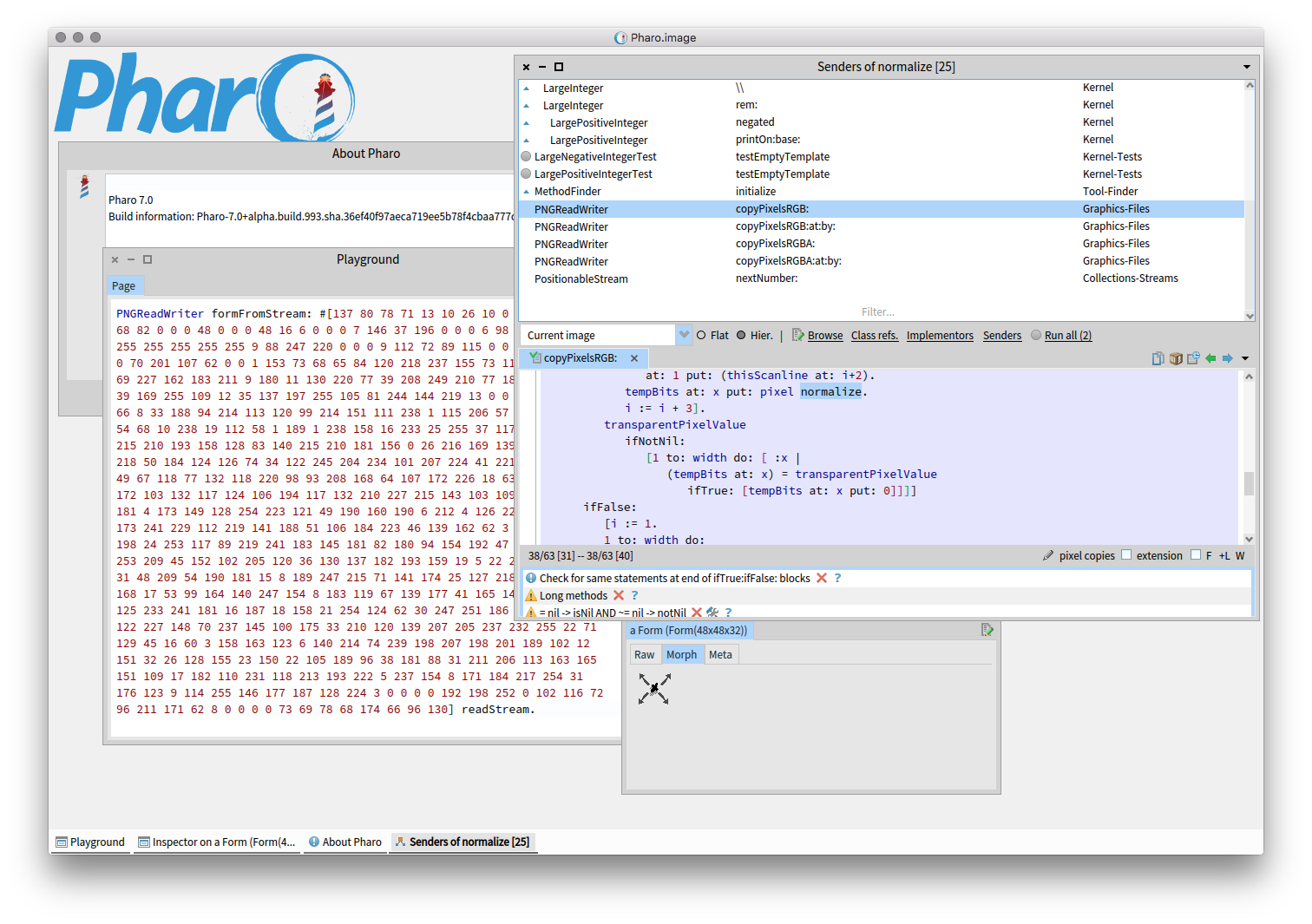

Hi Hilaire, On Pharo 7 build 993 it works on both 32 and 64 bits (macOS): The patch (#normalize calls here and there) seems to have been integrated as well your test case (#testNewFromSampleBytes), with your name in the comments ! Sven
On 31 May 2018, at 13:23, Hilaire <hilaire@drgeo.eu> wrote:
Ah, indeed testing on latest P7, this code works.
Oh, but wait PNG reader seems to break now on another part... See screenshot.
Oh, it looks like the problem we got almost one years ago... where I suggested code snipped for test inclusion[1] and it now fails again (was not failing on my previous P7 image)... As far as I can see I did not find a test based on it in the Pharo image I tested on.
At the time it was failing on 64bits, and now it fails on the 32bits I tried it.
I guess some recent changes on P7 break something. It will be nice to add a test based on the example I provided at [1].
Hilaire
[1] http://forum.world.st/Regression-with-PNGReaderWriter-in-P6-td4951796.html
Le 31/05/2018 à 12:20, Sven Van Caekenberghe a écrit :
Hmm, works for me:
-- Dr. Geo http://drgeo.eu
<brokenPNG.png>
Hi Hilaire, On Pharo 7 build 993 it works on both 32 and 64 bits (macOS): The patch (#normalize calls here and there) seems to have been integrated as well your test case (#testNewFromSampleBytes), with your name in the comments ! Sven
On 31 May 2018, at 13:23, Hilaire <hilaire@drgeo.eu <mailto:hilaire@drgeo.eu>> wrote:
Ah, indeed testing on latest P7, this code works.
Oh, but wait PNG reader seems to break now on another part... See screenshot.
Oh, it looks like the problem we got almost one years ago... where I suggested code snipped for test inclusion[1] and it now fails again (was not failing on my previous P7 image)... As far as I can see I did not find a test based on it in the Pharo image I tested on.
At the time it was failing on 64bits, and now it fails on the 32bits I tried it.
I guess some recent changes on P7 break something. It will be nice to add a test based on the example I provided at [1].
Hilaire
[1] http://forum.world.st/Regression-with-PNGReaderWriter-in-P6-td4951796.html <http://forum.world.st/Regression-with-PNGReaderWriter-in-P6-td4951796.html>
Le 31/05/2018 à 12:20, Sven Van Caekenberghe a écrit :
Hmm, works for me:
-- Dr. Geo http://drgeo.eu <http://drgeo.eu/>
<brokenPNG.png>
Hi Sven, Thanks for your in-depth testing. The code of the test and the one I posted last year is not the exactly same. And if you try it, it fails. May be a supplementary source of failure. Now with the latest P7 image of today, installing DrGeo fails. Particularly this enclosed class fails to initialize. It comes with PNG content as ByteArray. I think it is related problems. It seem there are different syntax changes I don't understand: This code fails NOW: PNGReadWriter createAFormFrom: #(137 ... 130) asByteArray This code succeeds: PNGReadWriter formFromStream: #[137 ... 130] readStream Is it expected failure? Hilaire Le 31/05/2018 à 16:23, Sven Van Caekenberghe a écrit :
Hi Hilaire,
On Pharo 7 build 993 it works on both 32 and 64 bits (macOS):
The patch (#normalize calls here and there) seems to have been integrated as well your test case (#testNewFromSampleBytes), with your name in the comments !
-- Dr. Geo http://drgeo.eu
On 31 May 2018, at 17:55, Hilaire <hilaire@drgeo.eu> wrote:
Hi Sven,
Thanks for your in-depth testing.
The code of the test and the one I posted last year is not the exactly same. And if you try it, it fails. May be a supplementary source of failure.
Now with the latest P7 image of today, installing DrGeo fails.
Particularly this enclosed class fails to initialize. It comes with PNG content as ByteArray. I think it is related problems.
It seem there are different syntax changes I don't understand:
This code fails NOW:
PNGReadWriter createAFormFrom: #(137 ... 130) asByteArray
This code succeeds:
PNGReadWriter formFromStream: #[137 ... 130] readStream
Is it expected failure?
That is because that particular method (with no users in the image) uses a deprecated class, change it to the simpler createAFormFrom: data | error f | error := ''. f := [ self formFromStream: data readStream ] ifError: [ :a :b | error := a printString , ' ' , b printString. (StringMorph contents: error) color: Color red; imageForm ]. ^ { f. error } but honestly, why this method and why not directly do self formFromStream: data readStream swallowing errors is so/so, IMHO. Also, the return value is really unusual. You just want the Form, right. It is not the responsibility of a system class to do UI for you, I think.
Hilaire
Le 31/05/2018 à 16:23, Sven Van Caekenberghe a écrit :
Hi Hilaire,
On Pharo 7 build 993 it works on both 32 and 64 bits (macOS):
The patch (#normalize calls here and there) seems to have been integrated as well your test case (#testNewFromSampleBytes), with your name in the comments !
-- Dr. Geo http://drgeo.eu
<DrGLoader.st.zip>
This is what I did, But I hope this problem will not hit somewhere else. Le 31/05/2018 à 18:06, Sven Van Caekenberghe a écrit :
That is because that particular method (with no users in the image) uses a deprecated class, change it to the simpler
createAFormFrom: data | error f | error := ''. f := [ self formFromStream: data readStream ] ifError: [ :a :b | error := a printString , ' ' , b printString. (StringMorph contents: error) color: Color red; imageForm ]. ^ { f. error }
but honestly, why this method and why not directly do
self formFromStream: data readStream
swallowing errors is so/so, IMHO. Also, the return value is really unusual. You just want the Form, right. It is not the responsibility of a system class to do UI for you, I think.
-- Dr. Geo http://drgeo.eu
Great, so you agree that #createAFormFrom: is a candidate for removal ?
On 31 May 2018, at 19:01, Hilaire <hilaire@drgeo.eu> wrote:
This is what I did, But I hope this problem will not hit somewhere else.
Le 31/05/2018 à 18:06, Sven Van Caekenberghe a écrit :
That is because that particular method (with no users in the image) uses a deprecated class, change it to the simpler
createAFormFrom: data | error f | error := ''. f := [ self formFromStream: data readStream ] ifError: [ :a :b | error := a printString , ' ' , b printString. (StringMorph contents: error) color: Color red; imageForm ]. ^ { f. error }
but honestly, why this method and why not directly do
self formFromStream: data readStream
swallowing errors is so/so, IMHO. Also, the return value is really unusual. You just want the Form, right. It is not the responsibility of a system class to do UI for you, I think.
-- Dr. Geo http://drgeo.eu
Yes, I use only #formFromStream: message now Hilaire Le 31/05/2018 à 19:43, Sven Van Caekenberghe a écrit :
Great, so you agree that #createAFormFrom: is a candidate for removal ?
-- Dr. Geo http://drgeo.eu
https://pharo.manuscript.com/f/cases/22035/Delete-PNGReadWriter-class-create...
On 31 May 2018, at 19:43, Sven Van Caekenberghe <sven@stfx.eu> wrote:
Great, so you agree that #createAFormFrom: is a candidate for removal ?
On 31 May 2018, at 19:01, Hilaire <hilaire@drgeo.eu> wrote:
This is what I did, But I hope this problem will not hit somewhere else.
Le 31/05/2018 à 18:06, Sven Van Caekenberghe a écrit :
That is because that particular method (with no users in the image) uses a deprecated class, change it to the simpler
createAFormFrom: data | error f | error := ''. f := [ self formFromStream: data readStream ] ifError: [ :a :b | error := a printString , ' ' , b printString. (StringMorph contents: error) color: Color red; imageForm ]. ^ { f. error }
but honestly, why this method and why not directly do
self formFromStream: data readStream
swallowing errors is so/so, IMHO. Also, the return value is really unusual. You just want the Form, right. It is not the responsibility of a system class to do UI for you, I think.
-- Dr. Geo http://drgeo.eu
On 31 May 2018, at 13:23, Hilaire <hilaire@drgeo.eu> wrote:
Oh, but wait PNG reader seems to break now on another part... See screenshot.
Did you see https://github.com/DraagrenKirneh/PngSuiteExplorer ? We score 100% on the http://www.schaik.com/pngsuite2011 test suite.
Le 31/05/2018 à 21:27, Sven Van Caekenberghe a écrit :
On 31 May 2018, at 13:23, Hilaire<hilaire@drgeo.eu> wrote:
Oh, but wait PNG reader seems to break now on another part... See screenshot. Did you seehttps://github.com/DraagrenKirneh/PngSuiteExplorer ? We score 100% on thehttp://www.schaik.com/pngsuite2011 test suite.
Cool. Nice to know. Hilaire -- Dr. Geo http://drgeo.eu
On 1 June 2018 at 03:27, Sven Van Caekenberghe <sven@stfx.eu> wrote:
Did you see https://github.com/DraagrenKirneh/PngSuiteExplorer ? We score 100% on the http://www.schaik.com/pngsuite2011 test suite.
So would it be worthwhile integrating those directly into Pharo? cheers -ben
On 1 Jun 2018, at 04:58, Ben Coman <btc@openinworld.com> wrote:
On 1 June 2018 at 03:27, Sven Van Caekenberghe <sven@stfx.eu> wrote:
Did you see https://github.com/DraagrenKirneh/PngSuiteExplorer ? We score 100% on the http://www.schaik.com/pngsuite2011 test suite.
So would it be worthwhile integrating those directly into Pharo?
It requires the download of an external resource, always a bit tricky ... And although PngSuiteExplorer is really nice, just downloading the .zip and gt inspecting a file reference to it gives you a big part of the same functionality for free (as the .png are shown).
