why do we need a special class for that? Why not just a StringMorph with correct background? On 17/4/14 16:20, Ben Coman wrote:

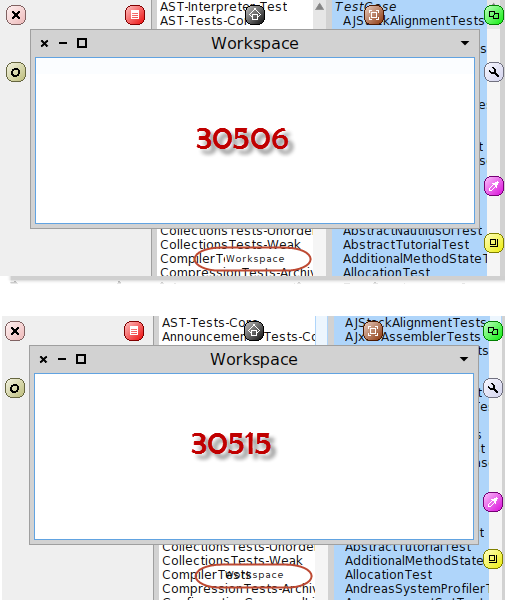

Build 30507 integrated slice 11492 "Kill UpdatingStringMorph, UpdatingMenu, and NameInHaloMorph" that removed class UpdatingStringMorph its subclass NameInHaloMorph. As a consequence the halo "morph label" became hard to read. Compare the red circled areas in the snapshots from build.
Technically its pretty easy fix. Restoring just the #drawOn: part of NameStringInHalo (now subclassed from StringMorph) solves the problem as follows... Adding... StringMorph subclass: #NameStringInHalo instanceVariableNames: '' classVariableNames: '' category: 'Morphic-Base-Widgets'
NameStringInHalo>>drawOn: aCanvas aCanvas fillRectangle: self bounds color: Color white. super drawOn: aCanvas.
and modify the following line in HaloMorph>>addNameBeneath:string: ... nameMorph := StringMorph contents: aString font: StandardFonts haloFont. to.. nameMorph := NameStringInHalo contents: aString font: StandardFonts haloFont.
However I'm seeking a broader picture to understand if that is the right way to proceed... 1. Was NameStringInHalo particularly undesired or was it more a consequence of UpdatingStringMorph being removed ?
2. Should the same class name "NameStringInHalo" be used having a different superclass than before. Actually as I write that I am thinking this creates an unnecessary clash with Squeak and derivatives that still have NameStringInHalo, and so...
3. Any suggestions for another more generic class name? SolidStringMorph, OpaqueStringMorph, etc
4. Any suggestions for another way for a StringMorph to have a solid background?
cheers -ben
pharo4Stef@free.fr wrote
Why not just a StringMorph with correct background?
That doesn't look possible with the current implementation. It just draws the string with no background: StringMorph>>#drawOn: aCanvas ... "super drawOn: aCanvas. <- This line doesn't exist" aCanvas drawString: contents in: bnd font: self fontToUse color: color.
From the "... color: color" above, it looks like StringMorph is hijacking the instVar it inherited from Morph, which usually means background color, to use for the text color.
If you hack drawOn: to ... self color: Color white. super drawOn: aCanvas. aCanvas drawString: contents in: bnd font: self fontToUse color: Color black. you get the halo label you're looking for but of course break everything else. So I think that if we want StringMorphs to have backgrounds, we have to add a textColor instVar, initialize color to Color transparent, and rewrite all color assignments in StringMorph to set textColor. In short: not for 3.0. ----- Cheers, Sean -- View this message in context: http://forum.world.st/13204-Hard-to-see-Morph-halo-label-tp4755115p4755242.h... Sent from the Pharo Smalltalk Developers mailing list archive at Nabble.com.
Ben Coman wrote
However the fix I described is low impact. Is that reasonable to do as a temporary measure for 3.0 release, and a case opened to clean up in 4.0?
That sounds reasonable to me. It seems simple and isolated enough not to cause any surprises... ----- Cheers, Sean -- View this message in context: http://forum.world.st/13204-Hard-to-see-Morph-halo-label-tp4755115p4755248.h... Sent from the Pharo Smalltalk Developers mailing list archive at Nabble.com.
OK I understand. Stef On 18/4/14 01:12, Sean P. DeNigris wrote:
pharo4Stef@free.fr wrote
Why not just a StringMorph with correct background? That doesn't look possible with the current implementation. It just draws the string with no background: StringMorph>>#drawOn: aCanvas ... "super drawOn: aCanvas. <- This line doesn't exist" aCanvas drawString: contents in: bnd font: self fontToUse color: color.
From the "... color: color" above, it looks like StringMorph is hijacking the instVar it inherited from Morph, which usually means background color, to use for the text color.
If you hack drawOn: to ... self color: Color white. super drawOn: aCanvas. aCanvas drawString: contents in: bnd font: self fontToUse color: Color black. you get the halo label you're looking for but of course break everything else.
So I think that if we want StringMorphs to have backgrounds, we have to add a textColor instVar, initialize color to Color transparent, and rewrite all color assignments in StringMorph to set textColor.
In short: not for 3.0.
----- Cheers, Sean -- View this message in context: http://forum.world.st/13204-Hard-to-see-Morph-halo-label-tp4755115p4755242.h... Sent from the Pharo Smalltalk Developers mailing list archive at Nabble.com.
