[Pharo-project] morphic help needed
Hi, Me and Mariano are trying to fix the DiffMorph in 2.0 (if you noticed, it is broken), and we noticed that the difference between 1.4 and 2.0 is that now the PluggableTextMorph inside is wrapping the text (non respecting the endline, but arranging them to be shown in the morph), instead showing an horizontal scroll bar to move around. We are lost in the obscure mist of morphic world... and we don't know how to restore that behavior. Can someone help? of course, this is important... not just because, also because I need to make integrations and I cannot because I don't know what changed :) I'm attaching two images of how it should be and how it is now. Thanks, Esteban
Le 05/09/2012 13:20, Esteban Lorenzano a écrit :
Hi,
Me and Mariano are trying to fix the DiffMorph in 2.0 (if you noticed, it is broken), and we noticed that the difference between 1.4 and 2.0 is that now the PluggableTextMorph inside is wrapping the text (non respecting the endline, but arranging them to be shown in the morph), instead showing an horizontal scroll bar to move around. We are lost in the obscure mist of morphic world... and we don't know how to restore that behavior.
Can someone help?
of course, this is important... not just because, also because I need to make integrations and I cannot because I don't know what changed :)

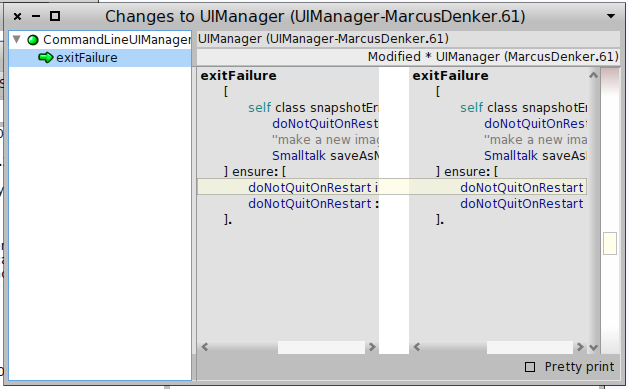

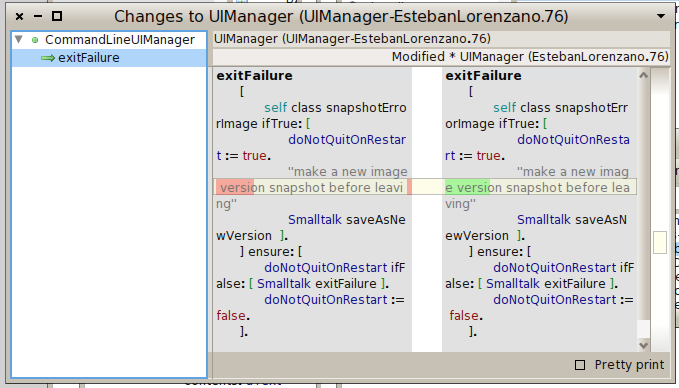

I'm attaching two images of how it should be and how it is now.
Thanks, Esteban
There is something called wrapFlag in TextMorphForEditView inside all PluggableTextMorph(s). Not sure if this is the setting forcing that behavior. Thierry -- Thierry Goubier CEA list Laboratoire des Fondations des Systèmes Temps Réel Embarqués 91191 Gif sur Yvette Cedex France Phone/Fax: +33 (0) 1 69 08 32 92 / 83 95
On Wed, Sep 5, 2012 at 1:31 PM, Goubier Thierry <thierry.goubier@cea.fr>wrote:
Le 05/09/2012 13:20, Esteban Lorenzano a écrit :
Hi,
Me and Mariano are trying to fix the DiffMorph in 2.0 (if you noticed, it is broken), and we noticed that the difference between 1.4 and 2.0 is that now the PluggableTextMorph inside is wrapping the text (non respecting the endline, but arranging them to be shown in the morph), instead showing an horizontal scroll bar to move around. We are lost in the obscure mist of morphic world... and we don't know how to restore that behavior.
Can someone help?
of course, this is important... not just because, also because I need to make integrations and I cannot because I don't know what changed :)
I told you Esteban :) Yes, we tried both, #wrapFlag: flase and #autoFit: false. And with both cases we still have the problem. We were doing, for example:
newSrcMorph "Answer a new src text morph." | pluggableTextMorph | pluggableTextMorph := (self newTextEditorFor: self getText: nil setText: nil getEnabled: nil) hideVScrollBarIndefinitely: true; borderWidth: 0; enabled: false; wrapFlag: false; selectionColor: self textSelectionColor; setText: ''; hShowScrollBar; alwaysShowHScrollBar: true. pluggableTextMorph textMorph autoFit: false. pluggableTextMorph textMorph wrapFlag: false. ^ pluggableTextMorph same problem :(
I'm attaching two images of how it should be and how it is now.
Thanks, Esteban
There is something called wrapFlag in TextMorphForEditView inside all PluggableTextMorph(s).
Not sure if this is the setting forcing that behavior.
Thierry -- Thierry Goubier CEA list Laboratoire des Fondations des Systèmes Temps Réel Embarqués 91191 Gif sur Yvette Cedex France Phone/Fax: +33 (0) 1 69 08 32 92 / 83 95
-- Mariano http://marianopeck.wordpress.com
Le 05/09/2012 13:31, Mariano Martinez Peck a écrit :
On Wed, Sep 5, 2012 at 1:31 PM, Goubier Thierry <thierry.goubier@cea.fr <mailto:thierry.goubier@cea.fr>> wrote:
Le 05/09/2012 13:20, Esteban Lorenzano a écrit :
Hi,
Me and Mariano are trying to fix the DiffMorph in 2.0 (if you noticed, it is broken), and we noticed that the difference between 1.4 and 2.0 is that now the PluggableTextMorph inside is wrapping the text (non respecting the endline, but arranging them to be shown in the morph), instead showing an horizontal scroll bar to move around. We are lost in the obscure mist of morphic world... and we don't know how to restore that behavior.
Can someone help?
of course, this is important... not just because, also because I need to make integrations and I cannot because I don't know what changed :)
I told you Esteban :) Yes, we tried both, #wrapFlag: flase and #autoFit: false. And with both cases we still have the problem.
Ok, but look at DiffMorph>>setText and it ends up calling setTextBasic:, which, under certain conditions, does a self textMorph contents: aText wrappedTo: self innerExtent x Which will put back the wrapFlag to true... (many of the textMorph contents: method may set back the wrapFlag to true. There is something about having a nil container in the TextMorph code to free the wrapping). I would really like to have the Jejak tracer working on 2.0 to be able to see better what's going on. Thierry
We were doing, for example:
newSrcMorph "Answer a new src text morph." | pluggableTextMorph | pluggableTextMorph := (self newTextEditorFor: self getText: nil setText: nil getEnabled: nil) hideVScrollBarIndefinitely: true; borderWidth: 0; enabled: false; wrapFlag: false; selectionColor: self textSelectionColor; setText: ''; hShowScrollBar; alwaysShowHScrollBar: true. pluggableTextMorph textMorph autoFit: false. pluggableTextMorph textMorph wrapFlag: false. ^ pluggableTextMorph
same problem :(
I'm attaching two images of how it should be and how it is now.
Thanks, Esteban
There is something called wrapFlag in TextMorphForEditView inside all PluggableTextMorph(s).
Not sure if this is the setting forcing that behavior.
Thierry -- Thierry Goubier CEA list Laboratoire des Fondations des Systèmes Temps Réel Embarqués 91191 Gif sur Yvette Cedex France Phone/Fax: +33 (0) 1 69 08 32 92 / 83 95
-- Mariano http://marianopeck.wordpress.com
-- Thierry Goubier CEA list Laboratoire des Fondations des Systèmes Temps Réel Embarqués 91191 Gif sur Yvette Cedex France Phone/Fax: +33 (0) 1 69 08 32 92 / 83 95
On Wed, Sep 5, 2012 at 1:43 PM, Goubier Thierry <thierry.goubier@cea.fr>wrote:
Le 05/09/2012 13:31, Mariano Martinez Peck a écrit :
On Wed, Sep 5, 2012 at 1:31 PM, Goubier Thierry <thierry.goubier@cea.fr <mailto:thierry.goubier@cea.fr**>> wrote:
Le 05/09/2012 13:20, Esteban Lorenzano a écrit :
Hi,
Me and Mariano are trying to fix the DiffMorph in 2.0 (if you noticed, it is broken), and we noticed that the difference between 1.4 and 2.0 is that now the PluggableTextMorph inside is wrapping the text (non respecting the endline, but arranging them to be shown in the morph), instead showing an horizontal scroll bar to move around. We are lost in the obscure mist of morphic world... and we don't know how to restore that behavior.
Can someone help?
of course, this is important... not just because, also because I need to make integrations and I cannot because I don't know what changed :)
I told you Esteban :) Yes, we tried both, #wrapFlag: flase and #autoFit: false. And with both cases we still have the problem.
Ok, but look at DiffMorph>>setText and it ends up calling setTextBasic:, which, under certain conditions, does a
self textMorph contents: aText wrappedTo: self innerExtent x
Good catch. So....shouldn't there be an if of wrapFlag: and if it is true we use #contents: aText #wrappedTo: otherwise we use #newContents: ?
Which will put back the wrapFlag to true...
(many of the textMorph contents: method may set back the wrapFlag to true. There is something about having a nil container in the TextMorph code to free the wrapping).
I would really like to have the Jejak tracer working on 2.0 to be able to see better what's going on.
Thierry
We were doing, for example:
newSrcMorph "Answer a new src text morph." | pluggableTextMorph | pluggableTextMorph := (self newTextEditorFor: self getText: nil setText: nil getEnabled: nil) hideVScrollBarIndefinitely: true; borderWidth: 0; enabled: false; wrapFlag: false; selectionColor: self textSelectionColor; setText: ''; hShowScrollBar; alwaysShowHScrollBar: true. pluggableTextMorph textMorph autoFit: false. pluggableTextMorph textMorph wrapFlag: false. ^ pluggableTextMorph
same problem :(
I'm attaching two images of how it should be and how it is now.
Thanks, Esteban
There is something called wrapFlag in TextMorphForEditView inside all PluggableTextMorph(s).
Not sure if this is the setting forcing that behavior.
Thierry -- Thierry Goubier CEA list Laboratoire des Fondations des Systèmes Temps Réel Embarqués 91191 Gif sur Yvette Cedex France Phone/Fax: +33 (0) 1 69 08 32 92 / 83 95
-- Mariano http://marianopeck.wordpress.**com <http://marianopeck.wordpress.com>
-- Thierry Goubier CEA list Laboratoire des Fondations des Systèmes Temps Réel Embarqués 91191 Gif sur Yvette Cedex France Phone/Fax: +33 (0) 1 69 08 32 92 / 83 95
-- Mariano http://marianopeck.wordpress.com
Ok, thanks guys. We finally solve it :) http://code.google.com/p/pharo/issues/detail?id=6634 On Wed, Sep 5, 2012 at 1:48 PM, Mariano Martinez Peck <marianopeck@gmail.com
wrote:
On Wed, Sep 5, 2012 at 1:43 PM, Goubier Thierry <thierry.goubier@cea.fr>wrote:
Le 05/09/2012 13:31, Mariano Martinez Peck a écrit :
On Wed, Sep 5, 2012 at 1:31 PM, Goubier Thierry <thierry.goubier@cea.fr <mailto:thierry.goubier@cea.fr**>> wrote:
Le 05/09/2012 13:20, Esteban Lorenzano a écrit :
Hi,
Me and Mariano are trying to fix the DiffMorph in 2.0 (if you noticed, it is broken), and we noticed that the difference between 1.4 and 2.0 is that now the PluggableTextMorph inside is wrapping the text (non respecting the endline, but arranging them to be shown in the morph), instead showing an horizontal scroll bar to move around. We are lost in the obscure mist of morphic world... and we don't know how to restore that behavior.
Can someone help?
of course, this is important... not just because, also because I need to make integrations and I cannot because I don't know what changed :)
I told you Esteban :) Yes, we tried both, #wrapFlag: flase and #autoFit: false. And with both cases we still have the problem.
Ok, but look at DiffMorph>>setText and it ends up calling setTextBasic:, which, under certain conditions, does a
self textMorph contents: aText wrappedTo: self innerExtent x
Good catch. So....shouldn't there be an if of wrapFlag: and if it is true we use #contents: aText #wrappedTo: otherwise we use #newContents: ?
Which will put back the wrapFlag to true...
(many of the textMorph contents: method may set back the wrapFlag to true. There is something about having a nil container in the TextMorph code to free the wrapping).
I would really like to have the Jejak tracer working on 2.0 to be able to see better what's going on.
Thierry
We were doing, for example:
newSrcMorph "Answer a new src text morph." | pluggableTextMorph | pluggableTextMorph := (self newTextEditorFor: self getText: nil setText: nil getEnabled: nil) hideVScrollBarIndefinitely: true; borderWidth: 0; enabled: false; wrapFlag: false; selectionColor: self textSelectionColor; setText: ''; hShowScrollBar; alwaysShowHScrollBar: true. pluggableTextMorph textMorph autoFit: false. pluggableTextMorph textMorph wrapFlag: false. ^ pluggableTextMorph
same problem :(
I'm attaching two images of how it should be and how it is now.
Thanks, Esteban
There is something called wrapFlag in TextMorphForEditView inside all PluggableTextMorph(s).
Not sure if this is the setting forcing that behavior.
Thierry -- Thierry Goubier CEA list Laboratoire des Fondations des Systèmes Temps Réel Embarqués 91191 Gif sur Yvette Cedex France Phone/Fax: +33 (0) 1 69 08 32 92 / 83 95
-- Mariano http://marianopeck.wordpress.**com <http://marianopeck.wordpress.com>
-- Thierry Goubier CEA list Laboratoire des Fondations des Systèmes Temps Réel Embarqués 91191 Gif sur Yvette Cedex France Phone/Fax: +33 (0) 1 69 08 32 92 / 83 95
-- Mariano http://marianopeck.wordpress.com
-- Mariano http://marianopeck.wordpress.com
