On Jan 27, 2013, at 9:42 AM, Esteban Lorenzano wrote:

so f***ing cool!

+1 I love to see more and more of these connections to the outside world.

thanks Sven :)

On Jan 27, 2013, at 1:32 PM, Sven Van Caekenberghe <sven@stfx.eu> wrote:

...

Hi,

I am happy to report that Zinc-SSO now supports the Dropbox API. Which means you can write (web) applications that access (read/write) files in a user's Dropbox account.

Jan extended Zinc-SSO-OAuth1-Core to support both version 1 and version 1a of OAuth1 which I then used for a demo.

Again, the actual setup is non-trivial, and a public demo is not easy either, so there is only this screenshot:

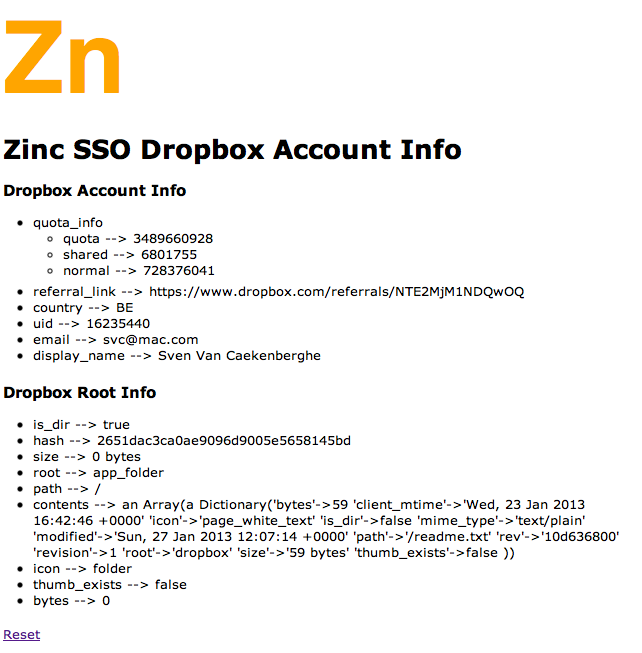

<Screen Shot 2013-01-27 at 13.15.36.png>

This is what you see after allowing the Zinc-SSO app access to a special 'sandbox' folder called Apps/Zinc-SSO (full 'root' Dropbox access is possible as well). Here you can see there is one file, readme.txt in the folder.

If anyone is interested, I can write another email explaining how you can run this demo for yourself on your own account.

Sven

-- Sven Van Caekenberghe http://stfx.eu Smalltalk is the Red Pill

Sean P. DeNigris wrote:

Stéphane Ducasse wrote

...

On Jan 27, 2013, at 9:42 AM, Esteban Lorenzano wrote:

...

so f***ing cool!

+1 I love to see more and more of these connections to the outside world.

+1 & +1 :)

-- View this message in context: http://forum.world.st/Update-Zinc-SSO-now-supports-Dropbox-tp4665692p4665768... Sent from the Pharo Smalltalk mailing list archive at Nabble.com.

And I get 50GB free space with my Samsung phone. :) :)

On 27 Jan 2013, at 15:55, Denis Kudriashov <dionisiydk@gmail.com> wrote:

Cool! Do you already have FileSystem backend for this?

Denis, I had not yet thought of that. It *is* a cool idea though. An ideal student project I would say.

2013/1/27 Sven Van Caekenberghe <sven@stfx.eu> Hi,

I am happy to report that Zinc-SSO now supports the Dropbox API. Which means you can write (web) applications that access (read/write) files in a user's Dropbox account.

Jan extended Zinc-SSO-OAuth1-Core to support both version 1 and version 1a of OAuth1 which I then used for a demo.

Again, the actual setup is non-trivial, and a public demo is not easy either, so there is only this screenshot:

<Screen Shot 2013-01-27 at 13.15.36.png>

This is what you see after allowing the Zinc-SSO app access to a special 'sandbox' folder called Apps/Zinc-SSO (full 'root' Dropbox access is possible as well). Here you can see there is one file, readme.txt in the folder.

If anyone is interested, I can write another email explaining how you can run this demo for yourself on your own account.

Sven

-- Sven Van Caekenberghe http://stfx.eu Smalltalk is the Red Pill

Hi Sven, after loading: Gofer it url: 'http://mc.stfx.eu/ZincHTTPComponents'; package: 'ConfigurationOfZincHTTPComponents'; load. ConfigurationOfZincHTTPComponents project latestVersion load: 'SSO'. The ZnOAuth1ConsumerData does not have a method called >>newForDropbox (but

...

newForGoogle and >>newForTwitter). Also, ZnSSOServerDelegate does not have a method >>dropboxData: (but facebook, twittter and google)

Did I miss something? Greetings Sabine On Sun, Jan 27, 2013 at 8:47 PM, Sven Van Caekenberghe <sven@stfx.eu> wrote:

On 27 Jan 2013, at 13:32, Sven Van Caekenberghe <sven@stfx.eu> wrote:

...

If anyone is interested, I can write another email explaining how you can run this demo for yourself on your own account.

How to run the Dropbox code yourself:

1. Get yourself a free Dropbox account at http://www.dropbox.com

2. Install some client software on one or more of your computers (Mac, Windows, Linux) or devices (iOS [iPhone, iPad, iPod], Android, BlackBerry, Kindle Fire) and move some files around to get a feel for the service.

3. When you give other applications access to (part of) your Dropbox files, you can check that at https://www.dropbox.com/account#applications

4. Define your own app that will try to access Dropbox files. Go to https://www.dropbox.com/developers (Developer home) and start defining a new app by clicking the 'Create an app' button at https://www.dropbox.com/developers/apps - start with the access type 'App folder'.

5. The two important elements you need are the 'App key' and 'App secret', make sure to copy them correctly.

6. Get the very latest code in your image (we develop in Pharo 2.0, but 1.4 or even 1.3 should work - SSL has to be fully operational).

Gofer it url: 'http://mc.stfx.eu/ZincHTTPComponents'; package: 'ConfigurationOfZincHTTPComponents'; load.

ConfigurationOfZincHTTPComponents project latestVersion load: 'SSO'.

7. Start a Zn server with an appropriate delegate, configured for your app

(ZnServer startDefaultOn: 8100) logToTranscript; debugMode: true; delegate: (ZnSSOServerDelegate new dropboxData: (ZnOAuth1ConsumerData newForDropbox consumer: 'vqz-app-key-zoca';

consumerSecret: '13u-app-secret-8l006'; yourself); yourself).

(The above is a demo setup limited to Dropbox, the other demos are not configured and won't work).

8. Go to http:://localhost:8100/sso-dropbox and click the link to log in - you will be transferred to Dropbox to log in (if you aren't already) and asked to authorise your demo app, after which Dropbox will redirect you back to your app.

9. Once back in your app, sso-dropbox-callback (#ssoDropboxCallback:) will access your account info and list the app root folder, which will then be shown.

10. For the rest of the API, (currently not yet implemented), see https://www.dropbox.com/developers/reference/api - you don't have to worry about the whole authentication thanks to Zinc-SSO.

We would love for others to try this (as well as the other Zinc-SSO options, Google, Facebook, Twitter) out, in their own projects, and to provide actual feedback and generally help improve the code and documentation.

As always, May the Source be with you!

Sven

PS: The demo app is not (yet) a production app: only you and up to 5 explicitly listed users can use it. You have to apply for production status later on. Also, the whole ZnSSOServerDelegate code is a demo, for an actual project, it would be best to extract the necessary parts out of it, reusing the underlying Zinc-SSO-OAuth1-Core framework.

-- Sven Van Caekenberghe http://stfx.eu Smalltalk is the Red Pill

Sabine, On 30 Jan 2013, at 16:24, Sabine Knöfel <sabine.knoefel@gmail.com> wrote:

Hi Sven,

after loading:

Gofer it url: 'http://mc.stfx.eu/ZincHTTPComponents'; package: 'ConfigurationOfZincHTTPComponents'; load.

ConfigurationOfZincHTTPComponents project latestVersion load: 'SSO'.

The ZnOAuth1ConsumerData does not have a method called >>newForDropbox (but >>newForGoogle and >>newForTwitter). Also, ZnSSOServerDelegate does not have a method >>dropboxData: (but facebook, twittter and google)

Did I miss something?

Yes and no. The latest stable version of the configuration does not yet include the Dropbox code. The following will load what is called bleedingEdge, the very latest version of everything, regardless of its release status. ConfigurationOfZincHTTPComponents project bleedingEdge load: 'SSO'. Sorry about that. Sven

Greetings Sabine

On Sun, Jan 27, 2013 at 8:47 PM, Sven Van Caekenberghe <sven@stfx.eu> wrote:

On 27 Jan 2013, at 13:32, Sven Van Caekenberghe <sven@stfx.eu> wrote:

...

If anyone is interested, I can write another email explaining how you can run this demo for yourself on your own account.

How to run the Dropbox code yourself:

1. Get yourself a free Dropbox account at http://www.dropbox.com

2. Install some client software on one or more of your computers (Mac, Windows, Linux) or devices (iOS [iPhone, iPad, iPod], Android, BlackBerry, Kindle Fire) and move some files around to get a feel for the service.

3. When you give other applications access to (part of) your Dropbox files, you can check that at https://www.dropbox.com/account#applications

4. Define your own app that will try to access Dropbox files. Go to https://www.dropbox.com/developers (Developer home) and start defining a new app by clicking the 'Create an app' button at https://www.dropbox.com/developers/apps - start with the access type 'App folder'.

5. The two important elements you need are the 'App key' and 'App secret', make sure to copy them correctly.

6. Get the very latest code in your image (we develop in Pharo 2.0, but 1.4 or even 1.3 should work - SSL has to be fully operational).

Gofer it url: 'http://mc.stfx.eu/ZincHTTPComponents'; package: 'ConfigurationOfZincHTTPComponents'; load.

ConfigurationOfZincHTTPComponents project latestVersion load: 'SSO'.

7. Start a Zn server with an appropriate delegate, configured for your app

(ZnServer startDefaultOn: 8100) logToTranscript; debugMode: true; delegate: (ZnSSOServerDelegate new dropboxData: (ZnOAuth1ConsumerData newForDropbox consumer: 'vqz-app-key-zoca'; consumerSecret: '13u-app-secret-8l006'; yourself); yourself).

(The above is a demo setup limited to Dropbox, the other demos are not configured and won't work).

8. Go to http:://localhost:8100/sso-dropbox and click the link to log in - you will be transferred to Dropbox to log in (if you aren't already) and asked to authorise your demo app, after which Dropbox will redirect you back to your app.

9. Once back in your app, sso-dropbox-callback (#ssoDropboxCallback:) will access your account info and list the app root folder, which will then be shown.

10. For the rest of the API, (currently not yet implemented), see https://www.dropbox.com/developers/reference/api - you don't have to worry about the whole authentication thanks to Zinc-SSO.

We would love for others to try this (as well as the other Zinc-SSO options, Google, Facebook, Twitter) out, in their own projects, and to provide actual feedback and generally help improve the code and documentation.

As always, May the Source be with you!

Sven

PS: The demo app is not (yet) a production app: only you and up to 5 explicitly listed users can use it. You have to apply for production status later on. Also, the whole ZnSSOServerDelegate code is a demo, for an actual project, it would be best to extract the necessary parts out of it, reusing the underlying Zinc-SSO-OAuth1-Core framework.

-- Sven Van Caekenberghe http://stfx.eu Smalltalk is the Red Pill

On 30 Jan 2013, at 17:21, Sabine Knöfel <sabine.knoefel@gmail.com> wrote:

Hi Sven, hi Jan,

thank you. I am one step further now but there must be something else missing to load. I failed with my current image, so I tried the following:

I took a fresh image - the Pharo 1.4. one click app from the pharo homepage (http://gforge.inria.fr/frs/download.php/31258/Pharo-1.4-14557-OneClick.zip)

Then I loaded seaside 3.0 (from the welcome screen - MetacelloConfigurationBrowser open).

After that, I loaded

Gofer it url: 'http://mc.stfx.eu/ZincHTTPComponents'; package: 'ConfigurationOfZincHTTPComponents'; load.

And then the bleeding Edge version ConfigurationOfZincHTTPComponents project bleedingEdge load: 'SSO'.

Then this was possible: (ZnServer startDefaultOn: 8100) logToTranscript; debugMode: true; delegate: (ZnSSOServerDelegate new dropboxData: (ZnOAuth1ConsumerData newForDropbox consumer: 'my appdata'; consumerSecret: 'my appdata'; yourself); yourself).

No I tried in my browser localhost:8100/sso-dropbox

Then I got a walkback in my Image: No secure socket stream class set or available

Well, the error says it all: you need TLS/SSL support. As is noted in https://github.com/svenvc/docs/blob/master/zinc/zinc-sso-paper.md#installati... You can get Zodiac to work in 1.4 http://zdc.stfx.eu Don't forget that you also need the plugin next to your VM ! In Pharo 2.0 Zodiac is included by default the latest VM's there should have the plugin. But in 2.0 it will be slightly more difficult to load Seaside, but it does work. Sorry, but all this is still a bit in motion, hopefully you will keep trying.

==>> I do not have the class ZdcSecureSocketStream in my Image self secureSocketStreamClass is Nil in

streamClassForScheme: scheme (#(http ws) includes: scheme) ifTrue: [ ^ self socketStreamClass ]. (#(https wss) includes: scheme) ifTrue: [ ^ self secureSocketStreamClass ifNil: [ self error: 'No secure socket stream class set or available' ] ]. (ZnUnknownScheme scheme: scheme) signal

Can you tell me what is missing to load?

Greetings Sabine

30 January 2013 5:14:22.402 pm

ZnNetworkingUtils(Object)>>error: Receiver: a ZnNetworkingUtils Arguments and temporary variables: aString: 'No secure socket stream class set or available' Receiver's instance variables: socketStreamClass: SocketStream secureSocketStreamClass: nil

ZnNetworkingUtils>>streamClassForScheme: Receiver: a ZnNetworkingUtils Arguments and temporary variables: scheme: #https Receiver's instance variables: socketStreamClass: SocketStream secureSocketStreamClass: nil

ZnNetworkingUtils>>socketStreamToUrlDirectly: Receiver: a ZnNetworkingUtils Arguments and temporary variables: url: https://api.dropbox.com/1/oauth/request_token stream: nil address: #[199 47 218 158] Receiver's instance variables: socketStreamClass: SocketStream secureSocketStreamClass: nil

ZnNetworkingUtils>>socketStreamToUrl: Receiver: a ZnNetworkingUtils Arguments and temporary variables: url: https://api.dropbox.com/1/oauth/request_token Receiver's instance variables: socketStreamClass: SocketStream secureSocketStreamClass: nil

On Wed, Jan 30, 2013 at 4:37 PM, Sven Van Caekenberghe <sven@stfx.eu> wrote: Sabine,

On 30 Jan 2013, at 16:24, Sabine Knöfel <sabine.knoefel@gmail.com> wrote:

...

Hi Sven,

after loading:

Gofer it url: 'http://mc.stfx.eu/ZincHTTPComponents'; package: 'ConfigurationOfZincHTTPComponents'; load.

ConfigurationOfZincHTTPComponents project latestVersion load: 'SSO'.

The ZnOAuth1ConsumerData does not have a method called >>newForDropbox (but >>newForGoogle and >>newForTwitter). Also, ZnSSOServerDelegate does not have a method >>dropboxData: (but facebook, twittter and google)

Did I miss something?

Yes and no. The latest stable version of the configuration does not yet include the Dropbox code. The following will load what is called bleedingEdge, the very latest version of everything, regardless of its release status.

ConfigurationOfZincHTTPComponents project bleedingEdge load: 'SSO'.

Sorry about that.

Sven

...

Greetings Sabine

On Sun, Jan 27, 2013 at 8:47 PM, Sven Van Caekenberghe <sven@stfx.eu> wrote:

On 27 Jan 2013, at 13:32, Sven Van Caekenberghe <sven@stfx.eu> wrote:

...

If anyone is interested, I can write another email explaining how you can run this demo for yourself on your own account.

How to run the Dropbox code yourself:

1. Get yourself a free Dropbox account at http://www.dropbox.com

2. Install some client software on one or more of your computers (Mac, Windows, Linux) or devices (iOS [iPhone, iPad, iPod], Android, BlackBerry, Kindle Fire) and move some files around to get a feel for the service.

3. When you give other applications access to (part of) your Dropbox files, you can check that at https://www.dropbox.com/account#applications

4. Define your own app that will try to access Dropbox files. Go to https://www.dropbox.com/developers (Developer home) and start defining a new app by clicking the 'Create an app' button at https://www.dropbox.com/developers/apps - start with the access type 'App folder'.

5. The two important elements you need are the 'App key' and 'App secret', make sure to copy them correctly.

6. Get the very latest code in your image (we develop in Pharo 2.0, but 1.4 or even 1.3 should work - SSL has to be fully operational).

Gofer it url: 'http://mc.stfx.eu/ZincHTTPComponents'; package: 'ConfigurationOfZincHTTPComponents'; load.

ConfigurationOfZincHTTPComponents project latestVersion load: 'SSO'.

7. Start a Zn server with an appropriate delegate, configured for your app

(ZnServer startDefaultOn: 8100) logToTranscript; debugMode: true; delegate: (ZnSSOServerDelegate new dropboxData: (ZnOAuth1ConsumerData newForDropbox consumer: 'vqz-app-key-zoca'; consumerSecret: '13u-app-secret-8l006'; yourself); yourself).

(The above is a demo setup limited to Dropbox, the other demos are not configured and won't work).

8. Go to http:://localhost:8100/sso-dropbox and click the link to log in - you will be transferred to Dropbox to log in (if you aren't already) and asked to authorise your demo app, after which Dropbox will redirect you back to your app.

9. Once back in your app, sso-dropbox-callback (#ssoDropboxCallback:) will access your account info and list the app root folder, which will then be shown.

10. For the rest of the API, (currently not yet implemented), see https://www.dropbox.com/developers/reference/api - you don't have to worry about the whole authentication thanks to Zinc-SSO.

We would love for others to try this (as well as the other Zinc-SSO options, Google, Facebook, Twitter) out, in their own projects, and to provide actual feedback and generally help improve the code and documentation.

As always, May the Source be with you!

Sven

PS: The demo app is not (yet) a production app: only you and up to 5 explicitly listed users can use it. You have to apply for production status later on. Also, the whole ZnSSOServerDelegate code is a demo, for an actual project, it would be best to extract the necessary parts out of it, reusing the underlying Zinc-SSO-OAuth1-Core framework.

-- Sven Van Caekenberghe http://stfx.eu Smalltalk is the Red Pill

Sven, could you provide a simple code fragment which shows how to write and how to read a file from the smalltalk image to the connected dropbox app folder? Greetings Sabine On Wed, Jan 30, 2013 at 6:00 PM, Sabine Knöfel <sabine.knoefel@gmail.com>wrote:

Hi Sven,

there was only missing loading Zodiac, the dll (windows) was already included in the 1 klick image.

Gofer it squeaksource: 'Zodiac'; package: 'Zodiac-Core'; package: 'Zodiac-Tests'; load.

It works. I play around now. Thank you very much! Sabine

On Wed, Jan 30, 2013 at 5:38 PM, Sven Van Caekenberghe <sven@stfx.eu>wrote:

...

On 30 Jan 2013, at 17:21, Sabine Knöfel <sabine.knoefel@gmail.com> wrote:

...

Hi Sven, hi Jan,

thank you. I am one step further now but there must be something else missing to load. I failed with my current image, so I tried the following:

I took a fresh image - the Pharo 1.4. one click app from the pharo homepage ( http://gforge.inria.fr/frs/download.php/31258/Pharo-1.4-14557-OneClick.zip )

Then I loaded seaside 3.0 (from the welcome screen - MetacelloConfigurationBrowser open).

After that, I loaded

Gofer it url: 'http://mc.stfx.eu/ZincHTTPComponents'; package: 'ConfigurationOfZincHTTPComponents'; load.

And then the bleeding Edge version ConfigurationOfZincHTTPComponents project bleedingEdge load: 'SSO'.

Then this was possible: (ZnServer startDefaultOn: 8100) logToTranscript; debugMode: true; delegate: (ZnSSOServerDelegate new dropboxData: (ZnOAuth1ConsumerData newForDropbox

consumer: 'my appdata';

...

consumerSecret: 'my appdata';

...

yourself);

...

yourself).

No I tried in my browser localhost:8100/sso-dropbox

Then I got a walkback in my Image: No secure socket stream class set or

available

Well, the error says it all: you need TLS/SSL support. As is noted in

https://github.com/svenvc/docs/blob/master/zinc/zinc-sso-paper.md#installati...

You can get Zodiac to work in 1.4

http://zdc.stfx.eu

Don't forget that you also need the plugin next to your VM !

In Pharo 2.0 Zodiac is included by default the latest VM's there should have the plugin. But in 2.0 it will be slightly more difficult to load Seaside, but it does work.

Sorry, but all this is still a bit in motion, hopefully you will keep trying.

...

==>> I do not have the class ZdcSecureSocketStream in my Image self secureSocketStreamClass is Nil in

streamClassForScheme: scheme (#(http ws) includes: scheme) ifTrue: [ ^ self socketStreamClass ]. (#(https wss) includes: scheme) ifTrue: [ ^ self secureSocketStreamClass ifNil: [ self error: 'No secure socket stream class set or available' ] ]. (ZnUnknownScheme scheme: scheme) signal

Can you tell me what is missing to load?

Greetings Sabine

30 January 2013 5:14:22.402 pm

ZnNetworkingUtils(Object)>>error: Receiver: a ZnNetworkingUtils Arguments and temporary variables: aString: 'No secure socket stream class set or available' Receiver's instance variables: socketStreamClass: SocketStream secureSocketStreamClass: nil

ZnNetworkingUtils>>streamClassForScheme: Receiver: a ZnNetworkingUtils Arguments and temporary variables: scheme: #https Receiver's instance variables: socketStreamClass: SocketStream secureSocketStreamClass: nil

ZnNetworkingUtils>>socketStreamToUrlDirectly: Receiver: a ZnNetworkingUtils Arguments and temporary variables: url: https://api.dropbox.com/1/oauth/request_token stream: nil address: #[199 47 218 158] Receiver's instance variables: socketStreamClass: SocketStream secureSocketStreamClass: nil

ZnNetworkingUtils>>socketStreamToUrl: Receiver: a ZnNetworkingUtils Arguments and temporary variables: url: https://api.dropbox.com/1/oauth/request_token Receiver's instance variables: socketStreamClass: SocketStream secureSocketStreamClass: nil

On Wed, Jan 30, 2013 at 4:37 PM, Sven Van Caekenberghe <sven@stfx.eu> wrote: Sabine,

On 30 Jan 2013, at 16:24, Sabine Knöfel <sabine.knoefel@gmail.com> wrote:

...

Hi Sven,

after loading:

Gofer it url: 'http://mc.stfx.eu/ZincHTTPComponents'; package: 'ConfigurationOfZincHTTPComponents'; load.

ConfigurationOfZincHTTPComponents project latestVersion load: 'SSO'.

The ZnOAuth1ConsumerData does not have a method called newForDropbox (but >>newForGoogle and >>newForTwitter). Also, ZnSSOServerDelegate does not have a method >>dropboxData: (but facebook, twittter and google)

Did I miss something?

Yes and no. The latest stable version of the configuration does not yet include the Dropbox code. The following will load what is called bleedingEdge, the very latest version of everything, regardless of its release status.

ConfigurationOfZincHTTPComponents project bleedingEdge load: 'SSO'.

Sorry about that.

Sven

...

Greetings Sabine

On Sun, Jan 27, 2013 at 8:47 PM, Sven Van Caekenberghe <sven@stfx.eu> wrote:

On 27 Jan 2013, at 13:32, Sven Van Caekenberghe <sven@stfx.eu> wrote:

...

If anyone is interested, I can write another email explaining how you can run this demo for yourself on your own account.

How to run the Dropbox code yourself:

1. Get yourself a free Dropbox account at http://www.dropbox.com

2. Install some client software on one or more of your computers (Mac, Windows, Linux) or devices (iOS [iPhone, iPad, iPod], Android, BlackBerry, Kindle Fire) and move some files around to get a feel for the service.

3. When you give other applications access to (part of) your Dropbox files, you can check that at https://www.dropbox.com/account#applications

4. Define your own app that will try to access Dropbox files. Go to https://www.dropbox.com/developers (Developer home) and start defining a new app by clicking the 'Create an app' button at https://www.dropbox.com/developers/apps - start with the access type 'App folder'.

5. The two important elements you need are the 'App key' and 'App secret', make sure to copy them correctly.

6. Get the very latest code in your image (we develop in Pharo 2.0, but 1.4 or even 1.3 should work - SSL has to be fully operational).

Gofer it url: 'http://mc.stfx.eu/ZincHTTPComponents'; package: 'ConfigurationOfZincHTTPComponents'; load.

ConfigurationOfZincHTTPComponents project latestVersion load: 'SSO'.

7. Start a Zn server with an appropriate delegate, configured for your app

(ZnServer startDefaultOn: 8100) logToTranscript; debugMode: true; delegate: (ZnSSOServerDelegate new dropboxData: (ZnOAuth1ConsumerData newForDropbox

consumer: 'vqz-app-key-zoca';

...

consumerSecret: '13u-app-secret-8l006';

...

yourself);

...

yourself).

(The above is a demo setup limited to Dropbox, the other demos are

not configured and won't work).

...

8. Go to http:://localhost:8100/sso-dropbox and click the link to log

in - you will be transferred to Dropbox to log in (if you aren't already) and asked to authorise your demo app, after which Dropbox will redirect you back to your app.

...

9. Once back in your app, sso-dropbox-callback (#ssoDropboxCallback:)

will access your account info and list the app root folder, which will then be shown.

...

10. For the rest of the API, (currently not yet implemented), see

https://www.dropbox.com/developers/reference/api - you don't have to worry about the whole authentication thanks to Zinc-SSO.

...

We would love for others to try this (as well as the other Zinc-SSO

options, Google, Facebook, Twitter) out, in their own projects, and to provide actual feedback and generally help improve the code and documentation.

...

As always, May the Source be with you!

Sven

PS: The demo app is not (yet) a production app: only you and up to 5

explicitly listed users can use it. You have to apply for production status later on. Also, the whole ZnSSOServerDelegate code is a demo, for an actual project, it would be best to extract the necessary parts out of it, reusing the underlying Zinc-SSO-OAuth1-Core framework.

...

-- Sven Van Caekenberghe http://stfx.eu Smalltalk is the Red Pill

On 30 Jan 2013, at 19:13, Sven Van Caekenberghe <sven@stfx.eu> wrote:

On 30 Jan 2013, at 18:32, Sabine Knöfel <sabine.knoefel@gmail.com> wrote:

...

Sven,

could you provide a simple code fragment which shows how to write and how to read a file from the smalltalk image to the connected dropbox app folder?

The whole API is not (yet) implemented.

https://www.dropbox.com/developers/reference/api

Have a look at ZnOAuth1TwitterUserAccess.

If I find more time, I might try myself.

GET is pretty straightforward, for PUT or POST you will have to supply a ZnEntity of a specific mime-type with bytes or a string.

Note that for file access the host is different.

I added a bit more Dropbox API and a little demo accessing files. There is now #manipulateDemoFile: which will try to access a file called 'demo.txt' and read an id out of it. If found the file is written again, with the id increased and some other fields updated as well. If the file did not exist, it is created with id 1. All this happens automatically if you access /sso-dropbox and log in. You'll get the updated id in the web page and you'll see your Dropbox client doing a local update immediately! Here are the details (http://mc.stfx.eu/Zinc-HTTP-Components): --- Name: Zinc-SSO-OAuth1-Core-SvenVanCaekenberghe.13 Author: SvenVanCaekenberghe Time: 4 February 2013, 12:27:12.196 pm UUID: 3d78a965-462e-4a4e-94aa-1779369aecb8 Ancestors: Zinc-SSO-OAuth1-Core-SvenVanCaekenberghe.12 extended ZnOAuth1Service with #httpDelete:using: #httpPost:with:using: #httpPut:with:using: extended ZnOAuth1DropboxUserAccess with #getFile: and #putFile:data: some refactoring in ZnOAuth1DropboxUserAccess --- Name: Zinc-SSO-Demo-SvenVanCaekenberghe.5 Author: SvenVanCaekenberghe Time: 4 February 2013, 12:28:14.601 pm UUID: 4bb17785-f885-4db5-98f5-9c7d52d3add6 Ancestors: Zinc-SSO-Demo-SvenVanCaekenberghe.4 added ZnSSOServerDelegate>>#manipulateDemoFile: --- This should get you started. Note that it is not necessary to log in each time: the access token is valid until you get an unauthorized response. With the access token and the consumer data you can create service objects separate from the web app that did the setup. HTH, Sven

...

Greetings Sabine

On Wed, Jan 30, 2013 at 6:00 PM, Sabine Knöfel <sabine.knoefel@gmail.com> wrote: Hi Sven,

there was only missing loading Zodiac, the dll (windows) was already included in the 1 klick image.

Gofer it squeaksource: 'Zodiac'; package: 'Zodiac-Core'; package: 'Zodiac-Tests'; load.

It works. I play around now. Thank you very much! Sabine

On Wed, Jan 30, 2013 at 5:38 PM, Sven Van Caekenberghe <sven@stfx.eu> wrote:

On 30 Jan 2013, at 17:21, Sabine Knöfel <sabine.knoefel@gmail.com> wrote:

...

Hi Sven, hi Jan,

thank you. I am one step further now but there must be something else missing to load. I failed with my current image, so I tried the following:

I took a fresh image - the Pharo 1.4. one click app from the pharo homepage (http://gforge.inria.fr/frs/download.php/31258/Pharo-1.4-14557-OneClick.zip)

Then I loaded seaside 3.0 (from the welcome screen - MetacelloConfigurationBrowser open).

After that, I loaded

Gofer it url: 'http://mc.stfx.eu/ZincHTTPComponents'; package: 'ConfigurationOfZincHTTPComponents'; load.

And then the bleeding Edge version ConfigurationOfZincHTTPComponents project bleedingEdge load: 'SSO'.

Then this was possible: (ZnServer startDefaultOn: 8100) logToTranscript; debugMode: true; delegate: (ZnSSOServerDelegate new dropboxData: (ZnOAuth1ConsumerData newForDropbox consumer: 'my appdata'; consumerSecret: 'my appdata'; yourself); yourself).

No I tried in my browser localhost:8100/sso-dropbox

Then I got a walkback in my Image: No secure socket stream class set or available

Well, the error says it all: you need TLS/SSL support. As is noted in

https://github.com/svenvc/docs/blob/master/zinc/zinc-sso-paper.md#installati...

You can get Zodiac to work in 1.4

http://zdc.stfx.eu

Don't forget that you also need the plugin next to your VM !

In Pharo 2.0 Zodiac is included by default the latest VM's there should have the plugin. But in 2.0 it will be slightly more difficult to load Seaside, but it does work.

Sorry, but all this is still a bit in motion, hopefully you will keep trying.

...

==>> I do not have the class ZdcSecureSocketStream in my Image self secureSocketStreamClass is Nil in

streamClassForScheme: scheme (#(http ws) includes: scheme) ifTrue: [ ^ self socketStreamClass ]. (#(https wss) includes: scheme) ifTrue: [ ^ self secureSocketStreamClass ifNil: [ self error: 'No secure socket stream class set or available' ] ]. (ZnUnknownScheme scheme: scheme) signal

Can you tell me what is missing to load?

Greetings Sabine

30 January 2013 5:14:22.402 pm

ZnNetworkingUtils(Object)>>error: Receiver: a ZnNetworkingUtils Arguments and temporary variables: aString: 'No secure socket stream class set or available' Receiver's instance variables: socketStreamClass: SocketStream secureSocketStreamClass: nil

ZnNetworkingUtils>>streamClassForScheme: Receiver: a ZnNetworkingUtils Arguments and temporary variables: scheme: #https Receiver's instance variables: socketStreamClass: SocketStream secureSocketStreamClass: nil

ZnNetworkingUtils>>socketStreamToUrlDirectly: Receiver: a ZnNetworkingUtils Arguments and temporary variables: url: https://api.dropbox.com/1/oauth/request_token stream: nil address: #[199 47 218 158] Receiver's instance variables: socketStreamClass: SocketStream secureSocketStreamClass: nil

ZnNetworkingUtils>>socketStreamToUrl: Receiver: a ZnNetworkingUtils Arguments and temporary variables: url: https://api.dropbox.com/1/oauth/request_token Receiver's instance variables: socketStreamClass: SocketStream secureSocketStreamClass: nil

On Wed, Jan 30, 2013 at 4:37 PM, Sven Van Caekenberghe <sven@stfx.eu> wrote: Sabine,

On 30 Jan 2013, at 16:24, Sabine Knöfel <sabine.knoefel@gmail.com> wrote:

...

Hi Sven,

after loading:

Gofer it url: 'http://mc.stfx.eu/ZincHTTPComponents'; package: 'ConfigurationOfZincHTTPComponents'; load.

ConfigurationOfZincHTTPComponents project latestVersion load: 'SSO'.

The ZnOAuth1ConsumerData does not have a method called >>newForDropbox (but >>newForGoogle and >>newForTwitter). Also, ZnSSOServerDelegate does not have a method >>dropboxData: (but facebook, twittter and google)

Did I miss something?

Yes and no. The latest stable version of the configuration does not yet include the Dropbox code. The following will load what is called bleedingEdge, the very latest version of everything, regardless of its release status.

ConfigurationOfZincHTTPComponents project bleedingEdge load: 'SSO'.

Sorry about that.

Sven

...

Greetings Sabine

On Sun, Jan 27, 2013 at 8:47 PM, Sven Van Caekenberghe <sven@stfx.eu> wrote:

On 27 Jan 2013, at 13:32, Sven Van Caekenberghe <sven@stfx.eu> wrote:

...

If anyone is interested, I can write another email explaining how you can run this demo for yourself on your own account.

How to run the Dropbox code yourself:

1. Get yourself a free Dropbox account at http://www.dropbox.com

2. Install some client software on one or more of your computers (Mac, Windows, Linux) or devices (iOS [iPhone, iPad, iPod], Android, BlackBerry, Kindle Fire) and move some files around to get a feel for the service.

3. When you give other applications access to (part of) your Dropbox files, you can check that at https://www.dropbox.com/account#applications

4. Define your own app that will try to access Dropbox files. Go to https://www.dropbox.com/developers (Developer home) and start defining a new app by clicking the 'Create an app' button at https://www.dropbox.com/developers/apps - start with the access type 'App folder'.

5. The two important elements you need are the 'App key' and 'App secret', make sure to copy them correctly.

6. Get the very latest code in your image (we develop in Pharo 2.0, but 1.4 or even 1.3 should work - SSL has to be fully operational).

Gofer it url: 'http://mc.stfx.eu/ZincHTTPComponents'; package: 'ConfigurationOfZincHTTPComponents'; load.

ConfigurationOfZincHTTPComponents project latestVersion load: 'SSO'.

7. Start a Zn server with an appropriate delegate, configured for your app

(ZnServer startDefaultOn: 8100) logToTranscript; debugMode: true; delegate: (ZnSSOServerDelegate new dropboxData: (ZnOAuth1ConsumerData newForDropbox consumer: 'vqz-app-key-zoca'; consumerSecret: '13u-app-secret-8l006'; yourself); yourself).

(The above is a demo setup limited to Dropbox, the other demos are not configured and won't work).

8. Go to http:://localhost:8100/sso-dropbox and click the link to log in - you will be transferred to Dropbox to log in (if you aren't already) and asked to authorise your demo app, after which Dropbox will redirect you back to your app.

9. Once back in your app, sso-dropbox-callback (#ssoDropboxCallback:) will access your account info and list the app root folder, which will then be shown.

10. For the rest of the API, (currently not yet implemented), see https://www.dropbox.com/developers/reference/api - you don't have to worry about the whole authentication thanks to Zinc-SSO.

We would love for others to try this (as well as the other Zinc-SSO options, Google, Facebook, Twitter) out, in their own projects, and to provide actual feedback and generally help improve the code and documentation.

As always, May the Source be with you!

Sven

PS: The demo app is not (yet) a production app: only you and up to 5 explicitly listed users can use it. You have to apply for production status later on. Also, the whole ZnSSOServerDelegate code is a demo, for an actual project, it would be best to extract the necessary parts out of it, reusing the underlying Zinc-SSO-OAuth1-Core framework.

-- Sven Van Caekenberghe http://stfx.eu Smalltalk is the Red Pill

Sabine, On 05 Feb 2013, at 14:45, Sabine Knöfel <sabine.knoefel@gmail.com> wrote:

Hi Sven,

great! The file was created in my dropbox account:-)

And it will be read, updated and written from now on, every time you run the demo.

I will try to use it now in my application and will come back with questions if they occur.

Yesterday I used STON to serialize a ZnOAuth1DropboxUserAccess instance that was created from the demo web app demo. To make such an instance you use the codes that were also needed to set up the web demo and the 2 part access token that the web app requested and was granted by the user. To access this token, you currently have to inspect/explore the sessions in the ZnServer instance (there will normally only be one) and assign it to the following object (this is all in hack/debug mode): | data service | data := ZnOAuth1ConsumerData newForDropbox consumer: 'vqzexpgl5rvzXXX'; consumerSecret: '13uygcdbou8lXXX'; yourself. service := ZnOAuth1Service new providerAccount: data ; yourself. ZnOAuth1DropboxUserAccess new oauth1Service: service; yourself. (And send it #accessToken:). This will give you a representation like this: ZnOAuth1DropboxUserAccess { #oauth1Service : ZnOAuth1Service { #providerAccount : ZnOAuth1ConsumerData { #getRequestTokenUrl : 'https://api.dropbox.com/1/oauth/request_token', #authorizeTokenUrl : 'https://www.dropbox.com/1/oauth/authorize', #getAccessTokenUrl : 'https://api.dropbox.com/1/oauth/access_token', #consumer : 'vqzexpgl5rvzXXX', #consumerSecret : '13uygcdbou8lXXX', #accessTokenClass : nil } }, #accessToken : ZnOAuth1Token { #value : 'qdcm6mivqesdXXX', #secret : '39w7r9wqamdgXXX', #sessionid : nil } } I don't know what the lifetime is of this, but from other apps using Dropbox I am guessing it must be pretty long, even close to infinite. So one day later, with the demo web app long gone and image restarted, I can do this: ('ZnOAuth1DropboxUserAccess.ston' asFileReference readStreamDo: [ :in | STON fromString: in ]) getFile: #( 'demo.txt' ). And it just works. Now, we have to work out a way to make this flow easier and secure at the same time.

Thank you very much.

We wrote this so that others can use it, so we are happy with other developers trying out our stuff. Thanks for testing and for the feedback. Sven

Sabine

On Mon, Feb 4, 2013 at 12:52 PM, Sven Van Caekenberghe <sven@stfx.eu> wrote:

On 30 Jan 2013, at 19:13, Sven Van Caekenberghe <sven@stfx.eu> wrote:

...

On 30 Jan 2013, at 18:32, Sabine Knöfel <sabine.knoefel@gmail.com> wrote:

...

Sven,

could you provide a simple code fragment which shows how to write and how to read a file from the smalltalk image to the connected dropbox app folder?

The whole API is not (yet) implemented.

https://www.dropbox.com/developers/reference/api

Have a look at ZnOAuth1TwitterUserAccess.

If I find more time, I might try myself.

GET is pretty straightforward, for PUT or POST you will have to supply a ZnEntity of a specific mime-type with bytes or a string.

Note that for file access the host is different.

I added a bit more Dropbox API and a little demo accessing files.

There is now #manipulateDemoFile: which will try to access a file called 'demo.txt' and read an id out of it. If found the file is written again, with the id increased and some other fields updated as well. If the file did not exist, it is created with id 1. All this happens automatically if you access /sso-dropbox and log in. You'll get the updated id in the web page and you'll see your Dropbox client doing a local update immediately!

Here are the details (http://mc.stfx.eu/Zinc-HTTP-Components):

--- Name: Zinc-SSO-OAuth1-Core-SvenVanCaekenberghe.13 Author: SvenVanCaekenberghe Time: 4 February 2013, 12:27:12.196 pm UUID: 3d78a965-462e-4a4e-94aa-1779369aecb8 Ancestors: Zinc-SSO-OAuth1-Core-SvenVanCaekenberghe.12

extended ZnOAuth1Service with #httpDelete:using: #httpPost:with:using: #httpPut:with:using: extended ZnOAuth1DropboxUserAccess with #getFile: and #putFile:data: some refactoring in ZnOAuth1DropboxUserAccess --- Name: Zinc-SSO-Demo-SvenVanCaekenberghe.5 Author: SvenVanCaekenberghe Time: 4 February 2013, 12:28:14.601 pm UUID: 4bb17785-f885-4db5-98f5-9c7d52d3add6 Ancestors: Zinc-SSO-Demo-SvenVanCaekenberghe.4

added ZnSSOServerDelegate>>#manipulateDemoFile: ---

This should get you started.

Note that it is not necessary to log in each time: the access token is valid until you get an unauthorized response. With the access token and the consumer data you can create service objects separate from the web app that did the setup.

HTH,

Sven

...

...

Greetings Sabine

On Wed, Jan 30, 2013 at 6:00 PM, Sabine Knöfel <sabine.knoefel@gmail.com> wrote: Hi Sven,

there was only missing loading Zodiac, the dll (windows) was already included in the 1 klick image.

Gofer it squeaksource: 'Zodiac'; package: 'Zodiac-Core'; package: 'Zodiac-Tests'; load.

It works. I play around now. Thank you very much! Sabine

On Wed, Jan 30, 2013 at 5:38 PM, Sven Van Caekenberghe <sven@stfx.eu> wrote:

On 30 Jan 2013, at 17:21, Sabine Knöfel <sabine.knoefel@gmail.com> wrote:

...

Hi Sven, hi Jan,

thank you. I am one step further now but there must be something else missing to load. I failed with my current image, so I tried the following:

I took a fresh image - the Pharo 1.4. one click app from the pharo homepage (http://gforge.inria.fr/frs/download.php/31258/Pharo-1.4-14557-OneClick.zip)

Then I loaded seaside 3.0 (from the welcome screen - MetacelloConfigurationBrowser open).

After that, I loaded

Gofer it url: 'http://mc.stfx.eu/ZincHTTPComponents'; package: 'ConfigurationOfZincHTTPComponents'; load.

And then the bleeding Edge version ConfigurationOfZincHTTPComponents project bleedingEdge load: 'SSO'.

Then this was possible: (ZnServer startDefaultOn: 8100) logToTranscript; debugMode: true; delegate: (ZnSSOServerDelegate new dropboxData: (ZnOAuth1ConsumerData newForDropbox consumer: 'my appdata'; consumerSecret: 'my appdata'; yourself); yourself).

No I tried in my browser localhost:8100/sso-dropbox

Then I got a walkback in my Image: No secure socket stream class set or available

Well, the error says it all: you need TLS/SSL support. As is noted in

https://github.com/svenvc/docs/blob/master/zinc/zinc-sso-paper.md#installati...

You can get Zodiac to work in 1.4

http://zdc.stfx.eu

Don't forget that you also need the plugin next to your VM !

In Pharo 2.0 Zodiac is included by default the latest VM's there should have the plugin. But in 2.0 it will be slightly more difficult to load Seaside, but it does work.

Sorry, but all this is still a bit in motion, hopefully you will keep trying.

...

==>> I do not have the class ZdcSecureSocketStream in my Image self secureSocketStreamClass is Nil in

streamClassForScheme: scheme (#(http ws) includes: scheme) ifTrue: [ ^ self socketStreamClass ]. (#(https wss) includes: scheme) ifTrue: [ ^ self secureSocketStreamClass ifNil: [ self error: 'No secure socket stream class set or available' ] ]. (ZnUnknownScheme scheme: scheme) signal

Can you tell me what is missing to load?

Greetings Sabine

30 January 2013 5:14:22.402 pm

ZnNetworkingUtils(Object)>>error: Receiver: a ZnNetworkingUtils Arguments and temporary variables: aString: 'No secure socket stream class set or available' Receiver's instance variables: socketStreamClass: SocketStream secureSocketStreamClass: nil

ZnNetworkingUtils>>streamClassForScheme: Receiver: a ZnNetworkingUtils Arguments and temporary variables: scheme: #https Receiver's instance variables: socketStreamClass: SocketStream secureSocketStreamClass: nil

ZnNetworkingUtils>>socketStreamToUrlDirectly: Receiver: a ZnNetworkingUtils Arguments and temporary variables: url: https://api.dropbox.com/1/oauth/request_token stream: nil address: #[199 47 218 158] Receiver's instance variables: socketStreamClass: SocketStream secureSocketStreamClass: nil

ZnNetworkingUtils>>socketStreamToUrl: Receiver: a ZnNetworkingUtils Arguments and temporary variables: url: https://api.dropbox.com/1/oauth/request_token Receiver's instance variables: socketStreamClass: SocketStream secureSocketStreamClass: nil

On Wed, Jan 30, 2013 at 4:37 PM, Sven Van Caekenberghe <sven@stfx.eu> wrote: Sabine,

On 30 Jan 2013, at 16:24, Sabine Knöfel <sabine.knoefel@gmail.com> wrote:

...

Hi Sven,

after loading:

Gofer it url: 'http://mc.stfx.eu/ZincHTTPComponents'; package: 'ConfigurationOfZincHTTPComponents'; load.

ConfigurationOfZincHTTPComponents project latestVersion load: 'SSO'.

The ZnOAuth1ConsumerData does not have a method called >>newForDropbox (but >>newForGoogle and >>newForTwitter). Also, ZnSSOServerDelegate does not have a method >>dropboxData: (but facebook, twittter and google)

Did I miss something?

Yes and no. The latest stable version of the configuration does not yet include the Dropbox code. The following will load what is called bleedingEdge, the very latest version of everything, regardless of its release status.

ConfigurationOfZincHTTPComponents project bleedingEdge load: 'SSO'.

Sorry about that.

Sven

...

Greetings Sabine

On Sun, Jan 27, 2013 at 8:47 PM, Sven Van Caekenberghe <sven@stfx.eu> wrote:

On 27 Jan 2013, at 13:32, Sven Van Caekenberghe <sven@stfx.eu> wrote:

...

If anyone is interested, I can write another email explaining how you can run this demo for yourself on your own account.

How to run the Dropbox code yourself:

1. Get yourself a free Dropbox account at http://www.dropbox.com

2. Install some client software on one or more of your computers (Mac, Windows, Linux) or devices (iOS [iPhone, iPad, iPod], Android, BlackBerry, Kindle Fire) and move some files around to get a feel for the service.

3. When you give other applications access to (part of) your Dropbox files, you can check that at https://www.dropbox.com/account#applications

4. Define your own app that will try to access Dropbox files. Go to https://www.dropbox.com/developers (Developer home) and start defining a new app by clicking the 'Create an app' button at https://www.dropbox.com/developers/apps - start with the access type 'App folder'.

5. The two important elements you need are the 'App key' and 'App secret', make sure to copy them correctly.

6. Get the very latest code in your image (we develop in Pharo 2.0, but 1.4 or even 1.3 should work - SSL has to be fully operational).

Gofer it url: 'http://mc.stfx.eu/ZincHTTPComponents'; package: 'ConfigurationOfZincHTTPComponents'; load.

ConfigurationOfZincHTTPComponents project latestVersion load: 'SSO'.

7. Start a Zn server with an appropriate delegate, configured for your app

(ZnServer startDefaultOn: 8100) logToTranscript; debugMode: true; delegate: (ZnSSOServerDelegate new dropboxData: (ZnOAuth1ConsumerData newForDropbox consumer: 'vqz-app-key-zoca'; consumerSecret: '13u-app-secret-8l006'; yourself); yourself).

(The above is a demo setup limited to Dropbox, the other demos are not configured and won't work).

8. Go to http:://localhost:8100/sso-dropbox and click the link to log in - you will be transferred to Dropbox to log in (if you aren't already) and asked to authorise your demo app, after which Dropbox will redirect you back to your app.

9. Once back in your app, sso-dropbox-callback (#ssoDropboxCallback:) will access your account info and list the app root folder, which will then be shown.

10. For the rest of the API, (currently not yet implemented), see https://www.dropbox.com/developers/reference/api - you don't have to worry about the whole authentication thanks to Zinc-SSO.

We would love for others to try this (as well as the other Zinc-SSO options, Google, Facebook, Twitter) out, in their own projects, and to provide actual feedback and generally help improve the code and documentation.

As always, May the Source be with you!

Sven

PS: The demo app is not (yet) a production app: only you and up to 5 explicitly listed users can use it. You have to apply for production status later on. Also, the whole ZnSSOServerDelegate code is a demo, for an actual project, it would be best to extract the necessary parts out of it, reusing the underlying Zinc-SSO-OAuth1-Core framework.

-- Sven Van Caekenberghe http://stfx.eu Smalltalk is the Red Pill

On 07 Feb 2013, at 12:04, Sabine Knöfel <sabine.knoefel@gmail.com> wrote:

Hi Sven,

I created the ZnOAuth1DropboxUserAccess with the ZnOAuth1Service and ZnOAuth1ConsumerData instances in it. Then I assigned the accessToken from an inspector.

That worked. I was able to read the file from the dropbox with getFile:. Great!

I used that code (please note "STON fromString: in contents asString ")

save the ZnOAuth1DropboxUserAccess as file: (Path * 'plonk.txt') asFileReference fileStreamDo: [ :stream | STON put: self onStreamPretty: stream ].

Read and create the ZnOAuth1DropboxUserAccess instance and then get contents of the demo file ((Path * 'plonk.ston') asFileReference readStreamDo: [ :in | STON fromString: in contents asString ]) getFile: #( 'demo.txt' ).

This is fine. My next question is how can I create an instance of ZnOAuth1Token from WITHIN my application?

When I need this ZnOAuth1Token, I am in a subclass of WAComponent. I don't want the user to click at a link like localhost:8100/sso-dropbox.

Sure, look at the implementation of #ssoDropbox: You already know how to create the service object (#dropboxOAuth1Service), next you need a request token (#getRequestToken). Both of these steps don't require user interaction. The URL you are looking for is constructed as follows: oauthService loginUrlFor: requestToken callbackUrl: request server url / 'sso-dropbox-callback' The callback URL has to point to your Seaside app somewhere. The difference you are looking for is also visible (for other providers) in the difference between #ssoDemo: and #ssoGoogle: for example (that is, the direct link vs the embedded link). Note that the Zinc-SSO project has a complete Seaside demo as well (Jan wrote that one, it just doesn't include the Dropbox code (yet, hint, hint)), if you know Seaside it will certainly help to look at that code. You'll have to do this login (ask for Dropbox access) only once, store the tokens that come back and from then on, you should be able to keep using the user access object (if you store it somewhere). Let me know how it goes. Sven

Clicking at a button within my application should send the user directly to the dropbox page to grant access and create the ZnOAuth1Token.

Cold you perhaps create a small code example like this

renderContentOn: method

html anchor script: html jQuery this button; url: '???http://localhost:8100/sso-dropbox???'; with: 'send me to dropbox, create ZnOAuth1Token and return it in some way'.

Greetings Sabine

On Tue, Feb 5, 2013 at 5:22 PM, Sven Van Caekenberghe <sven@stfx.eu> wrote: Sabine,

On 05 Feb 2013, at 14:45, Sabine Knöfel <sabine.knoefel@gmail.com> wrote:

...

Hi Sven,

great! The file was created in my dropbox account:-)

And it will be read, updated and written from now on, every time you run the demo.

...

I will try to use it now in my application and will come back with questions if they occur.

Yesterday I used STON to serialize a ZnOAuth1DropboxUserAccess instance that was created from the demo web app demo.

To make such an instance you use the codes that were also needed to set up the web demo and the 2 part access token that the web app requested and was granted by the user. To access this token, you currently have to inspect/explore the sessions in the ZnServer instance (there will normally only be one) and assign it to the following object (this is all in hack/debug mode):

| data service |

data := ZnOAuth1ConsumerData newForDropbox consumer: 'vqzexpgl5rvzXXX'; consumerSecret: '13uygcdbou8lXXX'; yourself.

service := ZnOAuth1Service new providerAccount: data ; yourself.

ZnOAuth1DropboxUserAccess new oauth1Service: service; yourself.

(And send it #accessToken:).

This will give you a representation like this:

ZnOAuth1DropboxUserAccess { #oauth1Service : ZnOAuth1Service { #providerAccount : ZnOAuth1ConsumerData { #getRequestTokenUrl : 'https://api.dropbox.com/1/oauth/request_token', #authorizeTokenUrl : 'https://www.dropbox.com/1/oauth/authorize', #getAccessTokenUrl : 'https://api.dropbox.com/1/oauth/access_token', #consumer : 'vqzexpgl5rvzXXX', #consumerSecret : '13uygcdbou8lXXX', #accessTokenClass : nil } }, #accessToken : ZnOAuth1Token { #value : 'qdcm6mivqesdXXX', #secret : '39w7r9wqamdgXXX', #sessionid : nil } }

I don't know what the lifetime is of this, but from other apps using Dropbox I am guessing it must be pretty long, even close to infinite. So one day later, with the demo web app long gone and image restarted, I can do this:

('ZnOAuth1DropboxUserAccess.ston' asFileReference readStreamDo: [ :in | STON fromString: in ]) getFile: #( 'demo.txt' ).

And it just works.

Now, we have to work out a way to make this flow easier and secure at the same time.

...

Thank you very much.

We wrote this so that others can use it, so we are happy with other developers trying out our stuff.

Thanks for testing and for the feedback.

Sven

...

Sabine

On Mon, Feb 4, 2013 at 12:52 PM, Sven Van Caekenberghe <sven@stfx.eu> wrote:

On 30 Jan 2013, at 19:13, Sven Van Caekenberghe <sven@stfx.eu> wrote:

...

On 30 Jan 2013, at 18:32, Sabine Knöfel <sabine.knoefel@gmail.com> wrote:

...

Sven,

could you provide a simple code fragment which shows how to write and how to read a file from the smalltalk image to the connected dropbox app folder?

The whole API is not (yet) implemented.

https://www.dropbox.com/developers/reference/api

Have a look at ZnOAuth1TwitterUserAccess.

If I find more time, I might try myself.

GET is pretty straightforward, for PUT or POST you will have to supply a ZnEntity of a specific mime-type with bytes or a string.

Note that for file access the host is different.

I added a bit more Dropbox API and a little demo accessing files.

There is now #manipulateDemoFile: which will try to access a file called 'demo.txt' and read an id out of it. If found the file is written again, with the id increased and some other fields updated as well. If the file did not exist, it is created with id 1. All this happens automatically if you access /sso-dropbox and log in. You'll get the updated id in the web page and you'll see your Dropbox client doing a local update immediately!

Here are the details (http://mc.stfx.eu/Zinc-HTTP-Components):

--- Name: Zinc-SSO-OAuth1-Core-SvenVanCaekenberghe.13 Author: SvenVanCaekenberghe Time: 4 February 2013, 12:27:12.196 pm UUID: 3d78a965-462e-4a4e-94aa-1779369aecb8 Ancestors: Zinc-SSO-OAuth1-Core-SvenVanCaekenberghe.12

extended ZnOAuth1Service with #httpDelete:using: #httpPost:with:using: #httpPut:with:using: extended ZnOAuth1DropboxUserAccess with #getFile: and #putFile:data: some refactoring in ZnOAuth1DropboxUserAccess --- Name: Zinc-SSO-Demo-SvenVanCaekenberghe.5 Author: SvenVanCaekenberghe Time: 4 February 2013, 12:28:14.601 pm UUID: 4bb17785-f885-4db5-98f5-9c7d52d3add6 Ancestors: Zinc-SSO-Demo-SvenVanCaekenberghe.4

added ZnSSOServerDelegate>>#manipulateDemoFile: ---

This should get you started.

Note that it is not necessary to log in each time: the access token is valid until you get an unauthorized response. With the access token and the consumer data you can create service objects separate from the web app that did the setup.

HTH,

Sven

...

...

Greetings Sabine

On Wed, Jan 30, 2013 at 6:00 PM, Sabine Knöfel <sabine.knoefel@gmail.com> wrote: Hi Sven,

there was only missing loading Zodiac, the dll (windows) was already included in the 1 klick image.

Gofer it squeaksource: 'Zodiac'; package: 'Zodiac-Core'; package: 'Zodiac-Tests'; load.

It works. I play around now. Thank you very much! Sabine

On Wed, Jan 30, 2013 at 5:38 PM, Sven Van Caekenberghe <sven@stfx.eu> wrote:

On 30 Jan 2013, at 17:21, Sabine Knöfel <sabine.knoefel@gmail.com> wrote:

...

Hi Sven, hi Jan,

thank you. I am one step further now but there must be something else missing to load. I failed with my current image, so I tried the following:

I took a fresh image - the Pharo 1.4. one click app from the pharo homepage (http://gforge.inria.fr/frs/download.php/31258/Pharo-1.4-14557-OneClick.zip)

Then I loaded seaside 3.0 (from the welcome screen - MetacelloConfigurationBrowser open).

After that, I loaded

Gofer it url: 'http://mc.stfx.eu/ZincHTTPComponents'; package: 'ConfigurationOfZincHTTPComponents'; load.

And then the bleeding Edge version ConfigurationOfZincHTTPComponents project bleedingEdge load: 'SSO'.

Then this was possible: (ZnServer startDefaultOn: 8100) logToTranscript; debugMode: true; delegate: (ZnSSOServerDelegate new dropboxData: (ZnOAuth1ConsumerData newForDropbox consumer: 'my appdata'; consumerSecret: 'my appdata'; yourself); yourself).

No I tried in my browser localhost:8100/sso-dropbox

Then I got a walkback in my Image: No secure socket stream class set or available

Well, the error says it all: you need TLS/SSL support. As is noted in

https://github.com/svenvc/docs/blob/master/zinc/zinc-sso-paper.md#installati...

You can get Zodiac to work in 1.4

http://zdc.stfx.eu

Don't forget that you also need the plugin next to your VM !

In Pharo 2.0 Zodiac is included by default the latest VM's there should have the plugin. But in 2.0 it will be slightly more difficult to load Seaside, but it does work.

Sorry, but all this is still a bit in motion, hopefully you will keep trying.

...

==>> I do not have the class ZdcSecureSocketStream in my Image self secureSocketStreamClass is Nil in

streamClassForScheme: scheme (#(http ws) includes: scheme) ifTrue: [ ^ self socketStreamClass ]. (#(https wss) includes: scheme) ifTrue: [ ^ self secureSocketStreamClass ifNil: [ self error: 'No secure socket stream class set or available' ] ]. (ZnUnknownScheme scheme: scheme) signal

Can you tell me what is missing to load?

Greetings Sabine

30 January 2013 5:14:22.402 pm

ZnNetworkingUtils(Object)>>error: Receiver: a ZnNetworkingUtils Arguments and temporary variables: aString: 'No secure socket stream class set or available' Receiver's instance variables: socketStreamClass: SocketStream secureSocketStreamClass: nil

ZnNetworkingUtils>>streamClassForScheme: Receiver: a ZnNetworkingUtils Arguments and temporary variables: scheme: #https Receiver's instance variables: socketStreamClass: SocketStream secureSocketStreamClass: nil

ZnNetworkingUtils>>socketStreamToUrlDirectly: Receiver: a ZnNetworkingUtils Arguments and temporary variables: url: https://api.dropbox.com/1/oauth/request_token stream: nil address: #[199 47 218 158] Receiver's instance variables: socketStreamClass: SocketStream secureSocketStreamClass: nil

ZnNetworkingUtils>>socketStreamToUrl: Receiver: a ZnNetworkingUtils Arguments and temporary variables: url: https://api.dropbox.com/1/oauth/request_token Receiver's instance variables: socketStreamClass: SocketStream secureSocketStreamClass: nil

On Wed, Jan 30, 2013 at 4:37 PM, Sven Van Caekenberghe <sven@stfx.eu> wrote: Sabine,

On 30 Jan 2013, at 16:24, Sabine Knöfel <sabine.knoefel@gmail.com> wrote:

...

Hi Sven,

after loading:

Gofer it url: 'http://mc.stfx.eu/ZincHTTPComponents'; package: 'ConfigurationOfZincHTTPComponents'; load.

ConfigurationOfZincHTTPComponents project latestVersion load: 'SSO'.

The ZnOAuth1ConsumerData does not have a method called >>newForDropbox (but >>newForGoogle and >>newForTwitter). Also, ZnSSOServerDelegate does not have a method >>dropboxData: (but facebook, twittter and google)

Did I miss something?

Yes and no. The latest stable version of the configuration does not yet include the Dropbox code. The following will load what is called bleedingEdge, the very latest version of everything, regardless of its release status.

ConfigurationOfZincHTTPComponents project bleedingEdge load: 'SSO'.

Sorry about that.

Sven

...

Greetings Sabine

On Sun, Jan 27, 2013 at 8:47 PM, Sven Van Caekenberghe <sven@stfx.eu> wrote:

On 27 Jan 2013, at 13:32, Sven Van Caekenberghe <sven@stfx.eu> wrote:

...

If anyone is interested, I can write another email explaining how you can run this demo for yourself on your own account.

How to run the Dropbox code yourself:

1. Get yourself a free Dropbox account at http://www.dropbox.com

2. Install some client software on one or more of your computers (Mac, Windows, Linux) or devices (iOS [iPhone, iPad, iPod], Android, BlackBerry, Kindle Fire) and move some files around to get a feel for the service.

3. When you give other applications access to (part of) your Dropbox files, you can check that at https://www.dropbox.com/account#applications

4. Define your own app that will try to access Dropbox files. Go to https://www.dropbox.com/developers (Developer home) and start defining a new app by clicking the 'Create an app' button at https://www.dropbox.com/developers/apps - start with the access type 'App folder'.

5. The two important elements you need are the 'App key' and 'App secret', make sure to copy them correctly.

6. Get the very latest code in your image (we develop in Pharo 2.0, but 1.4 or even 1.3 should work - SSL has to be fully operational).

Gofer it url: 'http://mc.stfx.eu/ZincHTTPComponents'; package: 'ConfigurationOfZincHTTPComponents'; load.

ConfigurationOfZincHTTPComponents project latestVersion load: 'SSO'.

7. Start a Zn server with an appropriate delegate, configured for your app

(ZnServer startDefaultOn: 8100) logToTranscript; debugMode: true; delegate: (ZnSSOServerDelegate new dropboxData: (ZnOAuth1ConsumerData newForDropbox consumer: 'vqz-app-key-zoca'; consumerSecret: '13u-app-secret-8l006'; yourself); yourself).

(The above is a demo setup limited to Dropbox, the other demos are not configured and won't work).

8. Go to http:://localhost:8100/sso-dropbox and click the link to log in - you will be transferred to Dropbox to log in (if you aren't already) and asked to authorise your demo app, after which Dropbox will redirect you back to your app.

9. Once back in your app, sso-dropbox-callback (#ssoDropboxCallback:) will access your account info and list the app root folder, which will then be shown.

10. For the rest of the API, (currently not yet implemented), see https://www.dropbox.com/developers/reference/api - you don't have to worry about the whole authentication thanks to Zinc-SSO.

We would love for others to try this (as well as the other Zinc-SSO options, Google, Facebook, Twitter) out, in their own projects, and to provide actual feedback and generally help improve the code and documentation.

As always, May the Source be with you!

Sven

PS: The demo app is not (yet) a production app: only you and up to 5 explicitly listed users can use it. You have to apply for production status later on. Also, the whole ZnSSOServerDelegate code is a demo, for an actual project, it would be best to extract the necessary parts out of it, reusing the underlying Zinc-SSO-OAuth1-Core framework.

-- Sven Van Caekenberghe http://stfx.eu Smalltalk is the Red Pill

On 07 Feb 2013, at 16:37, Sabine Knöfel <sabine.knoefel@gmail.com> wrote:

Hi Sven,

sorry, I think there is something basic, that I miss.

In my >>renderContentOn: , I call >>renderDropboxHeadingOn:

renderDropboxHeadingOn: html | theOauthService theRequestToken theUrl theUserAssess theConsumerData | theConsumerData := ZnOAuth1ConsumerData newForDropbox consumer: 'ql5uuynlvybiqp3'; consumerSecret: 'hwjrqa8qnxwxxxx'; yourself. theOauthService := ZnOAuth1Service new providerAccount: theConsumerData; yourself. theRequestToken := theOauthService getRequestToken. theUserAssess := ZnOAuth1DropboxUserAccess new oauth1Service: theOauthService; accessToken: theRequestToken. "===>>> self dropboxSessionFor: request put: requestToken." theUrl := (theOauthService loginUrlFor: theRequestToken callbackUrl: 'http://localhost:8100/sso-dropbox-callback') asString. html anchor script: html jQuery this button; onClick: (html prototype evaluator callback: [ :script | ]); url: theUrl; with: 'Save data in dropbox'

Click on this button leads me to the dropbox-grant-access page -> ok, thats what I wanted.

In the demo code, >>ssoDropbox:, the requestToken is assigned to the ZnServerSession instance: self dropboxSessionFor: request put: requestToken.

Because I do not have the ZnServerSession instance within my subclass of WAApplication, I did not assign it. This leads to "Not a valid callback request" error, because in >>ssoDropboxData:, the accessToken can not be found. This is clear, because I did not assign it ;-)

The question is how to solve this in the right way.

Yes, the request token has to be put in some HTTP session so that it becomes available when the callback runs. I just looked at the Seaside code, but I can't find where the magic happens. Maybe you understand it better than me, or maybe Jan can comment.

Where can I find the code/package of the seaside demo app from Jan?

It is in the main Zn repository: http://mc.stfx.eu

I found this: http://forum.world.st/Update-Zinc-SSO-OAuth-2-0-Alpha-Code-amp-Live-Demos-td... but http://sso.doit.st did not work.

That is for Jan to solve...

Thank you for your help. Sabine

On Thu, Feb 7, 2013 at 1:04 PM, Sven Van Caekenberghe <sven@stfx.eu> wrote:

On 07 Feb 2013, at 12:04, Sabine Knöfel <sabine.knoefel@gmail.com> wrote:

...

Hi Sven,

I created the ZnOAuth1DropboxUserAccess with the ZnOAuth1Service and ZnOAuth1ConsumerData instances in it. Then I assigned the accessToken from an inspector.

That worked. I was able to read the file from the dropbox with getFile:. Great!

I used that code (please note "STON fromString: in contents asString ")

save the ZnOAuth1DropboxUserAccess as file: (Path * 'plonk.txt') asFileReference fileStreamDo: [ :stream | STON put: self onStreamPretty: stream ].

Read and create the ZnOAuth1DropboxUserAccess instance and then get contents of the demo file ((Path * 'plonk.ston') asFileReference readStreamDo: [ :in | STON fromString: in contents asString ]) getFile: #( 'demo.txt' ).

This is fine. My next question is how can I create an instance of ZnOAuth1Token from WITHIN my application?

When I need this ZnOAuth1Token, I am in a subclass of WAComponent. I don't want the user to click at a link like localhost:8100/sso-dropbox.

Sure, look at the implementation of #ssoDropbox: You already know how to create the service object (#dropboxOAuth1Service), next you need a request token (#getRequestToken). Both of these steps don't require user interaction.

The URL you are looking for is constructed as follows:

oauthService loginUrlFor: requestToken callbackUrl: request server url / 'sso-dropbox-callback'

The callback URL has to point to your Seaside app somewhere.

The difference you are looking for is also visible (for other providers) in the difference between #ssoDemo: and #ssoGoogle: for example (that is, the direct link vs the embedded link).

Note that the Zinc-SSO project has a complete Seaside demo as well (Jan wrote that one, it just doesn't include the Dropbox code (yet, hint, hint)), if you know Seaside it will certainly help to look at that code.

You'll have to do this login (ask for Dropbox access) only once, store the tokens that come back and from then on, you should be able to keep using the user access object (if you store it somewhere).

Let me know how it goes.

Sven

...

Clicking at a button within my application should send the user directly to the dropbox page to grant access and create the ZnOAuth1Token.

Cold you perhaps create a small code example like this

renderContentOn: method

html anchor script: html jQuery this button; url: '???http://localhost:8100/sso-dropbox???'; with: 'send me to dropbox, create ZnOAuth1Token and return it in some way'.

Greetings Sabine

On Tue, Feb 5, 2013 at 5:22 PM, Sven Van Caekenberghe <sven@stfx.eu> wrote: Sabine,

On 05 Feb 2013, at 14:45, Sabine Knöfel <sabine.knoefel@gmail.com> wrote:

...

Hi Sven,

great! The file was created in my dropbox account:-)

And it will be read, updated and written from now on, every time you run the demo.

...

I will try to use it now in my application and will come back with questions if they occur.

Yesterday I used STON to serialize a ZnOAuth1DropboxUserAccess instance that was created from the demo web app demo.

To make such an instance you use the codes that were also needed to set up the web demo and the 2 part access token that the web app requested and was granted by the user. To access this token, you currently have to inspect/explore the sessions in the ZnServer instance (there will normally only be one) and assign it to the following object (this is all in hack/debug mode):

| data service |

data := ZnOAuth1ConsumerData newForDropbox consumer: 'vqzexpgl5rvzXXX'; consumerSecret: '13uygcdbou8lXXX'; yourself.

service := ZnOAuth1Service new providerAccount: data ; yourself.

ZnOAuth1DropboxUserAccess new oauth1Service: service; yourself.

(And send it #accessToken:).

This will give you a representation like this:

ZnOAuth1DropboxUserAccess { #oauth1Service : ZnOAuth1Service { #providerAccount : ZnOAuth1ConsumerData { #getRequestTokenUrl : 'https://api.dropbox.com/1/oauth/request_token', #authorizeTokenUrl : 'https://www.dropbox.com/1/oauth/authorize', #getAccessTokenUrl : 'https://api.dropbox.com/1/oauth/access_token', #consumer : 'vqzexpgl5rvzXXX', #consumerSecret : '13uygcdbou8lXXX', #accessTokenClass : nil } }, #accessToken : ZnOAuth1Token { #value : 'qdcm6mivqesdXXX', #secret : '39w7r9wqamdgXXX', #sessionid : nil } }

I don't know what the lifetime is of this, but from other apps using Dropbox I am guessing it must be pretty long, even close to infinite. So one day later, with the demo web app long gone and image restarted, I can do this:

('ZnOAuth1DropboxUserAccess.ston' asFileReference readStreamDo: [ :in | STON fromString: in ]) getFile: #( 'demo.txt' ).

And it just works.

Now, we have to work out a way to make this flow easier and secure at the same time.

...

Thank you very much.

We wrote this so that others can use it, so we are happy with other developers trying out our stuff.

Thanks for testing and for the feedback.

Sven

...

Sabine

On Mon, Feb 4, 2013 at 12:52 PM, Sven Van Caekenberghe <sven@stfx.eu> wrote:

On 30 Jan 2013, at 19:13, Sven Van Caekenberghe <sven@stfx.eu> wrote:

...

On 30 Jan 2013, at 18:32, Sabine Knöfel <sabine.knoefel@gmail.com> wrote:

...

Sven,

could you provide a simple code fragment which shows how to write and how to read a file from the smalltalk image to the connected dropbox app folder?

The whole API is not (yet) implemented.

https://www.dropbox.com/developers/reference/api

Have a look at ZnOAuth1TwitterUserAccess.

If I find more time, I might try myself.

GET is pretty straightforward, for PUT or POST you will have to supply a ZnEntity of a specific mime-type with bytes or a string.

Note that for file access the host is different.

I added a bit more Dropbox API and a little demo accessing files.

There is now #manipulateDemoFile: which will try to access a file called 'demo.txt' and read an id out of it. If found the file is written again, with the id increased and some other fields updated as well. If the file did not exist, it is created with id 1. All this happens automatically if you access /sso-dropbox and log in. You'll get the updated id in the web page and you'll see your Dropbox client doing a local update immediately!

Here are the details (http://mc.stfx.eu/Zinc-HTTP-Components):

--- Name: Zinc-SSO-OAuth1-Core-SvenVanCaekenberghe.13 Author: SvenVanCaekenberghe Time: 4 February 2013, 12:27:12.196 pm UUID: 3d78a965-462e-4a4e-94aa-1779369aecb8 Ancestors: Zinc-SSO-OAuth1-Core-SvenVanCaekenberghe.12

extended ZnOAuth1Service with #httpDelete:using: #httpPost:with:using: #httpPut:with:using: extended ZnOAuth1DropboxUserAccess with #getFile: and #putFile:data: some refactoring in ZnOAuth1DropboxUserAccess --- Name: Zinc-SSO-Demo-SvenVanCaekenberghe.5 Author: SvenVanCaekenberghe Time: 4 February 2013, 12:28:14.601 pm UUID: 4bb17785-f885-4db5-98f5-9c7d52d3add6 Ancestors: Zinc-SSO-Demo-SvenVanCaekenberghe.4

added ZnSSOServerDelegate>>#manipulateDemoFile: ---

This should get you started.

Note that it is not necessary to log in each time: the access token is valid until you get an unauthorized response. With the access token and the consumer data you can create service objects separate from the web app that did the setup.

HTH,

Sven

...

...

Greetings Sabine

On Wed, Jan 30, 2013 at 6:00 PM, Sabine Knöfel <sabine.knoefel@gmail.com> wrote: Hi Sven,

there was only missing loading Zodiac, the dll (windows) was already included in the 1 klick image.

Gofer it squeaksource: 'Zodiac'; package: 'Zodiac-Core'; package: 'Zodiac-Tests'; load.

It works. I play around now. Thank you very much! Sabine

On Wed, Jan 30, 2013 at 5:38 PM, Sven Van Caekenberghe <sven@stfx.eu> wrote:

On 30 Jan 2013, at 17:21, Sabine Knöfel <sabine.knoefel@gmail.com> wrote:

...

Hi Sven, hi Jan,

thank you. I am one step further now but there must be something else missing to load. I failed with my current image, so I tried the following:

I took a fresh image - the Pharo 1.4. one click app from the pharo homepage (http://gforge.inria.fr/frs/download.php/31258/Pharo-1.4-14557-OneClick.zip)

Then I loaded seaside 3.0 (from the welcome screen - MetacelloConfigurationBrowser open).

After that, I loaded

Gofer it url: 'http://mc.stfx.eu/ZincHTTPComponents'; package: 'ConfigurationOfZincHTTPComponents'; load.

And then the bleeding Edge version ConfigurationOfZincHTTPComponents project bleedingEdge load: 'SSO'.

Then this was possible: (ZnServer startDefaultOn: 8100) logToTranscript; debugMode: true; delegate: (ZnSSOServerDelegate new dropboxData: (ZnOAuth1ConsumerData newForDropbox consumer: 'my appdata'; consumerSecret: 'my appdata'; yourself); yourself).

No I tried in my browser localhost:8100/sso-dropbox

Then I got a walkback in my Image: No secure socket stream class set or available

Well, the error says it all: you need TLS/SSL support. As is noted in

https://github.com/svenvc/docs/blob/master/zinc/zinc-sso-paper.md#installati...

You can get Zodiac to work in 1.4

http://zdc.stfx.eu

Don't forget that you also need the plugin next to your VM !

In Pharo 2.0 Zodiac is included by default the latest VM's there should have the plugin. But in 2.0 it will be slightly more difficult to load Seaside, but it does work.

Sorry, but all this is still a bit in motion, hopefully you will keep trying.

...

==>> I do not have the class ZdcSecureSocketStream in my Image self secureSocketStreamClass is Nil in

streamClassForScheme: scheme (#(http ws) includes: scheme) ifTrue: [ ^ self socketStreamClass ]. (#(https wss) includes: scheme) ifTrue: [ ^ self secureSocketStreamClass ifNil: [ self error: 'No secure socket stream class set or available' ] ]. (ZnUnknownScheme scheme: scheme) signal

Can you tell me what is missing to load?

Greetings Sabine

30 January 2013 5:14:22.402 pm

ZnNetworkingUtils(Object)>>error: Receiver: a ZnNetworkingUtils Arguments and temporary variables: aString: 'No secure socket stream class set or available' Receiver's instance variables: socketStreamClass: SocketStream secureSocketStreamClass: nil

ZnNetworkingUtils>>streamClassForScheme: Receiver: a ZnNetworkingUtils Arguments and temporary variables: scheme: #https Receiver's instance variables: socketStreamClass: SocketStream secureSocketStreamClass: nil

ZnNetworkingUtils>>socketStreamToUrlDirectly: Receiver: a ZnNetworkingUtils Arguments and temporary variables: url: https://api.dropbox.com/1/oauth/request_token stream: nil address: #[199 47 218 158] Receiver's instance variables: socketStreamClass: SocketStream secureSocketStreamClass: nil

ZnNetworkingUtils>>socketStreamToUrl: Receiver: a ZnNetworkingUtils Arguments and temporary variables: url: https://api.dropbox.com/1/oauth/request_token Receiver's instance variables: socketStreamClass: SocketStream secureSocketStreamClass: nil

On Wed, Jan 30, 2013 at 4:37 PM, Sven Van Caekenberghe <sven@stfx.eu> wrote: Sabine,

On 30 Jan 2013, at 16:24, Sabine Knöfel <sabine.knoefel@gmail.com> wrote:

...

Hi Sven,

after loading:

Gofer it url: 'http://mc.stfx.eu/ZincHTTPComponents'; package: 'ConfigurationOfZincHTTPComponents'; load.

ConfigurationOfZincHTTPComponents project latestVersion load: 'SSO'.

The ZnOAuth1ConsumerData does not have a method called >>newForDropbox (but >>newForGoogle and >>newForTwitter). Also, ZnSSOServerDelegate does not have a method >>dropboxData: (but facebook, twittter and google)

Did I miss something?

Yes and no. The latest stable version of the configuration does not yet include the Dropbox code. The following will load what is called bleedingEdge, the very latest version of everything, regardless of its release status.

ConfigurationOfZincHTTPComponents project bleedingEdge load: 'SSO'.

Sorry about that.

Sven

...

Greetings Sabine

On Sun, Jan 27, 2013 at 8:47 PM, Sven Van Caekenberghe <sven@stfx.eu> wrote:

On 27 Jan 2013, at 13:32, Sven Van Caekenberghe <sven@stfx.eu> wrote:

...

If anyone is interested, I can write another email explaining how you can run this demo for yourself on your own account.

How to run the Dropbox code yourself:

1. Get yourself a free Dropbox account at http://www.dropbox.com

2. Install some client software on one or more of your computers (Mac, Windows, Linux) or devices (iOS [iPhone, iPad, iPod], Android, BlackBerry, Kindle Fire) and move some files around to get a feel for the service.

3. When you give other applications access to (part of) your Dropbox files, you can check that at https://www.dropbox.com/account#applications

4. Define your own app that will try to access Dropbox files. Go to https://www.dropbox.com/developers (Developer home) and start defining a new app by clicking the 'Create an app' button at https://www.dropbox.com/developers/apps - start with the access type 'App folder'.

5. The two important elements you need are the 'App key' and 'App secret', make sure to copy them correctly.

6. Get the very latest code in your image (we develop in Pharo 2.0, but 1.4 or even 1.3 should work - SSL has to be fully operational).

Gofer it url: 'http://mc.stfx.eu/ZincHTTPComponents'; package: 'ConfigurationOfZincHTTPComponents'; load.

ConfigurationOfZincHTTPComponents project latestVersion load: 'SSO'.

7. Start a Zn server with an appropriate delegate, configured for your app

(ZnServer startDefaultOn: 8100) logToTranscript; debugMode: true; delegate: (ZnSSOServerDelegate new dropboxData: (ZnOAuth1ConsumerData newForDropbox consumer: 'vqz-app-key-zoca'; consumerSecret: '13u-app-secret-8l006'; yourself); yourself).

(The above is a demo setup limited to Dropbox, the other demos are not configured and won't work).

8. Go to http:://localhost:8100/sso-dropbox and click the link to log in - you will be transferred to Dropbox to log in (if you aren't already) and asked to authorise your demo app, after which Dropbox will redirect you back to your app.

9. Once back in your app, sso-dropbox-callback (#ssoDropboxCallback:) will access your account info and list the app root folder, which will then be shown.

10. For the rest of the API, (currently not yet implemented), see https://www.dropbox.com/developers/reference/api - you don't have to worry about the whole authentication thanks to Zinc-SSO.

We would love for others to try this (as well as the other Zinc-SSO options, Google, Facebook, Twitter) out, in their own projects, and to provide actual feedback and generally help improve the code and documentation.

As always, May the Source be with you!

Sven

PS: The demo app is not (yet) a production app: only you and up to 5 explicitly listed users can use it. You have to apply for production status later on. Also, the whole ZnSSOServerDelegate code is a demo, for an actual project, it would be best to extract the necessary parts out of it, reusing the underlying Zinc-SSO-OAuth1-Core framework.

-- Sven Van Caekenberghe http://stfx.eu Smalltalk is the Red Pill

Hi Sven, I loaded ConfigurationOfZincHTTPComponents '2.3.2' from http://mc.stfx.eu. With this, I have the ZnSSOSeasideDemo loaded. But in the register method of ZnSSOSeasideDemo , there are classes referenced, which are not loaded with this Conf. Where can I find them? ZnOpenIDConfiguration, ZnOAuth1TwitterConfiguration, ZnOAuth2FacebookConfiguration, ZnOAuth2GoogleConfiguration, ZnOAuth2MicrosoftConfiguration. Greetings Sabine On Fri, Feb 8, 2013 at 9:08 AM, Sven Van Caekenberghe <sven@stfx.eu> wrote:

On 07 Feb 2013, at 17:33, Sven Van Caekenberghe <sven@stfx.eu> wrote:

...

...

Where can I find the code/package of the seaside demo app from Jan?

It is in the main Zn repository: http://mc.stfx.eu

Make that http://mc.stfx.eu/ZincHTTPComponents

There is no GUI to this repository, it is storage only.

Sven

thanks for the fast reply :-) On Fri, Feb 8, 2013 at 10:50 AM, Jan van de Sandt <jvdsandt@gmail.com> wrote:

Hi,

These classes are part of the package Zinc-SSO-Seaside-Support.

Jan.

On Fri, Feb 8, 2013 at 10:37 AM, Sabine Knöfel <sabine.knoefel@gmail.com> wrote:

...

Hi Sven,

I loaded ConfigurationOfZincHTTPComponents '2.3.2' from http://mc.stfx.eu. With this, I have the ZnSSOSeasideDemo loaded.

But in the register method of ZnSSOSeasideDemo , there are classes referenced, which are not loaded with this Conf. Where can I find them? ZnOpenIDConfiguration, ZnOAuth1TwitterConfiguration, ZnOAuth2FacebookConfiguration, ZnOAuth2GoogleConfiguration, ZnOAuth2MicrosoftConfiguration.

Greetings Sabine

On Fri, Feb 8, 2013 at 9:08 AM, Sven Van Caekenberghe <sven@stfx.eu> wrote:

...

On 07 Feb 2013, at 17:33, Sven Van Caekenberghe <sven@stfx.eu> wrote:

...

...

Where can I find the code/package of the seaside demo app from Jan?

It is in the main Zn repository: http://mc.stfx.eu

Make that http://mc.stfx.eu/ZincHTTPComponents

There is no GUI to this repository, it is storage only.

Sven

Hi, The Zinc-SSO-Seaside-Support package contains Seaside configuration classes for the required configuration data of the different OAuth/OpenID providers. When you use these classes you don't have to hardcode the specific consumerKey and consumerSecret in your code but you can use the Seaside config web page to setup the correct values. See ZnSSOSeasideDemo>>#register for an example. If you want to run the demo you need a registration with at least one of the SSO providers. Jan. On Fri, Feb 8, 2013 at 11:01 AM, Sven Van Caekenberghe <sven@stfx.eu> wrote:

Gofer it url: 'http://mc.stfx.eu/ZincHTTPComponents'; package: 'ConfigurationOfZincHTTPComponents'; load.

ConfigurationOfZincHTTPComponents project latestVersion load: 'SSO'.

Gofer it url: 'http://mc.stfx.eu/ZincHTTPComponents'; package: 'Zinc-Seaside'; "not necessary, updating to the latest version" package: 'Zinc-SSO-Seaside-Support'; package: 'Zinc-SSO-Seaside-Demo'; load.

Should load all necessary code (provided you have Seaside already), no ?

But running it is another matter: you need to setup all the providers. I have done this, but using Jan's credentials, but these can of course not be shared. I would guess that the demo will not do anything unless these are set up.

Jan, what can be done about this ?

On 08 Feb 2013, at 10:37, Sabine Knöfel <sabine.knoefel@gmail.com> wrote:

...

Hi Sven,

I loaded ConfigurationOfZincHTTPComponents '2.3.2' from http://mc.stfx.eu. With this, I have the ZnSSOSeasideDemo loaded.

But in the register method of ZnSSOSeasideDemo , there are classes referenced, which are not loaded with this Conf. Where can I find them? ZnOpenIDConfiguration, ZnOAuth1TwitterConfiguration, ZnOAuth2FacebookConfiguration, ZnOAuth2GoogleConfiguration, ZnOAuth2MicrosoftConfiguration.

Greetings Sabine

On Fri, Feb 8, 2013 at 9:08 AM, Sven Van Caekenberghe <sven@stfx.eu> wrote:

On 07 Feb 2013, at 17:33, Sven Van Caekenberghe <sven@stfx.eu> wrote:

...

...

Where can I find the code/package of the seaside demo app from Jan?

It is in the main Zn repository: http://mc.stfx.eu

Make that http://mc.stfx.eu/ZincHTTPComponents

There is no GUI to this repository, it is storage only.

Sven

Hello Sabine Dropbox uses OAuth1, handling this is a bit more complicated than OAuth2 because you need to keep track of the requestToken during the sign-on proces. In a Seaside application you can store the requestToken in the session. But than you have to be careful to preserve the session in the redirect to Dropbox and back. Twitter also uses OAuth1, if you look at the classes ZnSSOSeasideDemo and ZnSSOSeasideTwitterOAuth1DemoPanel in the packge Zinc-SSO-Seaside-Demo you can see an example of how this can be done. Jan. PS: http://sso.doit.st is back online On Thu, Feb 7, 2013 at 4:37 PM, Sabine Knöfel <sabine.knoefel@gmail.com>wrote:

Hi Sven,

sorry, I think there is something basic, that I miss.

In my >>renderContentOn: , I call >>renderDropboxHeadingOn:

renderDropboxHeadingOn: html | theOauthService theRequestToken theUrl theUserAssess theConsumerData | theConsumerData := ZnOAuth1ConsumerData newForDropbox consumer: 'ql5uuynlvybiqp3'; consumerSecret: 'hwjrqa8qnxwxxxx'; yourself. theOauthService := ZnOAuth1Service new providerAccount: theConsumerData; yourself. theRequestToken := theOauthService getRequestToken. theUserAssess := ZnOAuth1DropboxUserAccess new oauth1Service: theOauthService; accessToken: theRequestToken. "===>>> self dropboxSessionFor: request put: requestToken." theUrl := (theOauthService loginUrlFor: theRequestToken callbackUrl: ' http://localhost:8100/sso-dropbox-callback') asString.

html anchor script: html jQuery this button; onClick: (html prototype evaluator callback: [ :script | ]); url: theUrl; with: 'Save data in dropbox'

Click on this button leads me to the dropbox-grant-access page -> ok, thats what I wanted.

In the demo code, >>ssoDropbox:, the requestToken is assigned to the ZnServerSession instance: self dropboxSessionFor: request put: requestToken.

Because I do not have the ZnServerSession instance within my subclass of WAApplication, I did not assign it. This leads to "Not a valid callback request" error, because in

...

...

ssoDropboxData:, the accessToken can not be found. This is clear, because I did not assign it ;-)

The question is how to solve this in the right way.

Where can I find the code/package of the seaside demo app from Jan? I found this: http://forum.world.st/Update-Zinc-SSO-OAuth-2-0-Alpha-Code-amp-Live-Demos-td... but http://sso.doit.st did not work.

Thank you for your help. Sabine

On Thu, Feb 7, 2013 at 1:04 PM, Sven Van Caekenberghe <sven@stfx.eu>wrote:

...

On 07 Feb 2013, at 12:04, Sabine Knöfel <sabine.knoefel@gmail.com> wrote:

...

Hi Sven,

I created the ZnOAuth1DropboxUserAccess with the ZnOAuth1Service and ZnOAuth1ConsumerData instances in it. Then I assigned the accessToken from an inspector.

That worked. I was able to read the file from the dropbox with getFile:. Great!

I used that code (please note "STON fromString: in contents asString ")

save the ZnOAuth1DropboxUserAccess as file: (Path * 'plonk.txt') asFileReference fileStreamDo: [ :stream | STON put: self onStreamPretty: stream ].

Read and create the ZnOAuth1DropboxUserAccess instance and then get contents of the demo file ((Path * 'plonk.ston') asFileReference readStreamDo: [ :in | STON fromString: in contents asString ]) getFile: #( 'demo.txt' ).

This is fine. My next question is how can I create an instance of ZnOAuth1Token from WITHIN my application?

When I need this ZnOAuth1Token, I am in a subclass of WAComponent. I don't want the user to click at a link like localhost:8100/sso-dropbox.

Sure, look at the implementation of #ssoDropbox: You already know how to create the service object (#dropboxOAuth1Service), next you need a request token (#getRequestToken). Both of these steps don't require user interaction.

The URL you are looking for is constructed as follows:

oauthService loginUrlFor: requestToken callbackUrl: request server url / 'sso-dropbox-callback'

The callback URL has to point to your Seaside app somewhere.

The difference you are looking for is also visible (for other providers) in the difference between #ssoDemo: and #ssoGoogle: for example (that is, the direct link vs the embedded link).

Note that the Zinc-SSO project has a complete Seaside demo as well (Jan wrote that one, it just doesn't include the Dropbox code (yet, hint, hint)), if you know Seaside it will certainly help to look at that code.

You'll have to do this login (ask for Dropbox access) only once, store the tokens that come back and from then on, you should be able to keep using the user access object (if you store it somewhere).

Let me know how it goes.

Sven

...

Clicking at a button within my application should send the user directly to the dropbox page to grant access and create the ZnOAuth1Token.

Cold you perhaps create a small code example like this

renderContentOn: method

html anchor script: html jQuery this button; url: '???http://localhost:8100/sso-dropbox???'; with: 'send me to dropbox, create ZnOAuth1Token and return it in some way'.

Greetings Sabine

On Tue, Feb 5, 2013 at 5:22 PM, Sven Van Caekenberghe <sven@stfx.eu> wrote: Sabine,

On 05 Feb 2013, at 14:45, Sabine Knöfel <sabine.knoefel@gmail.com> wrote:

...

Hi Sven,

great! The file was created in my dropbox account:-)

And it will be read, updated and written from now on, every time you run the demo.

...

I will try to use it now in my application and will come back with questions if they occur.

Yesterday I used STON to serialize a ZnOAuth1DropboxUserAccess instance that was created from the demo web app demo.

To make such an instance you use the codes that were also needed to set up the web demo and the 2 part access token that the web app requested and was granted by the user. To access this token, you currently have to inspect/explore the sessions in the ZnServer instance (there will normally only be one) and assign it to the following object (this is all in hack/debug mode):

| data service |

data := ZnOAuth1ConsumerData newForDropbox consumer: 'vqzexpgl5rvzXXX'; consumerSecret: '13uygcdbou8lXXX'; yourself.

service := ZnOAuth1Service new providerAccount: data ; yourself.

ZnOAuth1DropboxUserAccess new oauth1Service: service; yourself.

(And send it #accessToken:).

This will give you a representation like this:

ZnOAuth1DropboxUserAccess { #oauth1Service : ZnOAuth1Service { #providerAccount : ZnOAuth1ConsumerData { #getRequestTokenUrl : ' https://api.dropbox.com/1/oauth/request_token', #authorizeTokenUrl : ' https://www.dropbox.com/1/oauth/authorize', #getAccessTokenUrl : ' https://api.dropbox.com/1/oauth/access_token', #consumer : 'vqzexpgl5rvzXXX', #consumerSecret : '13uygcdbou8lXXX', #accessTokenClass : nil } }, #accessToken : ZnOAuth1Token { #value : 'qdcm6mivqesdXXX', #secret : '39w7r9wqamdgXXX', #sessionid : nil } }

I don't know what the lifetime is of this, but from other apps using Dropbox I am guessing it must be pretty long, even close to infinite. So one day later, with the demo web app long gone and image restarted, I can do this:

('ZnOAuth1DropboxUserAccess.ston' asFileReference readStreamDo: [ :in | STON fromString: in ]) getFile: #( 'demo.txt' ).

And it just works.

Now, we have to work out a way to make this flow easier and secure at the same time.

...

Thank you very much.

We wrote this so that others can use it, so we are happy with other developers trying out our stuff.

Thanks for testing and for the feedback.

Sven

...

Sabine

On Mon, Feb 4, 2013 at 12:52 PM, Sven Van Caekenberghe <sven@stfx.eu> wrote:

On 30 Jan 2013, at 19:13, Sven Van Caekenberghe <sven@stfx.eu> wrote:

...

On 30 Jan 2013, at 18:32, Sabine Knöfel <sabine.knoefel@gmail.com> wrote:

...

Sven,

could you provide a simple code fragment which shows how to write and how to read a file from the smalltalk image to the connected dropbox app folder?

The whole API is not (yet) implemented.

https://www.dropbox.com/developers/reference/api

Have a look at ZnOAuth1TwitterUserAccess.

If I find more time, I might try myself.

GET is pretty straightforward, for PUT or POST you will have to supply a ZnEntity of a specific mime-type with bytes or a string.

Note that for file access the host is different.

I added a bit more Dropbox API and a little demo accessing files.

There is now #manipulateDemoFile: which will try to access a file called 'demo.txt' and read an id out of it. If found the file is written again, with the id increased and some other fields updated as well. If the file did not exist, it is created with id 1. All this happens automatically if you access /sso-dropbox and log in. You'll get the updated id in the web page and you'll see your Dropbox client doing a local update immediately!

Here are the details (http://mc.stfx.eu/Zinc-HTTP-Components):

--- Name: Zinc-SSO-OAuth1-Core-SvenVanCaekenberghe.13 Author: SvenVanCaekenberghe Time: 4 February 2013, 12:27:12.196 pm UUID: 3d78a965-462e-4a4e-94aa-1779369aecb8 Ancestors: Zinc-SSO-OAuth1-Core-SvenVanCaekenberghe.12

extended ZnOAuth1Service with #httpDelete:using: #httpPost:with:using: #httpPut:with:using: extended ZnOAuth1DropboxUserAccess with #getFile: and #putFile:data: some refactoring in ZnOAuth1DropboxUserAccess --- Name: Zinc-SSO-Demo-SvenVanCaekenberghe.5 Author: SvenVanCaekenberghe Time: 4 February 2013, 12:28:14.601 pm UUID: 4bb17785-f885-4db5-98f5-9c7d52d3add6 Ancestors: Zinc-SSO-Demo-SvenVanCaekenberghe.4

added ZnSSOServerDelegate>>#manipulateDemoFile: ---

This should get you started.

Note that it is not necessary to log in each time: the access token is valid until you get an unauthorized response. With the access token and the consumer data you can create service objects separate from the web app that did the setup.

HTH,

Sven

...

...

Greetings Sabine

On Wed, Jan 30, 2013 at 6:00 PM, Sabine Knöfel < sabine.knoefel@gmail.com> wrote: Hi Sven,

there was only missing loading Zodiac, the dll (windows) was already included in the 1 klick image.

Gofer it squeaksource: 'Zodiac'; package: 'Zodiac-Core'; package: 'Zodiac-Tests'; load.

It works. I play around now. Thank you very much! Sabine

On Wed, Jan 30, 2013 at 5:38 PM, Sven Van Caekenberghe < sven@stfx.eu> wrote:

On 30 Jan 2013, at 17:21, Sabine Knöfel <sabine.knoefel@gmail.com> wrote:

...

Hi Sven, hi Jan,

thank you. I am one step further now but there must be something else missing to load. I failed with my current image, so I tried the following:

I took a fresh image - the Pharo 1.4. one click app from the pharo homepage ( http://gforge.inria.fr/frs/download.php/31258/Pharo-1.4-14557-OneClick.zip )

Then I loaded seaside 3.0 (from the welcome screen - MetacelloConfigurationBrowser open).

After that, I loaded

Gofer it url: 'http://mc.stfx.eu/ZincHTTPComponents'; package: 'ConfigurationOfZincHTTPComponents'; load.

And then the bleeding Edge version ConfigurationOfZincHTTPComponents project bleedingEdge load: 'SSO'.

Then this was possible: (ZnServer startDefaultOn: 8100) logToTranscript; debugMode: true; delegate: (ZnSSOServerDelegate new dropboxData: (ZnOAuth1ConsumerData newForDropbox

consumer: 'my appdata';

...

consumerSecret: 'my appdata';

...

yourself);

...

yourself).

No I tried in my browser localhost:8100/sso-dropbox

Then I got a walkback in my Image: No secure socket stream class

set or available

Well, the error says it all: you need TLS/SSL support. As is noted in

https://github.com/svenvc/docs/blob/master/zinc/zinc-sso-paper.md#installati...

...

You can get Zodiac to work in 1.4

http://zdc.stfx.eu

Don't forget that you also need the plugin next to your VM !

In Pharo 2.0 Zodiac is included by default the latest VM's there

should have the plugin.

...

But in 2.0 it will be slightly more difficult to load Seaside, but it does work.

Sorry, but all this is still a bit in motion, hopefully you will keep trying.

...

==>> I do not have the class ZdcSecureSocketStream in my Image self secureSocketStreamClass is Nil in

streamClassForScheme: scheme (#(http ws) includes: scheme) ifTrue: [ ^ self socketStreamClass ]. (#(https wss) includes: scheme) ifTrue: [ ^ self secureSocketStreamClass ifNil: [ self error: 'No secure socket stream class set or available' ] ]. (ZnUnknownScheme scheme: scheme) signal

Can you tell me what is missing to load?

Greetings Sabine

30 January 2013 5:14:22.402 pm

ZnNetworkingUtils(Object)>>error: Receiver: a ZnNetworkingUtils Arguments and temporary variables: aString: 'No secure socket stream class set or available' Receiver's instance variables: socketStreamClass: SocketStream secureSocketStreamClass: nil

ZnNetworkingUtils>>streamClassForScheme: Receiver: a ZnNetworkingUtils Arguments and temporary variables: scheme: #https Receiver's instance variables: socketStreamClass: SocketStream secureSocketStreamClass: nil

ZnNetworkingUtils>>socketStreamToUrlDirectly: Receiver: a ZnNetworkingUtils Arguments and temporary variables: url: https://api.dropbox.com/1/oauth/request_token stream: nil address: #[199 47 218 158] Receiver's instance variables: socketStreamClass: SocketStream secureSocketStreamClass: nil

ZnNetworkingUtils>>socketStreamToUrl: Receiver: a ZnNetworkingUtils Arguments and temporary variables: url: https://api.dropbox.com/1/oauth/request_token Receiver's instance variables: socketStreamClass: SocketStream secureSocketStreamClass: nil

On Wed, Jan 30, 2013 at 4:37 PM, Sven Van Caekenberghe < sven@stfx.eu> wrote: Sabine,

On 30 Jan 2013, at 16:24, Sabine Knöfel <sabine.knoefel@gmail.com> wrote:

...

Hi Sven,

after loading:

Gofer it url: 'http://mc.stfx.eu/ZincHTTPComponents'; package: 'ConfigurationOfZincHTTPComponents'; load.

ConfigurationOfZincHTTPComponents project latestVersion load: 'SSO'.

The ZnOAuth1ConsumerData does not have a method called newForDropbox (but >>newForGoogle and >>newForTwitter). Also, ZnSSOServerDelegate does not have a method >>dropboxData: (but facebook, twittter and google)

Did I miss something?

Yes and no. The latest stable version of the configuration does not yet include the Dropbox code. The following will load what is called bleedingEdge, the very latest version of everything, regardless of its release status.

ConfigurationOfZincHTTPComponents project bleedingEdge load: 'SSO'.

Sorry about that.

Sven

...

Greetings Sabine

On Sun, Jan 27, 2013 at 8:47 PM, Sven Van Caekenberghe < sven@stfx.eu> wrote:

On 27 Jan 2013, at 13:32, Sven Van Caekenberghe <sven@stfx.eu> wrote:

...

If anyone is interested, I can write another email explaining how you can run this demo for yourself on your own account.

How to run the Dropbox code yourself:

1. Get yourself a free Dropbox account at http://www.dropbox.com

2. Install some client software on one or more of your computers (Mac, Windows, Linux) or devices (iOS [iPhone, iPad, iPod], Android, BlackBerry, Kindle Fire) and move some files around to get a feel for the service.

3. When you give other applications access to (part of) your Dropbox files, you can check that at https://www.dropbox.com/account#applications

4. Define your own app that will try to access Dropbox files. Go to https://www.dropbox.com/developers (Developer home) and start defining a new app by clicking the 'Create an app' button at https://www.dropbox.com/developers/apps - start with the access type 'App folder'.

5. The two important elements you need are the 'App key' and 'App secret', make sure to copy them correctly.

6. Get the very latest code in your image (we develop in Pharo 2.0, but 1.4 or even 1.3 should work - SSL has to be fully operational).

Gofer it url: 'http://mc.stfx.eu/ZincHTTPComponents'; package: 'ConfigurationOfZincHTTPComponents'; load.

ConfigurationOfZincHTTPComponents project latestVersion load: 'SSO'.

7. Start a Zn server with an appropriate delegate, configured for your app

(ZnServer startDefaultOn: 8100) logToTranscript; debugMode: true; delegate: (ZnSSOServerDelegate new dropboxData: (ZnOAuth1ConsumerData newForDropbox

consumer: 'vqz-app-key-zoca';

...

consumerSecret: '13u-app-secret-8l006';

...

yourself);

...

yourself).

(The above is a demo setup limited to Dropbox, the other demos

are not configured and won't work).

...

8. Go to http:://localhost:8100/sso-dropbox and click the link

to log in - you will be transferred to Dropbox to log in (if you aren't already) and asked to authorise your demo app, after which Dropbox will redirect you back to your app.

...

9. Once back in your app, sso-dropbox-callback

(#ssoDropboxCallback:) will access your account info and list the app root folder, which will then be shown.

...

10. For the rest of the API, (currently not yet implemented),

see https://www.dropbox.com/developers/reference/api - you don't have to worry about the whole authentication thanks to Zinc-SSO.

...

We would love for others to try this (as well as the other

Zinc-SSO options, Google, Facebook, Twitter) out, in their own projects, and to provide actual feedback and generally help improve the code and documentation.

...

As always, May the Source be with you!

Sven

PS: The demo app is not (yet) a production app: only you and up

to 5 explicitly listed users can use it. You have to apply for production status later on. Also, the whole ZnSSOServerDelegate code is a demo, for an actual project, it would be best to extract the necessary parts out of it, reusing the underlying Zinc-SSO-OAuth1-Core framework.

...

-- Sven Van Caekenberghe http://stfx.eu Smalltalk is the Red Pill

On 28 Jan 2013, at 16:23, Cédrick Béler <cdrick65@gmail.com> wrote:

Cool Sven, nice work :)

Thanks, but it is Jan who is the real expert here, having done all this from first principles himself, I am lucky to be able to work with him to bring all this on our platform.

Cheers,

Cédrick

Le 27 janv. 2013 à 13:32, Sven Van Caekenberghe <sven@stfx.eu> a écrit :

...

Hi,

I am happy to report that Zinc-SSO now supports the Dropbox API. Which means you can write (web) applications that access (read/write) files in a user's Dropbox account.

Jan extended Zinc-SSO-OAuth1-Core to support both version 1 and version 1a of OAuth1 which I then used for a demo.

Again, the actual setup is non-trivial, and a public demo is not easy either, so there is only this screenshot:

<Screen Shot 2013-01-27 at 13.15.36.png>

This is what you see after allowing the Zinc-SSO app access to a special 'sandbox' folder called Apps/Zinc-SSO (full 'root' Dropbox access is possible as well). Here you can see there is one file, readme.txt in the folder.

If anyone is interested, I can write another email explaining how you can run this demo for yourself on your own account.

Sven

-- Sven Van Caekenberghe http://stfx.eu Smalltalk is the Red Pill
