Re: [Pharo-dev] OS-Windows and UnifiedFFI
2016-05-19 8:56 GMT+02:00 Nicolai Hess <nicolaihess@gmail.com>:
2016-04-25 10:17 GMT+02:00 Nicolai Hess <nicolaihess@gmail.com>:
2016-04-25 9:28 GMT+02:00 Esteban Lorenzano <estebanlm@gmail.com>:
Hi Nicolai,
On 25 Apr 2016, at 09:14, Nicolai Hess <nicolaihess@gmail.com> wrote:
2016-04-24 15:26 GMT+02:00 Torsten Bergmann <astares@gmx.de>:
Hi Nicolai,
missed this thread - sorry. To my knowledge there was a call in NB for CreateWindow but there was no example in opening a new window. For X-Windows there was an example if I remember correctly.
Hi Torsten,
yes there is an "example" in NBOpenGL. On Windows, it registers and creates window for getting an opengl context. The code and classes for registering and creating a window are similiar to what is now in your os-windows. I needed to define some more pool variables for some style attributes, all that is working. What did not work is storing the hInstance attribute in the WndClass struct.
what and how it does not work? can you paste the code?
Sure. Load stable version of Torstens OSWindows. Change WinProcess class>>getVMModuleHandle (it has to use HINSTANCE instead of HMODULE (or just define a new pool variable HMODULE in WinTypes))
getVMModuleHandle "The GetModuleHandle function retrieves a module handle for the specified module if the file has been mapped into the address space of the calling process."
^ self ffiCall: #( HINSTANCE GetModuleHandleA (0)) module: #Kernel32
Now create a new WinWndClassEx and set the hInstance field:
|hInst wndClass| hInst := WinProcess getVMModuleHandle. wndClass := WinWndClassEx new. wndClass hInstance: hInst.
-> Message not understood SmallInteger>>isExternalAddress
The equivalent code with NB that was working:
|hInst wndClass| hInst := NativeBoostWin32 getVMModuleHandle. wndClass := NBWndClassEx new. wndClass hInstance: hInst. wndClass
Any more ideas?
From my observation,
hInst := NativeBoostWin32 getVMModuleHandle. hInst is not considered an external object, or its handle is not an ExternalAddress, although the object is a WinHandle that is a subclass of FFIExernalReference :-( I am lost here, any help appreciated.
cheers! Esteban
With NBOpenGL (and non-spur resp. NativeBoost) this works. With the new UnifiedFFI this gives an error from:
pointerAt: byteOffset put: value "Store a pointer object at the given byte address" value isExternalAddress
Basically I would like to add support for this into OS-Windows, yes. Some parts are there and UFFI now has easy callbacks. Havent looked at OSWindow yet - but I guess the goal is to create native windows as well. Also I would like to add more support in manipulating/quering other external windows (which can be done using the already built in support for process and window handles).
In Win32 to create a window one has to register a window class first and use the window class name afterwards in the CreateWindow API function.
No time to look into this this week ... but can give a try afterwards. The WNDCLASS/WNDCLASSEX structure needs to be wrapped, RegisterClass called and CreateWindowEx with a callback for a function to process window messages.
Dont know how if this interferes with the VM's own processing loop ... but we should give a try. If you catch me on Slack next week we can try together.
Bye Torsten
Gesendet: Sonntag, 24. April 2016 um 12:17 Uhr Von: "Nicolai Hess" <nicolaihess@gmail.com> An: "Pharo Development List" <pharo-dev@lists.pharo.org> Betreff: Re: [Pharo-dev] OS-Windows and UnifiedFFI
2016-04-15 21:58 GMT+02:00 Nicolai Hess <nicolaihess@gmail.com>:
Hi Torsten, Esteban, I try to use OS-Windows (not OSWindow :) ) with latest spur VM and UnifiedFFI.As far as I can see, you (Torsten) already ported some parts to UnifiedFFI - great, thanks! I now try to open a new window withWinWindow>>createWindowEx ....as I took this example originally from NBOpenGL, it seems I have to define a Window Class first, with WinWndClassEx This seems to work in the old NBOpenGL/NBWin32 code but not with OS-Windows WinWndClassEx first, NBOpenGL uses NativeBoostWin32 getVMModuleHandle for an HModule instance there is a similar call in OS-Windows, WinProcess getVMModuleHandle (I needed to define a missing type, HMODULE, but that works).
What does not work is this part:
| hInst wndClass | hInst := WinProcess getVMModuleHandle. wndClass := WinWndClassEx new. wndClass hInstance: hInst.
FF complains about pointerAt: byteOffset put: value "Store a pointer object at the given byte address" value isExternalAddress
here value is not a handle, but a small integer, and it does not define isExternalAddress
I tried to put the handle instead of the handles value, but this does not work either.
Any Idea what is missing here, I need a way to store the HMODULE handle in the structure of the WinWNdClassEx
Thanks in advance.
Anyone?
2016-05-30 14:59 GMT+02:00 Nicolai Hess <nicolaihess@gmail.com>:
2016-05-19 8:56 GMT+02:00 Nicolai Hess <nicolaihess@gmail.com>:
2016-04-25 10:17 GMT+02:00 Nicolai Hess <nicolaihess@gmail.com>:
2016-04-25 9:28 GMT+02:00 Esteban Lorenzano <estebanlm@gmail.com>:
Hi Nicolai,
On 25 Apr 2016, at 09:14, Nicolai Hess <nicolaihess@gmail.com> wrote:
2016-04-24 15:26 GMT+02:00 Torsten Bergmann <astares@gmx.de>:
Hi Nicolai,
missed this thread - sorry. To my knowledge there was a call in NB for CreateWindow but there was no example in opening a new window. For X-Windows there was an example if I remember correctly.
Hi Torsten,
yes there is an "example" in NBOpenGL. On Windows, it registers and creates window for getting an opengl context. The code and classes for registering and creating a window are similiar to what is now in your os-windows. I needed to define some more pool variables for some style attributes, all that is working. What did not work is storing the hInstance attribute in the WndClass struct.
what and how it does not work? can you paste the code?
Sure. Load stable version of Torstens OSWindows. Change WinProcess class>>getVMModuleHandle (it has to use HINSTANCE instead of HMODULE (or just define a new pool variable HMODULE in WinTypes))
getVMModuleHandle "The GetModuleHandle function retrieves a module handle for the specified module if the file has been mapped into the address space of the calling process."
^ self ffiCall: #( HINSTANCE GetModuleHandleA (0)) module: #Kernel32
Now create a new WinWndClassEx and set the hInstance field:
|hInst wndClass| hInst := WinProcess getVMModuleHandle. wndClass := WinWndClassEx new. wndClass hInstance: hInst.
-> Message not understood SmallInteger>>isExternalAddress
The equivalent code with NB that was working:
|hInst wndClass| hInst := NativeBoostWin32 getVMModuleHandle. wndClass := NBWndClassEx new. wndClass hInstance: hInst. wndClass
Any more ideas?
From my observation,
hInst := NativeBoostWin32 getVMModuleHandle.
hInst is not considered an external object, or its handle is not an ExternalAddress, although the object is a WinHandle that is a subclass of FFIExernalReference :-(
I am lost here, any help appreciated.
Please. (I do undestand that a winhandle is only a number and not a external memory. But how to handle this "handles" when passing to a external function ?)
cheers! Esteban
With NBOpenGL (and non-spur resp. NativeBoost) this works. With the new UnifiedFFI this gives an error from:
pointerAt: byteOffset put: value "Store a pointer object at the given byte address" value isExternalAddress
Basically I would like to add support for this into OS-Windows, yes. Some parts are there and UFFI now has easy callbacks. Havent looked at OSWindow yet - but I guess the goal is to create native windows as well. Also I would like to add more support in manipulating/quering other external windows (which can be done using the already built in support for process and window handles).
In Win32 to create a window one has to register a window class first and use the window class name afterwards in the CreateWindow API function.
No time to look into this this week ... but can give a try afterwards. The WNDCLASS/WNDCLASSEX structure needs to be wrapped, RegisterClass called and CreateWindowEx with a callback for a function to process window messages.
Dont know how if this interferes with the VM's own processing loop ... but we should give a try. If you catch me on Slack next week we can try together.
Bye Torsten
Gesendet: Sonntag, 24. April 2016 um 12:17 Uhr Von: "Nicolai Hess" <nicolaihess@gmail.com> An: "Pharo Development List" <pharo-dev@lists.pharo.org> Betreff: Re: [Pharo-dev] OS-Windows and UnifiedFFI
2016-04-15 21:58 GMT+02:00 Nicolai Hess <nicolaihess@gmail.com>:
Hi Torsten, Esteban, I try to use OS-Windows (not OSWindow :) ) with latest spur VM and UnifiedFFI.As far as I can see, you (Torsten) already ported some parts to UnifiedFFI - great, thanks! I now try to open a new window withWinWindow>>createWindowEx ....as I took this example originally from NBOpenGL, it seems I have to define a Window Class first, with WinWndClassEx This seems to work in the old NBOpenGL/NBWin32 code but not with OS-Windows WinWndClassEx first, NBOpenGL uses NativeBoostWin32 getVMModuleHandle for an HModule instance there is a similar call in OS-Windows, WinProcess getVMModuleHandle (I needed to define a missing type, HMODULE, but that works).
What does not work is this part:
| hInst wndClass | hInst := WinProcess getVMModuleHandle. wndClass := WinWndClassEx new. wndClass hInstance: hInst.
FF complains about pointerAt: byteOffset put: value "Store a pointer object at the given byte address" value isExternalAddress
here value is not a handle, but a small integer, and it does not define isExternalAddress
I tried to put the handle instead of the handles value, but this does not work either.
Any Idea what is missing here, I need a way to store the HMODULE handle in the structure of the WinWNdClassEx
Thanks in advance.
Anyone?
On 24 Jun 2016, at 09:26, Nicolai Hess <nicolaihess@gmail.com> wrote:
2016-05-30 14:59 GMT+02:00 Nicolai Hess <nicolaihess@gmail.com <mailto:nicolaihess@gmail.com>>:
2016-05-19 8:56 GMT+02:00 Nicolai Hess <nicolaihess@gmail.com <mailto:nicolaihess@gmail.com>>:
2016-04-25 10:17 GMT+02:00 Nicolai Hess <nicolaihess@gmail.com <mailto:nicolaihess@gmail.com>>:
2016-04-25 9:28 GMT+02:00 Esteban Lorenzano <estebanlm@gmail.com <mailto:estebanlm@gmail.com>>: Hi Nicolai,
On 25 Apr 2016, at 09:14, Nicolai Hess <nicolaihess@gmail.com <mailto:nicolaihess@gmail.com>> wrote:
2016-04-24 15:26 GMT+02:00 Torsten Bergmann <astares@gmx.de <mailto:astares@gmx.de>>: Hi Nicolai,
missed this thread - sorry. To my knowledge there was a call in NB for CreateWindow but there was no example in opening a new window. For X-Windows there was an example if I remember correctly.
Hi Torsten,
yes there is an "example" in NBOpenGL. On Windows, it registers and creates window for getting an opengl context. The code and classes for registering and creating a window are similiar to what is now in your os-windows. I needed to define some more pool variables for some style attributes, all that is working. What did not work is storing the hInstance attribute in the WndClass struct.
what and how it does not work? can you paste the code?
Sure. Load stable version of Torstens OSWindows. Change WinProcess class>>getVMModuleHandle (it has to use HINSTANCE instead of HMODULE (or just define a new pool variable HMODULE in WinTypes))
getVMModuleHandle "The GetModuleHandle function retrieves a module handle for the specified module if the file has been mapped into the address space of the calling process."
^ self ffiCall: #( HINSTANCE GetModuleHandleA (0)) module: #Kernel32
Now create a new WinWndClassEx and set the hInstance field:
|hInst wndClass| hInst := WinProcess getVMModuleHandle. wndClass := WinWndClassEx new. wndClass hInstance: hInst.
-> Message not understood SmallInteger>>isExternalAddress
The equivalent code with NB that was working:
|hInst wndClass| hInst := NativeBoostWin32 getVMModuleHandle. wndClass := NBWndClassEx new. wndClass hInstance: hInst. wndClass
Any more ideas?
From my observation,
hInst := NativeBoostWin32 getVMModuleHandle.
hInst is not considered an external object, or its handle is not an ExternalAddress, although the object is a WinHandle that is a subclass of FFIExernalReference :-(
I am lost here, any help appreciated.
Please.
(I do undestand that a winhandle is only a number and not a external memory. But how to handle this "handles" when passing to a external function ?)
Iâm sorry⦠I do not understand. This is solved in UFFI since some months, and Torstenâs OSWindow uses it. UFFI provides FFIConstantHandle type to deal with windows HANDLE types, as comment says: I represent a constant HANDLE, as described in *Windows MSDN>https://msdn.microsoft.com/en-us/library/windows/desktop/ms724457(v=vs.85).a... A ==HANDLE== is a special kind of external object who is accessed through numbers, therefore and ==ExternalAddress== is not appropriate to describe it (since they are constants and external addresses represents disposable spaces from memory). Is not clear this is necessary outside Windows, but according to documentation they are somekind analogous to unix's File Descriptors (but with some remarkable diferences, as documented *here>http://lackingrhoticity.blogspot.fr/2015/05/passing-fds-handles-between-proc.... Example: [[[ HWND := #FFIConstantHandle. self ffiCall: #(HWND GetActiveWindow()) ]]] is there anything Iâm missing? Esteban
cheers! Esteban
With NBOpenGL (and non-spur resp. NativeBoost) this works. With the new UnifiedFFI this gives an error from:
pointerAt: byteOffset put: value "Store a pointer object at the given byte address" value isExternalAddress
Basically I would like to add support for this into OS-Windows, yes. Some parts are there and UFFI now has easy callbacks. Havent looked at OSWindow yet - but I guess the goal is to create native windows as well. Also I would like to add more support in manipulating/quering other external windows (which can be done using the already built in support for process and window handles).
In Win32 to create a window one has to register a window class first and use the window class name afterwards in the CreateWindow API function.
No time to look into this this week ... but can give a try afterwards. The WNDCLASS/WNDCLASSEX structure needs to be wrapped, RegisterClass called and CreateWindowEx with a callback for a function to process window messages.
Dont know how if this interferes with the VM's own processing loop ... but we should give a try. If you catch me on Slack next week we can try together.
Bye Torsten
Gesendet: Sonntag, 24. April 2016 um 12:17 Uhr Von: "Nicolai Hess" <nicolaihess@gmail.com <mailto:nicolaihess@gmail.com>> An: "Pharo Development List" <pharo-dev@lists.pharo.org <mailto:pharo-dev@lists.pharo.org>> Betreff: Re: [Pharo-dev] OS-Windows and UnifiedFFI
2016-04-15 21:58 GMT+02:00 Nicolai Hess <nicolaihess@gmail.com <mailto:nicolaihess@gmail.com>>:
Hi Torsten, Esteban, I try to use OS-Windows (not OSWindow :) ) with latest spur VM and UnifiedFFI.As far as I can see, you (Torsten) already ported some parts to UnifiedFFI - great, thanks! I now try to open a new window withWinWindow>>createWindowEx ....as I took this example originally from NBOpenGL, it seems I have to define a Window Class first, with WinWndClassEx This seems to work in the old NBOpenGL/NBWin32 code but not with OS-Windows WinWndClassEx first, NBOpenGL uses NativeBoostWin32 getVMModuleHandle for an HModule instance there is a similar call in OS-Windows, WinProcess getVMModuleHandle (I needed to define a missing type, HMODULE, but that works).
What does not work is this part:
| hInst wndClass | hInst := WinProcess getVMModuleHandle. wndClass := WinWndClassEx new. wndClass hInstance: hInst.
FF complains about pointerAt: byteOffset put: value "Store a pointer object at the given byte address" value isExternalAddress
here value is not a handle, but a small integer, and it does not define isExternalAddress
I tried to put the handle instead of the handles value, but this does not work either.
Any Idea what is missing here, I need a way to store the HMODULE handle in the structure of the WinWNdClassEx
Thanks in advance.
Anyone?
Iâm sorry⦠I do not understand. This is solved in UFFI since some months,
and Torstenâs OSWindow uses it.
Sorry then it is my fault. I know that Torsten already ported OSWindow to UFFI, and that most things are already working. UFFI provides FFIConstantHandle type to deal with windows HANDLE types, as
comment says:
I represent a constant HANDLE, as described in *Windows MSDN> https://msdn.microsoft.com/en-us/library/windows/desktop/ms724457(v=vs.85).a...
A ==HANDLE== is a special kind of external object who is accessed through numbers, therefore and ==ExternalAddress== is not appropriate to describe it (since they are constants and external addresses represents disposable spaces from memory).
Is not clear this is necessary outside Windows, but according to documentation they are somekind analogous to unix's File Descriptors (but with some remarkable diferences, as documented *here> http://lackingrhoticity.blogspot.fr/2015/05/passing-fds-handles-between-proc... .
Example: [[[ HWND := #FFIConstantHandle. self ffiCall: #(HWND GetActiveWindow()) ]]]
is there anything Iâm missing?
I don't know what else should I do, I already posted the example. The code I provided just don't work (DNU on isExternalAddress, see other mail), and I have no idea how to make it work. Yes, maybe I don't know enough about ffi for this type of the function argument passing. (actually I tried to port some NBOpenGL code to UFFI, for this I need to register a Window Class with WinWndClassEx (to create a gl context). So if this *is* already working, I need to look what I have done wrong). thanks for your response. nicolai
Esteban
On 24 Jun 2016, at 09:53, Nicolai Hess <nicolaihess@gmail.com> wrote:
Iâm sorry⦠I do not understand. This is solved in UFFI since some months, and Torstenâs OSWindow uses it.
Sorry then it is my fault. I know that Torsten already ported OSWindow to UFFI, and that most things are already working.
UFFI provides FFIConstantHandle type to deal with windows HANDLE types, as comment says:
I represent a constant HANDLE, as described in *Windows MSDN>https://msdn.microsoft.com/en-us/library/windows/desktop/ms724457(v=vs.85).a... <https://msdn.microsoft.com/en-us/library/windows/desktop/ms724457(v=vs.85).a...>
A ==HANDLE== is a special kind of external object who is accessed through numbers, therefore and ==ExternalAddress== is not appropriate to describe it (since they are constants and external addresses represents disposable spaces from memory).
Is not clear this is necessary outside Windows, but according to documentation they are somekind analogous to unix's File Descriptors (but with some remarkable diferences, as documented *here>http://lackingrhoticity.blogspot.fr/2015/05/passing-fds-handles-between-proc... <http://lackingrhoticity.blogspot.fr/2015/05/passing-fds-handles-between-proc...>.
Example: [[[ HWND := #FFIConstantHandle. self ffiCall: #(HWND GetActiveWindow()) ]]]
is there anything Iâm missing?
I don't know what else should I do, I already posted the example. The code I provided just don't work (DNU on isExternalAddress, see other mail), and I have no idea how to make it work. Yes, maybe I don't know enough about ffi for this type of the function argument passing.
the example is a simplification, you cannot put both definition and call in same method⦠find attached a working example of what you want.
(actually I tried to port some NBOpenGL code to UFFI, for this I need to register a Window Class with WinWndClassEx (to create a gl context). So if this *is* already working, I need to look what I have done wrong).
thanks for your response. nicolai
Esteban
2016-06-24 14:05 GMT+02:00 Esteban Lorenzano <estebanlm@gmail.com>:
On 24 Jun 2016, at 09:53, Nicolai Hess <nicolaihess@gmail.com> wrote:
Iâm sorry⦠I do not understand. This is solved in UFFI since some months,
and Torstenâs OSWindow uses it.
Sorry then it is my fault. I know that Torsten already ported OSWindow to UFFI, and that most things are already working.
UFFI provides FFIConstantHandle type to deal with windows HANDLE types, as
comment says:
I represent a constant HANDLE, as described in *Windows MSDN> https://msdn.microsoft.com/en-us/library/windows/desktop/ms724457(v=vs.85).a...
A ==HANDLE== is a special kind of external object who is accessed through numbers, therefore and ==ExternalAddress== is not appropriate to describe it (since they are constants and external addresses represents disposable spaces from memory).
Is not clear this is necessary outside Windows, but according to documentation they are somekind analogous to unix's File Descriptors (but with some remarkable diferences, as documented *here> http://lackingrhoticity.blogspot.fr/2015/05/passing-fds-handles-between-proc... .
Example: [[[ HWND := #FFIConstantHandle. self ffiCall: #(HWND GetActiveWindow()) ]]]
is there anything Iâm missing?
I don't know what else should I do, I already posted the example. The code I provided just don't work (DNU on isExternalAddress, see other mail), and I have no idea how to make it work. Yes, maybe I don't know enough about ffi for this type of the function argument passing.
the example is a simplification, you cannot put both definition and call in same method⦠find attached a working example of what you want.
Thank you!
(actually I tried to port some NBOpenGL code to UFFI, for this I need to register a Window Class with WinWndClassEx (to create a gl context). So if this *is* already working, I need to look what I have done wrong).
thanks for your response. nicolai
Esteban
⦠and I enhanced the example to not induce to confusion anymore :) Esteban
On 24 Jun 2016, at 14:27, Nicolai Hess <nicolaihess@gmail.com> wrote:
2016-06-24 14:05 GMT+02:00 Esteban Lorenzano <estebanlm@gmail.com <mailto:estebanlm@gmail.com>>:
On 24 Jun 2016, at 09:53, Nicolai Hess <nicolaihess@gmail.com <mailto:nicolaihess@gmail.com>> wrote:
Iâm sorry⦠I do not understand. This is solved in UFFI since some months, and Torstenâs OSWindow uses it.
Sorry then it is my fault. I know that Torsten already ported OSWindow to UFFI, and that most things are already working.
UFFI provides FFIConstantHandle type to deal with windows HANDLE types, as comment says:
I represent a constant HANDLE, as described in *Windows MSDN>https://msdn.microsoft.com/en-us/library/windows/desktop/ms724457(v=vs.85).a... <https://msdn.microsoft.com/en-us/library/windows/desktop/ms724457(v=vs.85).a...>
A ==HANDLE== is a special kind of external object who is accessed through numbers, therefore and ==ExternalAddress== is not appropriate to describe it (since they are constants and external addresses represents disposable spaces from memory).
Is not clear this is necessary outside Windows, but according to documentation they are somekind analogous to unix's File Descriptors (but with some remarkable diferences, as documented *here>http://lackingrhoticity.blogspot.fr/2015/05/passing-fds-handles-between-proc... <http://lackingrhoticity.blogspot.fr/2015/05/passing-fds-handles-between-proc...>.
Example: [[[ HWND := #FFIConstantHandle. self ffiCall: #(HWND GetActiveWindow()) ]]]
is there anything Iâm missing?
I don't know what else should I do, I already posted the example. The code I provided just don't work (DNU on isExternalAddress, see other mail), and I have no idea how to make it work. Yes, maybe I don't know enough about ffi for this type of the function argument passing.
the example is a simplification, you cannot put both definition and call in same method⦠find attached a working example of what you want.
Thank you!
(actually I tried to port some NBOpenGL code to UFFI, for this I need to register a Window Class with WinWndClassEx (to create a gl context). So if this *is* already working, I need to look what I have done wrong).
thanks for your response. nicolai
Esteban

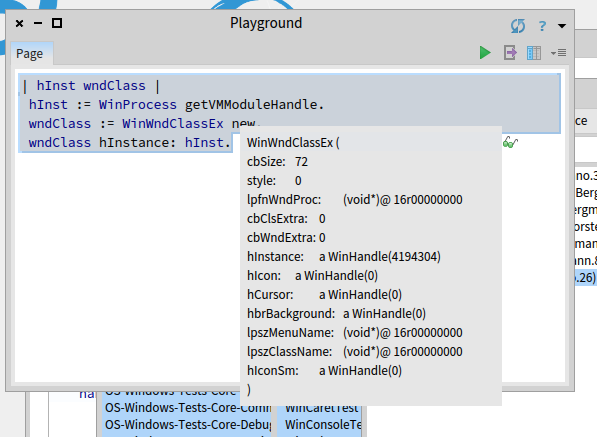

2016-06-24 14:32 GMT+02:00 Esteban Lorenzano <estebanlm@gmail.com>:
⦠and I enhanced the example to not induce to confusion anymore :)
Esteban
Sorry, I must be stupid, it still does not work ( and it actually looks the same as with the existing WinHandle type).
On 24 Jun 2016, at 14:27, Nicolai Hess <nicolaihess@gmail.com> wrote:
2016-06-24 14:05 GMT+02:00 Esteban Lorenzano <estebanlm@gmail.com>:
On 24 Jun 2016, at 09:53, Nicolai Hess <nicolaihess@gmail.com> wrote:
Iâm sorry⦠I do not understand. This is solved in UFFI since some months,
and Torstenâs OSWindow uses it.
Sorry then it is my fault. I know that Torsten already ported OSWindow to UFFI, and that most things are already working.
UFFI provides FFIConstantHandle type to deal with windows HANDLE types,
as comment says:
I represent a constant HANDLE, as described in *Windows MSDN> https://msdn.microsoft.com/en-us/library/windows/desktop/ms724457(v=vs.85).a...
A ==HANDLE== is a special kind of external object who is accessed through numbers, therefore and ==ExternalAddress== is not appropriate to describe it (since they are constants and external addresses represents disposable spaces from memory).
Is not clear this is necessary outside Windows, but according to documentation they are somekind analogous to unix's File Descriptors (but with some remarkable diferences, as documented *here> http://lackingrhoticity.blogspot.fr/2015/05/passing-fds-handles-between-proc... .
Example: [[[ HWND := #FFIConstantHandle. self ffiCall: #(HWND GetActiveWindow()) ]]]
is there anything Iâm missing?
I don't know what else should I do, I already posted the example. The code I provided just don't work (DNU on isExternalAddress, see other mail), and I have no idea how to make it work. Yes, maybe I don't know enough about ffi for this type of the function argument passing.
the example is a simplification, you cannot put both definition and call in same method⦠find attached a working example of what you want.
Thank you!
(actually I tried to port some NBOpenGL code to UFFI, for this I need to register a Window Class with WinWndClassEx (to create a gl context). So if this *is* already working, I need to look what I have done wrong).
thanks for your response. nicolai
Esteban
On 24 Jun 2016, at 14:40, Nicolai Hess <nicolaihess@gmail.com> wrote:
2016-06-24 14:32 GMT+02:00 Esteban Lorenzano <estebanlm@gmail.com <mailto:estebanlm@gmail.com>>: ⦠and I enhanced the example to not induce to confusion anymore :)
Esteban
Sorry, I must be stupid, it still does not work ( and it actually looks the same as with the existing WinHandle type).
well, that I donât know⦠for me it works, I tested it in Win10 and it was fine. What exactly are you trying to do? Esteban
On 24 Jun 2016, at 14:27, Nicolai Hess <nicolaihess@gmail.com <mailto:nicolaihess@gmail.com>> wrote:
2016-06-24 14:05 GMT+02:00 Esteban Lorenzano <estebanlm@gmail.com <mailto:estebanlm@gmail.com>>:
On 24 Jun 2016, at 09:53, Nicolai Hess <nicolaihess@gmail.com <mailto:nicolaihess@gmail.com>> wrote:
Iâm sorry⦠I do not understand. This is solved in UFFI since some months, and Torstenâs OSWindow uses it.
Sorry then it is my fault. I know that Torsten already ported OSWindow to UFFI, and that most things are already working.
UFFI provides FFIConstantHandle type to deal with windows HANDLE types, as comment says:
I represent a constant HANDLE, as described in *Windows MSDN>https://msdn.microsoft.com/en-us/library/windows/desktop/ms724457(v=vs.85).a... <https://msdn.microsoft.com/en-us/library/windows/desktop/ms724457(v=vs.85).a...>
A ==HANDLE== is a special kind of external object who is accessed through numbers, therefore and ==ExternalAddress== is not appropriate to describe it (since they are constants and external addresses represents disposable spaces from memory).
Is not clear this is necessary outside Windows, but according to documentation they are somekind analogous to unix's File Descriptors (but with some remarkable diferences, as documented *here>http://lackingrhoticity.blogspot.fr/2015/05/passing-fds-handles-between-proc... <http://lackingrhoticity.blogspot.fr/2015/05/passing-fds-handles-between-proc...>.
Example: [[[ HWND := #FFIConstantHandle. self ffiCall: #(HWND GetActiveWindow()) ]]]
is there anything Iâm missing?
I don't know what else should I do, I already posted the example. The code I provided just don't work (DNU on isExternalAddress, see other mail), and I have no idea how to make it work. Yes, maybe I don't know enough about ffi for this type of the function argument passing.
the example is a simplification, you cannot put both definition and call in same method⦠find attached a working example of what you want.
Thank you!
(actually I tried to port some NBOpenGL code to UFFI, for this I need to register a Window Class with WinWndClassEx (to create a gl context). So if this *is* already working, I need to look what I have done wrong).
thanks for your response. nicolai
Esteban
2016-06-24 14:52 GMT+02:00 Esteban Lorenzano <estebanlm@gmail.com>:
On 24 Jun 2016, at 14:40, Nicolai Hess <nicolaihess@gmail.com> wrote:
2016-06-24 14:32 GMT+02:00 Esteban Lorenzano <estebanlm@gmail.com>:
⦠and I enhanced the example to not induce to confusion anymore :)
Esteban
Sorry, I must be stupid, it still does not work ( and it actually looks the same as with the existing WinHandle type).
well, that I donât know⦠for me it works, I tested it in Win10 and it was fine.
What was fine?
What exactly are you trying to do?
As I wrote, I try to get the vmmodule handle (WinProcess getVMModuleHandle) and assign it to the hInstance field of a WinWndClassEx, getting the vm module handle works, (both, if I use the existing WinHandle type or (like you) a direct FFIConstantHandle). But assigning this value to the hInstance field always gives a DNU MessageNotUnderstood: SmallInteger>>isExternalAddress I do understant that a WinHandle is not an external (memory) resource and has no external address. I just don't undestand how to pass this type of arguments.
Esteban
On 24 Jun 2016, at 14:27, Nicolai Hess <nicolaihess@gmail.com> wrote:
2016-06-24 14:05 GMT+02:00 Esteban Lorenzano <estebanlm@gmail.com>:
On 24 Jun 2016, at 09:53, Nicolai Hess <nicolaihess@gmail.com> wrote:
Iâm sorry⦠I do not understand. This is solved in UFFI since some
months, and Torstenâs OSWindow uses it.
Sorry then it is my fault. I know that Torsten already ported OSWindow to UFFI, and that most things are already working.
UFFI provides FFIConstantHandle type to deal with windows HANDLE types,
as comment says:
I represent a constant HANDLE, as described in *Windows MSDN> https://msdn.microsoft.com/en-us/library/windows/desktop/ms724457(v=vs.85).a...
A ==HANDLE== is a special kind of external object who is accessed through numbers, therefore and ==ExternalAddress== is not appropriate to describe it (since they are constants and external addresses represents disposable spaces from memory).
Is not clear this is necessary outside Windows, but according to documentation they are somekind analogous to unix's File Descriptors (but with some remarkable diferences, as documented *here> http://lackingrhoticity.blogspot.fr/2015/05/passing-fds-handles-between-proc... .
Example: [[[ HWND := #FFIConstantHandle. self ffiCall: #(HWND GetActiveWindow()) ]]]
is there anything Iâm missing?
I don't know what else should I do, I already posted the example. The code I provided just don't work (DNU on isExternalAddress, see other mail), and I have no idea how to make it work. Yes, maybe I don't know enough about ffi for this type of the function argument passing.
the example is a simplification, you cannot put both definition and call in same method⦠find attached a working example of what you want.
Thank you!
(actually I tried to port some NBOpenGL code to UFFI, for this I need to register a Window Class with WinWndClassEx (to create a gl context). So if this *is* already working, I need to look what I have done wrong).
thanks for your response. nicolai
Esteban
if you send me the code, I can take a look.
On 24 Jun 2016, at 15:06, Nicolai Hess <nicolaihess@gmail.com> wrote:
2016-06-24 14:52 GMT+02:00 Esteban Lorenzano <estebanlm@gmail.com <mailto:estebanlm@gmail.com>>:
On 24 Jun 2016, at 14:40, Nicolai Hess <nicolaihess@gmail.com <mailto:nicolaihess@gmail.com>> wrote:
2016-06-24 14:32 GMT+02:00 Esteban Lorenzano <estebanlm@gmail.com <mailto:estebanlm@gmail.com>>: ⦠and I enhanced the example to not induce to confusion anymore :)
Esteban
Sorry, I must be stupid, it still does not work ( and it actually looks the same as with the existing WinHandle type).
well, that I donât know⦠for me it works, I tested it in Win10 and it was fine.
What was fine?
What exactly are you trying to do?
As I wrote, I try to get the vmmodule handle (WinProcess getVMModuleHandle) and assign it to the hInstance field of a WinWndClassEx, getting the vm module handle works, (both, if I use the existing WinHandle type or (like you) a direct FFIConstantHandle).
But assigning this value to the hInstance field always gives a DNU MessageNotUnderstood: SmallInteger>>isExternalAddress
I do understant that a WinHandle is not an external (memory) resource and has no external address. I just don't undestand how to pass this type of arguments.
Esteban
On 24 Jun 2016, at 14:27, Nicolai Hess <nicolaihess@gmail.com <mailto:nicolaihess@gmail.com>> wrote:
2016-06-24 14:05 GMT+02:00 Esteban Lorenzano <estebanlm@gmail.com <mailto:estebanlm@gmail.com>>:
On 24 Jun 2016, at 09:53, Nicolai Hess <nicolaihess@gmail.com <mailto:nicolaihess@gmail.com>> wrote:
Iâm sorry⦠I do not understand. This is solved in UFFI since some months, and Torstenâs OSWindow uses it.
Sorry then it is my fault. I know that Torsten already ported OSWindow to UFFI, and that most things are already working.
UFFI provides FFIConstantHandle type to deal with windows HANDLE types, as comment says:
I represent a constant HANDLE, as described in *Windows MSDN>https://msdn.microsoft.com/en-us/library/windows/desktop/ms724457(v=vs.85).a... <https://msdn.microsoft.com/en-us/library/windows/desktop/ms724457(v=vs.85).a...>
A ==HANDLE== is a special kind of external object who is accessed through numbers, therefore and ==ExternalAddress== is not appropriate to describe it (since they are constants and external addresses represents disposable spaces from memory).
Is not clear this is necessary outside Windows, but according to documentation they are somekind analogous to unix's File Descriptors (but with some remarkable diferences, as documented *here>http://lackingrhoticity.blogspot.fr/2015/05/passing-fds-handles-between-proc... <http://lackingrhoticity.blogspot.fr/2015/05/passing-fds-handles-between-proc...>.
Example: [[[ HWND := #FFIConstantHandle. self ffiCall: #(HWND GetActiveWindow()) ]]]
is there anything Iâm missing?
I don't know what else should I do, I already posted the example. The code I provided just don't work (DNU on isExternalAddress, see other mail), and I have no idea how to make it work. Yes, maybe I don't know enough about ffi for this type of the function argument passing.
the example is a simplification, you cannot put both definition and call in same method⦠find attached a working example of what you want.
Thank you!
(actually I tried to port some NBOpenGL code to UFFI, for this I need to register a Window Class with WinWndClassEx (to create a gl context). So if this *is* already working, I need to look what I have done wrong).
thanks for your response. nicolai
Esteban
2016-06-24 16:03 GMT+02:00 Esteban Lorenzano <estebanlm@gmail.com>:
if you send me the code, I can take a look.
Sorry if this sounds rude, but did you actually read my mail, I mean the first one. If you don't have the time to look at this, it is ok. I will just try to find it out myself, or maybe torsten has an idea. No problem. I already posted the code multiple times. There is no code I could send. It is all in the image (+ the OSWindow) project. I'll try it again. OS: Windows - take a fresh - load (from catalog browser) OSWindow - execute this | hInst wndClass | hInst := WinProcess getVMModuleHandle. wndClass := WinWndClassEx new. wndClass hInstance: hInst. Error : Unable to resolve external type: HMODULE OK, getVMModuleHandle expects a HMODULE type We need to define a missing type, HMODULE, but that works (just like all the other H-WinHandle-Types). Now execute it again: New error: "MessageNotUnderstood: SmallInteger>>isExternalAddress" The question is: Any Idea what is missing here, I need a way to store the HMODULE handle in the structure of the WinWNdClassEx
On 24 Jun 2016, at 16:43, Nicolai Hess <nicolaihess@gmail.com> wrote:
2016-06-24 16:03 GMT+02:00 Esteban Lorenzano <estebanlm@gmail.com <mailto:estebanlm@gmail.com>>: if you send me the code, I can take a look.
Sorry if this sounds rude, but did you actually read my mail, I mean the first one.
well⦠after search, it was from 25 apr⦠and my client didnât show it to me (because I removed it, to clean)⦠and it folded the quoted so yes, I read it⦠like a month ago :)
If you don't have the time to look at this, it is ok. I will just try to find it out myself, or maybe torsten has an idea. No problem.
well, but Iâm particularly interested in UFFI, since is my new toy :) and seriously, I want to make him really solid, so I jump in whenever I see a problem, even if Iâm doing something different (merging pharo-vm with os-vm, now). Anyway, I see the error: WinWndClassEx is generated with bad mapping⦠this is fixed in new versions of UFFI so you need to regenerate the fields: WinWndClassEx rebuildFieldAccessors. (Torsten needs to but then⦠I spotted a bug, because FFIConstantHandle>>value is not defined so you will still have an error :) anyway, I updated both, OSWindow and UFFI so if I you load bleedingEdge of both, you will see something like this:
I already posted the code multiple times. There is no code I could send. It is all in the image (+ the OSWindow) project.
I'll try it again.
OS: Windows - take a fresh - load (from catalog browser) OSWindow
- execute this
| hInst wndClass | hInst := WinProcess getVMModuleHandle. wndClass := WinWndClassEx new. wndClass hInstance: hInst.
Error : Unable to resolve external type: HMODULE
OK, getVMModuleHandle expects a HMODULE type We need to define a missing type, HMODULE, but that works (just like all the other H-WinHandle-Types).
Now execute it again: New error: "MessageNotUnderstood: SmallInteger>>isExternalAddress"
The question is:
Any Idea what is missing here, I need a way to store the HMODULE handle in the structure of the WinWNdClassEx
Yes! That is much better, thanks 2016-06-24 17:16 GMT+02:00 Esteban Lorenzano <estebanlm@gmail.com>:
On 24 Jun 2016, at 16:43, Nicolai Hess <nicolaihess@gmail.com> wrote:
2016-06-24 16:03 GMT+02:00 Esteban Lorenzano <estebanlm@gmail.com>:
if you send me the code, I can take a look.
Sorry if this sounds rude, but did you actually read my mail, I mean the first one.
well⦠after search, it was from 25 apr⦠and my client didnât show it to me (because I removed it, to clean)⦠and it folded the quoted so yes, I read it⦠like a month ago :)
If you don't have the time to look at this, it is ok. I will just try to find it out myself, or maybe torsten has an idea.
No problem.
well, but Iâm particularly interested in UFFI, since is my new toy :) and seriously, I want to make him really solid, so I jump in whenever I see a problem, even if Iâm doing something different (merging pharo-vm with os-vm, now).
Anyway, I see the error: WinWndClassEx is generated with bad mapping⦠this is fixed in new versions of UFFI so you need to regenerate the fields:
WinWndClassEx rebuildFieldAccessors. (Torsten needs to
but then⦠I spotted a bug, because FFIConstantHandle>>value is not defined so you will still have an error :)
anyway, I updated both, OSWindow and UFFI so if I you load bleedingEdge of both, you will see something like this:
I already posted the code multiple times. There is no code I could send. It is all in the image (+ the OSWindow) project.
I'll try it again.
OS: Windows - take a fresh - load (from catalog browser) OSWindow
- execute this
| hInst wndClass | hInst := WinProcess getVMModuleHandle. wndClass := WinWndClassEx new. wndClass hInstance: hInst.
Error : Unable to resolve external type: HMODULE
OK, getVMModuleHandle expects a HMODULE type We need to define a missing type, HMODULE, but that works (just like all the other H-WinHandle-Types).
Now execute it again: New error: "MessageNotUnderstood: SmallInteger>>isExternalAddress"
The question is:
Any Idea what is missing here, I need a way to store the HMODULE handle in the structure of the WinWNdClassEx
ah, and which VM are you using?
On 24 Jun 2016, at 14:40, Nicolai Hess <nicolaihess@gmail.com> wrote:
2016-06-24 14:32 GMT+02:00 Esteban Lorenzano <estebanlm@gmail.com <mailto:estebanlm@gmail.com>>: ⦠and I enhanced the example to not induce to confusion anymore :)
Esteban
Sorry, I must be stupid, it still does not work ( and it actually looks the same as with the existing WinHandle type).
On 24 Jun 2016, at 14:27, Nicolai Hess <nicolaihess@gmail.com <mailto:nicolaihess@gmail.com>> wrote:
2016-06-24 14:05 GMT+02:00 Esteban Lorenzano <estebanlm@gmail.com <mailto:estebanlm@gmail.com>>:
On 24 Jun 2016, at 09:53, Nicolai Hess <nicolaihess@gmail.com <mailto:nicolaihess@gmail.com>> wrote:
Iâm sorry⦠I do not understand. This is solved in UFFI since some months, and Torstenâs OSWindow uses it.
Sorry then it is my fault. I know that Torsten already ported OSWindow to UFFI, and that most things are already working.
UFFI provides FFIConstantHandle type to deal with windows HANDLE types, as comment says:
I represent a constant HANDLE, as described in *Windows MSDN>https://msdn.microsoft.com/en-us/library/windows/desktop/ms724457(v=vs.85).a... <https://msdn.microsoft.com/en-us/library/windows/desktop/ms724457(v=vs.85).a...>
A ==HANDLE== is a special kind of external object who is accessed through numbers, therefore and ==ExternalAddress== is not appropriate to describe it (since they are constants and external addresses represents disposable spaces from memory).
Is not clear this is necessary outside Windows, but according to documentation they are somekind analogous to unix's File Descriptors (but with some remarkable diferences, as documented *here>http://lackingrhoticity.blogspot.fr/2015/05/passing-fds-handles-between-proc... <http://lackingrhoticity.blogspot.fr/2015/05/passing-fds-handles-between-proc...>.
Example: [[[ HWND := #FFIConstantHandle. self ffiCall: #(HWND GetActiveWindow()) ]]]
is there anything Iâm missing?
I don't know what else should I do, I already posted the example. The code I provided just don't work (DNU on isExternalAddress, see other mail), and I have no idea how to make it work. Yes, maybe I don't know enough about ffi for this type of the function argument passing.
the example is a simplification, you cannot put both definition and call in same method⦠find attached a working example of what you want.
Thank you!
(actually I tried to port some NBOpenGL code to UFFI, for this I need to register a Window Class with WinWndClassEx (to create a gl context). So if this *is* already working, I need to look what I have done wrong).
thanks for your response. nicolai
Esteban
Example in chapter please :) Le 24/6/16 à 14:05, Esteban Lorenzano a écrit :
On 24 Jun 2016, at 09:53, Nicolai Hess <nicolaihess@gmail.com <mailto:nicolaihess@gmail.com>> wrote:
Iâm sorry⦠I do not understand. This is solved in UFFI since some months, and Torstenâs OSWindow uses it.
Sorry then it is my fault. I know that Torsten already ported OSWindow to UFFI, and that most things are already working.
UFFI provides FFIConstantHandle type to deal with windows HANDLE types, as comment says:
I represent a constant HANDLE, as described in *Windows MSDN>https://msdn.microsoft.com/en-us/library/windows/desktop/ms724457(v=vs.85).a... <https://msdn.microsoft.com/en-us/library/windows/desktop/ms724457%28v=vs.85%...>
A ==HANDLE== is a special kind of external object who is accessed through numbers, therefore and ==ExternalAddress== is not appropriate to describe it (since they are constants and external addresses represents disposable spaces from memory).
Is not clear this is necessary outside Windows, but according to documentation they are somekind analogous to unix's File Descriptors (but with some remarkable diferences, as documented *here>http://lackingrhoticity.blogspot.fr/2015/05/passing-fds-handles-between-proc....
Example: [[[ HWND := #FFIConstantHandle. self ffiCall: #(HWND GetActiveWindow()) ]]]
is there anything Iâm missing?
I don't know what else should I do, I already posted the example. The code I provided just don't work (DNU on isExternalAddress, see other mail), and I have no idea how to make it work. Yes, maybe I don't know enough about ffi for this type of the function argument passing.
the example is a simplification, you cannot put both definition and call in same method⦠find attached a working example of what you want.
(actually I tried to port some NBOpenGL code to UFFI, for this I need to register a Window Class with WinWndClassEx (to create a gl context). So if this *is* already working, I need to look what I have done wrong).
thanks for your response. nicolai
Esteban
participants (3)
-
Esteban Lorenzano -
Nicolai Hess -
stepharo
