Re: [Pharo-dev] Pharo image corruption and fatal VM error with Roassal
Yes it is. But I will not do TRMorph allInstances do: #delete In command line every day⦠Vincent De : Pharo-dev [mailto:pharo-dev-bounces@lists.pharo.org] De la part de Usman Bhatti Envoyé : jeudi 31 juillet 2014 10:59 à : Pharo Development List Cc : Moose-related development Objet : Re: [Pharo-dev] Pharo image corruption and fatal VM error with Roassal This may be related to this known issue reported a few days back. https://code.google.com/p/moose-technology/issues/detail?id=1084 And there is a possible solution to recover your image. usman On Thu, Jul 31, 2014 at 10:50 AM, Blondeau Vincent <vincent.blondeau@worldline.com<mailto:vincent.blondeau@worldline.com>> wrote: Hi, Yesterday, I was using GraphET (a part of Roassal) to do some charts and, today, when I wanted to reopen the image. And I got that : [cid:image001.png@01CFACAF.C4370C70] It is *very* unpleasant⦠To reproduce the bug: 1 - You can do either: | builder | builder := GET2Line data: (0 to: 100) . builder y: [ :x | x*x ]. builder open. Or WorldMenu -> Roassal examples -> choose an item -> click on a graph . A TRMorph should be opened. 2 - donât close the graph and save the pharo image. 3 â Close the pharo image 4 - Reopen it I am under W7 x64 with the latest moose image and the VM available on the pharo.org<http://pharo.org> website (http://files.pharo.org/platform/Pharo3.0-win.zip) from the 10 july. You will find the crash dump attached. Thankfully, I managed to open the image with a latest VM (http://www.mirandabanda.org/files/Cog/VM/VM.r3056/cogwin-14.29.3056.zip). Thanks a lot Eliot ! :) And I got this: [cid:image002.png@01CFACAF.C4370C70] Thanks in advance Cheers, Vincent BLONDEAU ________________________________ Ce message et les pièces jointes sont confidentiels et réservés à l'usage exclusif de ses destinataires. Il peut également être protégé par le secret professionnel. Si vous recevez ce message par erreur, merci d'en avertir immédiatement l'expéditeur et de le détruire. L'intégrité du message ne pouvant être assurée sur Internet, la responsabilité de Worldline ne pourra être recherchée quant au contenu de ce message. Bien que les meilleurs efforts soient faits pour maintenir cette transmission exempte de tout virus, l'expéditeur ne donne aucune garantie à cet égard et sa responsabilité ne saurait être recherchée pour tout dommage résultant d'un virus transmis. This e-mail and the documents attached are confidential and intended solely for the addressee; it may also be privileged. If you receive this e-mail in error, please notify the sender immediately and destroy it. As its integrity cannot be secured on the Internet, the Worldline liability cannot be triggered for the message content. Although the sender endeavours to maintain a computer virus-free network, the sender does not warrant that this transmission is virus-free and will not be liable for any damages resulting from any virus transmitted. ________________________________ Ce message et les pièces jointes sont confidentiels et réservés à l'usage exclusif de ses destinataires. Il peut également être protégé par le secret professionnel. Si vous recevez ce message par erreur, merci d'en avertir immédiatement l'expéditeur et de le détruire. L'intégrité du message ne pouvant être assurée sur Internet, la responsabilité de Worldline ne pourra être recherchée quant au contenu de ce message. Bien que les meilleurs efforts soient faits pour maintenir cette transmission exempte de tout virus, l'expéditeur ne donne aucune garantie à cet égard et sa responsabilité ne saurait être recherchée pour tout dommage résultant d'un virus transmis. This e-mail and the documents attached are confidential and intended solely for the addressee; it may also be privileged. If you receive this e-mail in error, please notify the sender immediately and destroy it. As its integrity cannot be secured on the Internet, the Worldline liability cannot be triggered for the message content. Although the sender endeavours to maintain a computer virus-free network, the sender does not warrant that this transmission is virus-free and will not be liable for any damages resulting from any virus transmitted.
On Thu, Jul 31, 2014 at 11:17 AM, Blondeau Vincent < vincent.blondeau@worldline.com> wrote:
Yes it is. But I will not do
TRMorph allInstances do: #delete
In command line every dayâ¦
It is only intended to recover your lost work in the image not for everyday use :).
Vincent
*De :* Pharo-dev [mailto:pharo-dev-bounces@lists.pharo.org] *De la part de* Usman Bhatti *Envoyé :* jeudi 31 juillet 2014 10:59 *à :* Pharo Development List *Cc :* Moose-related development
*Objet :* Re: [Pharo-dev] Pharo image corruption and fatal VM error with Roassal
This may be related to this known issue reported a few days back.
https://code.google.com/p/moose-technology/issues/detail?id=1084
And there is a possible solution to recover your image.
usman
On Thu, Jul 31, 2014 at 10:50 AM, Blondeau Vincent < vincent.blondeau@worldline.com> wrote:
Hi,
Yesterday, I was using GraphET (a part of Roassal) to do some charts and, today, when I wanted to reopen the image.
And I got that :
It is **very** unpleasantâ¦
To reproduce the bug:
1 - You can do either:
| builder |
builder := GET2Line data: (0 to: 100) .
builder
y: [ :x | x*x ].
builder open.
Or
WorldMenu -> Roassal examples -> choose an item -> click on a graph . A TRMorph should be opened.
2 - donât close the graph and save the pharo image.
3 â Close the pharo image
4 - Reopen it
I am under W7 x64 with the latest moose image and the VM available on the pharo.org website (http://files.pharo.org/platform/Pharo3.0-win.zip) from the 10 july.
You will find the crash dump attached.
Thankfully, I managed to open the image with a latest VM ( http://www.mirandabanda.org/files/Cog/VM/VM.r3056/cogwin-14.29.3056.zip).
Thanks a lot Eliot ! :)
And I got this:
Thanks in advance
Cheers,
Vincent BLONDEAU
------------------------------
Ce message et les pièces jointes sont confidentiels et réservés à l'usage exclusif de ses destinataires. Il peut également être protégé par le secret professionnel. Si vous recevez ce message par erreur, merci d'en avertir immédiatement l'expéditeur et de le détruire. L'intégrité du message ne pouvant être assurée sur Internet, la responsabilité de Worldline ne pourra être recherchée quant au contenu de ce message. Bien que les meilleurs efforts soient faits pour maintenir cette transmission exempte de tout virus, l'expéditeur ne donne aucune garantie à cet égard et sa responsabilité ne saurait être recherchée pour tout dommage résultant d'un virus transmis.
This e-mail and the documents attached are confidential and intended solely for the addressee; it may also be privileged. If you receive this e-mail in error, please notify the sender immediately and destroy it. As its integrity cannot be secured on the Internet, the Worldline liability cannot be triggered for the message content. Although the sender endeavours to maintain a computer virus-free network, the sender does not warrant that this transmission is virus-free and will not be liable for any damages resulting from any virus transmitted.
------------------------------
Ce message et les pièces jointes sont confidentiels et réservés à l'usage exclusif de ses destinataires. Il peut également être protégé par le secret professionnel. Si vous recevez ce message par erreur, merci d'en avertir immédiatement l'expéditeur et de le détruire. L'intégrité du message ne pouvant être assurée sur Internet, la responsabilité de Worldline ne pourra être recherchée quant au contenu de ce message. Bien que les meilleurs efforts soient faits pour maintenir cette transmission exempte de tout virus, l'expéditeur ne donne aucune garantie à cet égard et sa responsabilité ne saurait être recherchée pour tout dommage résultant d'un virus transmis.
This e-mail and the documents attached are confidential and intended solely for the addressee; it may also be privileged. If you receive this e-mail in error, please notify the sender immediately and destroy it. As its integrity cannot be secured on the Internet, the Worldline liability cannot be triggered for the message content. Although the sender endeavours to maintain a computer virus-free network, the sender does not warrant that this transmission is virus-free and will not be liable for any damages resulting from any virus transmitted.
It looks like Trachel does not recreate athens external resources. There is an example in AthensSceneView, on how to check and reload an AthensSurface. 2014-07-31 12:51 GMT+02:00 Usman Bhatti <usman.bhatti@gmail.com>:
On Thu, Jul 31, 2014 at 11:17 AM, Blondeau Vincent < vincent.blondeau@worldline.com> wrote:
Yes it is. But I will not do
TRMorph allInstances do: #delete
In command line every dayâ¦
It is only intended to recover your lost work in the image not for everyday use :).
Vincent
*De :* Pharo-dev [mailto:pharo-dev-bounces@lists.pharo.org] *De la part de* Usman Bhatti *Envoyé :* jeudi 31 juillet 2014 10:59 *à :* Pharo Development List *Cc :* Moose-related development
*Objet :* Re: [Pharo-dev] Pharo image corruption and fatal VM error with Roassal
This may be related to this known issue reported a few days back.
https://code.google.com/p/moose-technology/issues/detail?id=1084
And there is a possible solution to recover your image.
usman
On Thu, Jul 31, 2014 at 10:50 AM, Blondeau Vincent < vincent.blondeau@worldline.com> wrote:
Hi,
Yesterday, I was using GraphET (a part of Roassal) to do some charts and, today, when I wanted to reopen the image.
And I got that :
It is **very** unpleasantâ¦
To reproduce the bug:
1 - You can do either:
| builder |
builder := GET2Line data: (0 to: 100) .
builder
y: [ :x | x*x ].
builder open.
Or
WorldMenu -> Roassal examples -> choose an item -> click on a graph . A TRMorph should be opened.
2 - donât close the graph and save the pharo image.
3 â Close the pharo image
4 - Reopen it
I am under W7 x64 with the latest moose image and the VM available on the pharo.org website (http://files.pharo.org/platform/Pharo3.0-win.zip) from the 10 july.
You will find the crash dump attached.
Thankfully, I managed to open the image with a latest VM ( http://www.mirandabanda.org/files/Cog/VM/VM.r3056/cogwin-14.29.3056.zip).
Thanks a lot Eliot ! :)
And I got this:
Thanks in advance
Cheers,
Vincent BLONDEAU
------------------------------
Ce message et les pièces jointes sont confidentiels et réservés à l'usage exclusif de ses destinataires. Il peut également être protégé par le secret professionnel. Si vous recevez ce message par erreur, merci d'en avertir immédiatement l'expéditeur et de le détruire. L'intégrité du message ne pouvant être assurée sur Internet, la responsabilité de Worldline ne pourra être recherchée quant au contenu de ce message. Bien que les meilleurs efforts soient faits pour maintenir cette transmission exempte de tout virus, l'expéditeur ne donne aucune garantie à cet égard et sa responsabilité ne saurait être recherchée pour tout dommage résultant d'un virus transmis.
This e-mail and the documents attached are confidential and intended solely for the addressee; it may also be privileged. If you receive this e-mail in error, please notify the sender immediately and destroy it. As its integrity cannot be secured on the Internet, the Worldline liability cannot be triggered for the message content. Although the sender endeavours to maintain a computer virus-free network, the sender does not warrant that this transmission is virus-free and will not be liable for any damages resulting from any virus transmitted.
------------------------------
Ce message et les pièces jointes sont confidentiels et réservés à l'usage exclusif de ses destinataires. Il peut également être protégé par le secret professionnel. Si vous recevez ce message par erreur, merci d'en avertir immédiatement l'expéditeur et de le détruire. L'intégrité du message ne pouvant être assurée sur Internet, la responsabilité de Worldline ne pourra être recherchée quant au contenu de ce message. Bien que les meilleurs efforts soient faits pour maintenir cette transmission exempte de tout virus, l'expéditeur ne donne aucune garantie à cet égard et sa responsabilité ne saurait être recherchée pour tout dommage résultant d'un virus transmis.
This e-mail and the documents attached are confidential and intended solely for the addressee; it may also be privileged. If you receive this e-mail in error, please notify the sender immediately and destroy it. As its integrity cannot be secured on the Internet, the Worldline liability cannot be triggered for the message content. Although the sender endeavours to maintain a computer virus-free network, the sender does not warrant that this transmission is virus-free and will not be liable for any damages resulting from any virus transmitted.
Yes, and this is a mess. Iâve spent quite some time in getting the session working with Roassal2 and it still does not work. I would appreciate help on this. Alexandre On Jul 31, 2014, at 8:58 AM, Nicolai Hess <nicolaihess@web.de> wrote:
It looks like Trachel does not recreate athens external resources. There is an example in AthensSceneView, on how to check and reload an AthensSurface.
2014-07-31 12:51 GMT+02:00 Usman Bhatti <usman.bhatti@gmail.com>:
On Thu, Jul 31, 2014 at 11:17 AM, Blondeau Vincent <vincent.blondeau@worldline.com> wrote: Yes it is. But I will not do
TRMorph allInstances do: #delete
In command line every dayâ¦
It is only intended to recover your lost work in the image not for everyday use :).
Vincent
De : Pharo-dev [mailto:pharo-dev-bounces@lists.pharo.org] De la part de Usman Bhatti Envoyé : jeudi 31 juillet 2014 10:59 à : Pharo Development List Cc : Moose-related development
Objet : Re: [Pharo-dev] Pharo image corruption and fatal VM error with Roassal
This may be related to this known issue reported a few days back.
https://code.google.com/p/moose-technology/issues/detail?id=1084
And there is a possible solution to recover your image.
usman
On Thu, Jul 31, 2014 at 10:50 AM, Blondeau Vincent <vincent.blondeau@worldline.com> wrote:
Hi,
Yesterday, I was using GraphET (a part of Roassal) to do some charts and, today, when I wanted to reopen the image.

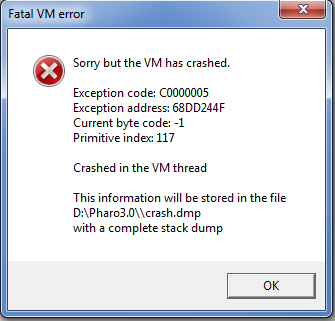

And I got that :
<image001.png>
It is *very* unpleasantâ¦
To reproduce the bug:
1 - You can do either:
| builder |
builder := GET2Line data: (0 to: 100) .
builder
y: [ :x | x*x ].
builder open.
Or
WorldMenu -> Roassal examples -> choose an item -> click on a graph . A TRMorph should be opened.
2 - donât close the graph and save the pharo image.
3 â Close the pharo image
4 - Reopen it
I am under W7 x64 with the latest moose image and the VM available on the pharo.org website (http://files.pharo.org/platform/Pharo3.0-win.zip) from the 10 july.
You will find the crash dump attached.
Thankfully, I managed to open the image with a latest VM (http://www.mirandabanda.org/files/Cog/VM/VM.r3056/cogwin-14.29.3056.zip).
Thanks a lot Eliot ! :)

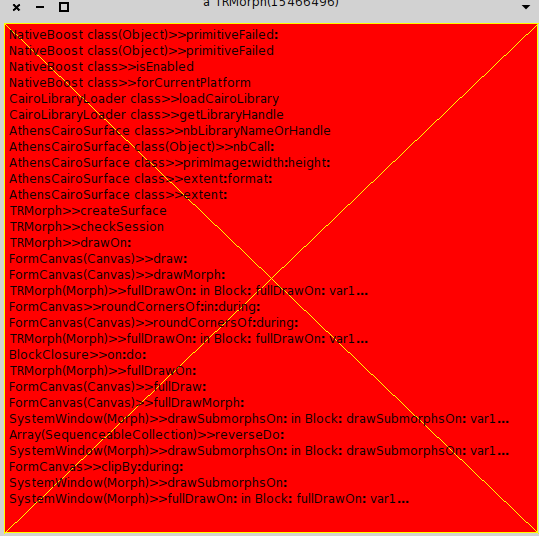

And I got this:
<image002.png>
Thanks in advance
Cheers,
Vincent BLONDEAU
Ce message et les pièces jointes sont confidentiels et réservés à l'usage exclusif de ses destinataires. Il peut également être protégé par le secret professionnel. Si vous recevez ce message par erreur, merci d'en avertir immédiatement l'expéditeur et de le détruire. L'intégrité du message ne pouvant être assurée sur Internet, la responsabilité de Worldline ne pourra être recherchée quant au contenu de ce message. Bien que les meilleurs efforts soient faits pour maintenir cette transmission exempte de tout virus, l'expéditeur ne donne aucune garantie à cet égard et sa responsabilité ne saurait être recherchée pour tout dommage résultant d'un virus transmis.
This e-mail and the documents attached are confidential and intended solely for the addressee; it may also be privileged. If you receive this e-mail in error, please notify the sender immediately and destroy it. As its integrity cannot be secured on the Internet, the Worldline liability cannot be triggered for the message content. Although the sender endeavours to maintain a computer virus-free network, the sender does not warrant that this transmission is virus-free and will not be liable for any damages resulting from any virus transmitted.
Ce message et les pièces jointes sont confidentiels et réservés à l'usage exclusif de ses destinataires. Il peut également être protégé par le secret professionnel. Si vous recevez ce message par erreur, merci d'en avertir immédiatement l'expéditeur et de le détruire. L'intégrité du message ne pouvant être assurée sur Internet, la responsabilité de Worldline ne pourra être recherchée quant au contenu de ce message. Bien que les meilleurs efforts soient faits pour maintenir cette transmission exempte de tout virus, l'expéditeur ne donne aucune garantie à cet égard et sa responsabilité ne saurait être recherchée pour tout dommage résultant d'un virus transmis.
This e-mail and the documents attached are confidential and intended solely for the addressee; it may also be privileged. If you receive this e-mail in error, please notify the sender immediately and destroy it. As its integrity cannot be secured on the Internet, the Worldline liability cannot be triggered for the message content. Although the sender endeavours to maintain a computer virus-free network, the sender does not warrant that this transmission is virus-free and will not be liable for any damages resulting from any virus transmitted.
_______________________________________________ Moose-dev mailing list Moose-dev@iam.unibe.ch https://www.iam.unibe.ch/mailman/listinfo/moose-dev
-- _,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;: Alexandre Bergel http://www.bergel.eu ^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;.
The recipe is simple: isolate the code in your application in a way that if certain feature not available (line nativeboost), it won't put your image into endless exception throwing loop. On 31 July 2014 16:09, Alexandre Bergel <alexandre.bergel@me.com> wrote:
Yes, and this is a mess. Iâve spent quite some time in getting the session working with Roassal2 and it still does not work. I would appreciate help on this.
Alexandre
On Jul 31, 2014, at 8:58 AM, Nicolai Hess <nicolaihess@web.de> wrote:
It looks like Trachel does not recreate athens external resources. There is an example in AthensSceneView, on how to check and reload an AthensSurface.
2014-07-31 12:51 GMT+02:00 Usman Bhatti <usman.bhatti@gmail.com>:
On Thu, Jul 31, 2014 at 11:17 AM, Blondeau Vincent < vincent.blondeau@worldline.com> wrote: Yes it is. But I will not do
TRMorph allInstances do: #delete
In command line every dayâ¦
It is only intended to recover your lost work in the image not for everyday use :).
Vincent
De : Pharo-dev [mailto:pharo-dev-bounces@lists.pharo.org] De la part de Usman Bhatti Envoyé : jeudi 31 juillet 2014 10:59 à : Pharo Development List Cc : Moose-related development
Objet : Re: [Pharo-dev] Pharo image corruption and fatal VM error with Roassal
This may be related to this known issue reported a few days back.
https://code.google.com/p/moose-technology/issues/detail?id=1084
And there is a possible solution to recover your image.
usman
On Thu, Jul 31, 2014 at 10:50 AM, Blondeau Vincent < vincent.blondeau@worldline.com> wrote:
Hi,
Yesterday, I was using GraphET (a part of Roassal) to do some charts and, today, when I wanted to reopen the image.
And I got that :
<image001.png>
It is *very* unpleasantâ¦
To reproduce the bug:
1 - You can do either:
| builder |
builder := GET2Line data: (0 to: 100) .
builder
y: [ :x | x*x ].
builder open.
Or
WorldMenu -> Roassal examples -> choose an item -> click on a graph . A TRMorph should be opened.
2 - donât close the graph and save the pharo image.
3 â Close the pharo image
4 - Reopen it
I am under W7 x64 with the latest moose image and the VM available on the pharo.org website (http://files.pharo.org/platform/Pharo3.0-win.zip) from the 10 july.
You will find the crash dump attached.
Thankfully, I managed to open the image with a latest VM ( http://www.mirandabanda.org/files/Cog/VM/VM.r3056/cogwin-14.29.3056.zip).
Thanks a lot Eliot ! :)
And I got this:
<image002.png>
Thanks in advance
Cheers,
Vincent BLONDEAU
Ce message et les pièces jointes sont confidentiels et réservés à l'usage exclusif de ses destinataires. Il peut également être protégé par le secret professionnel. Si vous recevez ce message par erreur, merci d'en avertir immédiatement l'expéditeur et de le détruire. L'intégrité du message ne pouvant être assurée sur Internet, la responsabilité de Worldline ne pourra être recherchée quant au contenu de ce message. Bien que les meilleurs efforts soient faits pour maintenir cette transmission exempte de tout virus, l'expéditeur ne donne aucune garantie à cet égard et sa responsabilité ne saurait être recherchée pour tout dommage résultant d'un virus transmis.
This e-mail and the documents attached are confidential and intended solely for the addressee; it may also be privileged. If you receive this e-mail in error, please notify the sender immediately and destroy it. As its integrity cannot be secured on the Internet, the Worldline liability cannot be triggered for the message content. Although the sender endeavours to maintain a computer virus-free network, the sender does not warrant that this transmission is virus-free and will not be liable for any damages resulting from any virus transmitted.
Ce message et les pièces jointes sont confidentiels et réservés à l'usage exclusif de ses destinataires. Il peut également être protégé par le secret professionnel. Si vous recevez ce message par erreur, merci d'en avertir immédiatement l'expéditeur et de le détruire. L'intégrité du message ne pouvant être assurée sur Internet, la responsabilité de Worldline ne pourra être recherchée quant au contenu de ce message. Bien que les meilleurs efforts soient faits pour maintenir cette transmission exempte de tout virus, l'expéditeur ne donne aucune garantie à cet égard et sa responsabilité ne saurait être recherchée pour tout dommage résultant d'un virus transmis.
This e-mail and the documents attached are confidential and intended solely for the addressee; it may also be privileged. If you receive this e-mail in error, please notify the sender immediately and destroy it. As its integrity cannot be secured on the Internet, the Worldline liability cannot be triggered for the message content. Although the sender endeavours to maintain a computer virus-free network, the sender does not warrant that this transmission is virus-free and will not be liable for any damages resulting from any virus transmitted.
_______________________________________________ Moose-dev mailing list Moose-dev@iam.unibe.ch https://www.iam.unibe.ch/mailman/listinfo/moose-dev
-- _,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;: Alexandre Bergel http://www.bergel.eu ^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;.
-- Best regards, Igor Stasenko.
Is is not that easy :) TRMorph already checks for a new session. TRCanvas not, but could be done the same way - maybe. It is difficult as TRCanvas are shared by different objects. And it is more difficult for TRShape. I know Igors argument against a session management in Athens for recreating cairo resources on image start up. It is not the job of Athens. But it is a bit different for resources created through Athens core api. How can the user (TRShape for example) know, that a path created by an Athens surface referes to an external resource? The attached changeset implements a simple check for TRCanvas and resets paths if the canvas changes. This solves the crash on image start up.But it is not a good solution. 2014-07-31 16:23 GMT+02:00 Igor Stasenko <siguctua@gmail.com>:
The recipe is simple: isolate the code in your application in a way that if certain feature not available (line nativeboost), it won't put your image into endless exception throwing loop.
That's another story. The projects I have seen, using athens, do this with an explicit use on AthensCairoSurface. Is there already a way to instantiate an AthensSurface depending on the available libraries? And AthensBalloon and AthensCairo don't differ only in rendering quality, so there is no real fallback option.
On 31 July 2014 16:09, Alexandre Bergel <alexandre.bergel@me.com> wrote:
Yes, and this is a mess. Iâve spent quite some time in getting the session working with Roassal2 and it still does not work. I would appreciate help on this.
Alexandre
On Jul 31, 2014, at 8:58 AM, Nicolai Hess <nicolaihess@web.de> wrote:
It looks like Trachel does not recreate athens external resources. There is an example in AthensSceneView, on how to check and reload an AthensSurface.
2014-07-31 12:51 GMT+02:00 Usman Bhatti <usman.bhatti@gmail.com>:
On Thu, Jul 31, 2014 at 11:17 AM, Blondeau Vincent < vincent.blondeau@worldline.com> wrote: Yes it is. But I will not do
TRMorph allInstances do: #delete
In command line every dayâ¦
It is only intended to recover your lost work in the image not for everyday use :).
Vincent
De : Pharo-dev [mailto:pharo-dev-bounces@lists.pharo.org] De la part de Usman Bhatti Envoyé : jeudi 31 juillet 2014 10:59 à : Pharo Development List Cc : Moose-related development
Objet : Re: [Pharo-dev] Pharo image corruption and fatal VM error with Roassal
This may be related to this known issue reported a few days back.
https://code.google.com/p/moose-technology/issues/detail?id=1084
And there is a possible solution to recover your image.
usman
On Thu, Jul 31, 2014 at 10:50 AM, Blondeau Vincent < vincent.blondeau@worldline.com> wrote:
Hi,
Yesterday, I was using GraphET (a part of Roassal) to do some charts and, today, when I wanted to reopen the image.
And I got that :
<image001.png>
It is *very* unpleasantâ¦
To reproduce the bug:
1 - You can do either:
| builder |
builder := GET2Line data: (0 to: 100) .
builder
y: [ :x | x*x ].
builder open.
Or
WorldMenu -> Roassal examples -> choose an item -> click on a graph . A TRMorph should be opened.
2 - donât close the graph and save the pharo image.
3 â Close the pharo image
4 - Reopen it
I am under W7 x64 with the latest moose image and the VM available on the pharo.org website (http://files.pharo.org/platform/Pharo3.0-win.zip) from the 10 july.
You will find the crash dump attached.
Thankfully, I managed to open the image with a latest VM ( http://www.mirandabanda.org/files/Cog/VM/VM.r3056/cogwin-14.29.3056.zip).
Thanks a lot Eliot ! :)
And I got this:
<image002.png>
Thanks in advance
Cheers,
Vincent BLONDEAU
Ce message et les pièces jointes sont confidentiels et réservés à l'usage exclusif de ses destinataires. Il peut également être protégé par le secret professionnel. Si vous recevez ce message par erreur, merci d'en avertir immédiatement l'expéditeur et de le détruire. L'intégrité du message ne pouvant être assurée sur Internet, la responsabilité de Worldline ne pourra être recherchée quant au contenu de ce message. Bien que les meilleurs efforts soient faits pour maintenir cette transmission exempte de tout virus, l'expéditeur ne donne aucune garantie à cet égard et sa responsabilité ne saurait être recherchée pour tout dommage résultant d'un virus transmis.
This e-mail and the documents attached are confidential and intended solely for the addressee; it may also be privileged. If you receive this e-mail in error, please notify the sender immediately and destroy it. As its integrity cannot be secured on the Internet, the Worldline liability cannot be triggered for the message content. Although the sender endeavours to maintain a computer virus-free network, the sender does not warrant that this transmission is virus-free and will not be liable for any damages resulting from any virus transmitted.
Ce message et les pièces jointes sont confidentiels et réservés à l'usage exclusif de ses destinataires. Il peut également être protégé par le secret professionnel. Si vous recevez ce message par erreur, merci d'en avertir immédiatement l'expéditeur et de le détruire. L'intégrité du message ne pouvant être assurée sur Internet, la responsabilité de Worldline ne pourra être recherchée quant au contenu de ce message. Bien que les meilleurs efforts soient faits pour maintenir cette transmission exempte de tout virus, l'expéditeur ne donne aucune garantie à cet égard et sa responsabilité ne saurait être recherchée pour tout dommage résultant d'un virus transmis.
This e-mail and the documents attached are confidential and intended solely for the addressee; it may also be privileged. If you receive this e-mail in error, please notify the sender immediately and destroy it. As its integrity cannot be secured on the Internet, the Worldline liability cannot be triggered for the message content. Although the sender endeavours to maintain a computer virus-free network, the sender does not warrant that this transmission is virus-free and will not be liable for any damages resulting from any virus transmitted.
_______________________________________________ Moose-dev mailing list Moose-dev@iam.unibe.ch https://www.iam.unibe.ch/mailman/listinfo/moose-dev
-- _,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;: Alexandre Bergel http://www.bergel.eu ^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;.
-- Best regards, Igor Stasenko.
Oh⦠We should not only check the session for the surface? Wow⦠this is rather heavy then... Alexandre On Jul 31, 2014, at 5:03 PM, Nicolai Hess <nicolaihess@web.de> wrote:
Is is not that easy :) TRMorph already checks for a new session. TRCanvas not, but could be done the same way - maybe. It is difficult as TRCanvas are shared by different objects. And it is more difficult for TRShape.
I know Igors argument against a session management in Athens for recreating cairo resources on image start up. It is not the job of Athens.
But it is a bit different for resources created through Athens core api. How can the user (TRShape for example) know, that a path created by an Athens surface referes to an external resource?
The attached changeset implements a simple check for TRCanvas and resets paths if the canvas changes. This solves the crash on image start up.But it is not a good solution.
2014-07-31 16:23 GMT+02:00 Igor Stasenko <siguctua@gmail.com>: The recipe is simple: isolate the code in your application in a way that if certain feature not available (line nativeboost), it won't put your image into endless exception throwing loop.
That's another story. The projects I have seen, using athens, do this with an explicit use on AthensCairoSurface. Is there already a way to instantiate an AthensSurface depending on the available libraries? And AthensBalloon and AthensCairo don't differ only in rendering quality, so there is no real fallback option.
On 31 July 2014 16:09, Alexandre Bergel <alexandre.bergel@me.com> wrote: Yes, and this is a mess. Iâve spent quite some time in getting the session working with Roassal2 and it still does not work. I would appreciate help on this.
Alexandre
On Jul 31, 2014, at 8:58 AM, Nicolai Hess <nicolaihess@web.de> wrote:
It looks like Trachel does not recreate athens external resources. There is an example in AthensSceneView, on how to check and reload an AthensSurface.
2014-07-31 12:51 GMT+02:00 Usman Bhatti <usman.bhatti@gmail.com>:
On Thu, Jul 31, 2014 at 11:17 AM, Blondeau Vincent <vincent.blondeau@worldline.com> wrote: Yes it is. But I will not do
TRMorph allInstances do: #delete
In command line every dayâ¦
It is only intended to recover your lost work in the image not for everyday use :).
Vincent
De : Pharo-dev [mailto:pharo-dev-bounces@lists.pharo.org] De la part de Usman Bhatti Envoyé : jeudi 31 juillet 2014 10:59 à : Pharo Development List Cc : Moose-related development
Objet : Re: [Pharo-dev] Pharo image corruption and fatal VM error with Roassal
This may be related to this known issue reported a few days back.
https://code.google.com/p/moose-technology/issues/detail?id=1084
And there is a possible solution to recover your image.
usman
On Thu, Jul 31, 2014 at 10:50 AM, Blondeau Vincent <vincent.blondeau@worldline.com> wrote:
Hi,
Yesterday, I was using GraphET (a part of Roassal) to do some charts and, today, when I wanted to reopen the image.
And I got that :
<image001.png>
It is *very* unpleasantâ¦
To reproduce the bug:
1 - You can do either:
| builder |
builder := GET2Line data: (0 to: 100) .
builder
y: [ :x | x*x ].
builder open.
Or
WorldMenu -> Roassal examples -> choose an item -> click on a graph . A TRMorph should be opened.
2 - donât close the graph and save the pharo image.
3 â Close the pharo image
4 - Reopen it
I am under W7 x64 with the latest moose image and the VM available on the pharo.org website (http://files.pharo.org/platform/Pharo3.0-win.zip) from the 10 july.
You will find the crash dump attached.
Thankfully, I managed to open the image with a latest VM (http://www.mirandabanda.org/files/Cog/VM/VM.r3056/cogwin-14.29.3056.zip).
Thanks a lot Eliot ! :)
And I got this:
<image002.png>
Thanks in advance
Cheers,
Vincent BLONDEAU
Ce message et les pièces jointes sont confidentiels et réservés à l'usage exclusif de ses destinataires. Il peut également être protégé par le secret professionnel. Si vous recevez ce message par erreur, merci d'en avertir immédiatement l'expéditeur et de le détruire. L'intégrité du message ne pouvant être assurée sur Internet, la responsabilité de Worldline ne pourra être recherchée quant au contenu de ce message. Bien que les meilleurs efforts soient faits pour maintenir cette transmission exempte de tout virus, l'expéditeur ne donne aucune garantie à cet égard et sa responsabilité ne saurait être recherchée pour tout dommage résultant d'un virus transmis.
This e-mail and the documents attached are confidential and intended solely for the addressee; it may also be privileged. If you receive this e-mail in error, please notify the sender immediately and destroy it. As its integrity cannot be secured on the Internet, the Worldline liability cannot be triggered for the message content. Although the sender endeavours to maintain a computer virus-free network, the sender does not warrant that this transmission is virus-free and will not be liable for any damages resulting from any virus transmitted.
Ce message et les pièces jointes sont confidentiels et réservés à l'usage exclusif de ses destinataires. Il peut également être protégé par le secret professionnel. Si vous recevez ce message par erreur, merci d'en avertir immédiatement l'expéditeur et de le détruire. L'intégrité du message ne pouvant être assurée sur Internet, la responsabilité de Worldline ne pourra être recherchée quant au contenu de ce message. Bien que les meilleurs efforts soient faits pour maintenir cette transmission exempte de tout virus, l'expéditeur ne donne aucune garantie à cet égard et sa responsabilité ne saurait être recherchée pour tout dommage résultant d'un virus transmis.
This e-mail and the documents attached are confidential and intended solely for the addressee; it may also be privileged. If you receive this e-mail in error, please notify the sender immediately and destroy it. As its integrity cannot be secured on the Internet, the Worldline liability cannot be triggered for the message content. Although the sender endeavours to maintain a computer virus-free network, the sender does not warrant that this transmission is virus-free and will not be liable for any damages resulting from any virus transmitted.
_______________________________________________ Moose-dev mailing list Moose-dev@iam.unibe.ch https://www.iam.unibe.ch/mailman/listinfo/moose-dev
-- _,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;: Alexandre Bergel http://www.bergel.eu ^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;.
-- Best regards, Igor Stasenko.
<fix_trachel_athens_session.cs>_______________________________________________ Moose-dev mailing list Moose-dev@iam.unibe.ch https://www.iam.unibe.ch/mailman/listinfo/moose-dev
-- _,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;: Alexandre Bergel http://www.bergel.eu ^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;.
On Jul 31, 2014 11:03 PM, "Nicolai Hess" <nicolaihess@web.de> wrote:
Is is not that easy :) TRMorph already checks for a new session. TRCanvas not, but could be done the same way - maybe. It is difficult as
TRCanvas are shared by different objects.
And it is more difficult for TRShape.
I know Igors argument against a session management in Athens for recreating cairo resources on image start up. It is not the job of Athens.
Maybe session management should be implemented by the cairo binding (or an abstraction on top of it, that is then used by athens). This way we don't clutter Athens with such low level stuff, and we offer the user a high-level usable cairo binding, which can be also used outside athens. Cheers, Ciprian
But it is a bit different for resources created through Athens core api. How can the user (TRShape for example) know, that a path created by an Athens surface referes to an external resource?
The attached changeset implements a simple check for TRCanvas and resets paths if the canvas changes. This solves the crash on image start up.But it is not a good solution.
2014-07-31 16:23 GMT+02:00 Igor Stasenko <siguctua@gmail.com>:
The recipe is simple: isolate the code in your application in a way that
if certain feature not available (line nativeboost), it won't put your image into endless exception throwing loop.
That's another story. The projects I have seen, using athens, do this with an explicit use on AthensCairoSurface. Is there already a way to instantiate an AthensSurface depending on the available libraries? And AthensBalloon and AthensCairo don't differ only in rendering quality, so there is no real fallback option.
On 31 July 2014 16:09, Alexandre Bergel <alexandre.bergel@me.com> wrote:
Yes, and this is a mess. Iâve spent quite some time in getting the session working with Roassal2
and it still does not work. I would appreciate help on this.
Alexandre
On Jul 31, 2014, at 8:58 AM, Nicolai Hess <nicolaihess@web.de> wrote:
It looks like Trachel does not recreate athens external resources. There is an example in AthensSceneView, on how to check and reload an AthensSurface.
2014-07-31 12:51 GMT+02:00 Usman Bhatti <usman.bhatti@gmail.com>:
On Thu, Jul 31, 2014 at 11:17 AM, Blondeau Vincent <
vincent.blondeau@worldline.com> wrote:
Yes it is. But I will not do
TRMorph allInstances do: #delete
In command line every dayâ¦
It is only intended to recover your lost work in the image not for everyday use :).
Vincent
De : Pharo-dev [mailto:pharo-dev-bounces@lists.pharo.org] De la part de Usman Bhatti Envoyé : jeudi 31 juillet 2014 10:59 à : Pharo Development List Cc : Moose-related development
Objet : Re: [Pharo-dev] Pharo image corruption and fatal VM error with Roassal
This may be related to this known issue reported a few days back.
https://code.google.com/p/moose-technology/issues/detail?id=1084
And there is a possible solution to recover your image.
usman
On Thu, Jul 31, 2014 at 10:50 AM, Blondeau Vincent < vincent.blondeau@worldline.com> wrote:
Hi,
Yesterday, I was using GraphET (a part of Roassal) to do some charts and, today, when I wanted to reopen the image.
And I got that :
<image001.png>
It is *very* unpleasantâ¦
To reproduce the bug:
1 - You can do either:
| builder |
builder := GET2Line data: (0 to: 100) .
builder
y: [ :x | x*x ].
builder open.
Or
WorldMenu -> Roassal examples -> choose an item -> click on a graph . A TRMorph should be opened.
2 - donât close the graph and save the pharo image.
3 â Close the pharo image
4 - Reopen it
I am under W7 x64 with the latest moose image and the VM available on the pharo.org website (http://files.pharo.org/platform/Pharo3.0-win.zip) from the 10 july.
You will find the crash dump attached.
Thankfully, I managed to open the image with a latest VM ( http://www.mirandabanda.org/files/Cog/VM/VM.r3056/cogwin-14.29.3056.zip).
Thanks a lot Eliot ! :)
And I got this:
<image002.png>
Thanks in advance
Cheers,
Vincent BLONDEAU
Ce message et les pièces jointes sont confidentiels et réservés à l'usage exclusif de ses destinataires. Il peut également être protégé par le secret professionnel. Si vous recevez ce message par erreur, merci d'en avertir immédiatement l'expéditeur et de le détruire. L'intégrité du message ne pouvant être assurée sur Internet, la responsabilité de Worldline ne pourra être recherchée quant au contenu de ce message. Bien que les meilleurs efforts soient faits pour maintenir cette transmission exempte de tout virus, l'expéditeur ne donne aucune garantie à cet égard et sa responsabilité ne saurait être recherchée pour tout dommage résultant d'un virus transmis.
This e-mail and the documents attached are confidential and intended solely for the addressee; it may also be privileged. If you receive this e-mail in error, please notify the sender immediately and destroy it. As its integrity cannot be secured on the Internet, the Worldline liability cannot be triggered for the message content. Although the sender endeavours to maintain a computer virus-free network, the sender does not warrant that this transmission is virus-free and will not be liable for any damages resulting from any virus transmitted.
Ce message et les pièces jointes sont confidentiels et réservés à l'usage exclusif de ses destinataires. Il peut également être protégé par le secret professionnel. Si vous recevez ce message par erreur, merci d'en avertir immédiatement l'expéditeur et de le détruire. L'intégrité du message ne pouvant être assurée sur Internet, la responsabilité de Worldline ne pourra être recherchée quant au contenu de ce message. Bien que les meilleurs efforts soient faits pour maintenir cette transmission exempte de tout virus, l'expéditeur ne donne aucune garantie à cet égard et sa responsabilité ne saurait être recherchée pour tout dommage résultant d'un virus transmis.
This e-mail and the documents attached are confidential and intended solely for the addressee; it may also be privileged. If you receive this e-mail in error, please notify the sender immediately and destroy it. As its integrity cannot be secured on the Internet, the Worldline liability cannot be triggered for the message content. Although the sender endeavours to maintain a computer virus-free network, the sender does not warrant that this transmission is virus-free and will not be liable for any damages resulting from any virus transmitted.
_______________________________________________ Moose-dev mailing list Moose-dev@iam.unibe.ch https://www.iam.unibe.ch/mailman/listinfo/moose-dev
-- _,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;: Alexandre Bergel http://www.bergel.eu ^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;.
-- Best regards, Igor Stasenko.
On Thu, Jul 31, 2014 at 8:56 PM, Ciprian Teodorov < ciprian.teodorov@gmail.com> wrote:
On Jul 31, 2014 11:03 PM, "Nicolai Hess" <nicolaihess@web.de> wrote:
Is is not that easy :) TRMorph already checks for a new session. TRCanvas not, but could be done the same way - maybe. It is difficult as
TRCanvas are shared by different objects.
And it is more difficult for TRShape.
I know Igors argument against a session management in Athens for recreating cairo resources on image start up. It is not the job of Athens.
Maybe session management should be implemented by the cairo binding (or an abstraction on top of it, that is then used by athens). This way we don't clutter Athens with such low level stuff, and we offer the user a high-level usable cairo binding, which can be also used outside athens.
+1. In other analogous situations (e.g. the VisualWorks FFI, external font references, etc) it is the layer that creates those external resources that has the job of voiding them on startup. It's an approach that works well in practice. Cheers,
Ciprian
But it is a bit different for resources created through Athens core api. How can the user (TRShape for example) know, that a path created by an Athens surface referes to an external resource?
The attached changeset implements a simple check for TRCanvas and resets paths if the canvas changes. This solves the crash on image start up.But it is not a good solution.
2014-07-31 16:23 GMT+02:00 Igor Stasenko <siguctua@gmail.com>:
The recipe is simple: isolate the code in your application in a way
That's another story. The projects I have seen, using athens, do this with an explicit use on AthensCairoSurface. Is there already a way to instantiate an AthensSurface depending on the available libraries? And AthensBalloon and AthensCairo don't differ only in rendering quality, so there is no real fallback option.
On 31 July 2014 16:09, Alexandre Bergel <alexandre.bergel@me.com>
wrote:
Yes, and this is a mess. Iâve spent quite some time in getting the session working with
Roassal2 and it still does not work. I would appreciate help on this.
Alexandre
On Jul 31, 2014, at 8:58 AM, Nicolai Hess <nicolaihess@web.de> wrote:
It looks like Trachel does not recreate athens external resources. There is an example in AthensSceneView, on how to check and reload an AthensSurface.
2014-07-31 12:51 GMT+02:00 Usman Bhatti <usman.bhatti@gmail.com>:
On Thu, Jul 31, 2014 at 11:17 AM, Blondeau Vincent <
vincent.blondeau@worldline.com> wrote:
Yes it is. But I will not do
TRMorph allInstances do: #delete
In command line every dayâ¦
It is only intended to recover your lost work in the image not for everyday use :).
Vincent
De : Pharo-dev [mailto:pharo-dev-bounces@lists.pharo.org] De la part de Usman Bhatti Envoyé : jeudi 31 juillet 2014 10:59 à : Pharo Development List Cc : Moose-related development
Objet : Re: [Pharo-dev] Pharo image corruption and fatal VM error with Roassal
This may be related to this known issue reported a few days back.
https://code.google.com/p/moose-technology/issues/detail?id=1084
And there is a possible solution to recover your image.
usman
On Thu, Jul 31, 2014 at 10:50 AM, Blondeau Vincent < vincent.blondeau@worldline.com> wrote:
Hi,
Yesterday, I was using GraphET (a part of Roassal) to do some charts and, today, when I wanted to reopen the image.
And I got that :
<image001.png>
It is *very* unpleasantâ¦
To reproduce the bug:
1 - You can do either:
| builder |
builder := GET2Line data: (0 to:
that if certain feature not available (line nativeboost), it won't put your image into endless exception throwing loop. 100) .
builder
y: [ :x | x*x ].
builder open.
Or
WorldMenu -> Roassal examples -> choose an item -> click on a graph
. A TRMorph should be opened.
2 - donât close the graph and save the pharo image.
3 â Close the pharo image
4 - Reopen it
I am under W7 x64 with the latest moose image and the VM available
on the pharo.org website (http://files.pharo.org/platform/Pharo3.0-win.zip) from the 10 july.
You will find the crash dump attached.
Thankfully, I managed to open the image with a latest VM (
http://www.mirandabanda.org/files/Cog/VM/VM.r3056/cogwin-14.29.3056.zip).
Thanks a lot Eliot ! :)
And I got this:
<image002.png>
Thanks in advance
Cheers,
Vincent BLONDEAU
Ce message et les pièces jointes sont confidentiels et réservés Ã
l'usage exclusif de ses destinataires. Il peut également être protégé par le secret professionnel. Si vous recevez ce message par erreur, merci d'en avertir immédiatement l'expéditeur et de le détruire. L'intégrité du message ne pouvant être assurée sur Internet, la responsabilité de Worldline ne pourra être recherchée quant au contenu de ce message. Bien que les meilleurs efforts soient faits pour maintenir cette transmission exempte de tout virus, l'expéditeur ne donne aucune garantie à cet égard et sa responsabilité ne saurait être recherchée pour tout dommage résultant d'un virus transmis.
This e-mail and the documents attached are confidential and intended
solely for the addressee; it may also be privileged. If you receive this e-mail in error, please notify the sender immediately and destroy it. As its integrity cannot be secured on the Internet, the Worldline liability cannot be triggered for the message content. Although the sender endeavours to maintain a computer virus-free network, the sender does not warrant that this transmission is virus-free and will not be liable for any damages resulting from any virus transmitted.
Ce message et les pièces jointes sont confidentiels et réservés Ã
l'usage exclusif de ses destinataires. Il peut également être protégé par le secret professionnel. Si vous recevez ce message par erreur, merci d'en avertir immédiatement l'expéditeur et de le détruire. L'intégrité du message ne pouvant être assurée sur Internet, la responsabilité de Worldline ne pourra être recherchée quant au contenu de ce message. Bien que les meilleurs efforts soient faits pour maintenir cette transmission exempte de tout virus, l'expéditeur ne donne aucune garantie à cet égard et sa responsabilité ne saurait être recherchée pour tout dommage résultant d'un virus transmis.
This e-mail and the documents attached are confidential and intended
solely for the addressee; it may also be privileged. If you receive this e-mail in error, please notify the sender immediately and destroy it. As its integrity cannot be secured on the Internet, the Worldline liability cannot be triggered for the message content. Although the sender endeavours to maintain a computer virus-free network, the sender does not warrant that this transmission is virus-free and will not be liable for any damages resulting from any virus transmitted.
_______________________________________________ Moose-dev mailing list Moose-dev@iam.unibe.ch https://www.iam.unibe.ch/mailman/listinfo/moose-dev
-- _,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;: Alexandre Bergel http://www.bergel.eu ^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;.
-- Best regards, Igor Stasenko.
-- best, Eliot
On 1/8/14 08:56, Ciprian Teodorov wrote:
On Jul 31, 2014 11:03 PM, "Nicolai Hess" <nicolaihess@web.de <mailto:nicolaihess@web.de>> wrote:
Is is not that easy :) TRMorph already checks for a new session. TRCanvas not, but could be done the same way - maybe. It is
difficult as TRCanvas are shared by different objects.
And it is more difficult for TRShape.
I know Igors argument against a session management in Athens for recreating cairo resources on image start up. It is not the job of Athens.
Maybe session management should be implemented by the cairo binding (or an abstraction on top of it, that is then used by athens).
It will when the system will be fully athens based. Now each client should handle it his way.
This way we don't clutter Athens with such low level stuff, and we offer the user a high-level usable cairo binding, which can be also used outside athens.
Cheers, Ciprian
But it is a bit different for resources created through Athens core api. How can the user (TRShape for example) know, that a path created by an Athens surface referes to an external resource?
The attached changeset implements a simple check for TRCanvas and resets paths if the canvas changes. This solves the crash on image start up.But it is not a good solution.
2014-07-31 16:23 GMT+02:00 Igor Stasenko <siguctua@gmail.com
<mailto:siguctua@gmail.com>>:
The recipe is simple: isolate the code in your application in a way
That's another story. The projects I have seen, using athens, do this with an explicit use on AthensCairoSurface. Is there already a way to instantiate an AthensSurface depending on the available libraries? And AthensBalloon and AthensCairo don't differ only in rendering quality, so there is no real fallback option.
On 31 July 2014 16:09, Alexandre Bergel <alexandre.bergel@me.com
<mailto:alexandre.bergel@me.com>> wrote:
Yes, and this is a mess. Iâve spent quite some time in getting the session working with
Roassal2 and it still does not work. I would appreciate help on this.
Alexandre
On Jul 31, 2014, at 8:58 AM, Nicolai Hess <nicolaihess@web.de
<mailto:nicolaihess@web.de>> wrote:
It looks like Trachel does not recreate athens external resources. There is an example in AthensSceneView, on how to check and reload an AthensSurface.
2014-07-31 12:51 GMT+02:00 Usman Bhatti <usman.bhatti@gmail.com
<mailto:usman.bhatti@gmail.com>>:
On Thu, Jul 31, 2014 at 11:17 AM, Blondeau Vincent
<vincent.blondeau@worldline.com <mailto:vincent.blondeau@worldline.com>> wrote:
Yes it is. But I will not do
TRMorph allInstances do: #delete
In command line every dayâ¦
It is only intended to recover your lost work in the image not for everyday use :).
Vincent
De : Pharo-dev [mailto:pharo-dev-bounces@lists.pharo.org <mailto:pharo-dev-bounces@lists.pharo.org>] De la part de Usman Bhatti Envoyé : jeudi 31 juillet 2014 10:59 à : Pharo Development List Cc : Moose-related development
Objet : Re: [Pharo-dev] Pharo image corruption and fatal VM error with Roassal
This may be related to this known issue reported a few days back.
https://code.google.com/p/moose-technology/issues/detail?id=1084
And there is a possible solution to recover your image.
usman
On Thu, Jul 31, 2014 at 10:50 AM, Blondeau Vincent <vincent.blondeau@worldline.com <mailto:vincent.blondeau@worldline.com>> wrote:
Hi,
Yesterday, I was using GraphET (a part of Roassal) to do some charts and, today, when I wanted to reopen the image.
And I got that :
<image001.png>
It is *very* unpleasantâ¦
To reproduce the bug:
1 - You can do either:
| builder |
builder := GET2Line data: (0 to:
that if certain feature not available (line nativeboost), it won't put your image into endless exception throwing loop. 100) .
builder
y: [ :x | x*x ].
builder open.
Or
WorldMenu -> Roassal examples -> choose an item -> click on a
graph . A TRMorph should be opened.
2 - donât close the graph and save the pharo image.
3 â Close the pharo image
4 - Reopen it
I am under W7 x64 with the latest moose image and the VM
available on the pharo.org <http://pharo.org> website (http://files.pharo.org/platform/Pharo3.0-win.zip) from the 10 july.
You will find the crash dump attached.
Thankfully, I managed to open the image with a latest VM
(http://www.mirandabanda.org/files/Cog/VM/VM.r3056/cogwin-14.29.3056.zip).
Thanks a lot Eliot ! :)
And I got this:
<image002.png>
Thanks in advance
Cheers,
Vincent BLONDEAU
Ce message et les pièces jointes sont confidentiels et réservés
à l'usage exclusif de ses destinataires. Il peut également être protégé par le secret professionnel. Si vous recevez ce message par erreur, merci d'en avertir immédiatement l'expéditeur et de le détruire. L'intégrité du message ne pouvant être assurée sur Internet, la responsabilité de Worldline ne pourra être recherchée quant au contenu de ce message. Bien que les meilleurs efforts soient faits pour maintenir cette transmission exempte de tout virus, l'expéditeur ne donne aucune garantie à cet égard et sa responsabilité ne saurait être recherchée pour tout dommage résultant d'un virus transmis.
This e-mail and the documents attached are confidential and
intended solely for the addressee; it may also be privileged. If you receive this e-mail in error, please notify the sender immediately and destroy it. As its integrity cannot be secured on the Internet, the Worldline liability cannot be triggered for the message content. Although the sender endeavours to maintain a computer virus-free network, the sender does not warrant that this transmission is virus-free and will not be liable for any damages resulting from any virus transmitted.
Ce message et les pièces jointes sont confidentiels et réservés
à l'usage exclusif de ses destinataires. Il peut également être protégé par le secret professionnel. Si vous recevez ce message par erreur, merci d'en avertir immédiatement l'expéditeur et de le détruire. L'intégrité du message ne pouvant être assurée sur Internet, la responsabilité de Worldline ne pourra être recherchée quant au contenu de ce message. Bien que les meilleurs efforts soient faits pour maintenir cette transmission exempte de tout virus, l'expéditeur ne donne aucune garantie à cet égard et sa responsabilité ne saurait être recherchée pour tout dommage résultant d'un virus transmis.
This e-mail and the documents attached are confidential and
intended solely for the addressee; it may also be privileged. If you receive this e-mail in error, please notify the sender immediately and destroy it. As its integrity cannot be secured on the Internet, the Worldline liability cannot be triggered for the message content. Although the sender endeavours to maintain a computer virus-free network, the sender does not warrant that this transmission is virus-free and will not be liable for any damages resulting from any virus transmitted.
_______________________________________________ Moose-dev mailing list Moose-dev@iam.unibe.ch <mailto:Moose-dev@iam.unibe.ch> https://www.iam.unibe.ch/mailman/listinfo/moose-dev
-- _,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;: Alexandre Bergel http://www.bergel.eu ^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;.
-- Best regards, Igor Stasenko.
2014-08-01 9:46 GMT+02:00 stepharo <stepharo@free.fr>:
On 1/8/14 08:56, Ciprian Teodorov wrote:
On Jul 31, 2014 11:03 PM, "Nicolai Hess" <nicolaihess@web.de> wrote:
Is is not that easy :) TRMorph already checks for a new session. TRCanvas not, but could be done the same way - maybe. It is difficult as
TRCanvas are shared by different objects.
And it is more difficult for TRShape.
I know Igors argument against a session management in Athens for recreating cairo resources on image start up. It is not the job of Athens.
Maybe session management should be implemented by the cairo binding (or an abstraction on top of it, that is then used by athens).
It will when the system will be fully athens based. Now each client should handle it his way.
Someone working on this? What are the next steps to make the system fully athens based? Nicolai
This way we don't clutter Athens with such low level stuff, and we offer the user a high-level usable cairo binding, which can be also used outside athens.
Cheers, Ciprian
But it is a bit different for resources created through Athens core api. How can the user (TRShape for example) know, that a path created by an Athens surface referes to an external resource?
The attached changeset implements a simple check for TRCanvas and resets paths if the canvas changes. This solves the crash on image start up.But it is not a good solution.
2014-07-31 16:23 GMT+02:00 Igor Stasenko <siguctua@gmail.com>:
The recipe is simple: isolate the code in your application in a way
That's another story. The projects I have seen, using athens, do this with an explicit use on AthensCairoSurface. Is there already a way to instantiate an AthensSurface depending on the available libraries? And AthensBalloon and AthensCairo don't differ only in rendering quality, so there is no real fallback option.
On 31 July 2014 16:09, Alexandre Bergel <alexandre.bergel@me.com>
wrote:
Yes, and this is a mess. Iâve spent quite some time in getting the session working with
Roassal2 and it still does not work. I would appreciate help on this.
Alexandre
On Jul 31, 2014, at 8:58 AM, Nicolai Hess <nicolaihess@web.de> wrote:
It looks like Trachel does not recreate athens external resources. There is an example in AthensSceneView, on how to check and reload an AthensSurface.
2014-07-31 12:51 GMT+02:00 Usman Bhatti <usman.bhatti@gmail.com>:
On Thu, Jul 31, 2014 at 11:17 AM, Blondeau Vincent <
vincent.blondeau@worldline.com> wrote:
Yes it is. But I will not do
TRMorph allInstances do: #delete
In command line every dayâ¦
It is only intended to recover your lost work in the image not for everyday use :).
Vincent
De : Pharo-dev [mailto:pharo-dev-bounces@lists.pharo.org] De la part de Usman Bhatti Envoyé : jeudi 31 juillet 2014 10:59 à : Pharo Development List Cc : Moose-related development
Objet : Re: [Pharo-dev] Pharo image corruption and fatal VM error with Roassal
This may be related to this known issue reported a few days back.
https://code.google.com/p/moose-technology/issues/detail?id=1084
And there is a possible solution to recover your image.
usman
On Thu, Jul 31, 2014 at 10:50 AM, Blondeau Vincent < vincent.blondeau@worldline.com> wrote:
Hi,
Yesterday, I was using GraphET (a part of Roassal) to do some charts and, today, when I wanted to reopen the image.
And I got that :
<image001.png>
It is *very* unpleasantâ¦
To reproduce the bug:
1 - You can do either:
| builder |
builder := GET2Line data: (0 to:
that if certain feature not available (line nativeboost), it won't put your image into endless exception throwing loop. 100) .
builder
y: [ :x | x*x ].
builder open.
Or
WorldMenu -> Roassal examples -> choose an item -> click on a graph
. A TRMorph should be opened.
2 - donât close the graph and save the pharo image.
3 â Close the pharo image
4 - Reopen it
I am under W7 x64 with the latest moose image and the VM available
on the pharo.org website (http://files.pharo.org/platform/Pharo3.0-win.zip) from the 10 july.
You will find the crash dump attached.
Thankfully, I managed to open the image with a latest VM (
http://www.mirandabanda.org/files/Cog/VM/VM.r3056/cogwin-14.29.3056.zip).
Thanks a lot Eliot ! :)
And I got this:
<image002.png>
Thanks in advance
Cheers,
Vincent BLONDEAU
Ce message et les pièces jointes sont confidentiels et réservés Ã
l'usage exclusif de ses destinataires. Il peut également être protégé par le secret professionnel. Si vous recevez ce message par erreur, merci d'en avertir immédiatement l'expéditeur et de le détruire. L'intégrité du message ne pouvant être assurée sur Internet, la responsabilité de Worldline ne pourra être recherchée quant au contenu de ce message. Bien que les meilleurs efforts soient faits pour maintenir cette transmission exempte de tout virus, l'expéditeur ne donne aucune garantie à cet égard et sa responsabilité ne saurait être recherchée pour tout dommage résultant d'un virus transmis.
This e-mail and the documents attached are confidential and intended
solely for the addressee; it may also be privileged. If you receive this e-mail in error, please notify the sender immediately and destroy it. As its integrity cannot be secured on the Internet, the Worldline liability cannot be triggered for the message content. Although the sender endeavours to maintain a computer virus-free network, the sender does not warrant that this transmission is virus-free and will not be liable for any damages resulting from any virus transmitted.
Ce message et les pièces jointes sont confidentiels et réservés Ã
l'usage exclusif de ses destinataires. Il peut également être protégé par le secret professionnel. Si vous recevez ce message par erreur, merci d'en avertir immédiatement l'expéditeur et de le détruire. L'intégrité du message ne pouvant être assurée sur Internet, la responsabilité de Worldline ne pourra être recherchée quant au contenu de ce message. Bien que les meilleurs efforts soient faits pour maintenir cette transmission exempte de tout virus, l'expéditeur ne donne aucune garantie à cet égard et sa responsabilité ne saurait être recherchée pour tout dommage résultant d'un virus transmis.
This e-mail and the documents attached are confidential and intended
solely for the addressee; it may also be privileged. If you receive this e-mail in error, please notify the sender immediately and destroy it. As its integrity cannot be secured on the Internet, the Worldline liability cannot be triggered for the message content. Although the sender endeavours to maintain a computer virus-free network, the sender does not warrant that this transmission is virus-free and will not be liable for any damages resulting from any virus transmitted.
_______________________________________________ Moose-dev mailing list Moose-dev@iam.unibe.ch https://www.iam.unibe.ch/mailman/listinfo/moose-dev
-- _,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;: Alexandre Bergel http://www.bergel.eu ^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;.
-- Best regards, Igor Stasenko.
Someone working on this?
igor but he got burned out on that.
What are the next steps to make the system fully athens based? we need - to update all the drawon: methods (arghhhhh) - get a texteditor working (so far it is working but no tab support)
We can organize a skype meetings with people willing to help. Stef
Nicolai
This way we don't clutter Athens with such low level stuff, and we offer the user a high-level usable cairo binding, which can be also used outside athens.
Cheers, Ciprian
> > But it is a bit different for resources created through Athens core api. > How can the user (TRShape for example) know, that a path created by > an Athens surface referes to an external resource? > > The attached changeset implements a simple check for TRCanvas and > resets paths if the canvas changes. This solves the crash on > image start up.But it is not a good solution. > > > > > 2014-07-31 16:23 GMT+02:00 Igor Stasenko <siguctua@gmail.com <mailto:siguctua@gmail.com>>: > >> The recipe is simple: isolate the code in your application in a way that if certain feature not available (line nativeboost), it won't put your image into endless exception throwing loop. >> > > That's another story. The projects I have seen, using athens, do this with an explicit use > on AthensCairoSurface. Is there already a way to instantiate an AthensSurface depending on the > available libraries? And AthensBalloon and AthensCairo don't differ only in rendering quality, so there > is no real fallback option. > > > > >> >> >> On 31 July 2014 16:09, Alexandre Bergel <alexandre.bergel@me.com <mailto:alexandre.bergel@me.com>> wrote: >>> >>> Yes, and this is a mess. >>> Iâve spent quite some time in getting the session working with Roassal2 and it still does not work. I would appreciate help on this. >>> >>> Alexandre >>> >>> >>> On Jul 31, 2014, at 8:58 AM, Nicolai Hess <nicolaihess@web.de <mailto:nicolaihess@web.de>> wrote: >>> >>> > It looks like Trachel does not recreate athens external resources. >>> > There is an example in AthensSceneView, on how to check and reload >>> > an AthensSurface. >>> > >>> > >>> > 2014-07-31 12:51 GMT+02:00 Usman Bhatti <usman.bhatti@gmail.com <mailto:usman.bhatti@gmail.com>>: >>> > >>> > >>> > >>> > On Thu, Jul 31, 2014 at 11:17 AM, Blondeau Vincent <vincent.blondeau@worldline.com <mailto:vincent.blondeau@worldline.com>> wrote: >>> > Yes it is. But I will not do >>> > >>> > TRMorph allInstances do: #delete >>> > >>> > In command line every day⦠>>> > >>> > >>> > It is only intended to recover your lost work in the image not for everyday use :). >>> > >>> > >>> > >>> > >>> > Vincent >>> > >>> > >>> > >>> > De : Pharo-dev [mailto:pharo-dev-bounces@lists.pharo.org <mailto:pharo-dev-bounces@lists.pharo.org>] De la part de Usman Bhatti >>> > Envoyé : jeudi 31 juillet 2014 10:59 >>> > à : Pharo Development List >>> > Cc : Moose-related development >>> > >>> > >>> > Objet : Re: [Pharo-dev] Pharo image corruption and fatal VM error with Roassal >>> > >>> > >>> > >>> > This may be related to this known issue reported a few days back. >>> > >>> > https://code.google.com/p/moose-technology/issues/detail?id=1084 >>> > >>> > >>> > >>> > And there is a possible solution to recover your image. >>> > >>> > >>> > >>> > usman >>> > >>> > >>> > >>> > On Thu, Jul 31, 2014 at 10:50 AM, Blondeau Vincent <vincent.blondeau@worldline.com <mailto:vincent.blondeau@worldline.com>> wrote: >>> > >>> > Hi, >>> > >>> > >>> > >>> > Yesterday, I was using GraphET (a part of Roassal) to do some charts and, today, when I wanted to reopen the image. >>> > >>> > And I got that : >>> > >>> > <image001.png> >>> > >>> > It is *very* unpleasant⦠>>> > >>> > >>> > >>> > To reproduce the bug: >>> > >>> > 1 - You can do either: >>> > >>> > | builder | >>> > >>> > builder := GET2Line data: (0 to: 100) . >>> > >>> > builder >>> > >>> > y: [ :x | x*x ]. >>> > >>> > >>> > >>> > builder open. >>> > >>> > Or >>> > >>> > WorldMenu -> Roassal examples -> choose an item -> click on a graph . A TRMorph should be opened. >>> > >>> > 2 - donât close the graph and save the pharo image. >>> > >>> > 3 â Close the pharo image >>> > >>> > 4 - Reopen it >>> > >>> > >>> > >>> > I am under W7 x64 with the latest moose image and the VM available on the pharo.org <http://pharo.org> website (http://files.pharo.org/platform/Pharo3.0-win.zip) from the 10 july. >>> > >>> > You will find the crash dump attached. >>> > >>> > >>> > >>> > >>> > >>> > Thankfully, I managed to open the image with a latest VM (http://www.mirandabanda.org/files/Cog/VM/VM.r3056/cogwin-14.29.3056.zip). >>> > >>> > Thanks a lot Eliot ! :) >>> > >>> > >>> > >>> > And I got this: >>> > >>> > <image002.png> >>> > >>> > >>> > >>> > Thanks in advance >>> > >>> > >>> > >>> > Cheers, >>> > >>> > Vincent BLONDEAU >>> > >>> > >>> > >>> > >>> > >>> > >>> > Ce message et les pièces jointes sont confidentiels et réservés à l'usage exclusif de ses destinataires. Il peut également être protégé par le secret professionnel. Si vous recevez ce message par erreur, merci d'en avertir immédiatement l'expéditeur et de le détruire. L'intégrité du message ne pouvant être assurée sur Internet, la responsabilité de Worldline ne pourra être recherchée quant au contenu de ce message. Bien que les meilleurs efforts soient faits pour maintenir cette transmission exempte de tout virus, l'expéditeur ne donne aucune garantie à cet égard et sa responsabilité ne saurait être recherchée pour tout dommage résultant d'un virus transmis. >>> > >>> > This e-mail and the documents attached are confidential and intended solely for the addressee; it may also be privileged. If you receive this e-mail in error, please notify the sender immediately and destroy it. As its integrity cannot be secured on the Internet, the Worldline liability cannot be triggered for the message content. Although the sender endeavours to maintain a computer virus-free network, the sender does not warrant that this transmission is virus-free and will not be liable for any damages resulting from any virus transmitted. >>> > >>> > >>> > >>> > >>> > >>> > Ce message et les pièces jointes sont confidentiels et réservés à l'usage exclusif de ses destinataires. Il peut également être protégé par le secret professionnel. Si vous recevez ce message par erreur, merci d'en avertir immédiatement l'expéditeur et de le détruire. L'intégrité du message ne pouvant être assurée sur Internet, la responsabilité de Worldline ne pourra être recherchée quant au contenu de ce message. Bien que les meilleurs efforts soient faits pour maintenir cette transmission exempte de tout virus, l'expéditeur ne donne aucune garantie à cet égard et sa responsabilité ne saurait être recherchée pour tout dommage résultant d'un virus transmis. >>> > >>> > This e-mail and the documents attached are confidential and intended solely for the addressee; it may also be privileged. If you receive this e-mail in error, please notify the sender immediately and destroy it. As its integrity cannot be secured on the Internet, the Worldline liability cannot be triggered for the message content. Although the sender endeavours to maintain a computer virus-free network, the sender does not warrant that this transmission is virus-free and will not be liable for any damages resulting from any virus transmitted. >>> > >>> > >>> > _______________________________________________ >>> > Moose-dev mailing list >>> > Moose-dev@iam.unibe.ch <mailto:Moose-dev@iam.unibe.ch> >>> > https://www.iam.unibe.ch/mailman/listinfo/moose-dev >>> >>> -- >>> _,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;: >>> Alexandre Bergel http://www.bergel.eu >>> ^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;. >>> >>> >>> >>> >> >> >> >> -- >> Best regards, >> Igor Stasenko. > >
Look like a very common Nativeboost error, if a external object is access without checking if we are on the same session (memory has changed so ...). If it is that: The clean solution: - check the nativeboost session on external object accesses. Or at least the risky one. Should be done in the application that used NB. Another solution to fixed a corrupted image: - open with StackVM (no nativeboost). - ugly but can save you: try to identify a suite of bytecode that is executed at launch use hex Editor and replace the first by return Self : 0x78, you should be able to reopend the image if a DNU pop DO NOT touch it :-) - use Oz project to extract code Extract your code and rebuild fresh image On 31 Jul 2014, at 16:09, Alexandre Bergel <alexandre.bergel@me.com> wrote:
Yes, and this is a mess. Iâve spent quite some time in getting the session working with Roassal2 and it still does not work. I would appreciate help on this.
Alexandre
On Jul 31, 2014, at 8:58 AM, Nicolai Hess <nicolaihess@web.de> wrote:
It looks like Trachel does not recreate athens external resources. There is an example in AthensSceneView, on how to check and reload an AthensSurface.
2014-07-31 12:51 GMT+02:00 Usman Bhatti <usman.bhatti@gmail.com>:
On Thu, Jul 31, 2014 at 11:17 AM, Blondeau Vincent <vincent.blondeau@worldline.com> wrote: Yes it is. But I will not do
TRMorph allInstances do: #delete
In command line every dayâ¦
It is only intended to recover your lost work in the image not for everyday use :).
Vincent
De : Pharo-dev [mailto:pharo-dev-bounces@lists.pharo.org] De la part de Usman Bhatti Envoyé : jeudi 31 juillet 2014 10:59 à : Pharo Development List Cc : Moose-related development
Objet : Re: [Pharo-dev] Pharo image corruption and fatal VM error with Roassal
This may be related to this known issue reported a few days back.
https://code.google.com/p/moose-technology/issues/detail?id=1084
And there is a possible solution to recover your image.
usman
On Thu, Jul 31, 2014 at 10:50 AM, Blondeau Vincent <vincent.blondeau@worldline.com> wrote:
Hi,
Yesterday, I was using GraphET (a part of Roassal) to do some charts and, today, when I wanted to reopen the image.
And I got that :
<image001.png>
It is *very* unpleasantâ¦
To reproduce the bug:
1 - You can do either:
| builder |
builder := GET2Line data: (0 to: 100) .
builder
y: [ :x | x*x ].
builder open.
Or
WorldMenu -> Roassal examples -> choose an item -> click on a graph . A TRMorph should be opened.
2 - donât close the graph and save the pharo image.
3 â Close the pharo image
4 - Reopen it
I am under W7 x64 with the latest moose image and the VM available on the pharo.org website (http://files.pharo.org/platform/Pharo3.0-win.zip) from the 10 july.
You will find the crash dump attached.
Thankfully, I managed to open the image with a latest VM (http://www.mirandabanda.org/files/Cog/VM/VM.r3056/cogwin-14.29.3056.zip).
Thanks a lot Eliot ! :)
And I got this:
<image002.png>
Thanks in advance
Cheers,
Vincent BLONDEAU
Ce message et les pièces jointes sont confidentiels et réservés à l'usage exclusif de ses destinataires. Il peut également être protégé par le secret professionnel. Si vous recevez ce message par erreur, merci d'en avertir immédiatement l'expéditeur et de le détruire. L'intégrité du message ne pouvant être assurée sur Internet, la responsabilité de Worldline ne pourra être recherchée quant au contenu de ce message. Bien que les meilleurs efforts soient faits pour maintenir cette transmission exempte de tout virus, l'expéditeur ne donne aucune garantie à cet égard et sa responsabilité ne saurait être recherchée pour tout dommage résultant d'un virus transmis.
This e-mail and the documents attached are confidential and intended solely for the addressee; it may also be privileged. If you receive this e-mail in error, please notify the sender immediately and destroy it. As its integrity cannot be secured on the Internet, the Worldline liability cannot be triggered for the message content. Although the sender endeavours to maintain a computer virus-free network, the sender does not warrant that this transmission is virus-free and will not be liable for any damages resulting from any virus transmitted.
Ce message et les pièces jointes sont confidentiels et réservés à l'usage exclusif de ses destinataires. Il peut également être protégé par le secret professionnel. Si vous recevez ce message par erreur, merci d'en avertir immédiatement l'expéditeur et de le détruire. L'intégrité du message ne pouvant être assurée sur Internet, la responsabilité de Worldline ne pourra être recherchée quant au contenu de ce message. Bien que les meilleurs efforts soient faits pour maintenir cette transmission exempte de tout virus, l'expéditeur ne donne aucune garantie à cet égard et sa responsabilité ne saurait être recherchée pour tout dommage résultant d'un virus transmis.
This e-mail and the documents attached are confidential and intended solely for the addressee; it may also be privileged. If you receive this e-mail in error, please notify the sender immediately and destroy it. As its integrity cannot be secured on the Internet, the Worldline liability cannot be triggered for the message content. Although the sender endeavours to maintain a computer virus-free network, the sender does not warrant that this transmission is virus-free and will not be liable for any damages resulting from any virus transmitted.
_______________________________________________ Moose-dev mailing list Moose-dev@iam.unibe.ch https://www.iam.unibe.ch/mailman/listinfo/moose-dev
-- _,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;: Alexandre Bergel http://www.bergel.eu ^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;.
Best Regards Dr Arnaud jbaptiste.arnaud@gmail.com
Alexandre may be you should try to understand what is a session. Because this is about 2 lines of code. When you open an image you save 2 min ago or 2 years ago, how the system knows that an OS ressources is valid? By checking the session id... Stef On 31/7/14 16:09, Alexandre Bergel wrote:
Yes, and this is a mess. Iâve spent quite some time in getting the session working with Roassal2 and it still does not work. I would appreciate help on this.
Alexandre
On Jul 31, 2014, at 8:58 AM, Nicolai Hess <nicolaihess@web.de> wrote:
It looks like Trachel does not recreate athens external resources. There is an example in AthensSceneView, on how to check and reload an AthensSurface.
2014-07-31 12:51 GMT+02:00 Usman Bhatti <usman.bhatti@gmail.com>:
On Thu, Jul 31, 2014 at 11:17 AM, Blondeau Vincent <vincent.blondeau@worldline.com> wrote: Yes it is. But I will not do
TRMorph allInstances do: #delete
In command line every dayâ¦
It is only intended to recover your lost work in the image not for everyday use :).
Vincent
De : Pharo-dev [mailto:pharo-dev-bounces@lists.pharo.org] De la part de Usman Bhatti Envoyé : jeudi 31 juillet 2014 10:59 à : Pharo Development List Cc : Moose-related development
Objet : Re: [Pharo-dev] Pharo image corruption and fatal VM error with Roassal
This may be related to this known issue reported a few days back.
https://code.google.com/p/moose-technology/issues/detail?id=1084
And there is a possible solution to recover your image.
usman
On Thu, Jul 31, 2014 at 10:50 AM, Blondeau Vincent <vincent.blondeau@worldline.com> wrote:
Hi,
Yesterday, I was using GraphET (a part of Roassal) to do some charts and, today, when I wanted to reopen the image.
And I got that :
<image001.png>
It is *very* unpleasantâ¦
To reproduce the bug:
1 - You can do either:
| builder |
builder := GET2Line data: (0 to: 100) .
builder
y: [ :x | x*x ].
builder open.
Or
WorldMenu -> Roassal examples -> choose an item -> click on a graph . A TRMorph should be opened.
2 - donât close the graph and save the pharo image.
3 â Close the pharo image
4 - Reopen it
I am under W7 x64 with the latest moose image and the VM available on the pharo.org website (http://files.pharo.org/platform/Pharo3.0-win.zip) from the 10 july.
You will find the crash dump attached.
Thankfully, I managed to open the image with a latest VM (http://www.mirandabanda.org/files/Cog/VM/VM.r3056/cogwin-14.29.3056.zip).
Thanks a lot Eliot ! :)
And I got this:
<image002.png>
Thanks in advance
Cheers,
Vincent BLONDEAU
Ce message et les pièces jointes sont confidentiels et réservés à l'usage exclusif de ses destinataires. Il peut également être protégé par le secret professionnel. Si vous recevez ce message par erreur, merci d'en avertir immédiatement l'expéditeur et de le détruire. L'intégrité du message ne pouvant être assurée sur Internet, la responsabilité de Worldline ne pourra être recherchée quant au contenu de ce message. Bien que les meilleurs efforts soient faits pour maintenir cette transmission exempte de tout virus, l'expéditeur ne donne aucune garantie à cet égard et sa responsabilité ne saurait être recherchée pour tout dommage résultant d'un virus transmis.
This e-mail and the documents attached are confidential and intended solely for the addressee; it may also be privileged. If you receive this e-mail in error, please notify the sender immediately and destroy it. As its integrity cannot be secured on the Internet, the Worldline liability cannot be triggered for the message content. Although the sender endeavours to maintain a computer virus-free network, the sender does not warrant that this transmission is virus-free and will not be liable for any damages resulting from any virus transmitted.
Ce message et les pièces jointes sont confidentiels et réservés à l'usage exclusif de ses destinataires. Il peut également être protégé par le secret professionnel. Si vous recevez ce message par erreur, merci d'en avertir immédiatement l'expéditeur et de le détruire. L'intégrité du message ne pouvant être assurée sur Internet, la responsabilité de Worldline ne pourra être recherchée quant au contenu de ce message. Bien que les meilleurs efforts soient faits pour maintenir cette transmission exempte de tout virus, l'expéditeur ne donne aucune garantie à cet égard et sa responsabilité ne saurait être recherchée pour tout dommage résultant d'un virus transmis.
This e-mail and the documents attached are confidential and intended solely for the addressee; it may also be privileged. If you receive this e-mail in error, please notify the sender immediately and destroy it. As its integrity cannot be secured on the Internet, the Worldline liability cannot be triggered for the message content. Although the sender endeavours to maintain a computer virus-free network, the sender does not warrant that this transmission is virus-free and will not be liable for any damages resulting from any virus transmitted.
_______________________________________________ Moose-dev mailing list Moose-dev@iam.unibe.ch https://www.iam.unibe.ch/mailman/listinfo/moose-dev
You should report it to the Pharo mailing-list with a reproducible case because else it will get unnoticed. Not all the Pharo people are reading the Moose mailing-list. Stef On 31/7/14 11:17, Blondeau Vincent wrote:
Yes it is. But I will not do
TRMorph allInstances do: #delete
In command line every dayâ¦
Vincent
*De :*Pharo-dev [mailto:pharo-dev-bounces@lists.pharo.org] *De la part de* Usman Bhatti *Envoyé :* jeudi 31 juillet 2014 10:59 *à :* Pharo Development List *Cc :* Moose-related development *Objet :* Re: [Pharo-dev] Pharo image corruption and fatal VM error with Roassal
This may be related to this known issue reported a few days back.
https://code.google.com/p/moose-technology/issues/detail?id=1084
And there is a possible solution to recover your image.
usman
On Thu, Jul 31, 2014 at 10:50 AM, Blondeau Vincent <vincent.blondeau@worldline.com <mailto:vincent.blondeau@worldline.com>> wrote:
Hi,
Yesterday, I was using GraphET (a part of Roassal) to do some charts and, today, when I wanted to reopen the image.
And I got that :
It is **very** unpleasantâ¦
To reproduce the bug:
1 - You can do either:
| builder |
builder := GET2Line data: (0 to: 100) .
builder
y: [ :x | x*x ].
builder open.
Or
WorldMenu -> Roassal examples -> choose an item -> click on a graph . A TRMorph should be opened.
2 - donât close the graph and save the pharo image.
3 â Close the pharo image
4 - Reopen it
I am under W7 x64 with the latest moose image and the VM available on the pharo.org <http://pharo.org> website (http://files.pharo.org/platform/Pharo3.0-win.zip) from the 10 july.
You will find the crash dump attached.
Thankfully, I managed to open the image with a latest VM (http://www.mirandabanda.org/files/Cog/VM/VM.r3056/cogwin-14.29.3056.zip).
Thanks a lot Eliot ! :)
And I got this:
Thanks in advance
Cheers,
Vincent BLONDEAU
------------------------------------------------------------------------
Ce message et les pièces jointes sont confidentiels et réservés à l'usage exclusif de ses destinataires. Il peut également être protégé par le secret professionnel. Si vous recevez ce message par erreur, merci d'en avertir immédiatement l'expéditeur et de le détruire. L'intégrité du message ne pouvant être assurée sur Internet, la responsabilité de Worldline ne pourra être recherchée quant au contenu de ce message. Bien que les meilleurs efforts soient faits pour maintenir cette transmission exempte de tout virus, l'expéditeur ne donne aucune garantie à cet égard et sa responsabilité ne saurait être recherchée pour tout dommage résultant d'un virus transmis.
This e-mail and the documents attached are confidential and intended solely for the addressee; it may also be privileged. If you receive this e-mail in error, please notify the sender immediately and destroy it. As its integrity cannot be secured on the Internet, the Worldline liability cannot be triggered for the message content. Although the sender endeavours to maintain a computer virus-free network, the sender does not warrant that this transmission is virus-free and will not be liable for any damages resulting from any virus transmitted.
------------------------------------------------------------------------
Ce message et les pièces jointes sont confidentiels et réservés à l'usage exclusif de ses destinataires. Il peut également être protégé par le secret professionnel. Si vous recevez ce message par erreur, merci d'en avertir immédiatement l'expéditeur et de le détruire. L'intégrité du message ne pouvant être assurée sur Internet, la responsabilité de Worldline ne pourra être recherchée quant au contenu de ce message. Bien que les meilleurs efforts soient faits pour maintenir cette transmission exempte de tout virus, l'expéditeur ne donne aucune garantie à cet égard et sa responsabilité ne saurait être recherchée pour tout dommage résultant d'un virus transmis.
This e-mail and the documents attached are confidential and intended solely for the addressee; it may also be privileged. If you receive this e-mail in error, please notify the sender immediately and destroy it. As its integrity cannot be secured on the Internet, the Worldline liability cannot be triggered for the message content. Although the sender endeavours to maintain a computer virus-free network, the sender does not warrant that this transmission is virus-free and will not be liable for any damages resulting from any virus transmitted.
participants (9)
-
Alexandre Bergel -
Blondeau Vincent -
Ciprian Teodorov -
Eliot Miranda -
Igor Stasenko -
Jean Baptiste Arnaud -
Nicolai Hess -
stepharo -
Usman Bhatti
