[Pharo-project] Pharo 2.0 UITheme current solidMenuIcon (and for sure some friends) are wrong due to VM problem
I managed to load my code into Pharo 2.0 without problems. Sweet! There is some direct use of morphic all looks like to work well. Sound also works nicely. Still an issue with the World Menu where I do use menuCommandOn with an icon set to: UITheme current solidMenuIcon The icon looks quite warped or plain wrong (looks like a crappy cloud). The code of the method in 1.4 is solidMenuIconContents "Private - Method generated with the content of the file /home/plantec/dvpt/Pharo/Sprint-10-09/Icons/solidMenu.png" ^ 'iVBORw0KGgoAAAANSUhEUgAAAA4AAAAQCAYAAAAmlE46AAAABHNCSVQFBQUBSsjp7wAAAE5J REFUeF5jgACO/wykA5AmGCZGHVaNxGISNO648AO7RpAEIYxXI8lOJaSRIqeiaSbeRrwaSXAu lZxKQsiSEh0oSY+cJEdissORGUjLWgBvFzCDqCcU6AAAAABJRU5ErkJggg==' and in 2.0 it is solidMenuIconContents "Private - Method generated with the content of the file /home/plantec/dvpt/Pharo/Sprint-10-09/Icons/solidMenu.png" ^ 'iVBORw0KGgoAAAANSUhEUgAAAA4AAAAQCAYAAAAmlE46AAAABHNCSVQFBQUBSsjp7wAAAE5J REFUeF5jgACO/wykA5AmGCZGHVaNxGISNO648AO7RpAEIYxXI8lOJaSRIqeiaSbeRrwaSXAu lZxKQsiSEh0oSY+cJEdissORGUjLWgBvFzCDqCcU6AAAAABJRU5ErkJggg==' Looks like the same to me. So, something isn't right. I tried the image with the StackVM and there, the icon is right. It has the right colors instead of a white cloud. Maybe due to a plugin, I don't know. The VM I tried is the latest one I got with the ciPharoVM.sh script. My self compiled PharoVM exhibits the same problem. CogVM shows the right icons (even if it complains that the VM is too old for the image) Smalltalk vmVersion gives: 'CoInterpreter VMMaker.oscog-eem.264 uuid: 64e76092-8af7-449f-9188-e65f3bd1f08d Feb 5 2013 StackToRegisterMappingCogit VMMaker.oscog-eem.264 uuid: 64e76092-8af7-449f-9188-e65f3bd1f08d Feb 5 2013 VM: r2678 http://www.squeakvm.org/svn/squeak/branches/Cog Plugins: r2545 http://squeakvm.org/svn/squeak/trunk/platforms/Cross/plugins ' I tried with the code generated to create a cog VM from Esteban and there it works fine. Smalltalk vmVersion gives there: 'CoInterpreter VMMaker-oscog-EstebanLorenzano.231 uuid: a9e39f38-e1fa-4851-a3a3-1a0f1f7a4062 Feb 15 2013 StackToRegisterMappingCogit VMMaker-oscog-EstebanLorenzano.231 uuid: a9e39f38-e1fa-4851-a3a3-1a0f1f7a4062 Feb 15 2013 git://gitorious.org/cogvm/blessed.git Commit: 63aa6ed8a070fc730224b496e0dda7c3f8482e10 Date: 2013-02-14 11:43:21 +0100 By: Esteban Lorenzano <estebanlm@gmail.com> ' Here is the version for the problematic VM (latest downloaded from ci) Smalltalk vm version 'NBCoInterpreter NativeBoost-CogPlugin-EstebanLorenzano.18 uuid: a53445f9-c0c0-4015-97a3-be7db8d9ed6b Feb 18 2013 NBCogit NativeBoost-CogPlugin-EstebanLorenzano.18 uuid: a53445f9-c0c0-4015-97a3-be7db8d9ed6b Feb 18 2013 git://gitorious.org/cogvm/blessed.git Commit: 05ed728452dc92732f9f23ce24a3c32bfdc0f4b8 Date: 2013-02-15 17:04:09 +0100 By: Igor Stasenko <siguctua@gmail.com> Jenkins build #14519 ' Maybe some NB dark magic going on... On the other side, loading PNGs from disk worked okay. (As the larger icons on the background of the screenshot demonstrate). Hope you can figure out why there is such an issue. Phil
humm that is all strange... under which platform are you? On 2013-02-19, at 22:49, "phil@highoctane.be" <phil@highoctane.be> wrote:
I managed to load my code into Pharo 2.0 without problems. Sweet!
There is some direct use of morphic all looks like to work well. Sound also works nicely.
Still an issue with the World Menu where I do use menuCommandOn with an icon set to:
UITheme current solidMenuIcon

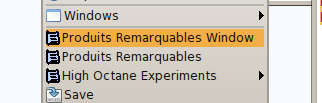

The icon looks quite warped or plain wrong (looks like a crappy cloud).
The code of the method in 1.4 is
solidMenuIconContents "Private - Method generated with the content of the file /home/plantec/dvpt/Pharo/Sprint-10-09/Icons/solidMenu.png" ^ 'iVBORw0KGgoAAAANSUhEUgAAAA4AAAAQCAYAAAAmlE46AAAABHNCSVQFBQUBSsjp7wAAAE5J REFUeF5jgACO/wykA5AmGCZGHVaNxGISNO648AO7RpAEIYxXI8lOJaSRIqeiaSbeRrwaSXAu lZxKQsiSEh0oSY+cJEdissORGUjLWgBvFzCDqCcU6AAAAABJRU5ErkJggg=='
and in 2.0 it is
solidMenuIconContents "Private - Method generated with the content of the file /home/plantec/dvpt/Pharo/Sprint-10-09/Icons/solidMenu.png" ^ 'iVBORw0KGgoAAAANSUhEUgAAAA4AAAAQCAYAAAAmlE46AAAABHNCSVQFBQUBSsjp7wAAAE5J REFUeF5jgACO/wykA5AmGCZGHVaNxGISNO648AO7RpAEIYxXI8lOJaSRIqeiaSbeRrwaSXAu lZxKQsiSEh0oSY+cJEdissORGUjLWgBvFzCDqCcU6AAAAABJRU5ErkJggg=='
Looks like the same to me. So, something isn't right.
I tried the image with the StackVM and there, the icon is right. It has the right colors instead of a white cloud.
Maybe due to a plugin, I don't know. The VM I tried is the latest one I got with the ciPharoVM.sh script.
My self compiled PharoVM exhibits the same problem.
CogVM shows the right icons (even if it complains that the VM is too old for the image)
Smalltalk vmVersion gives:
'CoInterpreter VMMaker.oscog-eem.264 uuid: 64e76092-8af7-449f-9188-e65f3bd1f08d Feb 5 2013 StackToRegisterMappingCogit VMMaker.oscog-eem.264 uuid: 64e76092-8af7-449f-9188-e65f3bd1f08d Feb 5 2013 VM: r2678 http://www.squeakvm.org/svn/squeak/branches/Cog Plugins: r2545 http://squeakvm.org/svn/squeak/trunk/platforms/Cross/plugins '
I tried with the code generated to create a cog VM from Esteban and there it works fine.
Smalltalk vmVersion gives there:
'CoInterpreter VMMaker-oscog-EstebanLorenzano.231 uuid: a9e39f38-e1fa-4851-a3a3-1a0f1f7a4062 Feb 15 2013 StackToRegisterMappingCogit VMMaker-oscog-EstebanLorenzano.231 uuid: a9e39f38-e1fa-4851-a3a3-1a0f1f7a4062 Feb 15 2013 git://gitorious.org/cogvm/blessed.git Commit: 63aa6ed8a070fc730224b496e0dda7c3f8482e10 Date: 2013-02-14 11:43:21 +0100 By: Esteban Lorenzano <estebanlm@gmail.com> '
Here is the version for the problematic VM (latest downloaded from ci)
Smalltalk vm version
'NBCoInterpreter NativeBoost-CogPlugin-EstebanLorenzano.18 uuid: a53445f9-c0c0-4015-97a3-be7db8d9ed6b Feb 18 2013 NBCogit NativeBoost-CogPlugin-EstebanLorenzano.18 uuid: a53445f9-c0c0-4015-97a3-be7db8d9ed6b Feb 18 2013 git://gitorious.org/cogvm/blessed.git Commit: 05ed728452dc92732f9f23ce24a3c32bfdc0f4b8 Date: 2013-02-15 17:04:09 +0100 By: Igor Stasenko <siguctua@gmail.com> Jenkins build #14519 '
Maybe some NB dark magic going on...

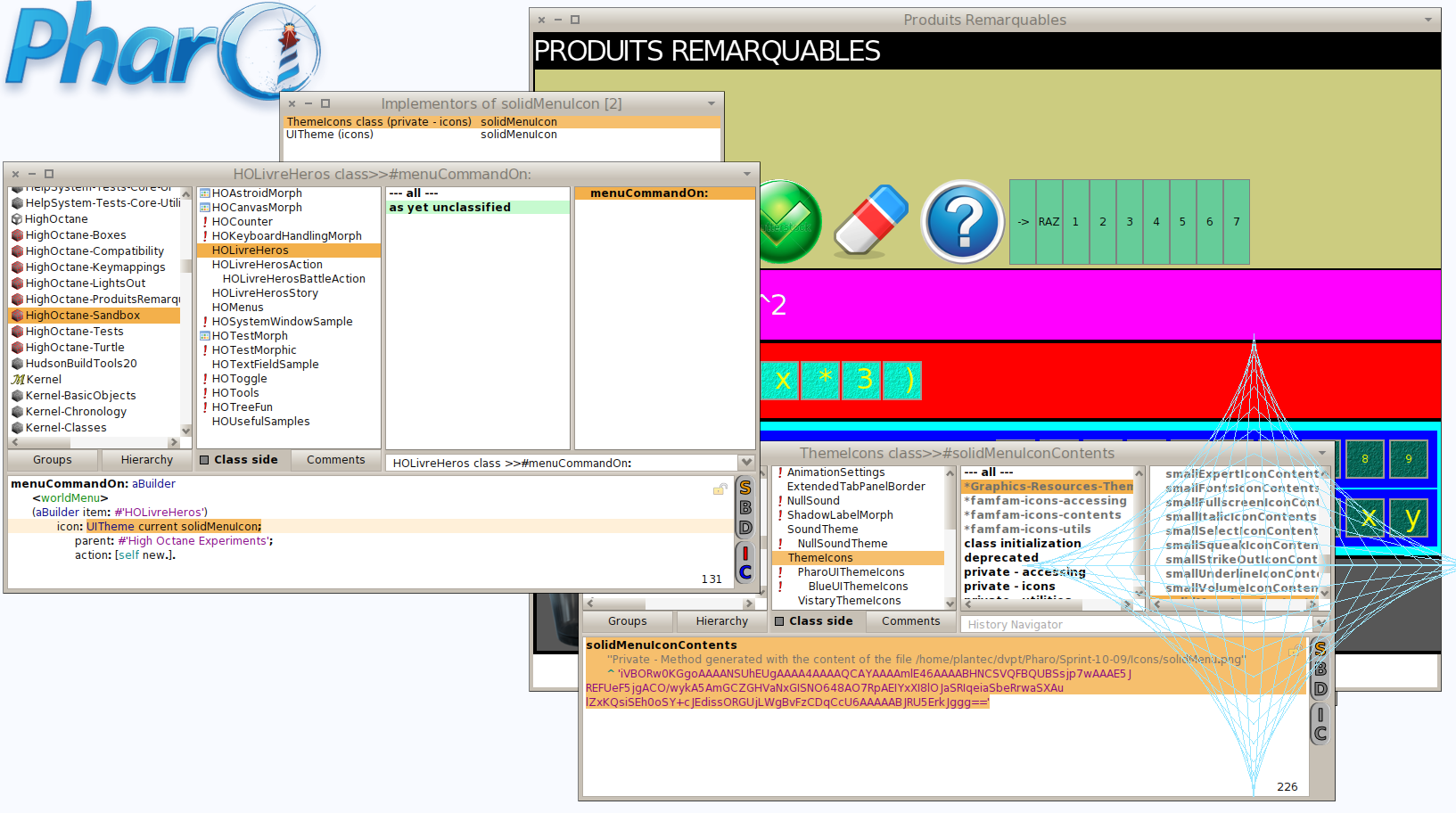

On the other side, loading PNGs from disk worked okay. (As the larger icons on the background of the screenshot demonstrate).
Hope you can figure out why there is such an issue.
Phil <Capture dâécran 2013-02-19 à 22.27.37.png><Capture dâécran 2013-02-19 à 22.39.43.png><Capture dâécran 2013-02-19 à 22.41.41.png>
OSX Lion 2013/2/19 Camillo Bruni <camillobruni@gmail.com>:
humm that is all strange...
under which platform are you?
On 2013-02-19, at 22:49, "phil@highoctane.be" <phil@highoctane.be> wrote:
I managed to load my code into Pharo 2.0 without problems. Sweet!
There is some direct use of morphic all looks like to work well. Sound also works nicely.
Still an issue with the World Menu where I do use menuCommandOn with an icon set to:
UITheme current solidMenuIcon
The icon looks quite warped or plain wrong (looks like a crappy cloud).
The code of the method in 1.4 is
solidMenuIconContents "Private - Method generated with the content of the file /home/plantec/dvpt/Pharo/Sprint-10-09/Icons/solidMenu.png" ^ 'iVBORw0KGgoAAAANSUhEUgAAAA4AAAAQCAYAAAAmlE46AAAABHNCSVQFBQUBSsjp7wAAAE5J REFUeF5jgACO/wykA5AmGCZGHVaNxGISNO648AO7RpAEIYxXI8lOJaSRIqeiaSbeRrwaSXAu lZxKQsiSEh0oSY+cJEdissORGUjLWgBvFzCDqCcU6AAAAABJRU5ErkJggg=='
and in 2.0 it is
solidMenuIconContents "Private - Method generated with the content of the file /home/plantec/dvpt/Pharo/Sprint-10-09/Icons/solidMenu.png" ^ 'iVBORw0KGgoAAAANSUhEUgAAAA4AAAAQCAYAAAAmlE46AAAABHNCSVQFBQUBSsjp7wAAAE5J REFUeF5jgACO/wykA5AmGCZGHVaNxGISNO648AO7RpAEIYxXI8lOJaSRIqeiaSbeRrwaSXAu lZxKQsiSEh0oSY+cJEdissORGUjLWgBvFzCDqCcU6AAAAABJRU5ErkJggg=='
Looks like the same to me. So, something isn't right.
I tried the image with the StackVM and there, the icon is right. It has the right colors instead of a white cloud.
Maybe due to a plugin, I don't know. The VM I tried is the latest one I got with the ciPharoVM.sh script.
My self compiled PharoVM exhibits the same problem.
CogVM shows the right icons (even if it complains that the VM is too old for the image)
Smalltalk vmVersion gives:
'CoInterpreter VMMaker.oscog-eem.264 uuid: 64e76092-8af7-449f-9188-e65f3bd1f08d Feb 5 2013 StackToRegisterMappingCogit VMMaker.oscog-eem.264 uuid: 64e76092-8af7-449f-9188-e65f3bd1f08d Feb 5 2013 VM: r2678 http://www.squeakvm.org/svn/squeak/branches/Cog Plugins: r2545 http://squeakvm.org/svn/squeak/trunk/platforms/Cross/plugins '
I tried with the code generated to create a cog VM from Esteban and there it works fine.
Smalltalk vmVersion gives there:
'CoInterpreter VMMaker-oscog-EstebanLorenzano.231 uuid: a9e39f38-e1fa-4851-a3a3-1a0f1f7a4062 Feb 15 2013 StackToRegisterMappingCogit VMMaker-oscog-EstebanLorenzano.231 uuid: a9e39f38-e1fa-4851-a3a3-1a0f1f7a4062 Feb 15 2013 git://gitorious.org/cogvm/blessed.git Commit: 63aa6ed8a070fc730224b496e0dda7c3f8482e10 Date: 2013-02-14 11:43:21 +0100 By: Esteban Lorenzano <estebanlm@gmail.com> '
Here is the version for the problematic VM (latest downloaded from ci)
Smalltalk vm version
'NBCoInterpreter NativeBoost-CogPlugin-EstebanLorenzano.18 uuid: a53445f9-c0c0-4015-97a3-be7db8d9ed6b Feb 18 2013 NBCogit NativeBoost-CogPlugin-EstebanLorenzano.18 uuid: a53445f9-c0c0-4015-97a3-be7db8d9ed6b Feb 18 2013 git://gitorious.org/cogvm/blessed.git Commit: 05ed728452dc92732f9f23ce24a3c32bfdc0f4b8 Date: 2013-02-15 17:04:09 +0100 By: Igor Stasenko <siguctua@gmail.com> Jenkins build #14519 '
Maybe some NB dark magic going on...
On the other side, loading PNGs from disk worked okay. (As the larger icons on the background of the screenshot demonstrate).
Hope you can figure out why there is such an issue.
Phil <Capture dâécran 2013-02-19 à 22.27.37.png><Capture dâécran 2013-02-19 à 22.39.43.png><Capture dâécran 2013-02-19 à 22.41.41.png>
