So i spent a little time to make an experiment, how fast i can render the tree visualization.

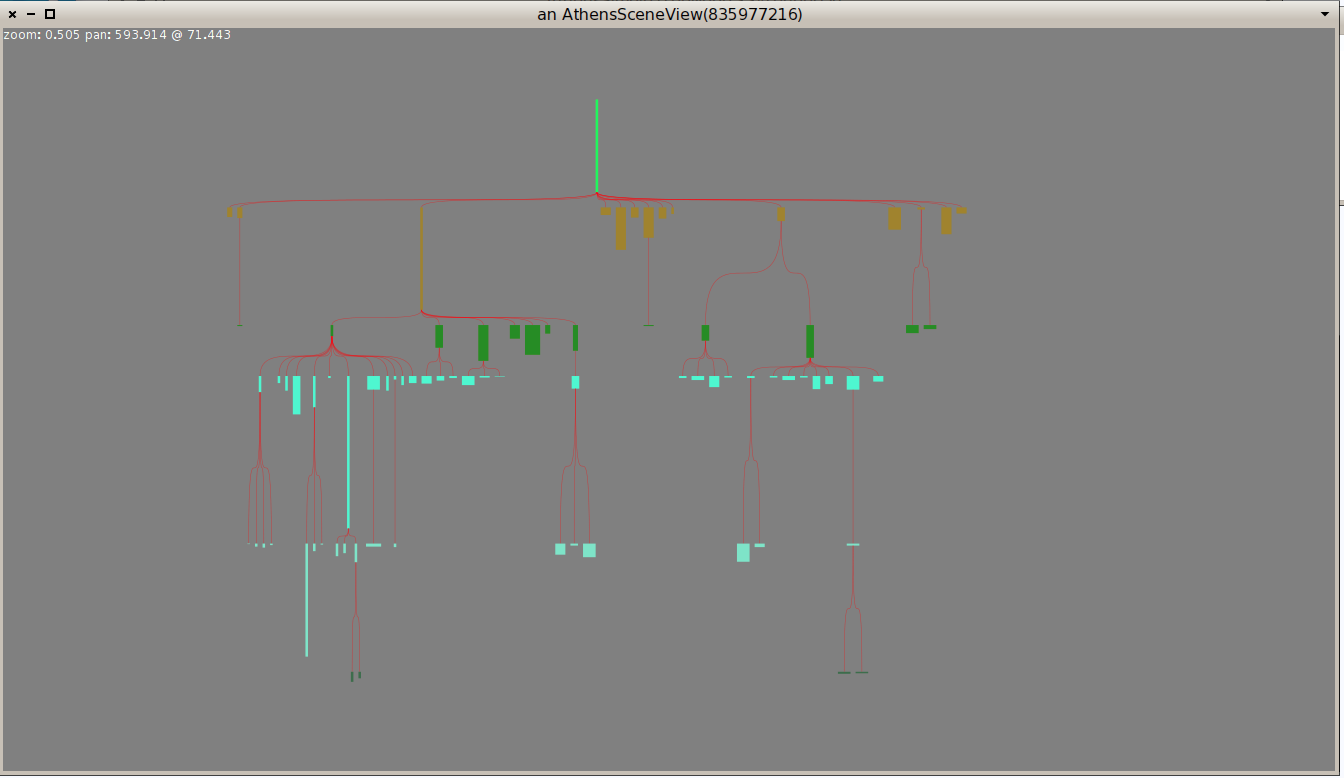

(gray screenshot) This one i can zoom& pan in real time without even noticing any sort of delay:
(AthensTreeView openOn: Collection extentBlock: [ :cls | (cls allInstVarNames size+1)*5 @ (cls methodDict size + 1) ] childsBlock: [ :cls | cls subclasses ]).

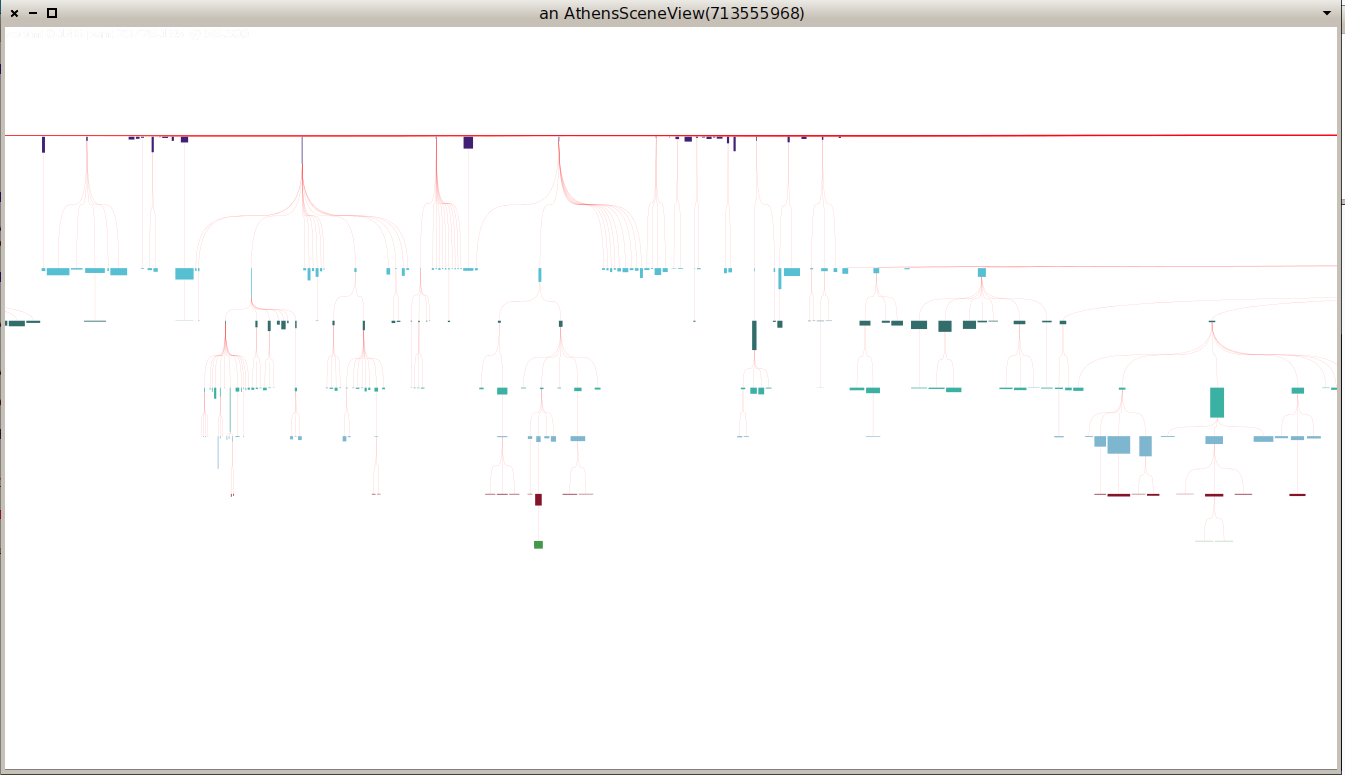

(white screenshot) This one a bit sluggish, because of drawing too many curves (but if you comment curve drawing - connecting each child with its parent, and leave drawing only boxes.. it will be quite fast.. for real-time zoom & pan)
(AthensTreeView openOn: Object extentBlock: [ :cls | (cls allInstVarNames size+1)*5 @ (cls methodDict size + 1) ] childsBlock: [ :cls | cls subclasses ]).
And sure, smart people usually employ different visualizations for such large trees, since it makes no sense: Object withAllSubclasses size 6882
but even without it, if you limit max zoom, you can go very fast ( there is a lot of literature how you can do geometry culling (by occluding unnecessary geometry to not waste cycles on it, since it is outside of view anyways)
-- Best regards, Igor Stasenko.
