[PDFtalk] second fileOut for Squeak and Pharo

C
christian.haider
Wed, Jun 22, 2022 10:42 AM

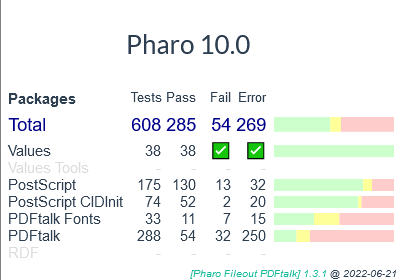

With help from the community some issues were fixed which improved the test statistics nicely.
Check it out: https://wiki.pdftalk.de/doku.php?id=portingblog#second_pdftalk_fileout_for_squeak_and_pharo
Thanks to everybody involved!
Happy hacking,
Christian

With help from the community some issues were fixed which improved the test statistics nicely. Check it out: https://wiki.pdftalk.de/doku.php?id=portingblog#second_pdftalk_fileout_for_squeak_and_pharo Thanks to everybody involved! Happy hacking, Christian
MD
Marcus Denker
Mon, Jun 27, 2022 11:57 AM

Great!

Sadly I have no time to help for real on this, but I will have a look at all related issue tracker entries,

For Pharo, I would not try to support too old versions, e.g. Pharo 6.1, 7.0 are really old… we fix bugs and improve things
All the time, targeting very very old systems is a lot of work, while the need might not be there as there might not be many
Users.

Marcus

On 22 Jun 2022, at 12:42, christian.haider christian.haider@smalltalked-visuals.com wrote:

With help from the community some issues were fixed which improved the test statistics nicely.
Check it out: https://wiki.pdftalk.de/doku.php?id=portingblog#second_pdftalk_fileout_for_squeak_and_pharo

Thanks to everybody involved!

Happy hacking,
Christian

Great! Sadly I have no time to help for real on this, but I will have a look at all related issue tracker entries, For Pharo, I would not try to support too old versions, e.g. Pharo 6.1, 7.0 are really old… we fix bugs and improve things All the time, targeting very very old systems is a lot of work, while the need might not be there as there might not be many Users. Marcus > On 22 Jun 2022, at 12:42, christian.haider <christian.haider@smalltalked-visuals.com> wrote: > > With help from the community some issues were fixed which improved the test statistics nicely. > Check it out: https://wiki.pdftalk.de/doku.php?id=portingblog#second_pdftalk_fileout_for_squeak_and_pharo > > Thanks to everybody involved! > > Happy hacking, > Christian
S
Shaping
Wed, Aug 3, 2022 11:59 AM

Hi Christian.

I’m trying to port from VW 8.3 to Pharo.  Is there a detailed algorithm in addition to the Workflow section mentioned here?:

https://wiki.pdftalk.de/doku.php?id=pdftalknonnamespacefileout

  1. generate the source for the target dialect from VisualWorks with the defined code transformations. Fix problems so that there are no errors or warnings.

How does one generate the source (run the transformation)?  Where are the aforementioned “defined code transformations”,  Is there an example of how to setup the declarative template needed to map VW namespace names to Pharo class prefixes?

I loaded the following packages into my VW 8.3 image:

Values Project

Values

Values Fileout Pharo

Values Testing

Values Tools

Values Tools Testing

Pharo Fileout Values

Pharo Transform

Smalltalk Transform Project

Smalltalk Transform TestBundle

Smalltalk Transform Tests

Smalltalk Transform

Smalltalk Transform Model

Smalltalk Transform Testing

Smalltalk Transform TestPackage

Smalltalk Transform Tools

Any package not updated recently (in the last few months) I didn’t load.

Did I miss anything?

  1. Port the Values package. This is easy, since no namespaces are involved.

This first instruction after VW package setup says to port the contents of the Values package from VW to Pharo.  Do you mean manually?  Probably not.

I feel like I’ve missed the main details of how to start the transformation.  I’d like to do a small fully contained test package with no external dependencies as a first test, probably my Magnitude or Collection packages.  Suggestions are welcome.  That’s for do this and sharing it.

Shaping

From: christian.haider christian.haider@smalltalked-visuals.com
Sent: Wednesday, 22 June, 2022 05:42
To: pharo-users@lists.pharo.org
Subject: [Pharo-users] [PDFtalk] second fileOut for Squeak and Pharo

With help from the community some issues were fixed which improved the test statistics nicely.
Check it out: https://wiki.pdftalk.de/doku.php?id=portingblog#second_pdftalk_fileout_for_squeak_and_pharo

Thanks to everybody involved!

Happy hacking,
Christian

Hi Christian. I’m trying to port from VW 8.3 to Pharo. Is there a detailed algorithm in addition to the Workflow section mentioned here?: https://wiki.pdftalk.de/doku.php?id=pdftalknonnamespacefileout 1. generate the source for the target dialect from VisualWorks with the defined code transformations. Fix problems so that there are no errors or warnings. … How does one generate the source (run the transformation)? Where are the aforementioned “defined code transformations”, Is there an example of how to setup the declarative template needed to map VW namespace names to Pharo class prefixes? I loaded the following packages into my VW 8.3 image: Values Project Values Values Fileout Pharo Values Testing Values Tools Values Tools Testing Pharo Fileout Values Pharo Transform Smalltalk Transform Project Smalltalk Transform TestBundle Smalltalk Transform Tests Smalltalk Transform Smalltalk Transform Model Smalltalk Transform Testing Smalltalk Transform TestPackage Smalltalk Transform Tools Any package not updated recently (in the last few months) I didn’t load. Did I miss anything? 2. Port the Values package. This is easy, since no namespaces are involved. This first instruction after VW package setup says to port the contents of the Values package from VW to Pharo. Do you mean manually? Probably not. I feel like I’ve missed the main details of how to start the transformation. I’d like to do a small fully contained test package with no external dependencies as a first test, probably my Magnitude or Collection packages. Suggestions are welcome. That’s for do this and sharing it. Shaping From: christian.haider <christian.haider@smalltalked-visuals.com> Sent: Wednesday, 22 June, 2022 05:42 To: pharo-users@lists.pharo.org Subject: [Pharo-users] [PDFtalk] second fileOut for Squeak and Pharo With help from the community some issues were fixed which improved the test statistics nicely. Check it out: https://wiki.pdftalk.de/doku.php?id=portingblog#second_pdftalk_fileout_for_squeak_and_pharo Thanks to everybody involved! Happy hacking, Christian
S
Shaping
Wed, Aug 3, 2022 2:03 PM

Hi Christian.

I’m trying to port from VW 8.3 to Pharo.  Is there a detailed algorithm in addition to the Workflow section mentioned here?:

https://wiki.pdftalk.de/doku.php?id=pdftalknonnamespacefileout

  1. generate the source for the target dialect from VisualWorks with the defined code transformations. Fix problems so that there are no errors or warnings.

How does one generate the source (run the transformation)?  Where are the aforementioned “defined code transformations”,  Is there an example of how to setup the declarative template needed to map VW namespace names to Pharo class prefixes?

I loaded the following packages into my VW 8.3 image:

Values Project

Values

Values Fileout Pharo

Values Testing

Values Tools

Values Tools Testing

Pharo Fileout Values

Pharo Transform

Smalltalk Transform Project

Smalltalk Transform TestBundle

Smalltalk Transform Tests

Smalltalk Transform

Smalltalk Transform Model

Smalltalk Transform Testing

Smalltalk Transform TestPackage

Smalltalk Transform Tools

Any package not updated recently (in the last few months) I didn’t load.

Did I miss anything?

  1. Port the Values package. This is easy, since no namespaces are involved.

This first instruction after VW package setup says to port the contents of the Values package from VW to Pharo.  Do you mean manually?  Probably not.

I feel like I’ve missed the main details of how to start the transformation.  I’d like to do a small fully contained test package with no external dependencies as a first test, probably my Magnitude or Collection packages.  Suggestions are welcome.  Thanks for doing this and sharing it.

Shaping

From: christian.haider <christian.haider@smalltalked-visuals.com mailto:christian.haider@smalltalked-visuals.com >
Sent: Wednesday, 22 June, 2022 05:42
To: pharo-users@lists.pharo.org mailto:pharo-users@lists.pharo.org
Subject: [Pharo-users] [PDFtalk] second fileOut for Squeak and Pharo

With help from the community some issues were fixed which improved the test statistics nicely.
Check it out: https://wiki.pdftalk.de/doku.php?id=portingblog#second_pdftalk_fileout_for_squeak_and_pharo

Thanks to everybody involved!

Happy hacking,
Christian

Hi Christian. I’m trying to port from VW 8.3 to Pharo. Is there a detailed algorithm in addition to the Workflow section mentioned here?: https://wiki.pdftalk.de/doku.php?id=pdftalknonnamespacefileout 1. generate the source for the target dialect from VisualWorks with the defined code transformations. Fix problems so that there are no errors or warnings. … How does one generate the source (run the transformation)? Where are the aforementioned “defined code transformations”, Is there an example of how to setup the declarative template needed to map VW namespace names to Pharo class prefixes? I loaded the following packages into my VW 8.3 image: Values Project Values Values Fileout Pharo Values Testing Values Tools Values Tools Testing Pharo Fileout Values Pharo Transform Smalltalk Transform Project Smalltalk Transform TestBundle Smalltalk Transform Tests Smalltalk Transform Smalltalk Transform Model Smalltalk Transform Testing Smalltalk Transform TestPackage Smalltalk Transform Tools Any package not updated recently (in the last few months) I didn’t load. Did I miss anything? 2. Port the Values package. This is easy, since no namespaces are involved. This first instruction after VW package setup says to port the contents of the Values package from VW to Pharo. Do you mean manually? Probably not. I feel like I’ve missed the main details of how to start the transformation. I’d like to do a small fully contained test package with no external dependencies as a first test, probably my Magnitude or Collection packages. Suggestions are welcome. Thanks for doing this and sharing it. Shaping From: christian.haider <christian.haider@smalltalked-visuals.com <mailto:christian.haider@smalltalked-visuals.com> > Sent: Wednesday, 22 June, 2022 05:42 To: pharo-users@lists.pharo.org <mailto:pharo-users@lists.pharo.org> Subject: [Pharo-users] [PDFtalk] second fileOut for Squeak and Pharo With help from the community some issues were fixed which improved the test statistics nicely. Check it out: https://wiki.pdftalk.de/doku.php?id=portingblog#second_pdftalk_fileout_for_squeak_and_pharo Thanks to everybody involved! Happy hacking, Christian
CH
christian.haider@smalltalked-visuals.com
Wed, Aug 3, 2022 4:07 PM

Hi Shaping,

great! :)

Answers inline…

Von: Shaping shaping@uurda.org
Gesendet: Mittwoch, 3. August 2022 16:03
An: 'Any question about pharo is welcome' pharo-users@lists.pharo.org; 'Pharo Development List' pharo-dev@lists.pharo.org
Betreff: [Pharo-users] FW: Porting from VW 8.3 to Pharo

Hi Christian.

I’m trying to port from VW 8.3 to Pharo.  Is there a detailed algorithm in addition to the Workflow section mentioned here?:

https://wiki.pdftalk.de/doku.php?id=pdftalknonnamespacefileout

  1. generate the source for the target dialect from VisualWorks with the defined code transformations. Fix problems so that there are no errors or warnings.

No. The page is a bit outdated and reflected the beginning of the project, I will go over it and update the description.

How does one generate the source (run the transformation)?  Where are the aforementioned “defined code transformations”,  Is there an example of how to setup the declarative template needed to map VW namespace names to Pharo class prefixes?

I loaded the following packages into my VW 8.3 image:

Values Project Yes

Values

Values Fileout Pharo

Values Testing

Values Tools

Values Tools Testing Automatic

Load PDFtalk Project bundle. Since the main target is PDFtalk. Values (and PostScript) are just bycatch.

Pharo Fileout Values No, this package has been renamed to [Pharo Fileout PDFtalk]. Load this.

Pharo Transform No, not separate. This is part of the Transform Project.

Smalltalk Transform Project Yes

Smalltalk Transform TestBundle

Smalltalk Transform Tests

Smalltalk Transform

Smalltalk Transform Model

Smalltalk Transform Testing

Smalltalk Transform TestPackage

Smalltalk Transform Tools Automatic

Any package not updated recently (in the last few months) I didn’t load.

Did I miss anything?

Yes. The ideal setup from a virgin image is:

            Load {Values Project] bundle

            Load {PDFtalk Project} bundle

            Load {Smalltalk Transform Project} bundle

            Load [Pharo Fileout PDFtalk] package

            Save, done

            To transform Values do: “Pharo100 fileOutValues”

The [Pharo Fileout PDFtalk] package includes the latest Values transformations.

I am thinking about a better modularization…

Also, the wiki is a bit out of control. It really needs some restructuring.

In the cites wiki page, there is a link to a blog where I record the changes. This might be informative.

  1. Port the Values package. This is easy, since no namespaces are involved.

This first instruction after VW package setup says to port the contents of the Values package from VW to Pharo.  Do you mean manually?  Probably not.

No, no. This has been finished in March.

For each dialect, I have a GitHub repository where I release important versions:  https://github.com/PortingPDFtalk/PharoPDFtalk https://github.com/PortingPDFtalk/PharoPDFtalk. You can find the working port as first release “ https://github.com/PortingPDFtalk/PharoPDFtalk/releases/tag/1.3.0.0 Working version“. There you can download the ported Values fileout with the exact description with which versions of what it was created.

This should be a good starting example.

I feel like I’ve missed the main details of how to start the transformation.  I’d like to do a small fully contained test package with no external dependencies as a first test, probably my Magnitude or Collection packages.  Suggestions are welcome.  Thanks for doing this and sharing it.

If I may suggest, I would look at the transformations on the class side of the SmalltalkTransform.Pharo class: methods #ValuesProject and #PDFtalkProject (I know, some would detest, that I start methods sometimes with a capital letter…).

To get a feel for the machinery, you could debug through “Pharo100 fileOutValues” (for Pharo 10.0).

As said, Values don’t use namespaces. To see what is involved there, you could look at #PDFtalkProject for the name mapping.

But beware! The PDFtalk transformation is not finished yet. Still, you could get some inspiration and can probably reuse some of the rules.

Shaping

Great that you are trying to use the transformation project. The more use, the better it should get.

Please share your questions and insights (and successes :)).

Happy hacking,

Christian

From: christian.haider <christian.haider@smalltalked-visuals.com mailto:christian.haider@smalltalked-visuals.com >
Sent: Wednesday, 22 June, 2022 05:42
To: pharo-users@lists.pharo.org mailto:pharo-users@lists.pharo.org
Subject: [Pharo-users] [PDFtalk] second fileOut for Squeak and Pharo

With help from the community some issues were fixed which improved the test statistics nicely.
Check it out: https://wiki.pdftalk.de/doku.php?id=portingblog#second_pdftalk_fileout_for_squeak_and_pharo

Thanks to everybody involved!

Happy hacking,
Christian

Hi Shaping, great! :) Answers inline… Von: Shaping <shaping@uurda.org> Gesendet: Mittwoch, 3. August 2022 16:03 An: 'Any question about pharo is welcome' <pharo-users@lists.pharo.org>; 'Pharo Development List' <pharo-dev@lists.pharo.org> Betreff: [Pharo-users] FW: Porting from VW 8.3 to Pharo Hi Christian. I’m trying to port from VW 8.3 to Pharo. Is there a detailed algorithm in addition to the Workflow section mentioned here?: https://wiki.pdftalk.de/doku.php?id=pdftalknonnamespacefileout 1. generate the source for the target dialect from VisualWorks with the defined code transformations. Fix problems so that there are no errors or warnings. … No. The page is a bit outdated and reflected the beginning of the project, I will go over it and update the description. How does one generate the source (run the transformation)? Where are the aforementioned “defined code transformations”, Is there an example of how to setup the declarative template needed to map VW namespace names to Pharo class prefixes? I loaded the following packages into my VW 8.3 image: Values Project Yes Values Values Fileout Pharo Values Testing Values Tools Values Tools Testing Automatic Load PDFtalk Project bundle. Since the main target is PDFtalk. Values (and PostScript) are just bycatch. Pharo Fileout Values No, this package has been renamed to [Pharo Fileout PDFtalk]. Load this. Pharo Transform No, not separate. This is part of the Transform Project. Smalltalk Transform Project Yes Smalltalk Transform TestBundle Smalltalk Transform Tests Smalltalk Transform Smalltalk Transform Model Smalltalk Transform Testing Smalltalk Transform TestPackage Smalltalk Transform Tools Automatic Any package not updated recently (in the last few months) I didn’t load. Did I miss anything? Yes. The ideal setup from a virgin image is: Load {Values Project] bundle Load {PDFtalk Project} bundle Load {Smalltalk Transform Project} bundle Load [Pharo Fileout PDFtalk] package Save, done To transform Values do: “Pharo100 fileOutValues” The [Pharo Fileout PDFtalk] package includes the latest Values transformations. I am thinking about a better modularization… Also, the wiki is a bit out of control. It really needs some restructuring. In the cites wiki page, there is a link to a blog where I record the changes. This might be informative. 2. Port the Values package. This is easy, since no namespaces are involved. This first instruction after VW package setup says to port the contents of the Values package from VW to Pharo. Do you mean manually? Probably not. No, no. This has been finished in March. For each dialect, I have a GitHub repository where I release important versions: <https://github.com/PortingPDFtalk/PharoPDFtalk> https://github.com/PortingPDFtalk/PharoPDFtalk. You can find the working port as first release “ <https://github.com/PortingPDFtalk/PharoPDFtalk/releases/tag/1.3.0.0> Working version“. There you can download the ported Values fileout with the exact description with which versions of what it was created. This should be a good starting example. I feel like I’ve missed the main details of how to start the transformation. I’d like to do a small fully contained test package with no external dependencies as a first test, probably my Magnitude or Collection packages. Suggestions are welcome. Thanks for doing this and sharing it. If I may suggest, I would look at the transformations on the class side of the SmalltalkTransform.Pharo class: methods #ValuesProject and #PDFtalkProject (I know, some would detest, that I start methods sometimes with a capital letter…). To get a feel for the machinery, you could debug through “Pharo100 fileOutValues” (for Pharo 10.0). As said, Values don’t use namespaces. To see what is involved there, you could look at #PDFtalkProject for the name mapping. But beware! The PDFtalk transformation is not finished yet. Still, you could get some inspiration and can probably reuse some of the rules. Shaping Great that you are trying to use the transformation project. The more use, the better it should get. Please share your questions and insights (and successes :)). Happy hacking, Christian From: christian.haider <christian.haider@smalltalked-visuals.com <mailto:christian.haider@smalltalked-visuals.com> > Sent: Wednesday, 22 June, 2022 05:42 To: pharo-users@lists.pharo.org <mailto:pharo-users@lists.pharo.org> Subject: [Pharo-users] [PDFtalk] second fileOut for Squeak and Pharo With help from the community some issues were fixed which improved the test statistics nicely. Check it out: https://wiki.pdftalk.de/doku.php?id=portingblog#second_pdftalk_fileout_for_squeak_and_pharo Thanks to everybody involved! Happy hacking, Christian
SD
stephane ducasse
Wed, Aug 3, 2022 8:18 PM

Hi

If in the process you discover easy changes on the pharo side that
can be either integrated in Pharo or packages from the Pharo side to help migration let us know.
We would like to help but we are really really super full.
I tried to help to package values but I did not understand the process (I know the pharo way for sure to define baseline).
Now a part of the team is really concentrated to improve the VM (we would like to have a 1.5 speed up) but
it requires work and concentration. We are also working on permanent space and better memory management
thanks for lifeware sponsoring.
Still let us know.

Shaping about the spec questions esteban is on vacation and when he will reappear he will check the libgit change impacting us.
Then the spec aspects.

S

On 3 Aug 2022, at 16:03, Shaping shaping@uurda.org wrote:

Hi Christian.

I’m trying to port from VW 8.3 to Pharo.  Is there a detailed algorithm in addition to the Workflow section mentioned here?:

https://wiki.pdftalk.de/doku.php?id=pdftalknonnamespacefileout https://wiki.pdftalk.de/doku.php?id=pdftalknonnamespacefileout

generate the source for the target dialect from VisualWorks with the defined code transformations. Fix problems so that there are no errors or warnings.

How does one generate the source (run the transformation)?  Where are the aforementioned “defined code transformations”,  Is there an example of how to setup the declarative template needed to map VW namespace names to Pharo class prefixes?

I loaded the following packages into my VW 8.3 image:

Values Project
Values
Values Fileout Pharo
Values Testing
Values Tools
Values Tools Testing

Pharo Fileout Values
Pharo Transform

Smalltalk Transform Project
Smalltalk Transform TestBundle
Smalltalk Transform Tests
Smalltalk Transform
Smalltalk Transform Model
Smalltalk Transform Testing
Smalltalk Transform TestPackage
Smalltalk Transform Tools

Any package not updated recently (in the last few months) I didn’t load.
Did I miss anything?
2. Port the Values package. This is easy, since no namespaces are involved.

This first instruction after VW package setup says to port the contents of the Values package from VW to Pharo.  Do you mean manually?  Probably not.

I feel like I’ve missed the main details of how to start the transformation.  I’d like to do a small fully contained test package with no external dependencies as a first test, probably my Magnitude or Collection packages.  Suggestions are welcome.  Thanks for doing this and sharing it.

Shaping

From: christian.haider <christian.haider@smalltalked-visuals.com mailto:christian.haider@smalltalked-visuals.com>
Sent: Wednesday, 22 June, 2022 05:42
To: pharo-users@lists.pharo.org mailto:pharo-users@lists.pharo.org
Subject: [Pharo-users] [PDFtalk] second fileOut for Squeak and Pharo

With help from the community some issues were fixed which improved the test statistics nicely.
Check it out: https://wiki.pdftalk.de/doku.php?id=portingblog#second_pdftalk_fileout_for_squeak_and_pharo https://wiki.pdftalk.de/doku.php?id=portingblog#second_pdftalk_fileout_for_squeak_and_pharo

Thanks to everybody involved!

Happy hacking,
Christian

Hi If in the process you discover easy changes on the pharo side that can be either integrated in Pharo or packages from the Pharo side to help migration let us know. We would like to help but we are really really super full. I tried to help to package values but I did not understand the process (I know the pharo way for sure to define baseline). Now a part of the team is really concentrated to improve the VM (we would like to have a 1.5 speed up) but it requires work and concentration. We are also working on permanent space and better memory management thanks for lifeware sponsoring. Still let us know. Shaping about the spec questions esteban is on vacation and when he will reappear he will check the libgit change impacting us. Then the spec aspects. S > On 3 Aug 2022, at 16:03, Shaping <shaping@uurda.org> wrote: > > Hi Christian. > > I’m trying to port from VW 8.3 to Pharo. Is there a detailed algorithm in addition to the Workflow section mentioned here?: > > https://wiki.pdftalk.de/doku.php?id=pdftalknonnamespacefileout <https://wiki.pdftalk.de/doku.php?id=pdftalknonnamespacefileout> > > generate the source for the target dialect from VisualWorks with the defined code transformations. Fix problems so that there are no errors or warnings. > … > > How does one generate the source (run the transformation)? Where are the aforementioned “defined code transformations”, Is there an example of how to setup the declarative template needed to map VW namespace names to Pharo class prefixes? > > I loaded the following packages into my VW 8.3 image: > > Values Project > Values > Values Fileout Pharo > Values Testing > Values Tools > Values Tools Testing > > Pharo Fileout Values > Pharo Transform > > Smalltalk Transform Project > Smalltalk Transform TestBundle > Smalltalk Transform Tests > Smalltalk Transform > Smalltalk Transform Model > Smalltalk Transform Testing > Smalltalk Transform TestPackage > Smalltalk Transform Tools > > Any package not updated recently (in the last few months) I didn’t load. > Did I miss anything? > 2. Port the Values package. This is easy, since no namespaces are involved. > > > This first instruction after VW package setup says to port the contents of the Values package from VW to Pharo. Do you mean manually? Probably not. > > I feel like I’ve missed the main details of how to start the transformation. I’d like to do a small fully contained test package with no external dependencies as a first test, probably my Magnitude or Collection packages. Suggestions are welcome. Thanks for doing this and sharing it. > > Shaping > > From: christian.haider <christian.haider@smalltalked-visuals.com <mailto:christian.haider@smalltalked-visuals.com>> > Sent: Wednesday, 22 June, 2022 05:42 > To: pharo-users@lists.pharo.org <mailto:pharo-users@lists.pharo.org> > Subject: [Pharo-users] [PDFtalk] second fileOut for Squeak and Pharo > > With help from the community some issues were fixed which improved the test statistics nicely. > Check it out: https://wiki.pdftalk.de/doku.php?id=portingblog#second_pdftalk_fileout_for_squeak_and_pharo <https://wiki.pdftalk.de/doku.php?id=portingblog#second_pdftalk_fileout_for_squeak_and_pharo> > > Thanks to everybody involved! > > Happy hacking, > Christian
S
Shaping
Thu, Aug 4, 2022 12:59 AM

[…]

How does one generate the source (run the transformation)?  Where are the aforementioned “defined code transformations”,  Is there an example of how to setup the declarative template needed to map VW namespace names to Pharo class prefixes?

I loaded the following packages into my VW 8.3 image:

Values Project Yes

Values

Values Fileout Pharo

Values Testing

Values Tools

Values Tools Testing Automatic

Load PDFtalk Project bundle. Since the main target is PDFtalk. Values (and PostScript) are just bycatch.

Pharo Fileout Values No, this package has been renamed to [Pharo Fileout PDFtalk]. Load this.

Pharo Transform No, not separate. This is part of the Transform Project.

Smalltalk Transform Project Yes

Smalltalk Transform TestBundle

Smalltalk Transform Tests

Smalltalk Transform

Smalltalk Transform Model

Smalltalk Transform Testing

Smalltalk Transform TestPackage

Smalltalk Transform Tools Automatic

Yes, I just loaded the head packages and the dependencies were also loaded.  Thanks for trimming that down for me.

Any package not updated recently (in the last few months) I didn’t load.

Did I miss anything?

Yes. The ideal setup from a virgin image

Ok.  I don’t have a virgin image.  I have a very non-virgin image, about 27 years of development I’m trying to port to Pharo.  I don’t yet have a specific interest in the PDFtalk, though I do see a need for PDF generation later, and will probably revisit that.  For now, I just want my own stuff to run in Pharo.

is:

            Load {Values Project] bundle

            Load {PDFtalk Project} bundle

            Load {Smalltalk Transform Project} bundle

            Load [Pharo Fileout PDFtalk] package

            Save, done

Okay, so do I understand correctly that I need to include the PDFtalk stuff even if I’m not interested in PDFtalk, because that’s where a lot of the Smalltalk transformation machinery lives?  Or is the PDFtalk just being used as an example for how to do a massive transformation?  Or Both?

            To transform Values do: “Pharo100 fileOutValues”

The [Pharo Fileout PDFtalk] package includes the latest Values transformations.

I am thinking about a better modularization…

Also, the wiki is a bit out of control. It really needs some restructuring.

In the cites wiki page, there is a link to a blog where I record the changes. This might be informative.

  1. Port the Values package. This is easy, since no namespaces are involved.

This first instruction after VW package setup says to port the contents of the Values package from VW to Pharo.  Do you mean manually?  Probably not.

No, no. This has been finished in March.

For each dialect, I have a GitHub repository where I release important versions:  https://github.com/PortingPDFtalk/PharoPDFtalk https://github.com/PortingPDFtalk/PharoPDFtalk. You can find the working port as first release “ https://github.com/PortingPDFtalk/PharoPDFtalk/releases/tag/1.3.0.0 Working version“. There you can download the ported Values fileout with the exact description with which versions of what it was created.

This should be a good starting example.

Why do I need any new code installed in Pharo before I begin the transformation, if I’m transforming code from VW to pharo?  I’m not understanding the basic constraints of the problem, even when the detailed steps are clear.

I’ve done these steps so far:

  1. Went to  https://github.com/PortingPDFtalk/PharoPDFtalk https://github.com/PortingPDFtalk/PharoPDFtalk.

  2. Saved down PDFtalk.Pharo100.st into <my Pharo 10 image directory>/pharo-local/Smalltalk-Transformation. (I figured that was a good place to save it.  If anyone disagrees, or has a better or more conventional idea about where files should be saved, please say so.  I setup a Pharo Git repo and played with it briefly for the first time yesterday.  I’ve used Pharo off an on for 16 years, but this is the first time I’m making a serious effort to manage source, and not throw away what I’m working on.)

  3. Filed-in PDFtalk.Pharo100.st.  This went on for about 7 minutes or so.  I have a hundreds if not over a thousand classes showing in Epicea.  Is there anyway to get Epicea to give me a count of changes with a time-range filter?

  4. Deleted (forgot) yesterday’s, old Main practice-repo from both the image and the drive, and made a new one.  I need to add to Main all the packages I just filed-in, but I don’t see an efficient way to do that.  I would like to use the Add Package button, but this gives a filtered list of available packages.  I can filter subgroups, and then individually select each of the checkboxes to the left of each package (there is no Ctrl-A [select all] option here, which seems to be a strange omission given the potentially large number of packages involved).  I see lots of prefixes for the classes just loaded.  I could easily miss something if I filter/select/add one prefix-group at a time.  Is there an easier way?  Over in Epicea I don’t see a way to push the loaded items listed to a specific repo.  The first thought I have is to select all filed-in code artifacts by datetime span.  I did that and saved it as an .ombu file (I have no idea what that is).  I don’t see a way to import that .ombu file into repo Main’s “Working copy” window.  It must be easy, but I don’t see it.  Please suggest the best way.

I feel like I’ve missed the main details of how to start the transformation.  I’d like to do a small fully contained test package with no external dependencies as a first test, probably my Magnitude or Collection packages.  Suggestions are welcome.  Thanks for doing this and sharing it.

If I may suggest, I would look at the transformations on the class side of the SmalltalkTransform.Pharo class: methods #ValuesProject and #PDFtalkProject (I know, some would detest, that I start methods sometimes with a capital letter…).

I used to be this way.  I’m okay with it now, and actually have selectors that are completely capitalized Acronyms.  Times change.

To get a feel for the machinery, you could debug through “Pharo100 fileOutValues” (for Pharo 10.0).

This will be my next step, but I’m trying to understand the big picture of dependencies.  The file-in was clean.  I want to commit that before moving on.

As said, Values don’t use namespaces. To see what is involved there, you could look at #PDFtalkProject for the name mapping.

But beware! The PDFtalk transformation is not finished yet. Still, you could get some inspiration and can probably reuse some of the rules.

Great that you are trying to use the transformation project. The more use, the better it should get.

Please share your questions and insights (and successes :)).

I’ve been looking for a tool like this for many years.  Thanks again.

Shaping

From: christian.haider <christian.haider@smalltalked-visuals.com mailto:christian.haider@smalltalked-visuals.com >
Sent: Wednesday, 22 June, 2022 05:42
To: pharo-users@lists.pharo.org mailto:pharo-users@lists.pharo.org
Subject: [Pharo-users] [PDFtalk] second fileOut for Squeak and Pharo

With help from the community some issues were fixed which improved the test statistics nicely.
Check it out: https://wiki.pdftalk.de/doku.php?id=portingblog#second_pdftalk_fileout_for_squeak_and_pharo

Thanks to everybody involved!

Happy hacking,
Christian

[…] How does one generate the source (run the transformation)? Where are the aforementioned “defined code transformations”, Is there an example of how to setup the declarative template needed to map VW namespace names to Pharo class prefixes? I loaded the following packages into my VW 8.3 image: Values Project Yes Values Values Fileout Pharo Values Testing Values Tools Values Tools Testing Automatic Load PDFtalk Project bundle. Since the main target is PDFtalk. Values (and PostScript) are just bycatch. Pharo Fileout Values No, this package has been renamed to [Pharo Fileout PDFtalk]. Load this. Pharo Transform No, not separate. This is part of the Transform Project. Smalltalk Transform Project Yes Smalltalk Transform TestBundle Smalltalk Transform Tests Smalltalk Transform Smalltalk Transform Model Smalltalk Transform Testing Smalltalk Transform TestPackage Smalltalk Transform Tools Automatic Yes, I just loaded the head packages and the dependencies were also loaded. Thanks for trimming that down for me. Any package not updated recently (in the last few months) I didn’t load. Did I miss anything? Yes. The ideal setup from a virgin image Ok. I don’t have a virgin image. I have a very non-virgin image, about 27 years of development I’m trying to port to Pharo. I don’t yet have a specific interest in the PDFtalk, though I do see a need for PDF generation later, and will probably revisit that. For now, I just want my own stuff to run in Pharo. is: Load {Values Project] bundle Load {PDFtalk Project} bundle Load {Smalltalk Transform Project} bundle Load [Pharo Fileout PDFtalk] package Save, done Okay, so do I understand correctly that I need to include the PDFtalk stuff even if I’m not interested in PDFtalk, because that’s where a lot of the Smalltalk transformation machinery lives? Or is the PDFtalk just being used as an example for how to do a massive transformation? Or Both? To transform Values do: “Pharo100 fileOutValues” The [Pharo Fileout PDFtalk] package includes the latest Values transformations. I am thinking about a better modularization… Also, the wiki is a bit out of control. It really needs some restructuring. In the cites wiki page, there is a link to a blog where I record the changes. This might be informative. 2. Port the Values package. This is easy, since no namespaces are involved. This first instruction after VW package setup says to port the contents of the Values package from VW to Pharo. Do you mean manually? Probably not. No, no. This has been finished in March. For each dialect, I have a GitHub repository where I release important versions: <https://github.com/PortingPDFtalk/PharoPDFtalk> https://github.com/PortingPDFtalk/PharoPDFtalk. You can find the working port as first release “ <https://github.com/PortingPDFtalk/PharoPDFtalk/releases/tag/1.3.0.0> Working version“. There you can download the ported Values fileout with the exact description with which versions of what it was created. This should be a good starting example. Why do I need any new code installed in Pharo before I begin the transformation, if I’m transforming code from VW to pharo? I’m not understanding the basic constraints of the problem, even when the detailed steps are clear. I’ve done these steps so far: 1. Went to <https://github.com/PortingPDFtalk/PharoPDFtalk> https://github.com/PortingPDFtalk/PharoPDFtalk. 2. Saved down PDFtalk.Pharo100.st into <my Pharo 10 image directory>/pharo-local/Smalltalk-Transformation. (I figured that was a good place to save it. If anyone disagrees, or has a better or more conventional idea about where files should be saved, please say so. I setup a Pharo Git repo and played with it briefly for the first time yesterday. I’ve used Pharo off an on for 16 years, but this is the first time I’m making a serious effort to manage source, and not throw away what I’m working on.) 3. Filed-in PDFtalk.Pharo100.st. This went on for about 7 minutes or so. I have a hundreds if not over a thousand classes showing in Epicea. Is there anyway to get Epicea to give me a count of changes with a time-range filter? 4. Deleted (forgot) yesterday’s, old Main practice-repo from both the image and the drive, and made a new one. I need to add to Main all the packages I just filed-in, but I don’t see an efficient way to do that. I would like to use the Add Package button, but this gives a filtered list of available packages. I can filter subgroups, and then individually select each of the checkboxes to the left of each package (there is no Ctrl-A [select all] option here, which seems to be a strange omission given the potentially large number of packages involved). I see lots of prefixes for the classes just loaded. I could easily miss something if I filter/select/add one prefix-group at a time. Is there an easier way? Over in Epicea I don’t see a way to push the loaded items listed to a specific repo. The first thought I have is to select all filed-in code artifacts by datetime span. I did that and saved it as an .ombu file (I have no idea what that is). I don’t see a way to import that .ombu file into repo Main’s “Working copy” window. It must be easy, but I don’t see it. Please suggest the best way. I feel like I’ve missed the main details of how to start the transformation. I’d like to do a small fully contained test package with no external dependencies as a first test, probably my Magnitude or Collection packages. Suggestions are welcome. Thanks for doing this and sharing it. If I may suggest, I would look at the transformations on the class side of the SmalltalkTransform.Pharo class: methods #ValuesProject and #PDFtalkProject (I know, some would detest, that I start methods sometimes with a capital letter…). I used to be this way. I’m okay with it now, and actually have selectors that are completely capitalized Acronyms. Times change. To get a feel for the machinery, you could debug through “Pharo100 fileOutValues” (for Pharo 10.0). This will be my next step, but I’m trying to understand the big picture of dependencies. The file-in was clean. I want to commit that before moving on. As said, Values don’t use namespaces. To see what is involved there, you could look at #PDFtalkProject for the name mapping. But beware! The PDFtalk transformation is not finished yet. Still, you could get some inspiration and can probably reuse some of the rules. Great that you are trying to use the transformation project. The more use, the better it should get. Please share your questions and insights (and successes :)). I’ve been looking for a tool like this for many years. Thanks again. Shaping From: christian.haider <christian.haider@smalltalked-visuals.com <mailto:christian.haider@smalltalked-visuals.com> > Sent: Wednesday, 22 June, 2022 05:42 To: pharo-users@lists.pharo.org <mailto:pharo-users@lists.pharo.org> Subject: [Pharo-users] [PDFtalk] second fileOut for Squeak and Pharo With help from the community some issues were fixed which improved the test statistics nicely. Check it out: https://wiki.pdftalk.de/doku.php?id=portingblog#second_pdftalk_fileout_for_squeak_and_pharo Thanks to everybody involved! Happy hacking, Christian
S
Shaping
Thu, Aug 4, 2022 10:01 AM

Hi Christian.  (You can find some other discussion of this in Discord with Yanni and others.)

I just evaled:

SmalltalkTransform.Pharo100 fileOutValues

This wrote file Values.Pharo100.st of size 42 KB to my VW image directory.

So that little example is a test that shows how the transformation is done.  It converts just package Values to a Pharo-compatible file-in.  My task is then to queue a bunch of ProjectChange instances like this one:

SmalltalkTransform.Pharo100>>

ValuesProject

            ^ProjectChange

                            name: #Values

                            source: (Array with: (Package name: #Values))

                            changes: (Valuemap with: 'Values' -> self ValuesTransform)

but for my own packages.  No bundles are transformed (just their contained packages) because Pharo doesn’t have bundles.

Is that right?

Is method

ValuesTransform

            ^PackageChange

                            ignoredNames: #(#{Smalltalk.GeneralBindingReference})

                            bridgeClasses: (Valuemap

                                            with: #{Timestamp} -> #DateAndTime

                                            with: #{Smalltalk.ColorValue} -> #Color)

                            localChanges: self valuesLocalTransform

                            extensions: (Array

                                            with: (SystemClassChange

                                                            className: #Color

                                                            instanceChanges: (Array with: (Add method: #asColorValue code: #_ph_asColorValue)))

                                            with: (SystemClassChange

                                                            className: #TextStream

                                                            instanceChanges: (Array with: (Add method: #nextPutAllText: code: #_ph_nextPutAllText:))))

written specifically for that package?  I would think it applies to all packages.  I see some expected mappings like Timestampe to DateAndTime.

What about conversion of VW arrays to Pharo literal arrays?  How is that done?

I recall that one of the Smalltalks (I don’t recall which) had Stream semantics differing from VW’s.

… I just checked.  VW’s #upTo: method includes the object and leaves the index after it, and Pharo’s excludes the object and leaves the index at the object.  So that is some major breakage if we don’t correct it.  Can it be done automatically?

valuesLocalTransform

has lots of juicy bits.  But this doesn’t look very simple.  We can’t just replace an old method with a new one.  We also have to write the new one to tweak how the indices are used in #upTo:,  and make sure that new method gets filed-in as well into the Pharo target image.  Or, we have to do this kind of change manually.

How did you handle conversion to literal arrays conversion and Stream semantic adjustment?

This bit

(SystemClassChange

                                                            className: #Color

                                                            instanceChanges: (Array with: (Add method: #asColorValue code: #_ph_asColorValue)))

is replacing #asColorValue with #_ph_asColorValue because some special Pharo-color conversion needs to happen.  But how does #_ph_asColorValue get defined?  It’s neither in VW nor in Pharo 10.

Shaping

[…]

How does one generate the source (run the transformation)?  Where are the aforementioned “defined code transformations”,  Is there an example of how to setup the declarative template needed to map VW namespace names to Pharo class prefixes?

I loaded the following packages into my VW 8.3 image:

Values Project Yes

Values

Values Fileout Pharo

Values Testing

Values Tools

Values Tools Testing Automatic

Load PDFtalk Project bundle. Since the main target is PDFtalk. Values (and PostScript) are just bycatch.

Pharo Fileout Values No, this package has been renamed to [Pharo Fileout PDFtalk]. Load this.

Pharo Transform No, not separate. This is part of the Transform Project.

Smalltalk Transform Project Yes

Smalltalk Transform TestBundle

Smalltalk Transform Tests

Smalltalk Transform

Smalltalk Transform Model

Smalltalk Transform Testing

Smalltalk Transform TestPackage

Smalltalk Transform Tools Automatic

Yes, I just loaded the head packages and the dependencies were also loaded.  Thanks for trimming that down for me.

Any package not updated recently (in the last few months) I didn’t load.

Did I miss anything?

Yes. The ideal setup from a virgin image

Ok.  I don’t have a virgin image.  I have a very non-virgin image, about 27 years of development I’m trying to port to Pharo.  I don’t yet have a specific interest in the PDFtalk, though I do see a need for PDF generation later, and will probably revisit that.  For now, I just want my own stuff to run in Pharo.

is:

            Load {Values Project] bundle

            Load {PDFtalk Project} bundle

            Load {Smalltalk Transform Project} bundle

            Load [Pharo Fileout PDFtalk] package

            Save, done

Okay, so do I understand correctly that I need to include the PDFtalk stuff even if I’m not interested in PDFtalk, because that’s where a lot of the Smalltalk transformation machinery lives?  Or is the PDFtalk just being used as an example for how to do a massive transformation?  Or Both?

            To transform Values do: “Pharo100 fileOutValues”

The [Pharo Fileout PDFtalk] package includes the latest Values transformations.

I am thinking about a better modularization…

Also, the wiki is a bit out of control. It really needs some restructuring.

In the cites wiki page, there is a link to a blog where I record the changes. This might be informative.

  1. Port the Values package. This is easy, since no namespaces are involved.

This first instruction after VW package setup says to port the contents of the Values package from VW to Pharo.  Do you mean manually?  Probably not.

No, no. This has been finished in March.

For each dialect, I have a GitHub repository where I release important versions:  https://github.com/PortingPDFtalk/PharoPDFtalk https://github.com/PortingPDFtalk/PharoPDFtalk. You can find the working port as first release “ https://github.com/PortingPDFtalk/PharoPDFtalk/releases/tag/1.3.0.0 Working version“. There you can download the ported Values fileout with the exact description with which versions of what it was created.

This should be a good starting example.

Why do I need any new code installed in Pharo before I begin the transformation, if I’m transforming code from VW to pharo?  I’m not understanding the basic constraints of the problem, even when the detailed steps are clear.

I’ve done these steps so far:

  1. Went to  https://github.com/PortingPDFtalk/PharoPDFtalk https://github.com/PortingPDFtalk/PharoPDFtalk.

  2. Saved down PDFtalk.Pharo100.st into <my Pharo 10 image directory>/pharo-local/Smalltalk-Transformation. (I figured that was a good place to save it.  If anyone disagrees, or has a better or more conventional idea about where files should be saved, please say so.  I setup a Pharo Git repo and played with it briefly for the first time yesterday.  I’ve used Pharo off an on for 16 years, but this is the first time I’m making a serious effort to manage source, and not throw away what I’m working on.)

  3. Filed-in PDFtalk.Pharo100.st.  This went on for about 7 minutes or so.  I have a hundreds if not over a thousand classes showing in Epicea.  Is there anyway to get Epicea to give me a count of changes with a time-range filter?

  4. Deleted (forgot) yesterday’s, old Main practice-repo from both the image and the drive, and made a new one.  I need to add to Main all the packages I just filed-in, but I don’t see an efficient way to do that.  I would like to use the Add Package button, but this gives a filtered list of available packages.  I can filter subgroups, and then individually select each of the checkboxes to the left of each package (there is no Ctrl-A [select all] option here, which seems to be a strange omission given the potentially large number of packages involved).  I see lots of prefixes for the classes just loaded.  I could easily miss something if I filter/select/add one prefix-group at a time.  Is there an easier way?  Over in Epicea I don’t see a way to push the loaded items listed to a specific repo.  The first thought I have is to select all filed-in code artifacts by datetime span.  I did that and saved it as an .ombu file (I have no idea what that is).  I don’t see a way to import that .ombu file into repo Main’s “Working copy” window.  It must be easy, but I don’t see it.  Please suggest the best way.

I feel like I’ve missed the main details of how to start the transformation.  I’d like to do a small fully contained test package with no external dependencies as a first test, probably my Magnitude or Collection packages.  Suggestions are welcome.  Thanks for doing this and sharing it.

If I may suggest, I would look at the transformations on the class side of the SmalltalkTransform.Pharo class: methods #ValuesProject and #PDFtalkProject (I know, some would detest, that I start methods sometimes with a capital letter…).

I used to be this way.  I’m okay with it now, and actually have selectors that are completely capitalized Acronyms.  Times change.

To get a feel for the machinery, you could debug through “Pharo100 fileOutValues” (for Pharo 10.0).

This will be my next step, but I’m trying to understand the big picture of dependencies.  The file-in was clean.  I want to commit that before moving on.

As said, Values don’t use namespaces. To see what is involved there, you could look at #PDFtalkProject for the name mapping.

But beware! The PDFtalk transformation is not finished yet. Still, you could get some inspiration and can probably reuse some of the rules.

Great that you are trying to use the transformation project. The more use, the better it should get.

Please share your questions and insights (and successes :)).

I’ve been looking for a tool like this for many years.  Thanks again.

Shaping

From: christian.haider <christian.haider@smalltalked-visuals.com mailto:christian.haider@smalltalked-visuals.com >
Sent: Wednesday, 22 June, 2022 05:42
To: pharo-users@lists.pharo.org mailto:pharo-users@lists.pharo.org
Subject: [Pharo-users] [PDFtalk] second fileOut for Squeak and Pharo

With help from the community some issues were fixed which improved the test statistics nicely.
Check it out: https://wiki.pdftalk.de/doku.php?id=portingblog#second_pdftalk_fileout_for_squeak_and_pharo

Thanks to everybody involved!

Happy hacking,
Christian

Hi Christian. (You can find some other discussion of this in Discord with Yanni and others.) I just evaled: SmalltalkTransform.Pharo100 fileOutValues This wrote file Values.Pharo100.st of size 42 KB to my VW image directory. So that little example is a test that shows how the transformation is done. It converts just package Values to a Pharo-compatible file-in. My task is then to queue a bunch of ProjectChange instances like this one: SmalltalkTransform.Pharo100>> ValuesProject ^ProjectChange name: #Values source: (Array with: (Package name: #Values)) changes: (Valuemap with: 'Values' -> self ValuesTransform) but for my own packages. No bundles are transformed (just their contained packages) because Pharo doesn’t have bundles. Is that right? Is method ValuesTransform ^PackageChange ignoredNames: #(#{Smalltalk.GeneralBindingReference}) bridgeClasses: (Valuemap with: #{Timestamp} -> #DateAndTime with: #{Smalltalk.ColorValue} -> #Color) localChanges: self valuesLocalTransform extensions: (Array with: (SystemClassChange className: #Color instanceChanges: (Array with: (Add method: #asColorValue code: #_ph_asColorValue))) with: (SystemClassChange className: #TextStream instanceChanges: (Array with: (Add method: #nextPutAllText: code: #_ph_nextPutAllText:)))) written specifically for that package? I would think it applies to all packages. I see some expected mappings like Timestampe to DateAndTime. What about conversion of VW arrays to Pharo literal arrays? How is that done? I recall that one of the Smalltalks (I don’t recall which) had Stream semantics differing from VW’s. … I just checked. VW’s #upTo: method includes the object and leaves the index after it, and Pharo’s excludes the object and leaves the index at the object. So that is some major breakage if we don’t correct it. Can it be done automatically? >> valuesLocalTransform has lots of juicy bits. But this doesn’t look very simple. We can’t just replace an old method with a new one. We also have to write the new one to tweak how the indices are used in #upTo:, and make sure that new method gets filed-in as well into the Pharo target image. Or, we have to do this kind of change manually. How did you handle conversion to literal arrays conversion and Stream semantic adjustment? This bit (SystemClassChange className: #Color instanceChanges: (Array with: (Add method: #asColorValue code: #_ph_asColorValue))) is replacing #asColorValue with #_ph_asColorValue because some special Pharo-color conversion needs to happen. But how does #_ph_asColorValue get defined? It’s neither in VW nor in Pharo 10. Shaping […] How does one generate the source (run the transformation)? Where are the aforementioned “defined code transformations”, Is there an example of how to setup the declarative template needed to map VW namespace names to Pharo class prefixes? I loaded the following packages into my VW 8.3 image: Values Project Yes Values Values Fileout Pharo Values Testing Values Tools Values Tools Testing Automatic Load PDFtalk Project bundle. Since the main target is PDFtalk. Values (and PostScript) are just bycatch. Pharo Fileout Values No, this package has been renamed to [Pharo Fileout PDFtalk]. Load this. Pharo Transform No, not separate. This is part of the Transform Project. Smalltalk Transform Project Yes Smalltalk Transform TestBundle Smalltalk Transform Tests Smalltalk Transform Smalltalk Transform Model Smalltalk Transform Testing Smalltalk Transform TestPackage Smalltalk Transform Tools Automatic Yes, I just loaded the head packages and the dependencies were also loaded. Thanks for trimming that down for me. Any package not updated recently (in the last few months) I didn’t load. Did I miss anything? Yes. The ideal setup from a virgin image Ok. I don’t have a virgin image. I have a very non-virgin image, about 27 years of development I’m trying to port to Pharo. I don’t yet have a specific interest in the PDFtalk, though I do see a need for PDF generation later, and will probably revisit that. For now, I just want my own stuff to run in Pharo. is: Load {Values Project] bundle Load {PDFtalk Project} bundle Load {Smalltalk Transform Project} bundle Load [Pharo Fileout PDFtalk] package Save, done Okay, so do I understand correctly that I need to include the PDFtalk stuff even if I’m not interested in PDFtalk, because that’s where a lot of the Smalltalk transformation machinery lives? Or is the PDFtalk just being used as an example for how to do a massive transformation? Or Both? To transform Values do: “Pharo100 fileOutValues” The [Pharo Fileout PDFtalk] package includes the latest Values transformations. I am thinking about a better modularization… Also, the wiki is a bit out of control. It really needs some restructuring. In the cites wiki page, there is a link to a blog where I record the changes. This might be informative. 2. Port the Values package. This is easy, since no namespaces are involved. This first instruction after VW package setup says to port the contents of the Values package from VW to Pharo. Do you mean manually? Probably not. No, no. This has been finished in March. For each dialect, I have a GitHub repository where I release important versions: <https://github.com/PortingPDFtalk/PharoPDFtalk> https://github.com/PortingPDFtalk/PharoPDFtalk. You can find the working port as first release “ <https://github.com/PortingPDFtalk/PharoPDFtalk/releases/tag/1.3.0.0> Working version“. There you can download the ported Values fileout with the exact description with which versions of what it was created. This should be a good starting example. Why do I need any new code installed in Pharo before I begin the transformation, if I’m transforming code from VW to pharo? I’m not understanding the basic constraints of the problem, even when the detailed steps are clear. I’ve done these steps so far: 1. Went to <https://github.com/PortingPDFtalk/PharoPDFtalk> https://github.com/PortingPDFtalk/PharoPDFtalk. 2. Saved down PDFtalk.Pharo100.st into <my Pharo 10 image directory>/pharo-local/Smalltalk-Transformation. (I figured that was a good place to save it. If anyone disagrees, or has a better or more conventional idea about where files should be saved, please say so. I setup a Pharo Git repo and played with it briefly for the first time yesterday. I’ve used Pharo off an on for 16 years, but this is the first time I’m making a serious effort to manage source, and not throw away what I’m working on.) 3. Filed-in PDFtalk.Pharo100.st. This went on for about 7 minutes or so. I have a hundreds if not over a thousand classes showing in Epicea. Is there anyway to get Epicea to give me a count of changes with a time-range filter? 4. Deleted (forgot) yesterday’s, old Main practice-repo from both the image and the drive, and made a new one. I need to add to Main all the packages I just filed-in, but I don’t see an efficient way to do that. I would like to use the Add Package button, but this gives a filtered list of available packages. I can filter subgroups, and then individually select each of the checkboxes to the left of each package (there is no Ctrl-A [select all] option here, which seems to be a strange omission given the potentially large number of packages involved). I see lots of prefixes for the classes just loaded. I could easily miss something if I filter/select/add one prefix-group at a time. Is there an easier way? Over in Epicea I don’t see a way to push the loaded items listed to a specific repo. The first thought I have is to select all filed-in code artifacts by datetime span. I did that and saved it as an .ombu file (I have no idea what that is). I don’t see a way to import that .ombu file into repo Main’s “Working copy” window. It must be easy, but I don’t see it. Please suggest the best way. I feel like I’ve missed the main details of how to start the transformation. I’d like to do a small fully contained test package with no external dependencies as a first test, probably my Magnitude or Collection packages. Suggestions are welcome. Thanks for doing this and sharing it. If I may suggest, I would look at the transformations on the class side of the SmalltalkTransform.Pharo class: methods #ValuesProject and #PDFtalkProject (I know, some would detest, that I start methods sometimes with a capital letter…). I used to be this way. I’m okay with it now, and actually have selectors that are completely capitalized Acronyms. Times change. To get a feel for the machinery, you could debug through “Pharo100 fileOutValues” (for Pharo 10.0). This will be my next step, but I’m trying to understand the big picture of dependencies. The file-in was clean. I want to commit that before moving on. As said, Values don’t use namespaces. To see what is involved there, you could look at #PDFtalkProject for the name mapping. But beware! The PDFtalk transformation is not finished yet. Still, you could get some inspiration and can probably reuse some of the rules. Great that you are trying to use the transformation project. The more use, the better it should get. Please share your questions and insights (and successes :)). I’ve been looking for a tool like this for many years. Thanks again. Shaping From: christian.haider <christian.haider@smalltalked-visuals.com <mailto:christian.haider@smalltalked-visuals.com> > Sent: Wednesday, 22 June, 2022 05:42 To: pharo-users@lists.pharo.org <mailto:pharo-users@lists.pharo.org> Subject: [Pharo-users] [PDFtalk] second fileOut for Squeak and Pharo With help from the community some issues were fixed which improved the test statistics nicely. Check it out: https://wiki.pdftalk.de/doku.php?id=portingblog#second_pdftalk_fileout_for_squeak_and_pharo Thanks to everybody involved! Happy hacking, Christian
CH
christian.haider@smalltalked-visuals.com
Thu, Aug 4, 2022 2:41 PM

Hi Shaping,

Ha, lots of good questions – nice.

I’ll try to answer both emals inline, so, don’t stop after the first :) ).

Von: Shaping shaping@uurda.org
Gesendet: Donnerstag, 4. August 2022 12:01
An: 'Any question about pharo is welcome' pharo-users@lists.pharo.org; 'Pharo Development List' pharo-dev@lists.pharo.org
Betreff: [Pharo-users] Re: [Pharo-users]Porting from VW 8.3 to Pharo: Pharo100 fileOutValues

Hi Christian.  (You can find some other discussion of this in Discord with Yanni and others.)

I will look, although this kind of always available on demand thing is too disruptive for me…

I just evaled:

SmalltalkTransform.Pharo100 fileOutValues

This wrote file Values.Pharo100.st of size 42 KB to my VW image directory.

So that little example is a test that shows how the transformation is done.  It converts just package Values to a Pharo-compatible file-in.  My task is then to queue a bunch of ProjectChange instances like this one:

SmalltalkTransform.Pharo100>>

ValuesProject

            ^ProjectChange

                            name: #Values

                            source: (Array with: (Package name: #Values))

                            changes: (Valuemap with: 'Values' -> self ValuesTransform)

Exactly

but for my own packages.  No bundles are transformed (just their contained packages) because Pharo doesn’t have bundles.

Is that right?

No, bundles are handled. For real examples, you need to look at the PDFtalk transforms.

Yes, Pharo does not have a concept of bundles (ordered aggregates of packages). Instead it relies on a naming convention for packages. That convention is honored in the fileout, so that packages will be partly grouped in Pharo according to the category prefix.

For each VW-package, one Pharo package is created. A bundle itself is also represented as Pharo package with one class About<bundlename> with class methods for the metadata of the bundle, including a method giving you the ordered list of component packages. So, all contents and metadata of packages and bundles are transformed for Pharo. No code or info gets lost.

Is method

ValuesTransform

            ^PackageChange

                            ignoredNames: #(#{Smalltalk.GeneralBindingReference})

                            bridgeClasses: (Valuemap

                                            with: #{Timestamp} -> #DateAndTime

                                            with: #{Smalltalk.ColorValue} -> #Color)

                            localChanges: self valuesLocalTransform

                            extensions: (Array

                                            with: (SystemClassChange

                                                            className: #Color

                                                            instanceChanges: (Array with: (Add method: #asColorValue code: #_ph_asColorValue)))

                                            with: (SystemClassChange

                                                            className: #TextStream

                                                            instanceChanges: (Array with: (Add method: #nextPutAllText: code: #_ph_nextPutAllText:))))

written specifically for that package?  I would think it applies to all packages.  I see some expected mappings like Timestampe to DateAndTime.

Yes, this method returns a PackageChange Value describing the transformations needed to create the Pharo fileout for this specific package (inspect the return value for the fully expanded Value). Methods exist with the same name for other Smalltalks. Depending on the dialect (or version of a dialect), the transforms are different. Squeak and Pharo are quite similar, because they share a common history, but VA or Gemstone need quite different transforms.

So, in general, for each package, there is one such method/Value for each target Smalltalk/version. I do not dare to extract commonalities before the machinery is really robust and stable. For now everything is neatly separate and self-contained (and probably it will stay that way, although there are lots of duplications).

The mapping of class names is the responsibility of the enclosing ProjectChange Value where you define the list of source bundles/packages to transform, the PackageChanges for all packages and the mapping of “global” names.

(The bridge classes above are no renames, but a subclass relationship (is-a) to avoid renamings. The new class Timestamp will be created as subclass of DateAndTime which has almost the same semantics. Therefore, I can still use Timestamp which will be basically a DateAndTime now.)

There is still a technical challenge here. Currently, a ProjectChange need to include all prerequisites (Values is part of the PDFtalk project and will be transformed with it). A ProjectWriter, which coordinates the transform, keeps track of the mappings when they are created (either explicitly or through a namespace renaming – see implementers of #PDFtalkProject).

I would like to have this more modular: the mappings from the Values transformation should be persistently saved, so that other transformation projects can just use them, instead of including the sources into one own project.

For this, I need to have renamings local to a package (where they first occur), not global on the project level.

For Values and Values Tests and Values Tools this works, because there are no mappings in the Values package.

What about conversion of VW arrays to Pharo literal arrays?  How is that done?

(I think you mean dynamic arrays like {1. ‘abc’ size. 42} in which evaluation happens (in contrast to literal things which can be resolved already by the compiler).

Not! Since a while, VW also has dynamic arrays, but not in VW 8.3 – the last publicly available version. I will not shut out those users, because “open-source” would be quite absurd, if it is only available for paying customers.

In 8.3, the compiler does not accept that syntax and therefore, there is no easy way to represent this in replacement code.

So, no. It is not possible until Cincom releases an public version which can handle that.

I recall that one of the Smalltalks (I don’t recall which) had Stream semantics differing from VW’s.

… I just checked.  VW’s #upTo: method includes the object and leaves the index after it, and Pharo’s excludes the object and leaves the index at the object.  So that is some major breakage if we don’t correct it.  Can it be done automatically?

Yes, these are the usual porting challenges and exactly the reason why this library exists :). Thank you for the question :).

Yes, the stream semantics need to be fixed. The idea is that a set of transforms for this issue can be reused by others.

valuesLocalTransform

has lots of juicy bits.  But this doesn’t look very simple.  We can’t just replace an old method with a new one.  We also have to write the new one to tweak how the indices are used in #upTo:,  and make sure that new method gets filed-in as well into the Pharo target image.  Or, we have to do this kind of change manually.

Naa, it’s very easy, I think :).

A PackageChange specifies transforms for classes used in the package (#localChanges) and #extensions for system classes of the target. For a class, you can have a ClassChange describing the changes to instance or class methods. A MethodChange has 4 subclasses for:

  • Ignore – don’t write this method to the target
  • Add – add this new method (not in the source system) to the target
  • Replace – replace the body of this method with other code
  • Rewrite – rewrite the method source using a rewrite rule.

Add and Replace need the target code. This is stored in another method with a derived name like #_ph_upTo: . The method name is not important, because only the body of the method is used. But the name should not be used in the source – it is just a holder for the replacement code. These methods live in the specific [<Smalltalk> Fileout <Package>] package.

There are lots of working(!) examples for all of those in the PDFtalk transform project.

How did you handle conversion to literal arrays conversion and Stream semantic adjustment?

This bit

(SystemClassChange

                                                            className: #Color

                                                            instanceChanges: (Array with: (Add method: #asColorValue code: #_ph_asColorValue)))

is replacing #asColorValue with #_ph_asColorValue because some special Pharo-color conversion needs to happen.  But how does #_ph_asColorValue get defined?  It’s neither in VW nor in Pharo 10.

You got bitten by the old version of [Pharo Fileout Values]. Please load [Pharo Fileout PDFtalk]. There, the methods exist.

Shaping

[…]

How does one generate the source (run the transformation)?  Where are the aforementioned “defined code transformations”,  Is there an example of how to setup the declarative template needed to map VW namespace names to Pharo class prefixes?

I loaded the following packages into my VW 8.3 image:

Values Project Yes

Values

Values Fileout Pharo

Values Testing

Values Tools

Values Tools Testing Automatic

Load PDFtalk Project bundle. Since the main target is PDFtalk. Values (and PostScript) are just bycatch.

Pharo Fileout Values No, this package has been renamed to [Pharo Fileout PDFtalk]. Load this.

Pharo Transform No, not separate. This is part of the Transform Project.

Smalltalk Transform Project Yes

Smalltalk Transform TestBundle

Smalltalk Transform Tests

Smalltalk Transform

Smalltalk Transform Model

Smalltalk Transform Testing

Smalltalk Transform TestPackage

Smalltalk Transform Tools Automatic

Yes, I just loaded the head packages and the dependencies were also loaded.  Thanks for trimming that down for me.

Any package not updated recently (in the last few months) I didn’t load.

Did I miss anything?

Yes. The ideal setup from a virgin image

Ok.  I don’t have a virgin image.  I have a very non-virgin image, about 27 years of development I’m trying to port to Pharo.  I don’t yet have a specific interest in the PDFtalk, though I do see a need for PDF generation later, and will probably revisit that.  For now, I just want my own stuff to run in Pharo.

Virgin image just means that you don’t need anything else. You can safely load it in you favorite special images :).

I would load PDFtalk, although technically you don’t need to (all the extensions to PDFtalk would be unloadable, but that doesn’t affect Values).

is:

            Load {Values Project] bundle

            Load {PDFtalk Project} bundle

            Load {Smalltalk Transform Project} bundle

            Load [Pharo Fileout PDFtalk] package

            Save, done

Okay, so do I understand correctly that I need to include the PDFtalk stuff even if I’m not interested in PDFtalk, because that’s where a lot of the Smalltalk transformation machinery lives?  Or is the PDFtalk just being used as an example for how to do a massive transformation?  Or Both?

No, the transformation machinery is fully independent of PDFtalk. I just tried it. The dependencies are in the specific [Pharo Fileout PDFtalk] package, since I have already quite a few replacement methods which are extensions to PDFtalk classes.

PDFtalk is the focus of the project and therefore all issues are solved first with this library in mind. Therefore, bundles and namespaces are handled, for example. When you study the more interesting transformations for PDFtalk, it would be a shame not to be able to browse the methods and classes involved.

So, PDFtalk is the real world reference example.

            To transform Values do: “Pharo100 fileOutValues”

The [Pharo Fileout PDFtalk] package includes the latest Values transformations.

I am thinking about a better modularization…

Also, the wiki is a bit out of control. It really needs some restructuring.

In the cites wiki page, there is a link to a blog where I record the changes. This might be informative.

  1. Port the Values package. This is easy, since no namespaces are involved.

This first instruction after VW package setup says to port the contents of the Values package from VW to Pharo.  Do you mean manually?  Probably not.

No, no. This has been finished in March.

For each dialect, I have a GitHub repository where I release important versions:  https://github.com/PortingPDFtalk/PharoPDFtalk https://github.com/PortingPDFtalk/PharoPDFtalk. You can find the working port as first release “ https://github.com/PortingPDFtalk/PharoPDFtalk/releases/tag/1.3.0.0 Working version“. There you can download the ported Values fileout with the exact description with which versions of what it was created.

This should be a good starting example.

Why do I need any new code installed in Pharo before I begin the transformation, if I’m transforming code from VW to pharo?  I’m not understanding the basic constraints of the problem, even when the detailed steps are clear.

No, no. You don’t need anything on the Pharo side. The fileouts on GitHub are the end products of a transformation for people who don’t use VisualWorks, but want to use Values in Pharo. Or help with PDFtalk by fixing some issues, so that I can write the transformations.

I’ve done these steps so far:

  1. Went to  https://github.com/PortingPDFtalk/PharoPDFtalk https://github.com/PortingPDFtalk/PharoPDFtalk.

Mistake :).
You don’t want to look at the unfinished product of the current version of the incomplete transformations for PDFtalk.
See https://wiki.pdftalk.de/doku.php?id=stateoftheport#pharo-10-0:

Instead, you want to look at the unfinished product of the transformations of your projects :).

  1. Saved down PDFtalk.Pharo100.st into <my Pharo 10 image directory>/pharo-local/Smalltalk-Transformation. (I figured that was a good place to save it.  If anyone disagrees, or has a better or more conventional idea about where files should be saved, please say so.  I setup a Pharo Git repo and played with it briefly for the first time yesterday.  I’ve used Pharo off an on for 16 years, but this is the first time I’m making a serious effort to manage source, and not throw away what I’m working on.)

  2. Filed-in PDFtalk.Pharo100.st.  This went on for about 7 minutes or so.  I have a hundreds if not over a thousand classes showing in Epicea.  Is there anyway to get Epicea to give me a count of changes with a time-range filter?

  3. Deleted (forgot) yesterday’s, old Main practice-repo from both the image and the drive, and made a new one.  I need to add to Main all the packages I just filed-in, but I don’t see an efficient way to do that.  I would like to use the Add Package button, but this gives a filtered list of available packages.  I can filter subgroups, and then individually select each of the checkboxes to the left of each package (there is no Ctrl-A [select all] option here, which seems to be a strange omission given the potentially large number of packages involved).  I see lots of prefixes for the classes just loaded.  I could easily miss something if I filter/select/add one prefix-group at a time.  Is there an easier way?  Over in Epicea I don’t see a way to push the loaded items listed to a specific repo.  The first thought I have is to select all filed-in code artifacts by datetime span.  I did that and saved it as an .ombu file (I have no idea what that is).  I don’t see a way to import that .ombu file into repo Main’s “Working copy” window.  It must be easy, but I don’t see it.  Please suggest the best way.

I’d like to know as well – I am not quite familiar with the source management concepts in Pharo. It is planned to generate Tonel output in the future, but for now I feel safer with the traditional fileout where I can have doIts. I am not sure how Tonel reacts to crippled sources, which are normal during the development of the transformations.

I feel like I’ve missed the main details of how to start the transformation.  I’d like to do a small fully contained test package with no external dependencies as a first test, probably my Magnitude or Collection packages.  Suggestions are welcome.  Thanks for doing this and sharing it.

If I may suggest, I would look at the transformations on the class side of the SmalltalkTransform.Pharo class: methods #ValuesProject and #PDFtalkProject (I know, some would detest, that I start methods sometimes with a capital letter…).

I used to be this way.  I’m okay with it now, and actually have selectors that are completely capitalized Acronyms.  Times change.

To get a feel for the machinery, you could debug through “Pharo100 fileOutValues” (for Pharo 10.0).

This will be my next step, but I’m trying to understand the big picture of dependencies.  The file-in was clean.  I want to commit that before moving on.

As said, Values don’t use namespaces. To see what is involved there, you could look at #PDFtalkProject for the name mapping.

But beware! The PDFtalk transformation is not finished yet. Still, you could get some inspiration and can probably reuse some of the rules.

Great that you are trying to use the transformation project. The more use, the better it should get.

Please share your questions and insights (and successes :)).

I’ve been looking for a tool like this for many years.  Thanks again.

Shaping

Thank you :)

Christian

From: christian.haider <christian.haider@smalltalked-visuals.com mailto:christian.haider@smalltalked-visuals.com >
Sent: Wednesday, 22 June, 2022 05:42
To: pharo-users@lists.pharo.org mailto:pharo-users@lists.pharo.org
Subject: [Pharo-users] [PDFtalk] second fileOut for Squeak and Pharo

With help from the community some issues were fixed which improved the test statistics nicely.
Check it out: https://wiki.pdftalk.de/doku.php?id=portingblog#second_pdftalk_fileout_for_squeak_and_pharo

Thanks to everybody involved!

Happy hacking,
Christian

Hi Shaping, Ha, lots of good questions – nice. I’ll try to answer both emals inline, so, don’t stop after the first :) ). Von: Shaping <shaping@uurda.org> Gesendet: Donnerstag, 4. August 2022 12:01 An: 'Any question about pharo is welcome' <pharo-users@lists.pharo.org>; 'Pharo Development List' <pharo-dev@lists.pharo.org> Betreff: [Pharo-users] Re: [Pharo-users]Porting from VW 8.3 to Pharo: Pharo100 fileOutValues Hi Christian. (You can find some other discussion of this in Discord with Yanni and others.) I will look, although this kind of always available on demand thing is too disruptive for me… I just evaled: SmalltalkTransform.Pharo100 fileOutValues This wrote file Values.Pharo100.st of size 42 KB to my VW image directory. So that little example is a test that shows how the transformation is done. It converts just package Values to a Pharo-compatible file-in. My task is then to queue a bunch of ProjectChange instances like this one: SmalltalkTransform.Pharo100>> ValuesProject ^ProjectChange name: #Values source: (Array with: (Package name: #Values)) changes: (Valuemap with: 'Values' -> self ValuesTransform) Exactly but for my own packages. No bundles are transformed (just their contained packages) because Pharo doesn’t have bundles. Is that right? No, bundles are handled. For real examples, you need to look at the PDFtalk transforms. Yes, Pharo does not have a concept of bundles (ordered aggregates of packages). Instead it relies on a naming convention for packages. That convention is honored in the fileout, so that packages will be partly grouped in Pharo according to the category prefix. For each VW-package, one Pharo package is created. A bundle itself is also represented as Pharo package with one class About<bundlename> with class methods for the metadata of the bundle, including a method giving you the ordered list of component packages. So, all contents and metadata of packages and bundles are transformed for Pharo. No code or info gets lost. Is method ValuesTransform ^PackageChange ignoredNames: #(#{Smalltalk.GeneralBindingReference}) bridgeClasses: (Valuemap with: #{Timestamp} -> #DateAndTime with: #{Smalltalk.ColorValue} -> #Color) localChanges: self valuesLocalTransform extensions: (Array with: (SystemClassChange className: #Color instanceChanges: (Array with: (Add method: #asColorValue code: #_ph_asColorValue))) with: (SystemClassChange className: #TextStream instanceChanges: (Array with: (Add method: #nextPutAllText: code: #_ph_nextPutAllText:)))) written specifically for that package? I would think it applies to all packages. I see some expected mappings like Timestampe to DateAndTime. Yes, this method returns a PackageChange Value describing the transformations needed to create the Pharo fileout for this specific package (inspect the return value for the fully expanded Value). Methods exist with the same name for other Smalltalks. Depending on the dialect (or version of a dialect), the transforms are different. Squeak and Pharo are quite similar, because they share a common history, but VA or Gemstone need quite different transforms. So, in general, for each package, there is one such method/Value for each target Smalltalk/version. I do not dare to extract commonalities before the machinery is really robust and stable. For now everything is neatly separate and self-contained (and probably it will stay that way, although there are lots of duplications). The mapping of class names is the responsibility of the enclosing ProjectChange Value where you define the list of source bundles/packages to transform, the PackageChanges for all packages and the mapping of “global” names. (The bridge classes above are no renames, but a subclass relationship (is-a) to avoid renamings. The new class Timestamp will be created as subclass of DateAndTime which has almost the same semantics. Therefore, I can still use Timestamp which will be basically a DateAndTime now.) There is still a technical challenge here. Currently, a ProjectChange need to include all prerequisites (Values is part of the PDFtalk project and will be transformed with it). A ProjectWriter, which coordinates the transform, keeps track of the mappings when they are created (either explicitly or through a namespace renaming – see implementers of #PDFtalkProject). I would like to have this more modular: the mappings from the Values transformation should be persistently saved, so that other transformation projects can just use them, instead of including the sources into one own project. For this, I need to have renamings local to a package (where they first occur), not global on the project level. For Values and Values Tests and Values Tools this works, because there are no mappings in the Values package. What about conversion of VW arrays to Pharo literal arrays? How is that done? (I think you mean dynamic arrays like {1. ‘abc’ size. 42} in which evaluation happens (in contrast to literal things which can be resolved already by the compiler). Not! Since a while, VW also has dynamic arrays, but not in VW 8.3 – the last publicly available version. I will not shut out those users, because “open-source” would be quite absurd, if it is only available for paying customers. In 8.3, the compiler does not accept that syntax and therefore, there is no easy way to represent this in replacement code. So, no. It is not possible until Cincom releases an public version which can handle that. I recall that one of the Smalltalks (I don’t recall which) had Stream semantics differing from VW’s. … I just checked. VW’s #upTo: method includes the object and leaves the index after it, and Pharo’s excludes the object and leaves the index at the object. So that is some major breakage if we don’t correct it. Can it be done automatically? Yes, these are the usual porting challenges and exactly the reason why this library exists :). Thank you for the question :). Yes, the stream semantics need to be fixed. The idea is that a set of transforms for this issue can be reused by others. >> valuesLocalTransform has lots of juicy bits. But this doesn’t look very simple. We can’t just replace an old method with a new one. We also have to write the new one to tweak how the indices are used in #upTo:, and make sure that new method gets filed-in as well into the Pharo target image. Or, we have to do this kind of change manually. Naa, it’s very easy, I think :). A PackageChange specifies transforms for classes used in the package (#localChanges) and #extensions for system classes of the target. For a class, you can have a ClassChange describing the changes to instance or class methods. A MethodChange has 4 subclasses for: * Ignore – don’t write this method to the target * Add – add this new method (not in the source system) to the target * Replace – replace the body of this method with other code * Rewrite – rewrite the method source using a rewrite rule. Add and Replace need the target code. This is stored in another method with a derived name like #_ph_upTo: . The method name is not important, because only the body of the method is used. But the name should not be used in the source – it is just a holder for the replacement code. These methods live in the specific [<Smalltalk> Fileout <Package>] package. There are lots of working(!) examples for all of those in the PDFtalk transform project. How did you handle conversion to literal arrays conversion and Stream semantic adjustment? This bit (SystemClassChange className: #Color instanceChanges: (Array with: (Add method: #asColorValue code: #_ph_asColorValue))) is replacing #asColorValue with #_ph_asColorValue because some special Pharo-color conversion needs to happen. But how does #_ph_asColorValue get defined? It’s neither in VW nor in Pharo 10. You got bitten by the old version of [Pharo Fileout Values]. Please load [Pharo Fileout PDFtalk]. There, the methods exist. Shaping […] How does one generate the source (run the transformation)? Where are the aforementioned “defined code transformations”, Is there an example of how to setup the declarative template needed to map VW namespace names to Pharo class prefixes? I loaded the following packages into my VW 8.3 image: Values Project Yes Values Values Fileout Pharo Values Testing Values Tools Values Tools Testing Automatic Load PDFtalk Project bundle. Since the main target is PDFtalk. Values (and PostScript) are just bycatch. Pharo Fileout Values No, this package has been renamed to [Pharo Fileout PDFtalk]. Load this. Pharo Transform No, not separate. This is part of the Transform Project. Smalltalk Transform Project Yes Smalltalk Transform TestBundle Smalltalk Transform Tests Smalltalk Transform Smalltalk Transform Model Smalltalk Transform Testing Smalltalk Transform TestPackage Smalltalk Transform Tools Automatic Yes, I just loaded the head packages and the dependencies were also loaded. Thanks for trimming that down for me. Any package not updated recently (in the last few months) I didn’t load. Did I miss anything? Yes. The ideal setup from a virgin image Ok. I don’t have a virgin image. I have a very non-virgin image, about 27 years of development I’m trying to port to Pharo. I don’t yet have a specific interest in the PDFtalk, though I do see a need for PDF generation later, and will probably revisit that. For now, I just want my own stuff to run in Pharo. Virgin image just means that you don’t need anything else. You can safely load it in you favorite special images :). I would load PDFtalk, although technically you don’t need to (all the extensions to PDFtalk would be unloadable, but that doesn’t affect Values). is: Load {Values Project] bundle Load {PDFtalk Project} bundle Load {Smalltalk Transform Project} bundle Load [Pharo Fileout PDFtalk] package Save, done Okay, so do I understand correctly that I need to include the PDFtalk stuff even if I’m not interested in PDFtalk, because that’s where a lot of the Smalltalk transformation machinery lives? Or is the PDFtalk just being used as an example for how to do a massive transformation? Or Both? No, the transformation machinery is fully independent of PDFtalk. I just tried it. The dependencies are in the specific [Pharo Fileout PDFtalk] package, since I have already quite a few replacement methods which are extensions to PDFtalk classes. PDFtalk is the focus of the project and therefore all issues are solved first with this library in mind. Therefore, bundles and namespaces are handled, for example. When you study the more interesting transformations for PDFtalk, it would be a shame not to be able to browse the methods and classes involved. So, PDFtalk is the real world reference example. To transform Values do: “Pharo100 fileOutValues” The [Pharo Fileout PDFtalk] package includes the latest Values transformations. I am thinking about a better modularization… Also, the wiki is a bit out of control. It really needs some restructuring. In the cites wiki page, there is a link to a blog where I record the changes. This might be informative. 2. Port the Values package. This is easy, since no namespaces are involved. This first instruction after VW package setup says to port the contents of the Values package from VW to Pharo. Do you mean manually? Probably not. No, no. This has been finished in March. For each dialect, I have a GitHub repository where I release important versions: <https://github.com/PortingPDFtalk/PharoPDFtalk> https://github.com/PortingPDFtalk/PharoPDFtalk. You can find the working port as first release “ <https://github.com/PortingPDFtalk/PharoPDFtalk/releases/tag/1.3.0.0> Working version“. There you can download the ported Values fileout with the exact description with which versions of what it was created. This should be a good starting example. Why do I need any new code installed in Pharo before I begin the transformation, if I’m transforming code from VW to pharo? I’m not understanding the basic constraints of the problem, even when the detailed steps are clear. No, no. You don’t need anything on the Pharo side. The fileouts on GitHub are the end products of a transformation for people who don’t use VisualWorks, but want to use Values in Pharo. Or help with PDFtalk by fixing some issues, so that I can write the transformations. I’ve done these steps so far: 1. Went to <https://github.com/PortingPDFtalk/PharoPDFtalk> https://github.com/PortingPDFtalk/PharoPDFtalk. Mistake :). You don’t want to look at the unfinished product of the current version of the incomplete transformations for PDFtalk. See https://wiki.pdftalk.de/doku.php?id=stateoftheport#pharo-10-0: Instead, you want to look at the unfinished product of the transformations of your projects :). 2. Saved down PDFtalk.Pharo100.st into <my Pharo 10 image directory>/pharo-local/Smalltalk-Transformation. (I figured that was a good place to save it. If anyone disagrees, or has a better or more conventional idea about where files should be saved, please say so. I setup a Pharo Git repo and played with it briefly for the first time yesterday. I’ve used Pharo off an on for 16 years, but this is the first time I’m making a serious effort to manage source, and not throw away what I’m working on.) 3. Filed-in PDFtalk.Pharo100.st. This went on for about 7 minutes or so. I have a hundreds if not over a thousand classes showing in Epicea. Is there anyway to get Epicea to give me a count of changes with a time-range filter? 4. Deleted (forgot) yesterday’s, old Main practice-repo from both the image and the drive, and made a new one. I need to add to Main all the packages I just filed-in, but I don’t see an efficient way to do that. I would like to use the Add Package button, but this gives a filtered list of available packages. I can filter subgroups, and then individually select each of the checkboxes to the left of each package (there is no Ctrl-A [select all] option here, which seems to be a strange omission given the potentially large number of packages involved). I see lots of prefixes for the classes just loaded. I could easily miss something if I filter/select/add one prefix-group at a time. Is there an easier way? Over in Epicea I don’t see a way to push the loaded items listed to a specific repo. The first thought I have is to select all filed-in code artifacts by datetime span. I did that and saved it as an .ombu file (I have no idea what that is). I don’t see a way to import that .ombu file into repo Main’s “Working copy” window. It must be easy, but I don’t see it. Please suggest the best way. I’d like to know as well – I am not quite familiar with the source management concepts in Pharo. It is planned to generate Tonel output in the future, but for now I feel safer with the traditional fileout where I can have doIts. I am not sure how Tonel reacts to crippled sources, which are normal during the development of the transformations. I feel like I’ve missed the main details of how to start the transformation. I’d like to do a small fully contained test package with no external dependencies as a first test, probably my Magnitude or Collection packages. Suggestions are welcome. Thanks for doing this and sharing it. If I may suggest, I would look at the transformations on the class side of the SmalltalkTransform.Pharo class: methods #ValuesProject and #PDFtalkProject (I know, some would detest, that I start methods sometimes with a capital letter…). I used to be this way. I’m okay with it now, and actually have selectors that are completely capitalized Acronyms. Times change. To get a feel for the machinery, you could debug through “Pharo100 fileOutValues” (for Pharo 10.0). This will be my next step, but I’m trying to understand the big picture of dependencies. The file-in was clean. I want to commit that before moving on. As said, Values don’t use namespaces. To see what is involved there, you could look at #PDFtalkProject for the name mapping. But beware! The PDFtalk transformation is not finished yet. Still, you could get some inspiration and can probably reuse some of the rules. Great that you are trying to use the transformation project. The more use, the better it should get. Please share your questions and insights (and successes :)). I’ve been looking for a tool like this for many years. Thanks again. Shaping Thank you :) Christian From: christian.haider <christian.haider@smalltalked-visuals.com <mailto:christian.haider@smalltalked-visuals.com> > Sent: Wednesday, 22 June, 2022 05:42 To: pharo-users@lists.pharo.org <mailto:pharo-users@lists.pharo.org> Subject: [Pharo-users] [PDFtalk] second fileOut for Squeak and Pharo With help from the community some issues were fixed which improved the test statistics nicely. Check it out: https://wiki.pdftalk.de/doku.php?id=portingblog#second_pdftalk_fileout_for_squeak_and_pharo Thanks to everybody involved! Happy hacking, Christian
S
Shaping
Fri, Aug 5, 2022 12:18 AM

I will look, although this kind of always available on demand thing is too disruptive for me…

I know what you mean.  I try be disciplined about it.  I really like to be able to fix typos, because there are almost always typos.  But e-mail is okay.

So that little example is a test that shows how the transformation is done.  It converts just package Values to a Pharo-compatible file-in.  My task is then to queue a bunch of ProjectChange instances like this one:

SmalltalkTransform.Pharo100>>

ValuesProject

            ^ProjectChange

                            name: #Values

                            source: (Array with: (Package name: #Values))

                            changes: (Valuemap with: 'Values' -> self ValuesTransform)

Exactly

but for my own packages.  No bundles are transformed (just their contained packages) because Pharo doesn’t have bundles.

Is that right?

No, bundles are handled. For real examples, you need to look at the PDFtalk transforms.

Yes, Pharo does not have a concept of bundles (ordered aggregates of packages). Instead it relies on a naming convention for packages. That convention is honored in the fileout, so that packages will be partly grouped in Pharo according to the category prefix.

For each VW-package, one Pharo package is created. A bundle itself is also represented as Pharo package with one class About<bundlename> with class methods for the metadata of the bundle, including a method giving you the ordered list of component packages. So, all contents and metadata of packages and bundles are transformed for Pharo. No code or info gets lost.

Okay.

Is method

ValuesTransform

            ^PackageChange

                            ignoredNames: #(#{Smalltalk.GeneralBindingReference})

                            bridgeClasses: (Valuemap

                                            with: #{Timestamp} -> #DateAndTime

                                            with: #{Smalltalk.ColorValue} -> #Color)

                            localChanges: self valuesLocalTransform

                            extensions: (Array

                                            with: (SystemClassChange

                                                            className: #Color

                                                            instanceChanges: (Array with: (Add method: #asColorValue code: #_ph_asColorValue)))

                                            with: (SystemClassChange

                                                            className: #TextStream

                                                            instanceChanges: (Array with: (Add method: #nextPutAllText: code: #_ph_nextPutAllText:))))

written specifically for that package?  I would think it applies to all packages.  I see some expected mappings like Timestamp to DateAndTime.

Yes, this method returns a PackageChange Value describing the transformations needed to create the Pharo fileout for this specific package (inspect the return value for the fully expanded Value). Methods exist with the same name for other Smalltalks. Depending on the dialect (or version of a dialect), the transforms are different. Squeak and Pharo are quite similar, because they share a common history, but VA or Gemstone need quite different transforms.

So, in general, for each package, there is one such method/Value for each target Smalltalk/version.

Okay.

I do not dare to extract commonalities before the machinery is really robust and stable. For now everything is neatly separate and self-contained (and probably it will stay that way, although there are lots of duplications).

The mapping of class names is the responsibility of the enclosing ProjectChange Value where you define the list of source bundles/packages to transform, the PackageChanges for all packages and the mapping of “global” names.

(The bridge classes above are no renames, but a subclass relationship (is-a) to avoid renamings. The new class Timestamp will be created as subclass of DateAndTime which has almost the same semantics. Therefore, I can still use Timestamp which will be basically a DateAndTime now.)

Okay.

There is still a technical challenge here. Currently, a ProjectChange need to include all prerequisites (Values is part of the PDFtalk project and will be transformed with it). A ProjectWriter, which coordinates the transform, keeps track of the mappings when they are created (either explicitly or through a namespace renaming – see implementers of #PDFtalkProject).

I would like to have this more modular: the mappings from the Values transformation should be persistently saved, so that other transformation projects can just use them, instead of including the sources into one own project.

For this, I need to have renamings local to a package (where they first occur), not global on the project level.

Right.

For Values and Values Tests and Values Tools this works, because there are no mappings in the Values package.

What about conversion of VW arrays to Pharo literal arrays?  How is that done?

(I think you mean dynamic arrays like {1. ‘abc’ size. 42} in which evaluation happens (in contrast to literal things which can be resolved already by the compiler).

Yes, dynamic arrays.

Not! Since a while, VW also has dynamic arrays, but not in VW 8.3 – the last publicly available version.

Okay, I was wondering when that would happen.

I will not shut out those users, because “open-source” would be quite absurd, if it is only available for paying customers.

In 8.3, the compiler does not accept that syntax and therefore, there is no easy way to represent this in replacement code.

So, no. It is not possible until Cincom releases an public version which can handle that.

Okay.

I recall that one of the Smalltalks (I don’t recall which) had Stream semantics differing from VW’s.

… I just checked.  VW’s #upTo: method includes the object and leaves the index after it, and Pharo’s excludes the object and leaves the index at the object.  So that is some major breakage if we don’t correct it.  Can it be done automatically?

Yes, these are the usual porting challenges and exactly the reason why this library exists :). Thank you for the question :).

Yes, the stream semantics need to be fixed. The idea is that a set of transforms for this issue can be reused by others.

Okay.

valuesLocalTransform

has lots of juicy bits.  But this doesn’t look very simple.  We can’t just replace an old method with a new one.  We also have to write the new one to tweak how the indices are used in #upTo:,  and make sure that new method gets filed-in as well into the Pharo target image.  Or, we have to do this kind of change manually.

Naa, it’s very easy, I think :).

A PackageChange specifies transforms for classes used in the package (#localChanges) and #extensions for system classes of the target. For a class, you can have a ClassChange describing the changes to instance or class methods. A MethodChange has 4 subclasses for:

  •      Ignore – don’t write this method to the target

  •      Add – add this new method (not in the source system) to the target

  •      Replace – replace the body of this method with other code

  •      Rewrite – rewrite the method source using a rewrite rule.


Add and Replace need the target code.

Add then always involves a new name for a method in the target.  Replaces use an old name in the target with a new code body.

This is stored in another method with a derived name like #_ph_upTo: . The method name is not important, because only the body of the method is used. But the name should not be used in the source – it is just a holder for the replacement code. These methods live in the specific [<Smalltalk> Fileout <Package>] package.

Okay.

There are lots of working(!) examples for all of those in the PDFtalk transform project.

This bit

(SystemClassChange

                                                            className: #Color

                                                            instanceChanges: (Array with: (Add method: #asColorValue code: #_ph_asColorValue)))

is replacing #asColorValue with #_ph_asColorValue because some special Pharo-color conversion needs to happen.  But how does #_ph_asColorValue get defined?  It’s neither in VW nor in Pharo 10.

You got bitten by the old version of [Pharo Fileout Values]. Please load [Pharo Fileout PDFtalk]. There, the methods exist.

Yes, I see it now.

Ok.  I don’t have a virgin image.  I have a very non-virgin image, about 27 years of development I’m trying to port to Pharo.  I don’t yet have a specific interest in the PDFtalk, though I do see a need for PDF generation later, and will probably revisit that.  For now, I just want my own stuff to run in Pharo.

Virgin image just means that you don’t need anything else. You can safely load it in you favorite special images :).

I would load PDFtalk, although technically you don’t need to (all the extensions to PDFtalk would be unloadable, but that doesn’t affect Values).

Okay.

is:

            Load {Values Project] bundle

            Load {PDFtalk Project} bundle

            Load {Smalltalk Transform Project} bundle

            Load [Pharo Fileout PDFtalk] package

            Save, done

Okay, so do I understand correctly that I need to include the PDFtalk stuff even if I’m not interested in PDFtalk, because that’s where a lot of the Smalltalk transformation machinery lives?  Or is the PDFtalk just being used as an example for how to do a massive transformation?  Or Both?

No, the transformation machinery is fully independent of PDFtalk. I just tried it. The dependencies are in the specific [Pharo Fileout PDFtalk] package, since I have already quite a few replacement methods which are extensions to PDFtalk classes.

Okay.

PDFtalk is the focus of the project and therefore all issues are solved first with this library in mind. Therefore, bundles and namespaces are handled, for example. When you study the more interesting transformations for PDFtalk, it would be a shame not to be able to browse the methods and classes involved.

So, PDFtalk is the real world reference example.

And Values is the simplest example.

            To transform Values do: “Pharo100 fileOutValues”

The [Pharo Fileout PDFtalk] package includes the latest Values transformations.

I am thinking about a better modularization…

Also, the wiki is a bit out of control. It really needs some restructuring.

In the cites wiki page, there is a link to a blog where I record the changes. This might be informative.

  1. Port the Values package. This is easy, since no namespaces are involved.

This first instruction after VW package setup says to port the contents of the Values package from VW to Pharo.  Do you mean manually?  Probably not.

No, no. This has been finished in March.

For each dialect, I have a GitHub repository where I release important versions:  https://github.com/PortingPDFtalk/PharoPDFtalk https://github.com/PortingPDFtalk/PharoPDFtalk. You can find the working port as first release “ https://github.com/PortingPDFtalk/PharoPDFtalk/releases/tag/1.3.0.0 Working version“. There you can download the ported Values fileout with the exact description with which versions of what it was created.

This should be a good starting example.

Why do I need any new code installed in Pharo before I begin the transformation, if I’m transforming code from VW to pharo?  I’m not understanding the basic constraints of the problem, even when the detailed steps are clear.

No, no. You don’t need anything on the Pharo side. The fileouts on GitHub are the end products of a transformation for people who don’t use VisualWorks, but want to use Values in Pharo. Or help with PDFtalk by fixing some issues, so that I can write the transformations.

I’ve done these steps so far:

  1. Went to  https://github.com/PortingPDFtalk/PharoPDFtalk https://github.com/PortingPDFtalk/PharoPDFtalk.

Mistake :).
You don’t want to look at the unfinished product of the current version of thincomplete transformations for PDFtalk.

Do you mean “finished” here? Isn’t that file-in the finished result?

I thought the above links was the currently finished result (as good as it can be until the rest of the bugs are goine and tests all run).

Yes, that was confusing.  That’s why I had the early impression that Values was somehow apart of the transformation machinery.

See https://wiki.pdftalk.de/doku.php?id=stateoftheport#pharo-10-0:

Instead, you want to look at the unfinished product of the transformations of your projects :).

  1. Saved down PDFtalk.Pharo100.st into <my Pharo 10 image directory>/pharo-local/Smalltalk-Transformation. (I figured that was a good place to save it.  If anyone disagrees, or has a better or more conventional idea about where files should be saved, please say so.  I setup a Pharo Git repo and played with it briefly for the first time yesterday.  I’ve used Pharo off an on for 16 years, but this is the first time I’m making a serious effort to manage source, and not throw away what I’m working on.)

  2. Filed-in PDFtalk.Pharo100.st.  This went on for about 7 minutes or so.  I have a hundreds if not over a thousand classes showing in Epicea.  Is there anyway to get Epicea to give me a count of changes with a time-range filter?

  3. Deleted (forgot) yesterday’s, old Main practice-repo from both the image and the drive, and made a new one.  I need to add to Main all the packages I just filed-in, but I don’t see an efficient way to do that.  I would like to use the Add Package button, but this gives a filtered list of available packages.  I can filter subgroups, and then individually select each of the checkboxes to the left of each package (there is no Ctrl-A [select all] option here, which seems to be a strange omission given the potentially large number of packages involved).  I see lots of prefixes for the classes just loaded.  I could easily miss something if I filter/select/add one prefix-group at a time.  Is there an easier way?  Over in Epicea I don’t see a way to push the loaded items listed to a specific repo.  The first thought I have is to select all filed-in code artifacts by datetime span.  I did that and saved it as an .ombu file (I have no idea what that is).  I don’t see a way to import that .ombu file into repo Main’s “Working copy” window.  It must be easy, but I don’t see it.  Please suggest the best way.

I’d like to know as well – I am not quite familiar with the source management concepts in Pharo.

I asked in Discord.  I don’t understand why stuff like this is missing.  The only conclusion I can draw is that no one does huge file-ins (but you do).

It is planned to generate Tonel output in the future, but for now I feel safer with the traditional fileout where I can have doIts. I am not sure how Tonel

reacts to crippled sources, which are normal during the development of the transformations.

Shaping

From: christian.haider <christian.haider@smalltalked-visuals.com mailto:christian.haider@smalltalked-visuals.com >
Sent: Wednesday, 22 June, 2022 05:42
To: pharo-users@lists.pharo.org mailto:pharo-users@lists.pharo.org
Subject: [Pharo-users] [PDFtalk] second fileOut for Squeak and Pharo

With help from the community some issues were fixed which improved the test statistics nicely.
Check it out: https://wiki.pdftalk.de/doku.php?id=portingblog#second_pdftalk_fileout_for_squeak_and_pharo

Thanks to everybody involved!

Happy hacking,
Christian

I will look, although this kind of always available on demand thing is too disruptive for me… I know what you mean. I try be disciplined about it. I really like to be able to fix typos, because there are almost always typos. But e-mail is okay. So that little example is a test that shows how the transformation is done. It converts just package Values to a Pharo-compatible file-in. My task is then to queue a bunch of ProjectChange instances like this one: SmalltalkTransform.Pharo100>> ValuesProject ^ProjectChange name: #Values source: (Array with: (Package name: #Values)) changes: (Valuemap with: 'Values' -> self ValuesTransform) Exactly but for my own packages. No bundles are transformed (just their contained packages) because Pharo doesn’t have bundles. Is that right? No, bundles are handled. For real examples, you need to look at the PDFtalk transforms. Yes, Pharo does not have a concept of bundles (ordered aggregates of packages). Instead it relies on a naming convention for packages. That convention is honored in the fileout, so that packages will be partly grouped in Pharo according to the category prefix. For each VW-package, one Pharo package is created. A bundle itself is also represented as Pharo package with one class About<bundlename> with class methods for the metadata of the bundle, including a method giving you the ordered list of component packages. So, all contents and metadata of packages and bundles are transformed for Pharo. No code or info gets lost. Okay. Is method ValuesTransform ^PackageChange ignoredNames: #(#{Smalltalk.GeneralBindingReference}) bridgeClasses: (Valuemap with: #{Timestamp} -> #DateAndTime with: #{Smalltalk.ColorValue} -> #Color) localChanges: self valuesLocalTransform extensions: (Array with: (SystemClassChange className: #Color instanceChanges: (Array with: (Add method: #asColorValue code: #_ph_asColorValue))) with: (SystemClassChange className: #TextStream instanceChanges: (Array with: (Add method: #nextPutAllText: code: #_ph_nextPutAllText:)))) written specifically for that package? I would think it applies to all packages. I see some expected mappings like Timestamp to DateAndTime. Yes, this method returns a PackageChange Value describing the transformations needed to create the Pharo fileout for this specific package (inspect the return value for the fully expanded Value). Methods exist with the same name for other Smalltalks. Depending on the dialect (or version of a dialect), the transforms are different. Squeak and Pharo are quite similar, because they share a common history, but VA or Gemstone need quite different transforms. So, in general, for each package, there is one such method/Value for each target Smalltalk/version. Okay. I do not dare to extract commonalities before the machinery is really robust and stable. For now everything is neatly separate and self-contained (and probably it will stay that way, although there are lots of duplications). The mapping of class names is the responsibility of the enclosing ProjectChange Value where you define the list of source bundles/packages to transform, the PackageChanges for all packages and the mapping of “global” names. (The bridge classes above are no renames, but a subclass relationship (is-a) to avoid renamings. The new class Timestamp will be created as subclass of DateAndTime which has almost the same semantics. Therefore, I can still use Timestamp which will be basically a DateAndTime now.) Okay. There is still a technical challenge here. Currently, a ProjectChange need to include all prerequisites (Values is part of the PDFtalk project and will be transformed with it). A ProjectWriter, which coordinates the transform, keeps track of the mappings when they are created (either explicitly or through a namespace renaming – see implementers of #PDFtalkProject). I would like to have this more modular: the mappings from the Values transformation should be persistently saved, so that other transformation projects can just use them, instead of including the sources into one own project. For this, I need to have renamings local to a package (where they first occur), not global on the project level. Right. For Values and Values Tests and Values Tools this works, because there are no mappings in the Values package. What about conversion of VW arrays to Pharo literal arrays? How is that done? (I think you mean dynamic arrays like {1. ‘abc’ size. 42} in which evaluation happens (in contrast to literal things which can be resolved already by the compiler). Yes, dynamic arrays. Not! Since a while, VW also has dynamic arrays, but not in VW 8.3 – the last publicly available version. Okay, I was wondering when that would happen. I will not shut out those users, because “open-source” would be quite absurd, if it is only available for paying customers. In 8.3, the compiler does not accept that syntax and therefore, there is no easy way to represent this in replacement code. So, no. It is not possible until Cincom releases an public version which can handle that. Okay. I recall that one of the Smalltalks (I don’t recall which) had Stream semantics differing from VW’s. … I just checked. VW’s #upTo: method includes the object and leaves the index after it, and Pharo’s excludes the object and leaves the index at the object. So that is some major breakage if we don’t correct it. Can it be done automatically? Yes, these are the usual porting challenges and exactly the reason why this library exists :). Thank you for the question :). Yes, the stream semantics need to be fixed. The idea is that a set of transforms for this issue can be reused by others. Okay. >> valuesLocalTransform has lots of juicy bits. But this doesn’t look very simple. We can’t just replace an old method with a new one. We also have to write the new one to tweak how the indices are used in #upTo:, and make sure that new method gets filed-in as well into the Pharo target image. Or, we have to do this kind of change manually. Naa, it’s very easy, I think :). A PackageChange specifies transforms for classes used in the package (#localChanges) and #extensions for system classes of the target. For a class, you can have a ClassChange describing the changes to instance or class methods. A MethodChange has 4 subclasses for: - Ignore – don’t write this method to the target - Add – add this new method (not in the source system) to the target - Replace – replace the body of this method with other code - Rewrite – rewrite the method source using a rewrite rule. Add and Replace need the target code. Add then always involves a new name for a method in the target. Replaces use an old name in the target with a new code body. This is stored in another method with a derived name like #_ph_upTo: . The method name is not important, because only the body of the method is used. But the name should not be used in the source – it is just a holder for the replacement code. These methods live in the specific [<Smalltalk> Fileout <Package>] package. Okay. There are lots of working(!) examples for all of those in the PDFtalk transform project. This bit (SystemClassChange className: #Color instanceChanges: (Array with: (Add method: #asColorValue code: #_ph_asColorValue))) is replacing #asColorValue with #_ph_asColorValue because some special Pharo-color conversion needs to happen. But how does #_ph_asColorValue get defined? It’s neither in VW nor in Pharo 10. You got bitten by the old version of [Pharo Fileout Values]. Please load [Pharo Fileout PDFtalk]. There, the methods exist. Yes, I see it now. Ok. I don’t have a virgin image. I have a very non-virgin image, about 27 years of development I’m trying to port to Pharo. I don’t yet have a specific interest in the PDFtalk, though I do see a need for PDF generation later, and will probably revisit that. For now, I just want my own stuff to run in Pharo. Virgin image just means that you don’t need anything else. You can safely load it in you favorite special images :). I would load PDFtalk, although technically you don’t need to (all the extensions to PDFtalk would be unloadable, but that doesn’t affect Values). Okay. is: Load {Values Project] bundle Load {PDFtalk Project} bundle Load {Smalltalk Transform Project} bundle Load [Pharo Fileout PDFtalk] package Save, done Okay, so do I understand correctly that I need to include the PDFtalk stuff even if I’m not interested in PDFtalk, because that’s where a lot of the Smalltalk transformation machinery lives? Or is the PDFtalk just being used as an example for how to do a massive transformation? Or Both? No, the transformation machinery is fully independent of PDFtalk. I just tried it. The dependencies are in the specific [Pharo Fileout PDFtalk] package, since I have already quite a few replacement methods which are extensions to PDFtalk classes. Okay. PDFtalk is the focus of the project and therefore all issues are solved first with this library in mind. Therefore, bundles and namespaces are handled, for example. When you study the more interesting transformations for PDFtalk, it would be a shame not to be able to browse the methods and classes involved. So, PDFtalk is the real world reference example. And Values is the simplest example. To transform Values do: “Pharo100 fileOutValues” The [Pharo Fileout PDFtalk] package includes the latest Values transformations. I am thinking about a better modularization… Also, the wiki is a bit out of control. It really needs some restructuring. In the cites wiki page, there is a link to a blog where I record the changes. This might be informative. 2. Port the Values package. This is easy, since no namespaces are involved. This first instruction after VW package setup says to port the contents of the Values package from VW to Pharo. Do you mean manually? Probably not. No, no. This has been finished in March. For each dialect, I have a GitHub repository where I release important versions: <https://github.com/PortingPDFtalk/PharoPDFtalk> https://github.com/PortingPDFtalk/PharoPDFtalk. You can find the working port as first release “ <https://github.com/PortingPDFtalk/PharoPDFtalk/releases/tag/1.3.0.0> Working version“. There you can download the ported Values fileout with the exact description with which versions of what it was created. This should be a good starting example. Why do I need any new code installed in Pharo before I begin the transformation, if I’m transforming code from VW to pharo? I’m not understanding the basic constraints of the problem, even when the detailed steps are clear. No, no. You don’t need anything on the Pharo side. The fileouts on GitHub are the end products of a transformation for people who don’t use VisualWorks, but want to use Values in Pharo. Or help with PDFtalk by fixing some issues, so that I can write the transformations. I’ve done these steps so far: 1. Went to <https://github.com/PortingPDFtalk/PharoPDFtalk> https://github.com/PortingPDFtalk/PharoPDFtalk. Mistake :). You don’t want to look at the unfinished product of the current version of thincomplete transformations for PDFtalk. Do you mean “finished” here? Isn’t that file-in the finished result? I thought the above links was the currently finished result (as good as it can be until the rest of the bugs are goine and tests all run). Yes, that was confusing. That’s why I had the early impression that Values was somehow apart of the transformation machinery. See https://wiki.pdftalk.de/doku.php?id=stateoftheport#pharo-10-0: Instead, you want to look at the unfinished product of the transformations of your projects :). 2. Saved down PDFtalk.Pharo100.st into <my Pharo 10 image directory>/pharo-local/Smalltalk-Transformation. (I figured that was a good place to save it. If anyone disagrees, or has a better or more conventional idea about where files should be saved, please say so. I setup a Pharo Git repo and played with it briefly for the first time yesterday. I’ve used Pharo off an on for 16 years, but this is the first time I’m making a serious effort to manage source, and not throw away what I’m working on.) 3. Filed-in PDFtalk.Pharo100.st. This went on for about 7 minutes or so. I have a hundreds if not over a thousand classes showing in Epicea. Is there anyway to get Epicea to give me a count of changes with a time-range filter? 4. Deleted (forgot) yesterday’s, old Main practice-repo from both the image and the drive, and made a new one. I need to add to Main all the packages I just filed-in, but I don’t see an efficient way to do that. I would like to use the Add Package button, but this gives a filtered list of available packages. I can filter subgroups, and then individually select each of the checkboxes to the left of each package (there is no Ctrl-A [select all] option here, which seems to be a strange omission given the potentially large number of packages involved). I see lots of prefixes for the classes just loaded. I could easily miss something if I filter/select/add one prefix-group at a time. Is there an easier way? Over in Epicea I don’t see a way to push the loaded items listed to a specific repo. The first thought I have is to select all filed-in code artifacts by datetime span. I did that and saved it as an .ombu file (I have no idea what that is). I don’t see a way to import that .ombu file into repo Main’s “Working copy” window. It must be easy, but I don’t see it. Please suggest the best way. I’d like to know as well – I am not quite familiar with the source management concepts in Pharo. I asked in Discord. I don’t understand why stuff like this is missing. The only conclusion I can draw is that no one does huge file-ins (but you do). It is planned to generate Tonel output in the future, but for now I feel safer with the traditional fileout where I can have doIts. I am not sure how Tonel reacts to crippled sources, which are normal during the development of the transformations. Shaping From: christian.haider <christian.haider@smalltalked-visuals.com <mailto:christian.haider@smalltalked-visuals.com> > Sent: Wednesday, 22 June, 2022 05:42 To: pharo-users@lists.pharo.org <mailto:pharo-users@lists.pharo.org> Subject: [Pharo-users] [PDFtalk] second fileOut for Squeak and Pharo With help from the community some issues were fixed which improved the test statistics nicely. Check it out: https://wiki.pdftalk.de/doku.php?id=portingblog#second_pdftalk_fileout_for_squeak_and_pharo Thanks to everybody involved! Happy hacking, Christian
